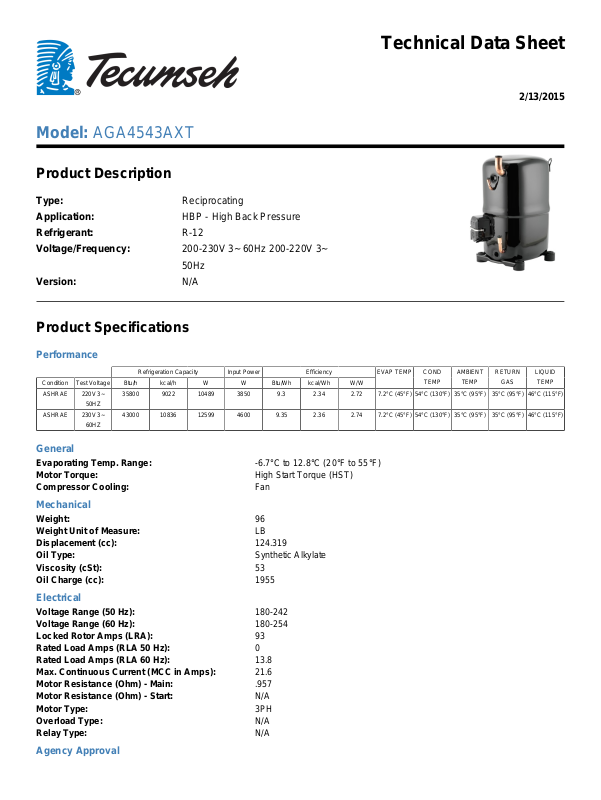

Tecumseh AGA4543AXT Technical Data Sheet

Model: AGA4543AXT

Product Description

Type: Reciprocating
Application: HBP - High Back Pressure
Refrigerant: R-12
Voltage/Frequency: 200-230V 3~ 60Hz 200-220V 3~

50Hz

Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V 3~

50HZ

ASHRAE 230V 3~

60HZ

35800 9022 10489 3850 9.3 2.34 2.72 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

43000 10836 12599 4600 9.35 2.36 2.74 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 96
Weight Unit of Measure: LB
Displacement (cc): 124.319
Oil Type: Synthetic Alkylate
Viscosity (cSt): 53
Oil Charge (cc): 1955

Electrical

Voltage Range (50 Hz): 180-242
Voltage Range (60 Hz): 180-254
Locked Rotor Amps (LRA): 93
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 13.8
Max. Continuous Current (MCC in Amps): 21.6
Motor Resistance (Ohm) - Main: .957
Motor Resistance (Ohm) - Start: N/A
Motor Type: 3PH
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

cURus Recognized
