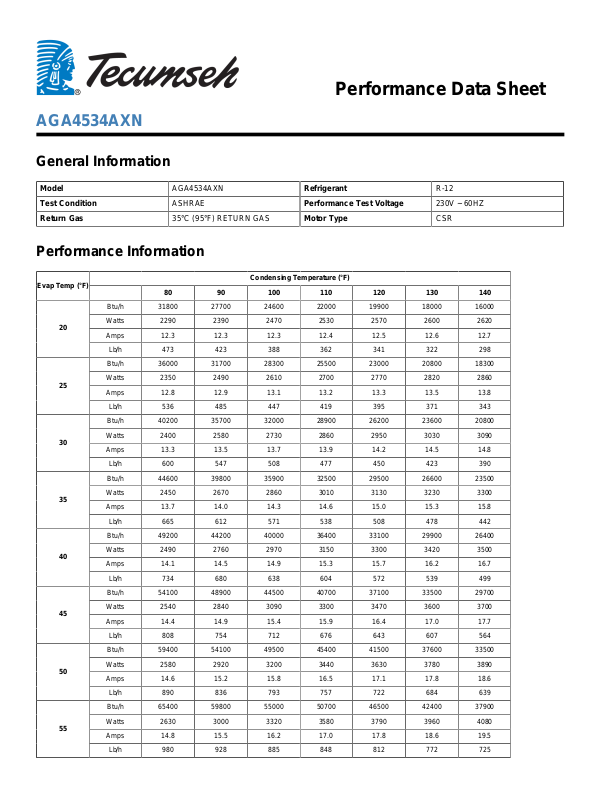

Tecumseh AGA4534AXN Performance Data Sheet

Performance Data Sheet

AGA4534AXN

General Information

Model AGA4534AXN Refrigerant R-12
Test Condition ASHRAE Performance Test Voltage 230V ~ 60HZ
Return Gas 35°C (95°F) RETURN GAS Motor Type CSR

Performance Information

Evap Temp (°F)

20

25

30

35

40

45

50

55

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 31800 27700 24600 22000 19900 18000 16000
Watts 2290 2390 2470 2530 2570 2600 2620
Amps 12.3 12.3 12.3 12.4 12.5 12.6 12.7

Lb/h 473 423 388 362 341 322 298

Btu/h 36000 31700 28300 25500 23000 20800 18300
Watts 2350 2490 2610 2700 2770 2820 2860
Amps 12.8 12.9 13.1 13.2 13.3 13.5 13.8

Lb/h 536 485 447 419 395 371 343

Btu/h 40200 35700 32000 28900 26200 23600 20800
Watts 2400 2580 2730 2860 2950 3030 3090
Amps 13.3 13.5 13.7 13.9 14.2 14.5 14.8

Lb/h 600 547 508 477 450 423 390

Btu/h 44600 39800 35900 32500 29500 26600 23500
Watts 2450 2670 2860 3010 3130 3230 3300
Amps 13.7 14.0 14.3 14.6 15.0 15.3 15.8

Lb/h 665 612 571 538 508 478 442

Btu/h 49200 44200 40000 36400 33100 29900 26400
Watts 2490 2760 2970 3150 3300 3420 3500
Amps 14.1 14.5 14.9 15.3 15.7 16.2 16.7

Lb/h 734 680 638 604 572 539 499

Btu/h 54100 48900 44500 40700 37100 33500 29700
Watts 2540 2840 3090 3300 3470 3600 3700
Amps 14.4 14.9 15.4 15.9 16.4 17.0 17.7

Lb/h 808 754 712 676 643 607 564

Btu/h 59400 54100 49500 45400 41500 37600 33500
Watts 2580 2920 3200 3440 3630 3780 3890
Amps 14.6 15.2 15.8 16.5 17.1 17.8 18.6

Lb/h 890 836 793 757 722 684 639

Btu/h 65400 59800 55000 50700 46500 42400 37900
Watts 2630 3000 3320 3580 3790 3960 4080
Amps 14.8 15.5 16.2 17.0 17.8 18.6 19.5

Lb/h 980 928 885 848 812 772 725

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.042490E+05 2.005716E+03 8.390603E+00 1.646455E+03
C2 1.305165E+03 -8.723377E+01 9.512375E-02 1.802668E+01
C3 -2.177437E+03 1.028455E+01 6.352193E-02 -3.643727E+01
C4 -1.114167E+01 -1.578705E-01 -2.537660E-03 -2.417735E-01
C5 -7.537323E-01 1.760238E+00 1.006160E-03 3.704379E-02
C6 1.632826E+01 -1.874838E-01 -8.980298E-04 2.871528E-01
C7 1.380952E-01 2.780959E-03 1.809468E-06 2.402640E-03
C8 1.665682E-02 -2.312990E-03 1.286151E-05 7.751382E-04
C9 -2.736977E-02 -4.793055E-03 1.334713E-07 -6.071516E-04

C10 -4.166618E-02 6.250012E-04 3.125002E-06 -7.534493E-04

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
