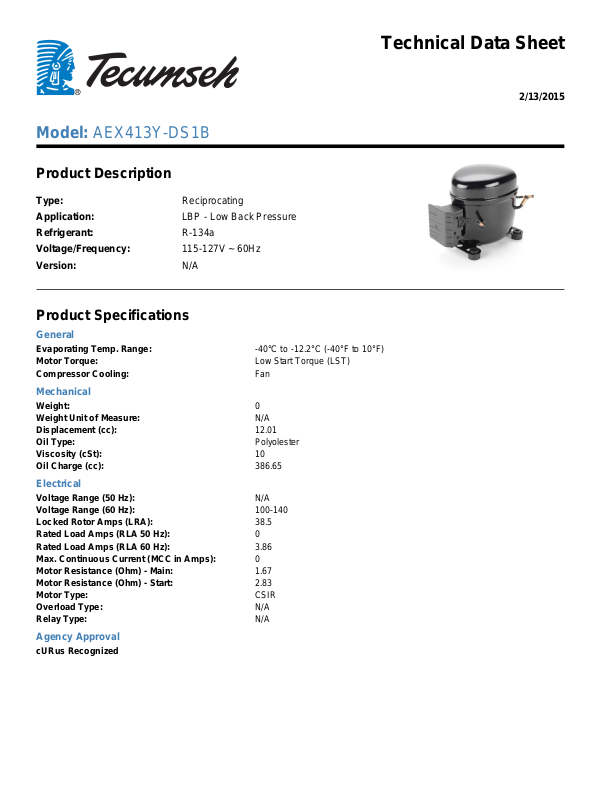

Tecumseh AEX413Y-DS1B Technical Data Sheet

Model: AEX413Y-DS1B

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-134a
Voltage/Frequency: 115-127V ~ 60Hz
Version: N/A

Product Specifications

General

Evaporating Temp. Range: -40°C to -12.2°C (-40°F to 10°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Technical Data Sheet

2/13/2015

Mechanical

Weight: 0
Weight Unit of Measure: N/A
Displacement (cc): 12.01
Oil Type: Polyolester
Viscosity (cSt): 10
Oil Charge (cc): 386.65

Electrical

Voltage Range (50 Hz): N/A
Voltage Range (60 Hz): 100-140
Locked Rotor Amps (LRA): 38.5
Rated Load Amps (RLA 50 Hz): 0
Rated Load Amps (RLA 60 Hz): 3.86
Max. Continuous Current (MCC in Amps): 0
Motor Resistance (Ohm) - Main: 1.67
Motor Resistance (Ohm) - Start: 2.83
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

Agency Approval

cURus Recognized
