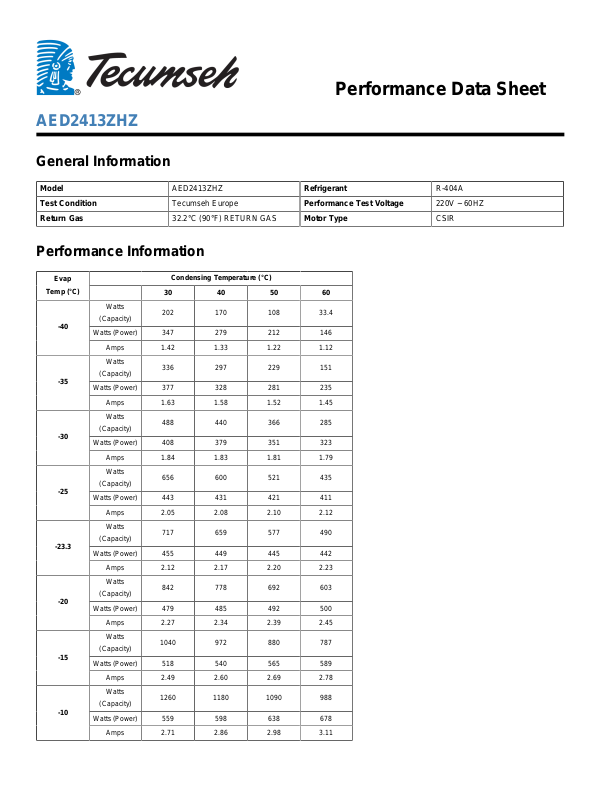

Tecumseh AED2413ZHZ Performance Data Sheet

Performance Data Sheet

AED2413ZHZ

General Information

Model AED2413ZHZ Refrigerant R-404A
Test Condition Tecumseh Europe Performance Test Voltage 220V ~ 60HZ
Return Gas 32.2°C (90°F) RETURN GAS Motor Type CSIR

Performance Information

Evap

Temp (°C)

-40

-35

-30

-25

-23.3

-20

-15

-10

Condensing Temperature (°C)

30 40 50 60

Watts

(Capacity)

Watts (Power) 347 279 212 146

Amps 1.42 1.33 1.22 1.12
Watts

(Capacity)

Watts (Power) 377 328 281 235

Amps 1.63 1.58 1.52 1.45
Watts

(Capacity)

Watts (Power) 408 379 351 323

Amps 1.84 1.83 1.81 1.79
Watts

(Capacity)

Watts (Power) 443 431 421 411

Amps 2.05 2.08 2.10 2.12
Watts

(Capacity)

Watts (Power) 455 449 445 442

Amps 2.12 2.17 2.20 2.23
Watts

(Capacity)

Watts (Power) 479 485 492 500

Amps 2.27 2.34 2.39 2.45
Watts

(Capacity)

Watts (Power) 518 540 565 589

Amps 2.49 2.60 2.69 2.78
Watts

(Capacity)

Watts (Power) 559 598 638 678

Amps 2.71 2.86 2.98 3.11

202 170 108 33.4

336 297 229 151

488 440 366 285

656 600 521 435

717 659 577 490

842 778 692 603

1040 972 880 787

1260 1180 1090 988

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.798700E+03 4.699482E+02 2.180780E+00
C2 6.053852E+01 8.685563E-01 2.609948E-02
C3 8.477281E+00 4.966241E+00 4.574920E-02
C4 3.493370E-01 9.126259E-02 1.483270E-04
C5 -3.348231E-01 2.868286E-01 7.010450E-04
C6 -4.202124E-01 4.137060E-02 -5.312760E-04
C7 0.000000E+00 0.000000E+00 0.000000E+00
C8 -2.350780E-04 -1.478774E-03 -2.699680E-06
C9 2.260000E-03 -6.700000E-05 -7.330000E-07

C10 2.990000E-03 -2.830000E-04 3.480000E-06

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
