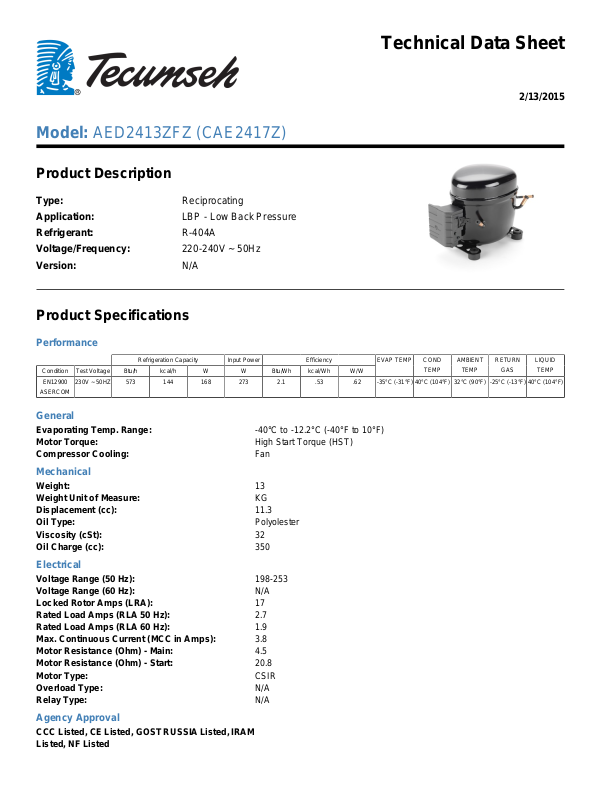

Tecumseh AED2413ZFZ Technical Data Sheet

Model: AED2413ZFZ (CAE2417Z)

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-404A
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
EN12900

ASERCOM

230V ~ 50HZ 573 144 168 273 2.1 .53 .62 -35°C (-31°F) 40°C (104°F) 32°C (90°F) -25°C (-13°F) 40°C (104°F)

General

Evaporating Temp. Range: -40°C to -12.2°C (-40°F to 10°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 13
Weight Unit of Measure: KG
Displacement (cc): 11.3
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 350

Electrical

Voltage Range (50 Hz): 198-253
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 17
Rated Load Amps (RLA 50 Hz): 2.7
Rated Load Amps (RLA 60 Hz): 1.9
Max. Continuous Current (MCC in Amps): 3.8
Motor Resistance (Ohm) - Main: 4.5
Motor Resistance (Ohm) - Start: 20.8
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

CCC Listed, CE Listed, GOST RUSSIA Listed, IRAM
Listed, NF Listed
