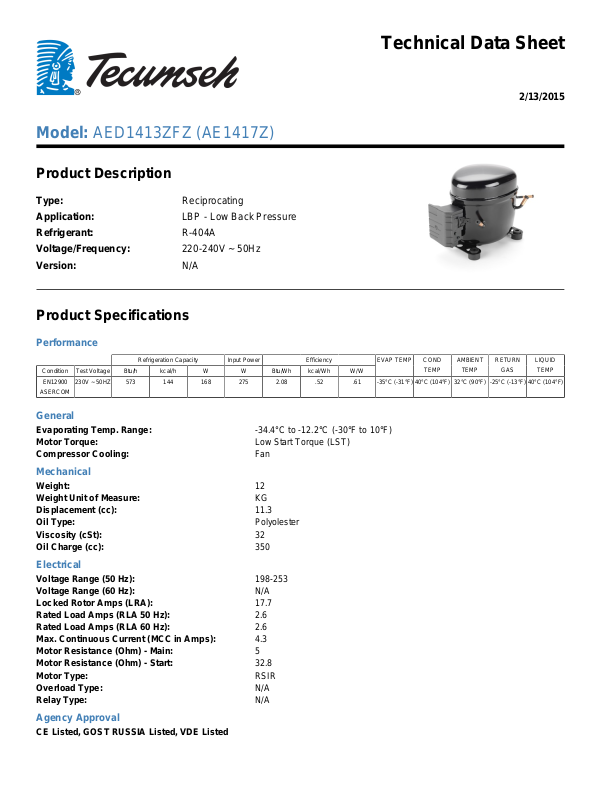

Tecumseh AED1413ZFZ Technical Data Sheet

Model: AED1413ZFZ (AE1417Z)

Product Description

Type: Reciprocating
Application: LBP - Low Back Pressure
Refrigerant: R-404A
Voltage/Frequency: 220-240V ~ 50Hz
Version: N/A

Product Specifications

Technical Data Sheet

2/13/2015

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
EN12900

ASERCOM

230V ~ 50HZ 573 144 168 275 2.08 .52 .61 -35°C (-31°F) 40°C (104°F) 32°C (90°F) -25°C (-13°F) 40°C (104°F)

EVAP TEMP COND

General

Evaporating Temp. Range: -34.4°C to -12.2°C (-30°F to 10°F)
Motor Torque: Low Start Torque (LST)
Compressor Cooling: Fan

Mechanical

Weight: 12
Weight Unit of Measure: KG
Displacement (cc): 11.3
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 350

Electrical

Voltage Range (50 Hz): 198-253
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 17.7
Rated Load Amps (RLA 50 Hz): 2.6
Rated Load Amps (RLA 60 Hz): 2.6
Max. Continuous Current (MCC in Amps): 4.3
Motor Resistance (Ohm) - Main: 5
Motor Resistance (Ohm) - Start: 32.8
Motor Type: RSIR
Overload Type: N/A
Relay Type: N/A

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

Agency Approval

CE Listed, GOST RUSSIA Listed, VDE Listed
