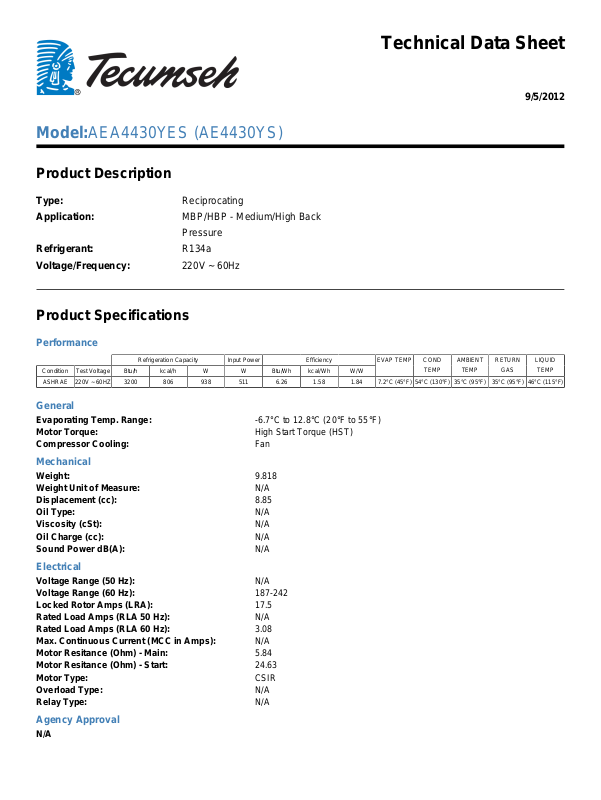

Tecumseh AEA4430YES User Manual

Model:AEA4430YES (AE4430YS)

Product Description

Type: Reciprocating
Application: MBP/HBP - Medium/High Back

Pressure

Refrigerant: R134a
Voltage/Frequency: 220V ~ 60Hz

Product Specifications

Technical Data Sheet

9/5/2012

Performance

Refrigeration Capacity Input Power Efficiency
Condition Test Voltage Btu/h kcal/h W W Btu/Wh kcal/Wh W/W
ASHRAE 220V ~ 60HZ 3200 806 938 511 6.26 1.58 1.84 7.2°C (45°F) 54°C (130°F) 35°C (95°F) 35°C (95°F) 46°C (115°F)

EVAP TEMP COND

TEMP

AMBIENT

TEMP

RETURN

GAS

LIQUID

TEMP

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 9.818
Weight Unit of Measure: N/A
Displacement (cc): 8.85
Oil Type: N/A
Viscosity (cSt): N/A
Oil Charge (cc): N/A
Sound Power dB(A): N/A

Electrical

Voltage Range (50 Hz): N/A
Voltage Range (60 Hz): 187-242
Locked Rotor Amps (LRA): 17.5
Rated Load Amps (RLA 50 Hz): N/A
Rated Load Amps (RLA 60 Hz): 3.08
Max. Continuous Current (MCC in Amps): N/A
Motor Resitance (Ohm) - Main: 5.84
Motor Resitance (Ohm) - Start: 24.63
Motor Type: CSIR
Overload Type: N/A
Relay Type: N/A

Agency Approval

N/A
