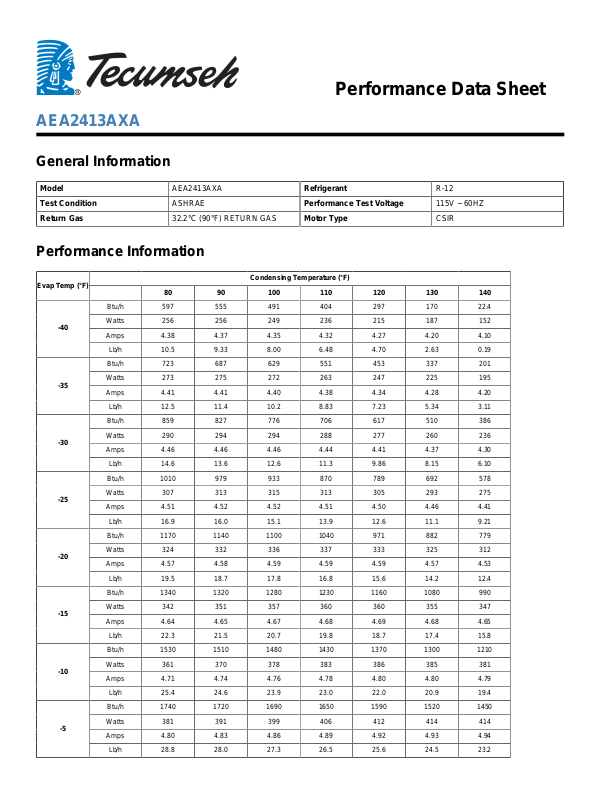

Tecumseh AEA2413AXA Performance Data Sheet

Performance Data Sheet

AEA2413AXA

General Information

Model AEA2413AXA Refrigerant R-12
Test Condition ASHRAE Performance Test Voltage 115V ~ 60HZ
Return Gas 32.2°C (90°F) RETURN GAS Motor Type CSIR

Performance Information

Evap Temp (°F)

-40

-35

-30

-25

-20

-15

-10

-5

Condensing Temperature (°F)

80 90 100 110 120 130 140

Btu/h 597 555 491 404 297 170 22.4
Watts 256 256 249 236 215 187 152
Amps 4.38 4.37 4.35 4.32 4.27 4.20 4.10

Lb/h 10.5 9.33 8.00 6.48 4.70 2.63 0.19

Btu/h 723 687 629 551 453 337 201
Watts 273 275 272 263 247 225 195
Amps 4.41 4.41 4.40 4.38 4.34 4.28 4.20

Lb/h 12.5 11.4 10.2 8.83 7.23 5.34 3.11

Btu/h 859 827 776 706 617 510 386
Watts 290 294 294 288 277 260 236
Amps 4.46 4.46 4.46 4.44 4.41 4.37 4.30

Lb/h 14.6 13.6 12.6 11.3 9.86 8.15 6.10

Btu/h 1010 979 933 870 789 692 578
Watts 307 313 315 313 305 293 275
Amps 4.51 4.52 4.52 4.51 4.50 4.46 4.41

Lb/h 16.9 16.0 15.1 13.9 12.6 11.1 9.21

Btu/h 1170 1140 1100 1040 971 882 779
Watts 324 332 336 337 333 325 312
Amps 4.57 4.58 4.59 4.59 4.59 4.57 4.53

Lb/h 19.5 18.7 17.8 16.8 15.6 14.2 12.4

Btu/h 1340 1320 1280 1230 1160 1080 990
Watts 342 351 357 360 360 355 347
Amps 4.64 4.65 4.67 4.68 4.69 4.68 4.65

Lb/h 22.3 21.5 20.7 19.8 18.7 17.4 15.8

Btu/h 1530 1510 1480 1430 1370 1300 1210
Watts 361 370 378 383 386 385 381
Amps 4.71 4.74 4.76 4.78 4.80 4.80 4.79

Lb/h 25.4 24.6 23.9 23.0 22.0 20.9 19.4

Btu/h 1740 1720 1690 1650 1590 1520 1450
Watts 381 391 399 406 412 414 414
Amps 4.80 4.83 4.86 4.89 4.92 4.93 4.94

Lb/h 28.8 28.0 27.3 26.5 25.6 24.5 23.2

Btu/h 1960 1950 1920 1880 1830 1770 1700

0

5

10

COEFFICIENTS CAPACITY POWER CURRENT MASS FLOW

C1 1.583984E+03 3.541786E+02 5.278386E+00 4.513838E+01
C2 5.572684E+01 9.893916E+00 2.683981E-02 9.109036E-01
C3 1.122372E+01 -2.488505E-01 -1.623428E-02 -3.027348E-01
C4 5.075458E-01 9.776165E-02 2.465798E-04 9.494031E-03
C5 -2.132694E-01 -1.237290E-01 -2.232432E-04 -3.177657E-03
C6 -9.006116E-02 1.621218E-02 1.939745E-04 2.541673E-03
C7 1.901688E-03 4.093891E-04 1.162023E-06 3.512246E-05
C8 -1.371923E-03 -7.467187E-04 2.386127E-08 -2.999381E-05
C9 1.305022E-03 7.072170E-04 1.908953E-06 1.869298E-05

C10 1.119140E-04 -6.958223E-05 -6.231948E-07 -9.224597E-06

Watts 402 412 422 430 438 443 446
Amps 4.90 4.93 4.97 5.01 5.05 5.08 5.10

Lb/h 32.5 31.8 31.1 30.3 29.5 28.5 27.3

Btu/h 2210 2190 2160 2130 2080 2030 1960
Watts 426 436 445 455 464 472 478
Amps 5.01 5.05 5.10 5.14 5.19 5.23 5.27

Lb/h 36.5 35.8 35.1 34.4 33.6 32.7 31.6

Btu/h 2470 2460 2430 2400 2350 2300 2250
Watts 452 461 470 481 491 501 510
Amps 5.14 5.18 5.23 5.29 5.35 5.40 5.45

Lb/h 41.0 40.2 39.5 38.8 38.1 37.2 36.1

Value = C1 + C2 * Te + C4 * Te^2 + C7 * Te^3 + (C3 + C5 * Te + C8 * Te^2) * Tc + (C6 + C9 * Te) * Tc^2 + C10 * Tc^3

Te = Evaporator Temperature

Tc = Condensing Temperature
