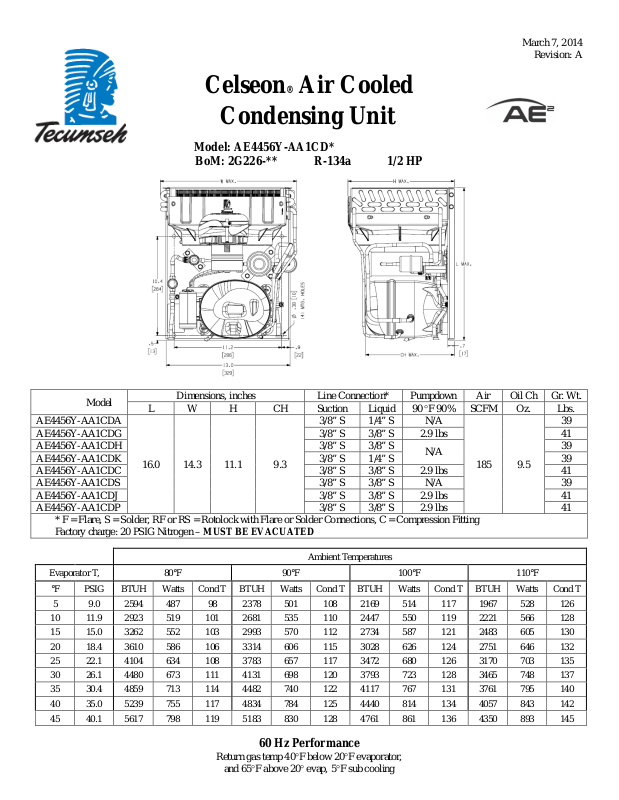

Tecumseh AE4456Y-AA1CDG, AE4456Y-AA1CDH, AE4456Y-AA1CDA, AE4456Y-AA1CDC, AE4456Y-AA1CDJ Performance Data Sheet

...

Celseon® Air Cooled

Dimensions, inches
Line Connection*
Pumpdown
Air
Oil Ch
Gr. Wt.
L W H
CH
Suction
Liquid
90 °F 90%
SCFM
Oz.
Lbs.

AE4456Y-AA1CDA

3/8” S
1/4” S
N/A
39

AE4456Y-AA1CDG

3/8” S
3/8” S
2.9 lbs
41

AE4456Y-AA1CDH

3/8” S
3/8” S
39

AE4456Y-AA1CDK

3/8” S
1/4” S
39

AE4456Y-AA1CDC

3/8” S
3/8” S
2.9 lbs
41

AE4456Y-AA1CDS

3/8” S
3/8” S
N/A
39
AE4456Y-AA1CDJ
3/8” S
3/8” S
2.9 lbs
41
AE4456Y-AA1CDP
3/8” S
3/8” S
2.9 lbs
41
* F = Flare, S = Solder, RF or RS = Rotolock with Flare or Solder Connections, C = Compression Fitting Factory charge: 20 PSIG Nitrogen – MUST BE EVACUATED
°F
PSIG
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
BTUH
Watts
Cond T
10
11.9
2923
519
101
2681
535
110
2447
550
119
2221
566
128
15
15.0
3262
552
103
2993
570
112
2734
587
121
2483
605
130
25
22.1
4104
634
108
3783
657
117
3472
680
126
3170
703
135
30
26.1
4480
673
111
4131
698
120
3793
723
128
3465
748
137
40
35.0
5239
755
117
4834
784
125
4440
814
134
4057
843
142
45
40.1
5617
798
119
5183
830
128
4761
861
136
4350
893
145

Condensing Unit

Model: AE4456Y-AA1CD*

BoM: 2G226-** R-134a 1/2 HP

March 7, 2014
Revision: A
Model
N/A
16.0 14.3 11.1 9.3
Ambient Temperatures
Evaporator T, 80°F 90°F 100°F 110°F
5 9.0 2594 487 98 2378 501 108 2169 514 117 1967 528 126
20 18.4 3610 586 106 3314 606 115 3028 626 124 2751 646 132
185 9.5
35 30.4 4859 713 114 4482 740 122 4117 767 131 3761 795 140

60 Hz Performance

Return gas temp 40°F below 20°F evaporator,
and 65°F above 20° evap, 5°F sub cooling
Specifications/ Parts:
Unit Model

AE4456Y-AA1CDA

Unit Model

AE4456Y-AA1CDG

Unit Bill of Material
2G226-09
Unit Bill of Material
2G226-19
Refrigeration Range
5 F to 45° F
Receiver Tank
510-10000
Design Pressure Low
150
Liquid Valve
56659
Design Pressure High
450
Suction Valve
56659
Nominal Volts-Hz-Ph
115-60-1
Voltage Range
103-127
Unit Model

AE4456Y-AA1CDH

Min. Circuit Ampacity
14.8
Unit Bill of Material
2G226-29
Max. Fuse Size (amps)
25
Liquid Valve
56659
Suction Valve
56659
Compressor Model
AE4456Y-AA1C
Comp. Bill of Material
AE-1165-E
Unit Model

AE4456Y-AA1CDK

Compressor RLA/LRA
11.5/44.5
Unit Bill of Material
2G226-39
Overload
External
Power Cord
85106-14
Relay
RP7708-ZR
Run Capacitor
N/A
Unit Model

AE4456Y-AA1CDC

Run Capacitor Rating
N/A
Unit Bill of Material
2G226-59
Start Capacitor
85PS165D89
Receiver Tank
510-10000
Start Capacitor Rating
270-324 MFD 165V
Liquid Valve
56659
Suction Valve
56659
Fan Motor
810-10001
Power Cord
85106-14
Fan Motor RLA
.38
Fan Blade
515-10002
Unit Model

AE4456Y-AA1CDS

Fan Shroud/Guard Combo
707-00004
Unit Bill of Material
2G226-69
Condenser
506-10035
Liquid Valve
56659
Suction Valve
56659
Unit Drawing
DGU1972-02
Power Cord
85106-14

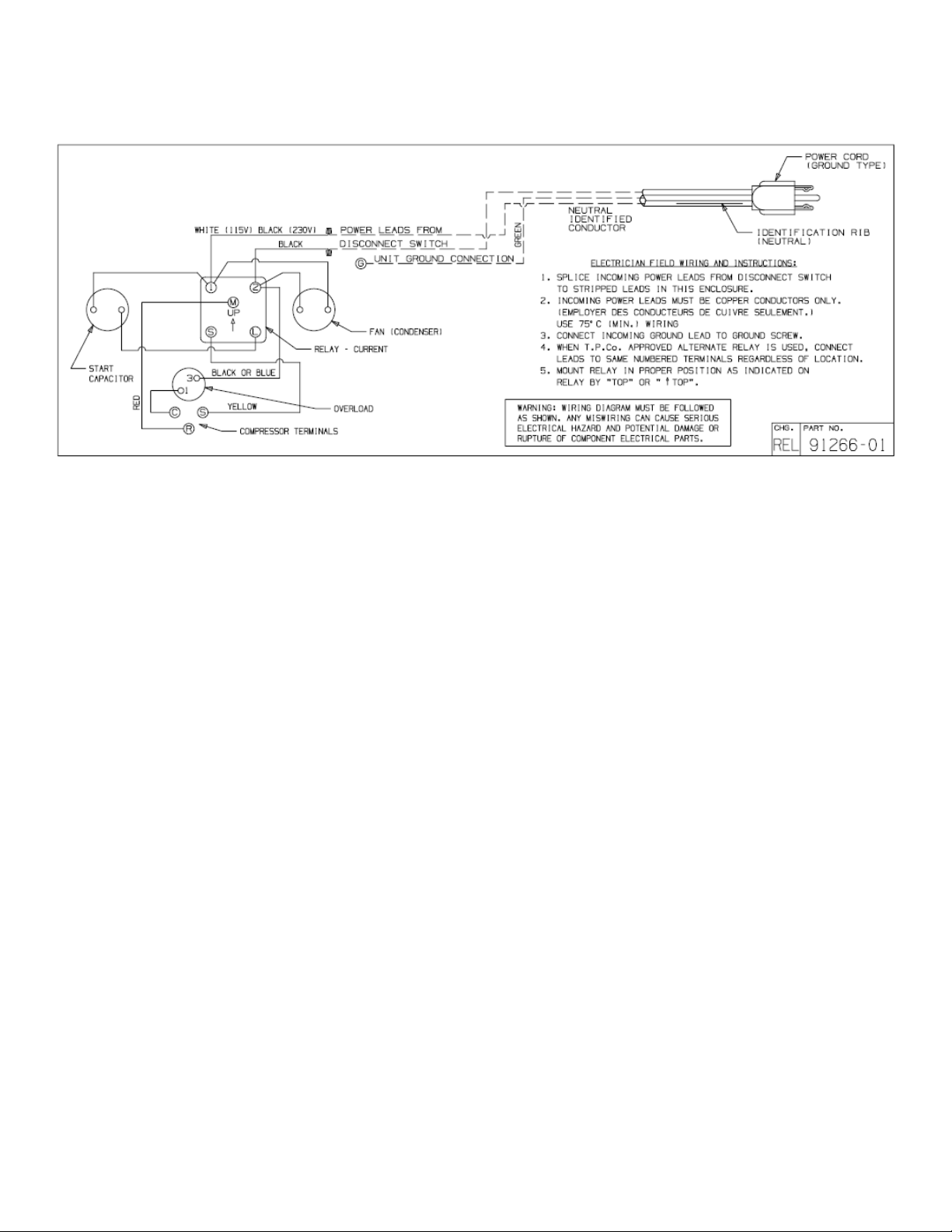

Wiring Diagram
91266-01
Unit Model

AE4456Y-AA1CDJ

Replacement Kit: Relay
K71-49
Unit Bill of Material
2G226-79
Replacement Kit: O/L
K90-70
Receiver Tank
510-10000
Liquid Valve
56659
Suction Valve
56659
Filter Drier
71116
Sight Glass
70084
Unit Model

AE4456Y-AA1CDP

Unit Bill of Material
2G226-89
Receiver Tank
510-10000
Liquid Valve
56659
Suction Valve
56659
Power Cord
85106-14
Filter Drier
71116
Sight Glass
70084
March 7, 2014
Revision: A
