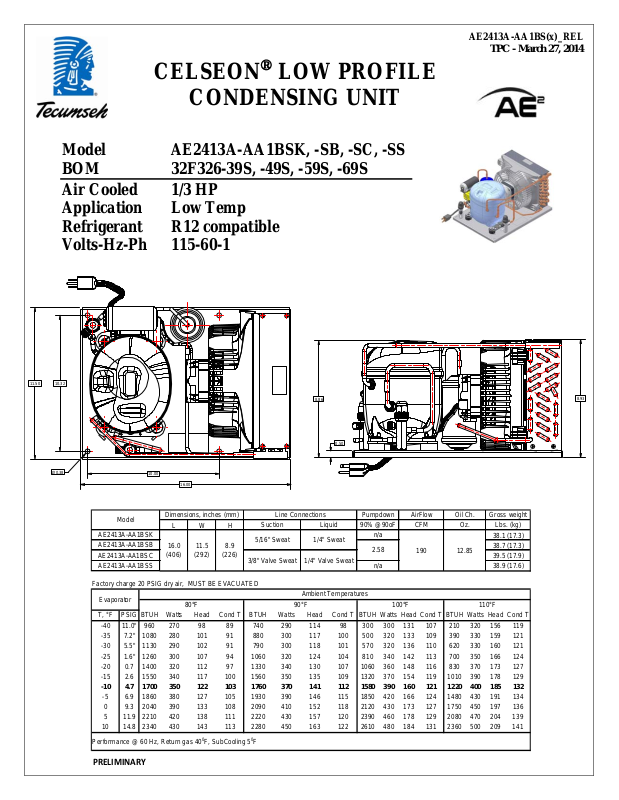

Tecumseh AE2413A-AA1BSC, AE2413A-AA1BSS Performance Data Sheet

AE2413A-AA1BS(x)_REL

TPC - March 27, 2014

CELSEONy LOW PROFILE

CONDENSING UNIT

Model AE2413A-AA1BSK, -SB, -SC, -SS BOM 32F326-39S, -49S, -59S, -69S

Air Cooled 1/3 HP Application Low Temp Refrigerant R12 compatible Volts-Hz-Ph 115-60-1

11.50 10.32

Ø0.38

8.86

0.50

10.00

16.00

Model

AE2413A-AA1BSK AE2413A-AA1BSB AE2413A-AA1BSC AE2413A-AA1BSS n/a

Factory charge 20 PSIG dry air, MUST BE EVACUATED

Evaporator

T, °F PSIG BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T BTUH Watts Head Cond T

-40 11.0" 960 270 98 89 740 290 114 98 300 300 131 107 210 320 156 119

-35 7.2" 1080 280 101 91 880 300 117 100 500 320 133 109 390 330 159 121

-30 5.5" 1130 290 102 91 790 300 118 101 570 320 136 110 620 330 160 121

-25 1.6" 1260 300 107 94 1060 320 124 104 810 340 142 113 700 350 166 124

-20 0.7 1400 320 112 97 1330 340 130 107 1060 360 148 116 830 370 173 127

-15 2.6 1550 340 117 100 1560 350 135 109 1320 370 154 119 1010 390 178 129

-10 4.7 1700 350 122 103 1760 370 141 112 1580 390 160 121 1220 400 185 132

-5 6.9 1860 380 127 105 1930 390 146 115 1850 420 166 124 1480 430 191 134 0 9.3 2040 390 133 108 2090 410 152 118 2120 430 173 127 1750 450 197 136 5 11.9 2210 420 138 111 2220 430 157 120 2390 460 178 129 2080 470 204 139

10 14.8 2340 430 143 113 2280 450 163 122 2610 480 184 131 2360 500 209 141

Performance @ 60 Hz, Return gas 40

Dimensions, inches (mm) Line Connections Pumpdown AirFlow Gross weight

LWH

16.0

11.5

(406)

(292)

80°F 90°F 100°F 110°F

8.9

(226)

F, SubCooling 50F

Suction Liquid 90% @90oF CFM Oz. Lbs. (kg)

5/16" Sweat 1/4" Sweat

3/8" Valve Sweat 1/4" Valve Sweat

Ambient Temperatures

n/a

2.58

190 12.85

Oil Ch.

38.1 (17.3)

38.7 (17.3)

39.5 (17.9)

38.9 (17.6)

8.93

PRELIMINARY

AE2413A-AA1BS(x)_REL

TPC - March 27, 2014

Parts/Specifications

Unit BOM 32F326-39S Condense Unit MODEL AE2413A-AA 1BSK Fan Guard 116-002P

Condenser, Fan Guard Kit K135-02 Refrigerant R12 compatible Power Cord 85106-10 Refrigeration RANGE Design Pressure Low 150 Fan Motor 810L009B96 Design Pressure High 300 Fan Blade 4VEA010 Volts - HZ - Ph 115V ~ 60HZ Replacement Fan Motor 9W115 Voltage Range 103.5 - 126.5 Min. Circuit Ampacity Max. Fuse Size 15

Compressor MODEL AE2413A-AA1B Compressor BOM AE-1255-E Compressor LR Compressor RLA 4.17 Unit MODEL AE2413A-AA1BSB

OverLoad T9232-24-ZP Replacement Kit - O/L Unit BOM 32F326-59S Relay RP5908-ZR Replacement Kit - Relay Liquid Receiver 51085-1 Run Capacitor Liquid Valve 56605 Run Capacitor Rating Suction Valve 56604 Start Capacitor 85PS165E16 Start Capacitor Rating

Unit drawing DGU DGU1896-G103 Liquid Valve 56605 Electrical Diagram DEAE-10 Suction Valve 56604

-40°F to 10°F

Fan Motor, Blade, Guard assy

5.79

29 Unit BOM 32F326-49S

324-389 MFD 165V

Fan Motor RLA 0.58

Liquid Receiver 51085-1

Unit MODEL AE2413A-AA1BSC

Unit BOM 32F326-69S

Unit MODEL AE2413A-AA1BSS

506-G434

GFBG-109
