2510-2510-024 Page 1 of 4
Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
1 772146 Transaxle Cover (Incl. 2, 2A, 2B & 2C )1
2B 780099 Needle Bearing 1-1/4"2
2C 780100 Needle Bearing 1"2
2 780097 Needle Bearing 1"2
2A 780098 Needle Bearing 2"2
3 770060B Transaxle Case (Incl. 2, 2A, 2B & 2C)1
4 776418 Countershaft1
5 776120A Output Shaft (13 teeth)1
6 778098 Spur Gear (37 teeth)1
13 778158 Bevel Gear (16 teeth-steel)2
14 778157 Bevel Pinion (10 teeth-steel)2
15 778156 Ring Gear (47 teeth)1
16 786098 Drive Block2
17 786096 Drive Pin1
18 786094 Spacer1
21 792068 Set Screw 1/4-20 x 1/2"1
24 780012 Thrust Bearing1
25 792067 Screw 5/16-18 x 1"14
26 792062 Retaining Ring2
29 780045 Thrust Washer3
29B 780157 Thrust Washer2
31 780156 Thrust Washer2
31A 780130 Thrust Washer 1-3/4" ID2
39 786026 Dowel Pin2
47 775038 Axle (17-61/64" long)1
48 775039 Axle (15-9/64" long)1
49 778087 Bevel Gear (30 teeth-steel)1
50 778088 Spur Gear (16 teeth-steel)1
58A 778160 Spur Gear (27 teeth-steel)1
67A 776419A Shifter & Brake Shaft1
85A 792019 Magnetic Drain Plug1
85B 792154 Tube Plug1
85 792010 Pipe Plug 3/8"2
87A 788008 Oil Seal 1"1
87 788008 Oil Seal 1"2
89 780103 Ball Bearing 1-1/8"2
92 780005 Thrust Washer1
96 780104 Thrust Bearing2
101 774515 Differential Carrier1
102 774514 Differential Carrier1
103 792101 Screw 3/8-16 x 2-3/4"6
104 792011 Lockwasher 11/32"6
124 788047 Gasket1
136 782061 Axle Housing1
138 782060 Axle Housing1
155 792065 Screw 1/2-13 x 1-1/2"12
156 792066 Lockwasher12
157 788049 Oil Seal 1-1/8"2
163 788048 Square Cut Ring2
2510-2510-024 Page 2 of 4
Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
2510-2510-024 Page 3 of 4
Peerless #2
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
18 786094 Spacer1
24 780012 Thrust Bearing1

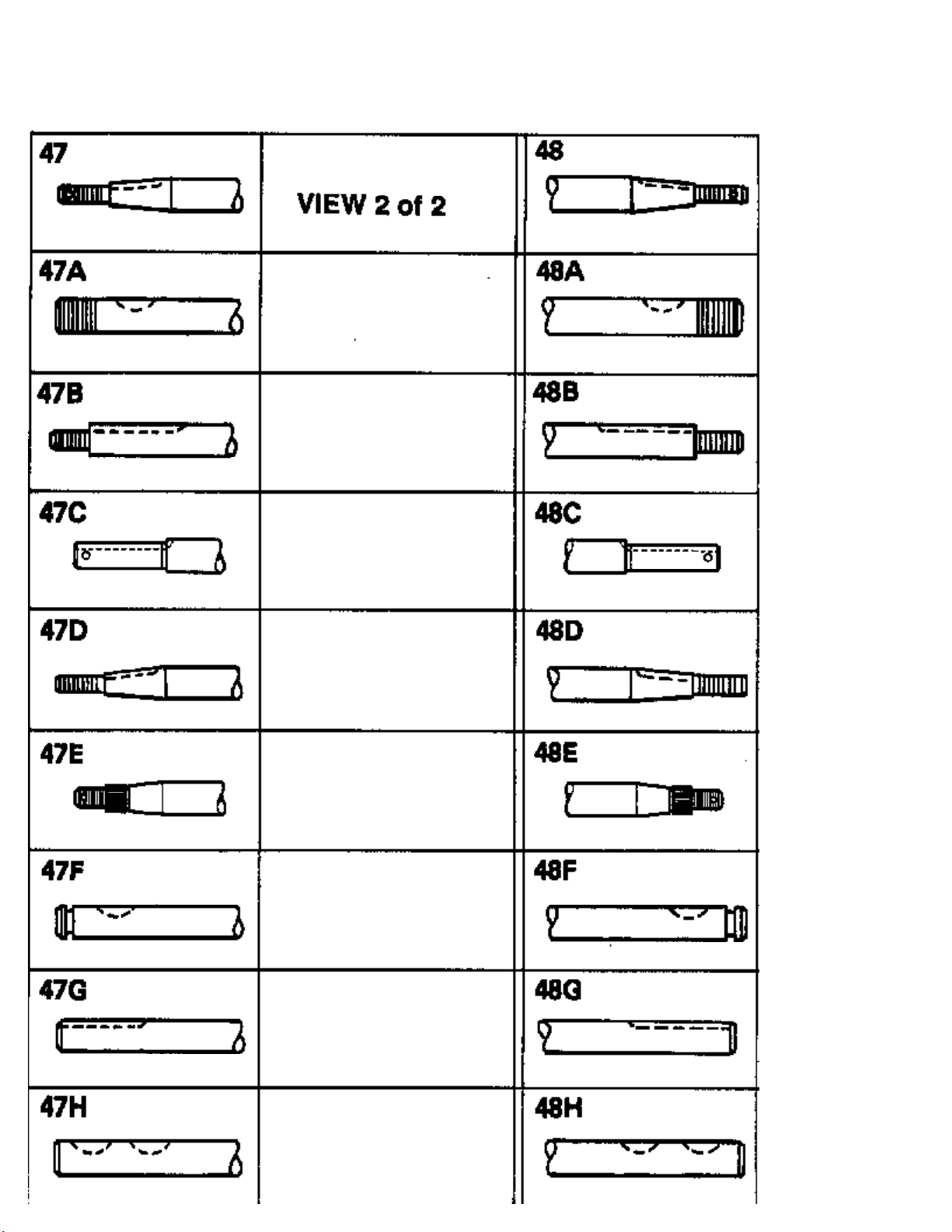

47 775038 Axle (17-61/64" long)1
48 775039 Axle (15-9/64" long)1
58A 778160 Spur Gear (27 teeth-steel)1
2510-2510-024 Page 4 of 4
Peerless #2
www.mymowerparts.com
