2500-2561 Page 1 of 4
Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983

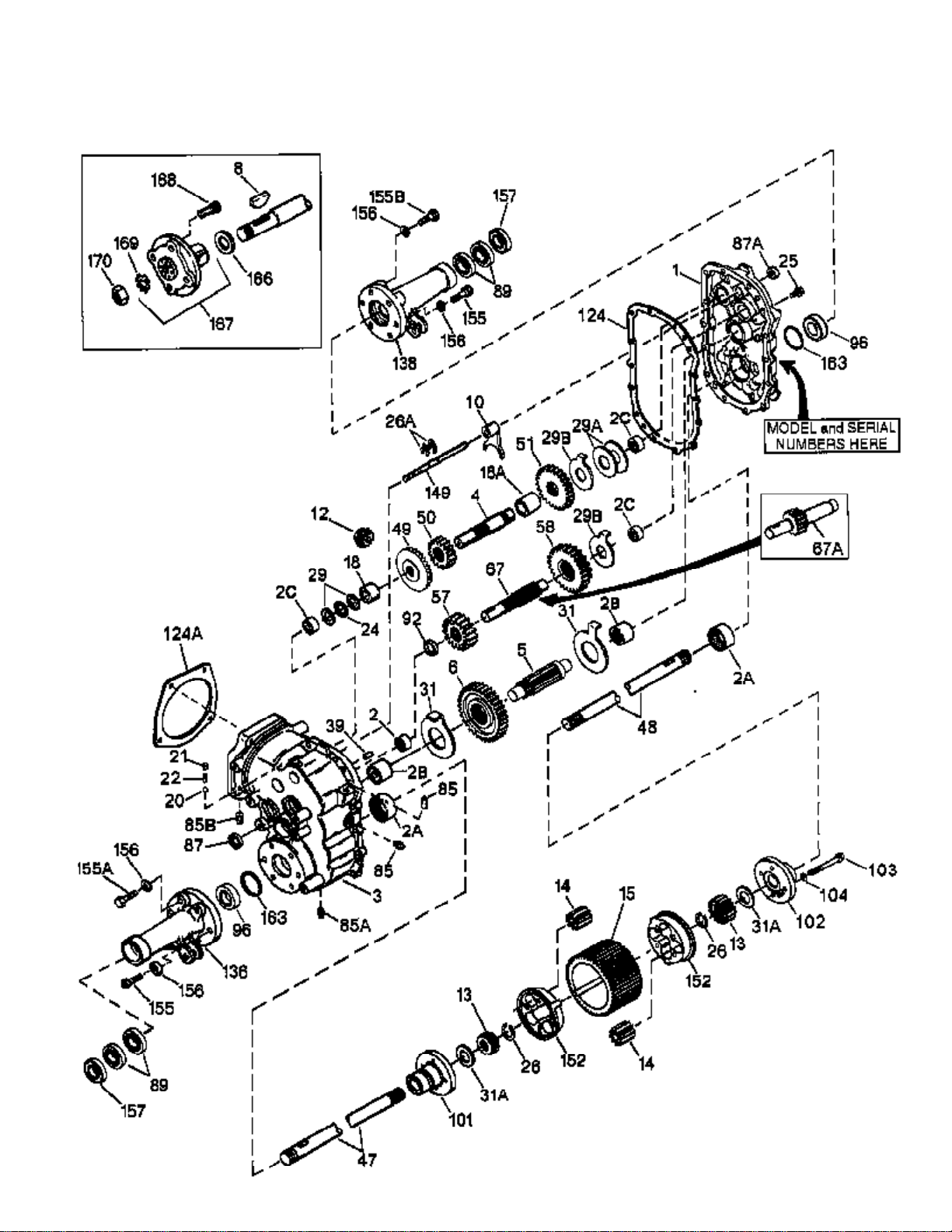

Ref # Part Number Qty Description
1 772065 Transaxle Cover (Incl. 2A, 2B & 2C)1
2B 780099 Needle Bearing2
2C 780100 Needle Bearing3
2A 780098 Needle Bearing2
2 780097 Needle Bearing1
3 770060B Case Assembly (Incl. 2, 2A, 2B & 2C)1
4 776209A Countershaft1
5 776120A Output Shaft1
6 778098 Spur Gear (37 teeth-steel)1
10 784195 Shift Fork1
12 778093A Bevel Pinion (13 teeth)1
13 778085 Side Gear2
14 778086 Spur Pinion8
15 778084 Ring Gear (47 teeth)1
18 786094 Spacer1
20 792004 Ball 3/16" dia.1
21 792068 Set Screw 1/4-20 x 1/2"1
22 792003 Spring Detent1
24 780012 Thrust Bearing1
25 792067 Screw, 5/16-18 1"14
26 792062 Retaining Ring2
26A 792064 Ext. Retaining Ring2
29 780045 Washer2
29B 780157 Washer2
31A 780101 Washer2
31 780156 Washer2
39 786026 Dowel Pin2
49 778087 Bevel Gear (30 teeth)1
50 778088 Spur Gear (16 teeth)1
51 778096 Spur Gear (23 teeth)1
58 778097 Spur Gear Shifter (20 & 27 teeth)1
67A 776122A Shifter & Brake Shaft (13 teeth)1
85A 792019 Magnetic Drain Plug1
85B 792039 Plug 1/8-271
85 792010 Pipe Plug 3/8" square head2
87A 788034 Oil Seal 1/2"1
87 788008 Oil Seal 1"1
89 780158 Ball Bearing4
92 780005 Washer1
96 780104 Thrust Bearing2
101 774200 Differential Carrier1
102 774199 Differential Carrier1
103 792063 Screw 3/8-16 x 3-5/16"4
104 792011 Lockwasher4
124 788047 Gasket1
136 782072 Axle Housing1
138 782071 Axle Housing1
149 784196A Shift Rod (High-Low)1
152 786054 Body Core2
155 792069 Screw 1/2-13 x 1/2"4
155B 792173 Screw 1/2-13 x 1-3/4"2
155A 792090 Screw 1/2-13 x 2-3/4"2
156 792066 Lockwasher8
157 788073 Oil Seal 1-1/4"2
163 788048 Square Cut Ring2
2500-2561 Page 2 of 4
Peerless #1
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
2500-2561 Page 3 of 4
Peerless #2
www.mymowerparts.com
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983

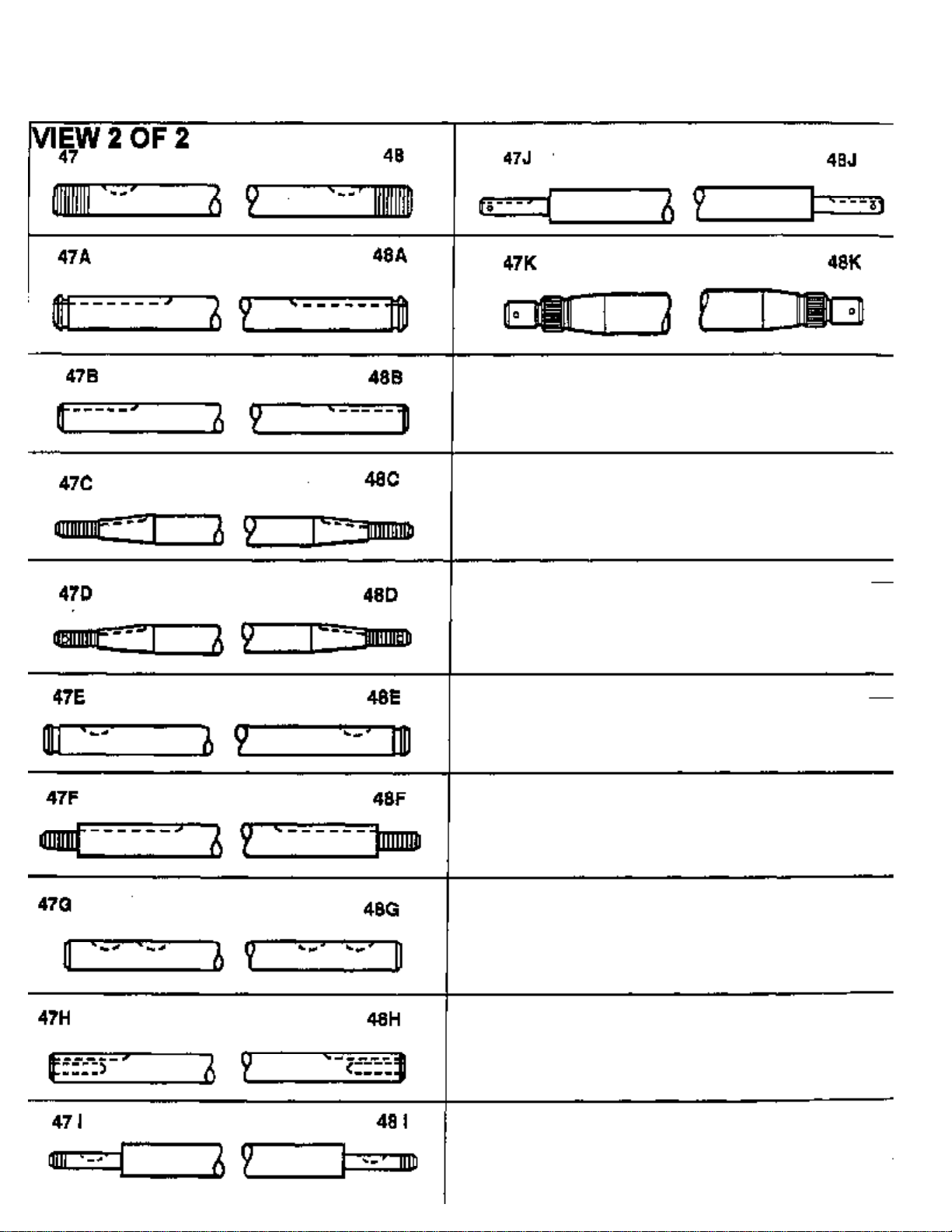

Ref # Part Number Qty Description
39 786026 Dowel Pin2
47B 774890 Axle (18-7/32" long)1
48B 774889 Axle (16-17/32" long)1
2500-2561 Page 4 of 4
Peerless #2
www.mymowerparts.com
