Page 1
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
2000-2000-020 Page 1 of 5

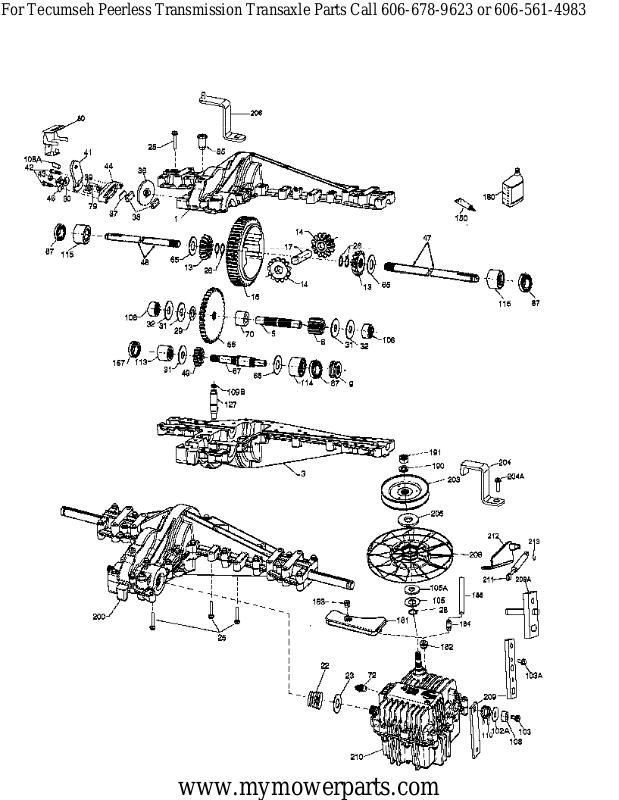

Peerless #1
www.mymowerparts.com
Page 2
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
1 772151 Cover LH (mach)1
3 770135 Case LH (cast)1
5 776441 Counter Shaft1
6 778263 Spur Gear 11T1
9 786197 Neutral Sleeve .572L1
13 778368 Bevel Gear 13T (Incl. 14)2
14 778368 Bevel Gear 13T (Incl. 13)2
15 778373 Ring Gear 54T1
17 786139 Drive Pin1
22 792194 Spring1
23 792195 Washer .750ID .032T1
25 792073A Screw 1/4-20 x 1.2527
26 792125 Retaining Ring4
28 792035 Retaining Ring1
29 780065 Washer .627ID .091W1
30 792076A Washer .312ID .059W1
31 780189 Washer .563ID .062W3
36 790075 Brake Disk1
37 790007 Brake Pad Plate1
38 799021 Brake Pad2
39 786026 Dowel Pin .3125 x .7502
41 790105 Brake Lever1
42 792177 Screw 1/4-20 x 1.3752
43 792075 Lock Nut 5/16-241
44 790025 Brake Pad Holder1
46 786207 Bracket1
47 775001 Axle 17.6251
48 774943 Axle 12.4371
49 778311 Spur Gear 10TSTL1
56 778310 Spur Gear 34T STL1
65 780195 Washer .750ID .62W3
67 776440 Brake Shaft1
70 786196 SPACER .625/.7651
72 786206 NEUTRAL START SWITCH1
80 790082 BRAKE LEVER GUIDE1
85 792154 Oil Fill Plug1
87 788088A Oil Seal .7501
103 792193 Screw 1/4-28 x .4901
103A 792205 Screw 1/4-28 x .4062
105 780096 Washer .625ID .057W1
106 786162 Needle Bearing & Sleeve Assembly2
108 786202 Spacer .510ID1
109B 788104 O-Ring .364ID1
110 798052 Neutral Return Spring1
113 786199 Sleeve Assembly (Incl. 157)1
114 786200 Sleeve Assembly (Incl. 87)1
115 786198 Sleeve Assembly (Incl. 87)2
127 784384 Shift Lever Assembly (Incl. 109)1
150 788093A Liquid Gasket RTV Silicon1
157 788102 Oil Seal .5625ID1
180 730229B Gear Oil 80W901
181 798042 OVERFLOW BOTTLE LH1
182 788103 Grommet1
190 792150 Washer .443ID .109W1
191 792151 Nut 7/16-201
200 794813 Differential LH (Reduction Drive)1
2000-2000-020 Page 2 of 5
Peerless #1
www.mymowerparts.com
Page 3
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
203 798062 Pulley & Hub Assembly1
208 798040 Fan1
209A 798051 Neutral Lever1
209 798067 Control Lever1
210 794814 Hydro Module LH1
2000-2000-020 Page 3 of 5
Peerless #1
www.mymowerparts.com
Page 4
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
2000-2000-020 Page 4 of 5
Peerless #2
www.mymowerparts.com
Page 5
For Tecumseh Peerless Transmission Transaxle Parts Call 606-678-9623 or 606-561-4983
Ref # Part Number Qty Description
1 772151 Cover LH (mach)1
36 790075 Brake Disk1
37 790007 Brake Pad Plate1
38 799021 Brake Pad2
41 790105 Brake Lever1
42 792177 Screw 1/4-20 x 1.3752
43 792075 Lock Nut 5/16-241
103 792193 Screw 1/4-28 x .4901
209 798067 Control Lever1
210 794814 Hydro Module LH1
2000-2000-020 Page 5 of 5
Peerless #2
www.mymowerparts.com
