Battery operation with external pressure transducer
Accuracy 0.2%
Integrated data log with display of max./min.
Pressure range from 0…0.1 bar to 0…1,000 bar, also vacuum
Range of applications

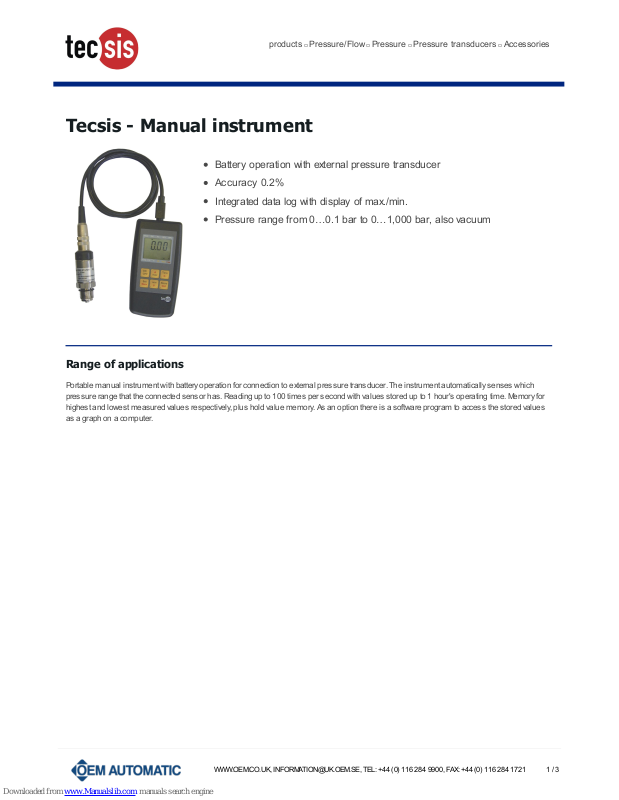

Portable manual instrument with battery operation for connection to external pressure transducer. The instrument automatically senses which
pressure range that the connected sensor has. Reading up to 100 times per second with values stored up to 1 hour's operating time. Memory for
highest and lowest measured values respectively, plus hold value memory. As an option there is a software program to access the stored values
as a graph on a computer.
Tecsis - Manual instrument
WWW.OEM.CO.UK, [email protected], TEL: +44 (0) 116 284 9900, FAX: +44 (0) 116 284 1721 1 / 3
Page 2
Technical specification
Instrument, model E3904
Display 2 line LCD display, 4 digits/line.
Accuracy ±0.2 % of full scale value ±1 digit
Linearity and hysteresis Included in the above
Updating 4 times/sec.“slow”, 100 times/sec.“fast”
Functions Selectable logging of data:
Cyclic: max. 5,400 incl. time
Cyclic timer: selectable 1 to 3,600 sec.
Individual data: max. 99 incl. time
Selectable unit: bar, mbar, psi, Pa, hPa, mmHg
Zero point adjustment Selectable
Ambient temperature 0 °C to +50 ºC
Temperature deviation ±0.2 %/10K for zero point and measuring span
Power supply 9 V standard battery
Casing ABS-plastic, black
Weight 0.16 kg
Pressure transducer, model P3392...
Pressure range From 0...0.1 bar to 0...1,000mbar, also vacuum
Measuring principle Piezo measuring cell <16 bar
Thinfilm measuring cell ≥25 bar
Max. deviation <0.2 % of the end value according to DIN 16086 (option 0.1 %)
Linearity and hysteresis included in above.
Long term stability <0.2 % of end value per year
Overpressure protection <16 bar 3.5x; <600 bar="" 2x;="">600bar 1.5x
Pressure connection G1/2"
Sensor body Stainless steel
Wetted parts Stainless steel SS2350 (316)
Ambient temperature 0 °C to +70 ºC
Media temperature -25 °C to +70 ºC
Temperature deviation ±0.2 %/10K for zero point and measuring span
IP-class IP65 according to EN 60529, IEC 529
Weight 0.22 kg
The sensor is intended solely for connecting to this instrument through an appropriate adapter cable.
WWW.OEM.CO.UK, [email protected], TEL: +44 (0) 116 284 9900, FAX: +44 (0) 116 284 1721 2 / 3
Page 3
Dimensions
s
Example of screenshot of optional program G-soft for PC
Item number
Recommended basic equipment: Hand control + pressure transducer including adapter cable and instrument case. For a more precise item
number, contact OEM Automatic, product area Pressure & Flow.
WWW.OEM.CO.UK, [email protected], TEL: +44 (0) 116 284 9900, FAX: +44 (0) 116 284 1721 3 / 3
