TECshow WMX-320 User Manual

P. 1

| Tecshow WM X 310

USER MANUAL / MANUAL DE USUARIO

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

WMX-320

Dual UHF wireless system - 2 Handled microphones

P. 2

Tecshow WM X 310 |

English version

WMX-320

Dual UHF wireless system - 2 Handled Microphones

WMX-320 is a high prole dual UHF wireless system
that includes two high-performance handheld mi­crophones. With rugged construction, XLR & Plug
outputs, independent volume control and a handy
carrying case, the WMX-320 oers an ideal solution
for mobile applications. A range of 60 meters, an
autonomy of 5 to 7 hours and a remarkable stabili­ty complete the main characteristics of the WMX­320; A great alternative for DJs, corporate and social
events.

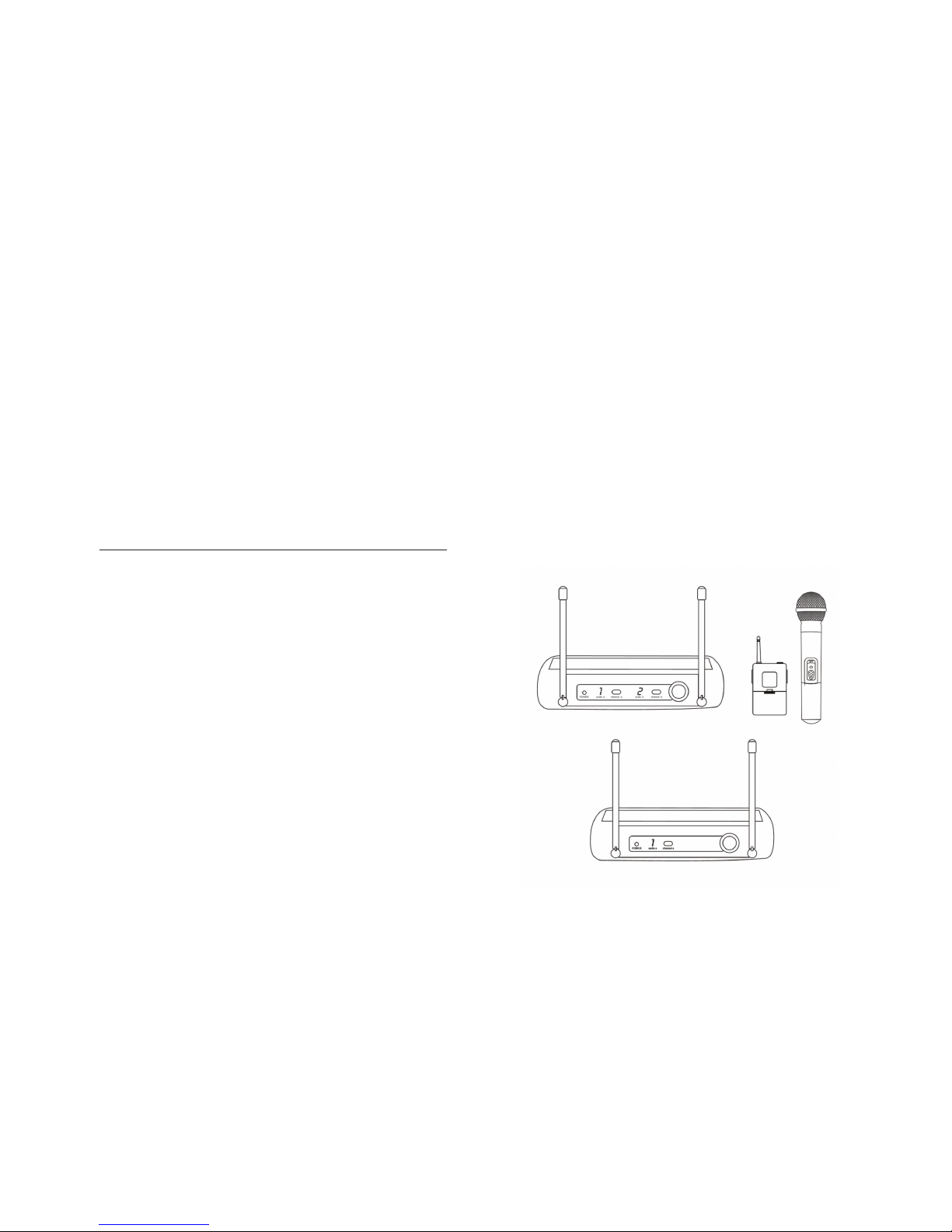

Content

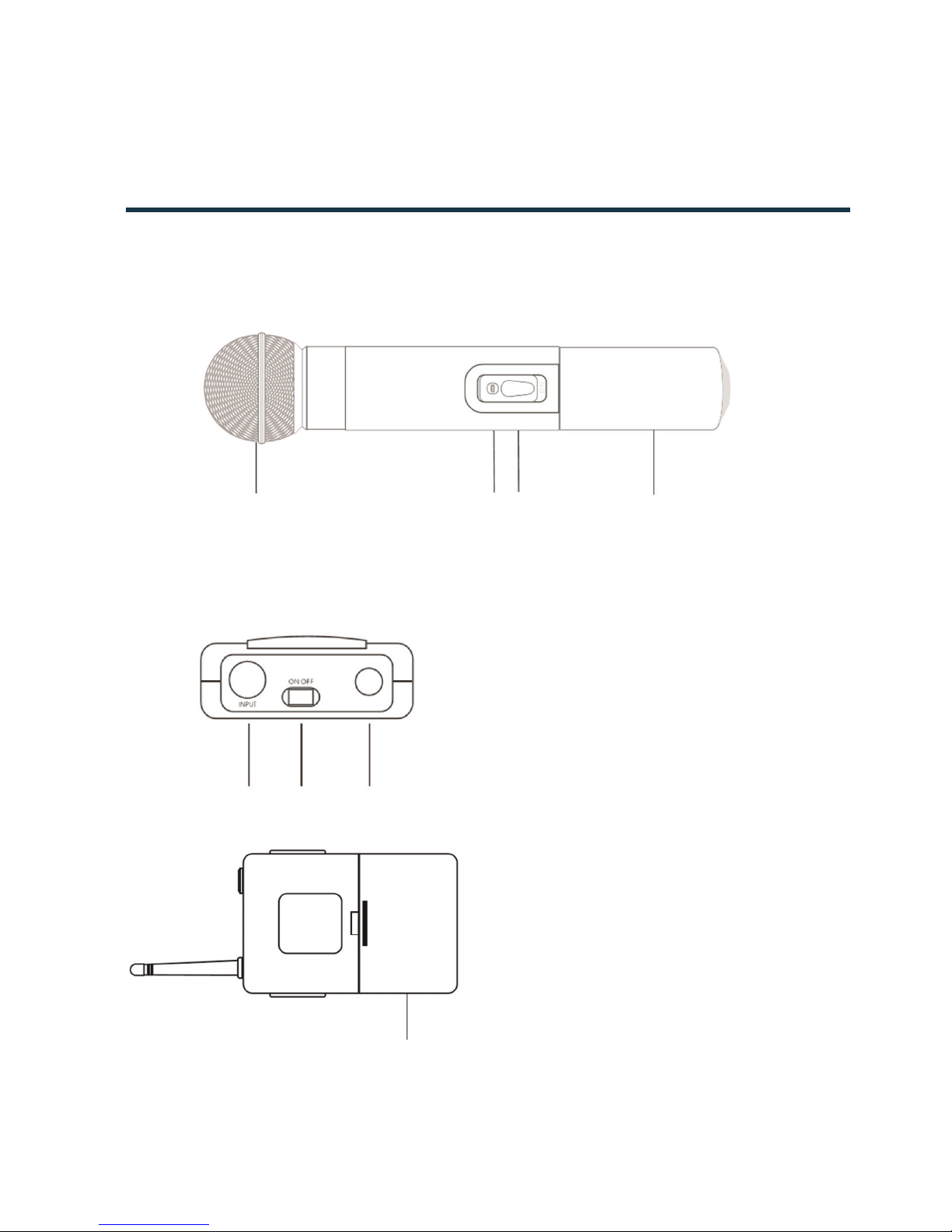

Microphone

• Freq. stability: 0.002%

• RF Power output: 10mW

• Current loss: 130mA

• Use range: 60m (ideal)

• Pickup: Dynamic

• Polar pattern: Cardioid

• Battery: AA (1.5V) x 2

• Power life: 5-7 hs.

• Available in 20 frequencies: 605.2MHz,

625.1MHz, 606.2MHz, 626.1MHz, 607.2MHz,

627.1MHz, 608.2MHz, 628.1MHz, 609.2MHz,

629.1MHz, 610.2MHz, 630.1MHz, 611.2MHz,

631.1MHz, 612.2MHz, 632.1MHz, 613.2MHz,

633.1MHz, 614.2MHz & 634.1MHz.

Receiver

• Sensitivity: 2uV (sinad: 12dB)

• Spurious rejection: 80dB

• Image rejection: 80dB

• SNR: 90dB

• AF output: 0--300mV

• Receiving channel: Two channel

• Unied signal output

• Power: DC12-18V

• Power consumption: 3W

1. OVERVIEW

P. 3

| Tecshow WM X 310

English version

Thanks for purchising WMX-320. Please read this instruction
carefully before using the system so that you can make sure in
detail by the numbers how to install, operate and safeguard
the system. Now that the system is a high precision and high
frequency electronic product, our corporation is not responsa­ble for any error in operating. Please store the instruction in a
safe place aer reading as a reference in the future.
This product is an epoch-making and excellent product in new
century aer our corporation recommended many excellent
products. Think of convinience, agility and stabilization when
the costumer used the system. And original audio recurring
furthest, the system use advanced technology hereinaer. the
system has high sensitivity, high stabilization and excellent
electric function.

• America eicient and low consumption emission
technology;

• Multiple noice-measured technology;

• Superior to 10PPM crystal-locked;

• wide-dynamic-range audio frequency compression and

expansion;

• Mirror frequency limiter circuit and hit which put on and

put o reduced circuit;

• Resist reverbation circuit and changed output controlled

slowly and a noise checked repetitious and reduced circuit

• EDA and nished on itrs item named pattern line etc.

P. 4

Tecshow WM X 310 |

2. CONTROL PANEL AND FUNCTION RECIEVER

English version

2 31 4

5

1. The light ON/OFF switch 6. Power jack

2. CH-1 RF light 7. Balanced output connector

3. CH-2 RF light 8. Mixed output connector

4. Power ON/OFF switch 9. VOL-B volume knob

5. Receiver antenna 10. VOL-A volume knob

6 9 7 8 10

P. 5

| Tecshow WM X 310

English version

1. The light of ON/OFF switch 5. Power jack

2. CH-1 RF light 6. Balanced output connector

3. Power ON/OFF switch 7. Mixed output connector

4. Reciever antenna 8. VOL-A volume knob

4

3

7 8

5

6

21
