TECshow NEBULA ZOOM User Manual
USER MANUAL / MANUAL DE USUARIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
ZOOM
LED Par with zoom - 3 x 4-in-1 RGBW 15W LEDs
1. Safety Instructions
Please keep this User Guide for future consultation. If you sell
the unit to another user, be sure that they also receive this
instruction booklet.
• Unpack and check carefully there is no transportation
damage before using the unit.
• Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit.
• It’s important to ground the yellow/green conductor
to earth in order to avoid electric shock.
• The unit is for indoor use only. Use only in a dry location.
• The unit must be installed in a location with adequate ventilation, at least 50cm from adjacent surfaces. Be sure that no ventilation slots are blocked.
• Disconnect main power before replacement or servicing.
• Make sure there are no ammable materials close to the
unit while operating as it is re hazard.
• Use safety cable when xes this unit. DO NOT handle the
unit by taking its head only, but always by taking its base.
• Maximum ambient temperature is Ta: 40ºC. DO NOT operate it where the temperature is higher than this Unit
surface temperature may reach up to 85ºC. DO NOT
touch the housing bare-hand during its operation. Turn
o the power and allow about 15 minutes for the unit to
cool down before replacing or serving.
• In the event of serious operating problem, stop using the
unit immediately.Never try to repair the unit by yourself.
Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest autho-
rized technical assistance center. Always use the same
type spare parts.
• DO NOT touch any wire during operation as high voltage
might be causing electric shock.
Warning:
To prevent or reduce the risk of electrical shock or re, do not
expose the unit to rain or moisture.
DO NOT open the unit within ve minutes aer switching o.
The housing, the lenses, or the ultraviolet lter must be
replaced if they are visibly damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT
open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact
your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is rmly xed to avoid vibration and slipping while operating. And make sure that the
structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight
of the unit when installing the xture.
The equipment must be xed by professionals. And it must
be xed at a place where is out of the touch of people.
p. 2NEBULA ZOOM
ENGLISH VERSION
2. Technical Specications
Light Sources: 3x 15W 4in1 RGBW LED
Beam Angle: 6.5°-60°
Power Consumption: 50W
Power Voltage: AC 100-240V, 50/60Hz
Dimension: 14*14*16cm
Net Weight: 3Kgs;Gross Weight: 3.5Kgs
Control
DMX Channel: 8/12Channel
Control Modes: DMX512/Auto Run/Master-Slaver/Music mode
Construction
Display: Digital Display
Data In/Out socket: 3-pin & 5-pin XLR sockets
Power Socket: IEC socket
Protection Rating: IP20
Features
Motorized liner zoom system, zoom range: 6.5°-60°
Dimmer: 0~100% smooth dimming
Fast, quiet operation and icker free
p. 3NEBULA ZOOM
ENGLISH VERSION
3. How To Control The Unit
The DMX512 is widely used in intelligent lighting control,with
a DMX 512 controller.connect several lights together,dmx in

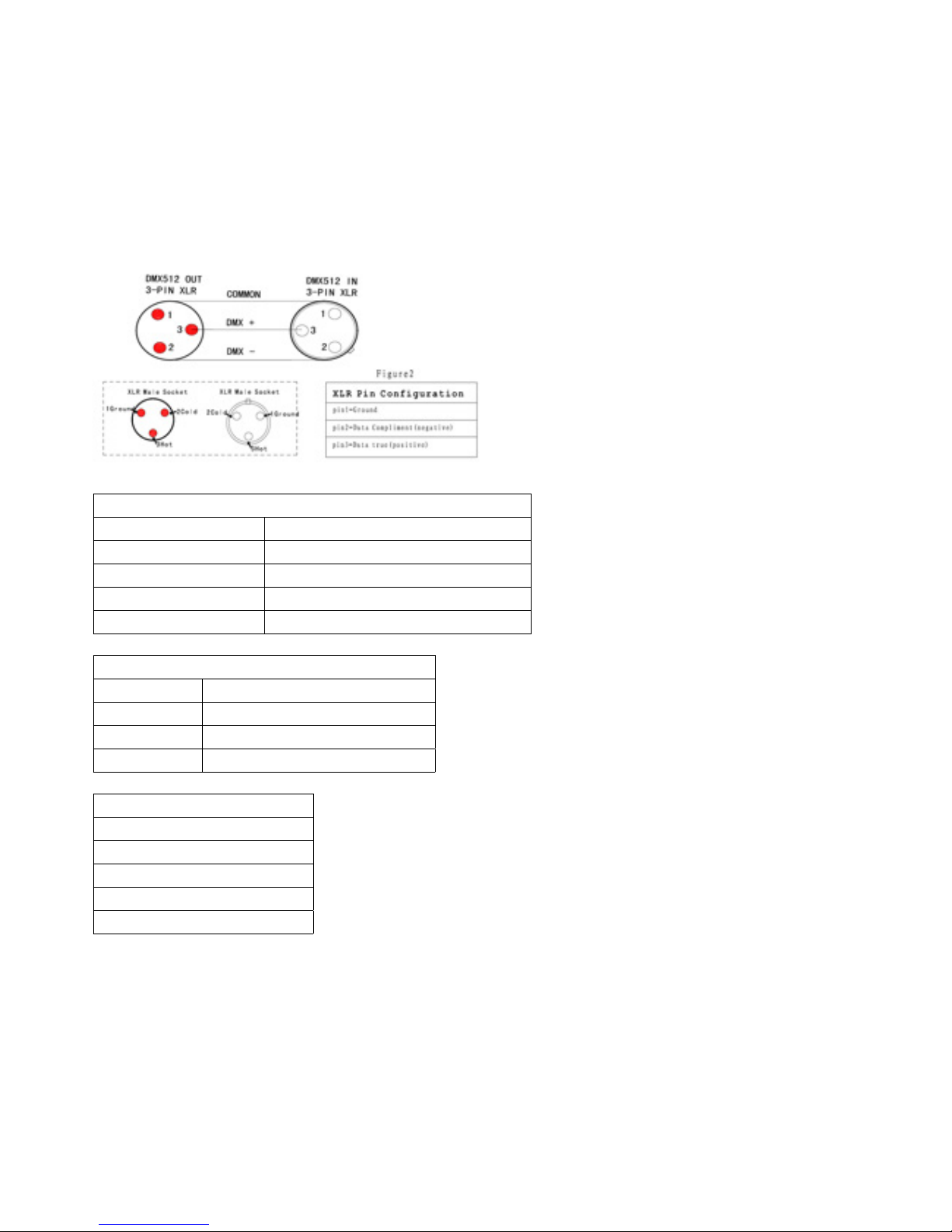

and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Nega-
tive signal (-), Pin 3: Positive signal (+)
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To conrm the selected functions
Set DMX Address Code
1. Press “Menu” to “Set DMX Address”,and press”ENTER”
keys to enter into
2. Show “Set DMX Address DMX Address:001”,Press the “UP
and DOWN” keys to amended
3. Press “ENTER”keys to save and Exit,Press the”MENU”Keys
does not save and Exit
p. 4NEBULA ZOOM
ENGLISH VERSION

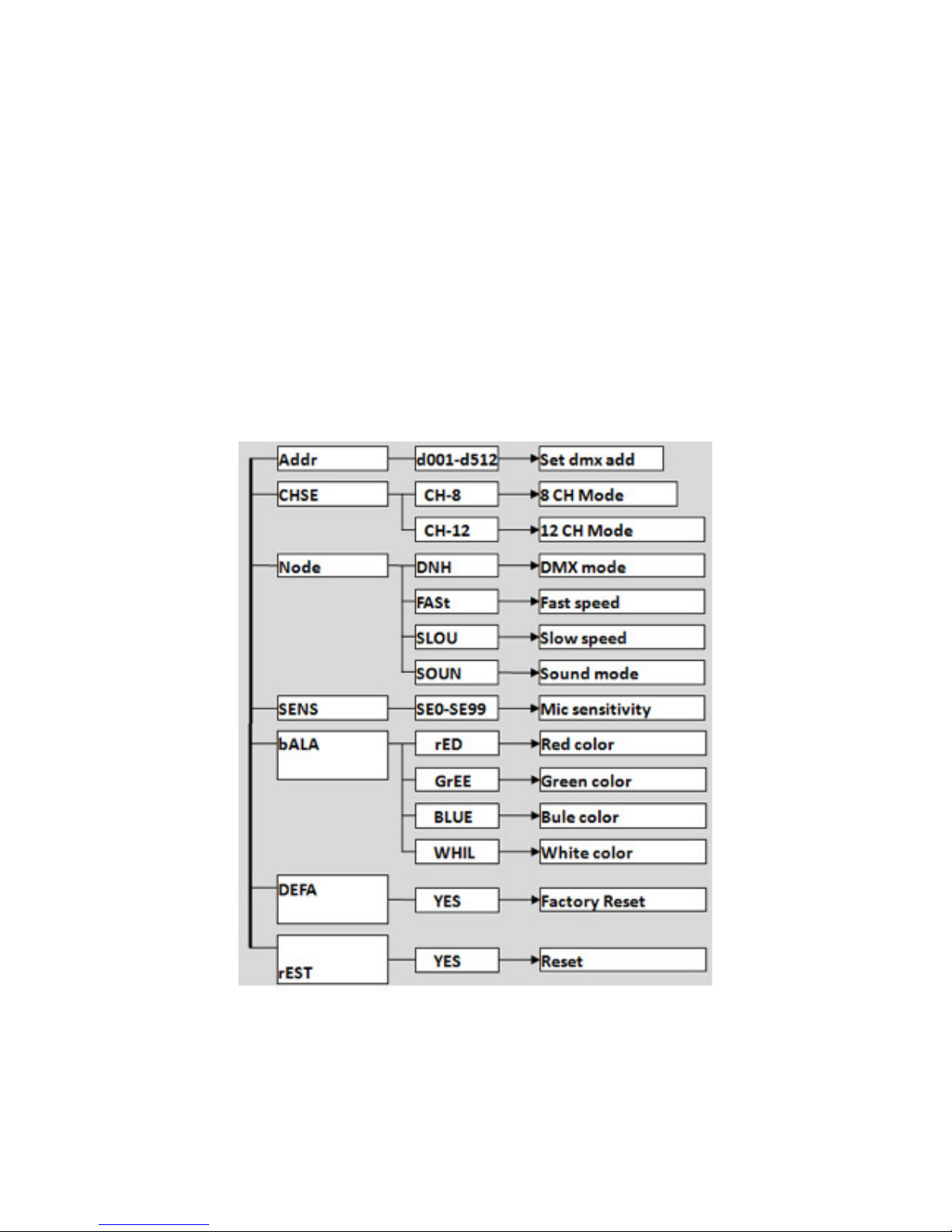

Menu
p. 5NEBULA ZOOM
ENGLISH VERSION
