TECshow Nebula 6 User Manual
USER MANUAL / MANUAL DE USUARIO / MANUAL DO USUáRIO
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE /
POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR
LEIA AS INSTRUçõES CUIDADOSAmENTE ANTES DE USAR
6
English Version
Compare LED Par light with traditional par light, Led par light
have more rich color eects, color mixing eect rich, color
mixing eect of trichromatic LED of up to 16700000, the classication of LED par light: use is divided, One,It is a commercial lighting, also called the spotlight, mainly plays the role of
illumination, high power LED Bulb,LED bulb usually use a single color, small size, are oen used in shopping malls, hotels,
guesthouses, square fountain etc.. Two,Stage lighting, mainly to lighting, color change, making the stage atmosphere,
the size of the power LED has, LED Bulb color has red, green,
blue, white. Oen used for stage performances, wedding etiquette, exhibition and conference time.
NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
p. 2
p. 3
Safety instructions
WARNING!
• Please keep this User Guide for future consultation. If
you sell the unit to another user, be sure that they also
receive this instruction booklet.
• All xtures are intact from the manufacturer, please operate follow up the user manual, articial fault are not
under guarantee repair.
• Unpack and check carefully that there is no transportation damage before using the unit.
• The unit is for indoor use only. Use only in a dry location.
• Do install and operate by operator.
• Use safety chain when xes the unit. Don’t handle the unit
by taking its head only, but always by taking its base.
• The unit must be installed in a location with adequate
ventilation, at least 50cm from adjacent surfaces.
• Be sure that no ventilation slots are blocked, otherwise
the unit will be overheated.
• Before operating, ensure that the voltage and frequency of
power supply match the power requirements of the unit.
• It’s important to ground the yellow/green conductor to
earth in order to avoid electric shock.
• Maximum ambient temperature TA : 40°C. Don’t operate
it where the temperature is higher than this.
• Don’t connect the device to any dimmer pack.
• First run, there will be smoke or smells, and all disappearing a few minutes later.
• Make sure there are no ammable materials close to the
unit while operating, as it is re hazard.
• Look over power wires carefully, replace immediately if
there is any damage.
• Never run on for a long time lest shortening lifespan.
• Avoid any inammable liquids, water or metal objects
entering the unit.
• Once it happen, cut o the mains power immediately.
• Do not operate in dirty and dusty environment, also
cleaning xtures regularly.
• Do not allow children to operate the xture.
• Do not touch any wire during operation as there might
be a hazard of electric shock.
• Avoid power wires together around other cables.
• Disconnect mains power before fuse/lamp replacement
or servicing.
• Replace fuse only with the same type.
• In the event of serious operating problem, stop using the
unit immediately.
• Never turn on and o the unit time aer time.
• The housing, the lenses, or the ultraviolet lter must be
replaced if they are visibly damaged.
• Do not open the unit as there are no user serviceable
parts inside.
• Never try to repair the unit by yourself. Repairs carried
out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.
• Disconnect the mains power if the xture is not used for
a long time.
• Do use original packing materials once transport it again.
• Do not look directly at the LED light beam while the xture is on.
For power supply, do not connect in series much more
than 7 units, use another mains supply for next 7 units.
Please read the instructions carefully which includes important information about the installation, operation and maintenance.
NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
p. 4
Installation
The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always ensure that the
structure to which you are attaching the unit is secure and is
able to support a weight of 10 times of the unit’s weight. Also
always use a safety cable that can hold 12 times of the weight
of the unit when installing the xture.
The equipment must be xed by professionals. And it must
be xed at a place where is out of the touch of people and has
no one pass by or under it.
Technical Specications
• Three operational modes: DMX, Master/Slave and
Sound Active
• DMX Channel mode: 6/9 CH
• Three built-in programs. Control Master/Slave mode
by voice
• 0-100% smooth dimming function
• Suitable for disco, bar mobile Dj, etc.
• Voltage: AC 100-240V, 50/60Hz
• Power consumption: 165W
• LEDs: 6 x 12W RGBWAUV
• Net weight: 2 Kg.
• Dimensions: 26x26x36 Cm.
How to Set the Fixture
1- The indicating light
2- Function display: display menu and the selected function
3- Menu button
4- Microphone
5- DMX signal output
6- Power supply socket
7- DMX signal input
NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
p. 5
DMX Mode
Channel slection mode
Master/Slave mode
Backlight mode
show positive and negative direction
manual mode
Auto-test
Machine using time
Performance mode
MENU
NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
p. 6
DMX Mode
Select the Addr menu, press the ENTER key to conrm. Then
use the initial address code DOWN/UP button to set this light
(A001 ~ A512). Once you have set your initial address code,
press ENTER to dene and save. Not to make any changes,
wait a minute to automatically exit the menu and save. The
main menu, please press the MENU button.
Channel selection mode
Select the Chnd menu, press the ENTER key to determine.
To use the DOWN/UP button to channel mode: 5Ch (5 Channel).9Ch (9 Channels) mode. Select the desired channel
mode, press ENTER to determine and save. Not to make any
changes, wait a minute to automatically exit the menu and
save. The main menu, please press the MENU button.
Master/Slave mode
Select the SLnd menu, press the ENTER key to conrm. To
use the DOWN/UP key set of Master-Slave mode need: NASt
(Master). SL 1 (Slave 1). SL 2 (Slave 2) mode. Select the desired mode, press ENTER to determine and save. Not to make
any changes, wait a minute to automatically exit the menu
and save. The main menu, please press the MENU button.
Performance mode
Select the Shnd menu, press the ENTER key to determine.
To use the DOWN/UP button to Performance mode: SoUo
(Sound).CoLo (color).StCo (Strobe).Fade (Gradient) mode.
Select the desired mode, press ENTER to determine and
save. Not to make any changes, wait a minute to automatically exit the menu and save. The main menu, please press
the MENU button CoLo (color) Co1 ~ Co12 12 program mode,
use the DOWN/UP button to select the desired mode, press
ENTER to determine and save. Not to make any changes,
wait a minute to automatically exit the menu and save. The
main menu, please press the MENU button StCo (STROBE)
have 0 ~ 255 to adjust the speed, use the DOWN/UP button
to select the desired speed, according to ENTER, determine
and save. Not to make any changes, wait a minute to automatically exit the menu and save. The main menu, please
press the MENU button Fade (Gradient) SP1 ~ SP8 8 fade
speed selection, use the DOWN/UP button to select the gradient speed required, according to ENTER, determine and
save. Not to make any changes, wait a minute to automatically exit the menu and save. The main menu, please press
the MENU button.
Backlight mode
Select the LED menu, press the ENTER key to determine.
Then use the DOWN/UP button to set the backlight mode: ON
(Open).OFF (Close). Select the desired mode, press ENTER to
determine and save. Not to make any changes, wait a minute
to automatically exit the menu and save. The main menu,
please press the MENU button.
Show positive and negative direction
Select the dISP menu, press the ENTER key to determine. To
use the DOWN/UP button to display mode: dISP (positive).
DSIP (reverse). Select the desired mode, press ENTER to determine and save. Not to make any changes, wait a minute
to automatically exit the menu and save. The main menu,
please press the MENU button.
Manual mode
Select the NAnu menu, press the ENTER key to determine. To
use the DOWN/UP button to display mode: Red (red), Gree
(green), Blue (blue) and Ublt (white). Select the desired mode,
press ENTER to determine and save. Not to make any changes,
wait a minute to automatically exit the menu and save. The
main menu please press the MENU button Red (red) with 0 to
255 using the DOWN/UP button to brightness press ENTER to
dene and save. Not to make any changes, wait a minute to
automatically exit the menu and save. The main menu please
press the MENU button Gree (green) with 0 to 255 using the
DOWN/UP button to brightness press ENTER to dene and
save. Not to make any changes, wait a minute to automatically exit the menu and save. The main menu please press
the MENU button Blue (blue) with 0 to 255 using the DOWN/
UP button to brightness press ENTER to dene and save. Not
to make any changes, wait a minute to automatically exit the
menu and save. The main menu please press the MENU button
Ublt (white) with 0 to 255 using the DOWN/UP button to brightnessm press ENTER to dene and save. Not to make any changes, wait a minute to automatically exit the menu and save. The
main menu please press the MENU button Ambe (amber) with
0 to 255 using the DOWN/UP button to brightnessm press ENTER to dene and save. Not to make any changes, wait a minute to automatically exit the menu and save.
Auto-test
Select the Test menu, press the ENTER key to determine. The
machine will start automatically detect color. Not to make
any changes, wait a minute to automatically exit the menu
and save. The main menu, please press the MENU button
NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
Fhrs
Select the Fhrs menu, press the ENTER key to determine. You
can see the use of machine time / h. Not to make any changes, wait a minute to automatically exit the menu and save.
The main menu, please press the MENU button
Temperature
Select the Tenp menu, press the ENTER key to determine. You
can see the machine light board temperature / degree. Not
to make any changes, wait a minute to automatically exit the
menu and save. The main menu, please press the MENU button
p. 7NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version

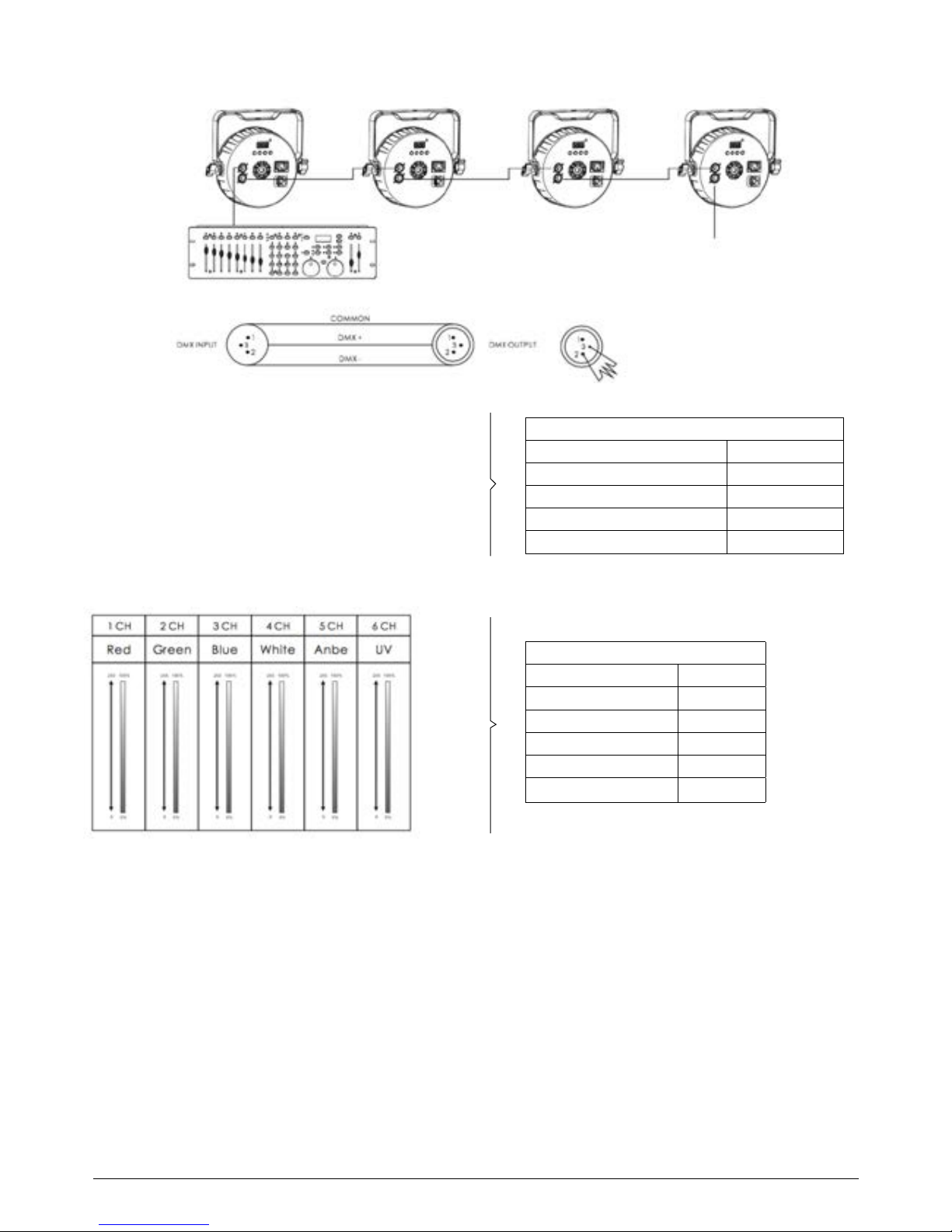

DMX-512 Connections
The DMX-512 is widely used in intelligent lighting control with a
maximum of 512 channels.
Temperature reduces signal error and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal.
(Resistance 120 ohm 1/4W) between pin2 (DMX-) and pin3
(DMX+) of the last xture
6CH Channel mode
p. 8NEBULA 6 - 12W * 6PCS LED PAR LIGHT
English Version
