TECshow ALFIE MINI SPOT 2 User Manual

USER MANUAL / MANUAL DE USUARIO

PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USE

POR FAVOR LEA LAS INSTRUCCIÓNES ANTES DE USAR

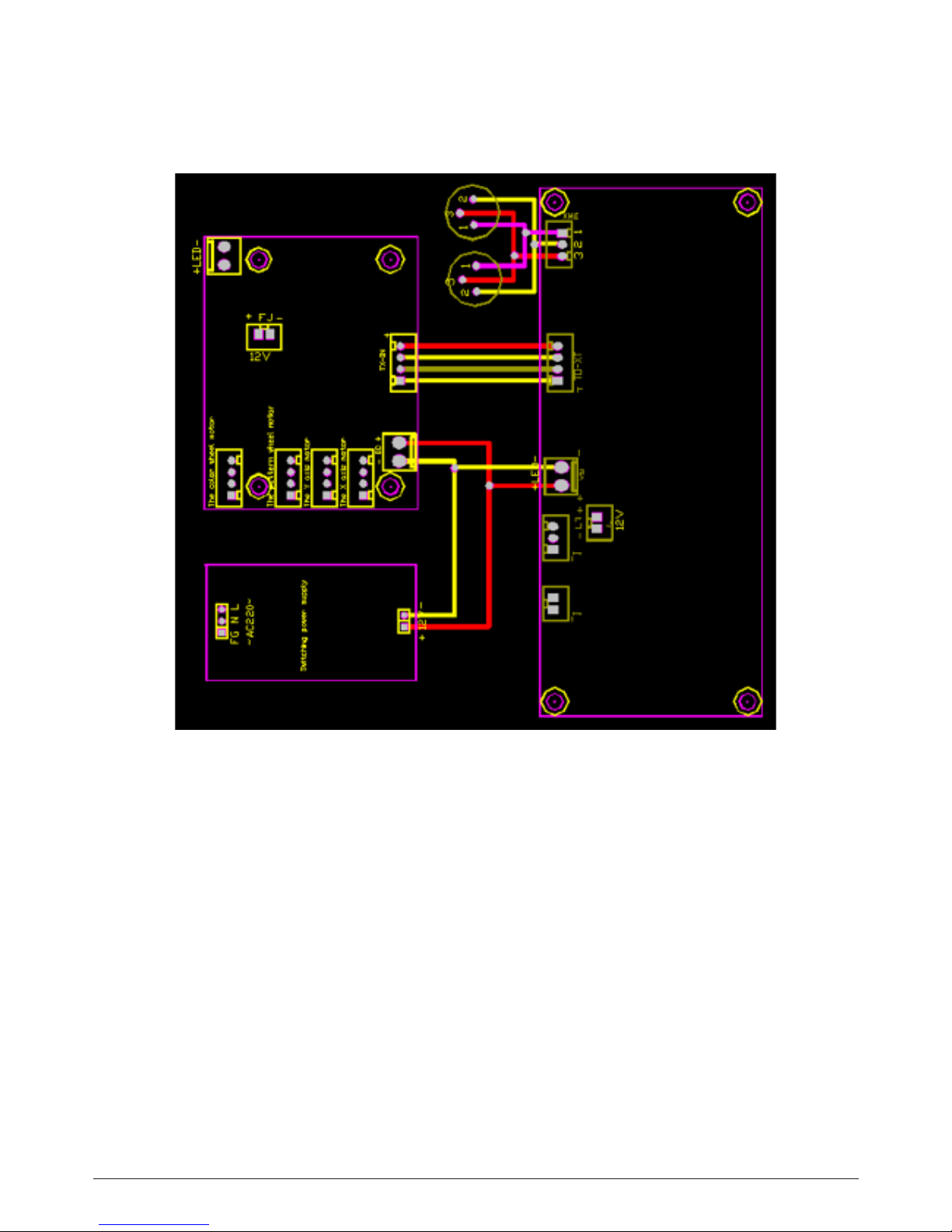

ALFIE MINI

SPOT 2

ALFIE MINI SPOT 2

ENGLISH VERSION

p. 2

Technical Parameters

Power Supply

Input voltage: 90-250V.50/60Hz
Fuse: 3A@250V
Power Consumption: 60W
Light Source: CREE monocrystal 35W
Control: DMX512,Sound,Auto,Master/Slave
DMX personality: 8CH ,10CH
Dimmer: linearly 0~100%
Strobe: 1~20 Hz, or pulse mode strobe
Color: 7 color +white
Gobo wheel: 7 metal gobos
Pam: 540°
Tilt: 180°
Dimensions: 157.4x144.8x253.4mm
Net Weight: 2.6Kg

MENU UP DOWN ENTER

1 Addr DMX Address setting A.001-A.511

2 CHHY X Y reverse X Y normal

-X Y X reverse

-X -Y X Y reverse

X –Y Y reverse

3 CHNd Channels mode 8CH

10CH

4 SLnd Master/slave mode MasT Master mode

Slav slave mode

5 Soun Sound-activated mode oFF

on

6 LED Display on/o mode oFF

on

7 DISP Normal or inverse display mode oFF

on

8 REST Reset mode oFF

on

9 nAn Manual mode CH01…CH08 000-255…000-255

Menu:

Control Panel

ALFIE MINI SPOT 2

ENGLISH VERSION

p. 3

DMX512 Chart

8CH mode

Channels Functions Function details

CH1 X

0:o

1-255:X angles(540°)

CH2 Y

0:o

1-255:Y angles(210°)

CH3 X,Y speed

0: the fastest;

1-255: X Y speed(fast --slow)

CH4 Color wheel

0-127:8 colors

128-255: color rotation

CH5 Gobo wheel

0-63:8 gobos

64-127:8 gobos rotation

128-143:blank gobo

144-255:7 gobos shake

CH6 LED dimmer

0:o

1-255: dimmer

CH7 strobe

0-7: No function

8-127: from slow to fast

128-135: No function

136-255:random

CH8 Other functions

0-15: No function

16-31: blackout when XY change

32-47: blackout when Color wheel change

48-63: blackout when Gobos wheel change

64-79: blackout when X, Y, Color wheel, gobo wheel change

80-95: reset

96-255: sound-activated mode
