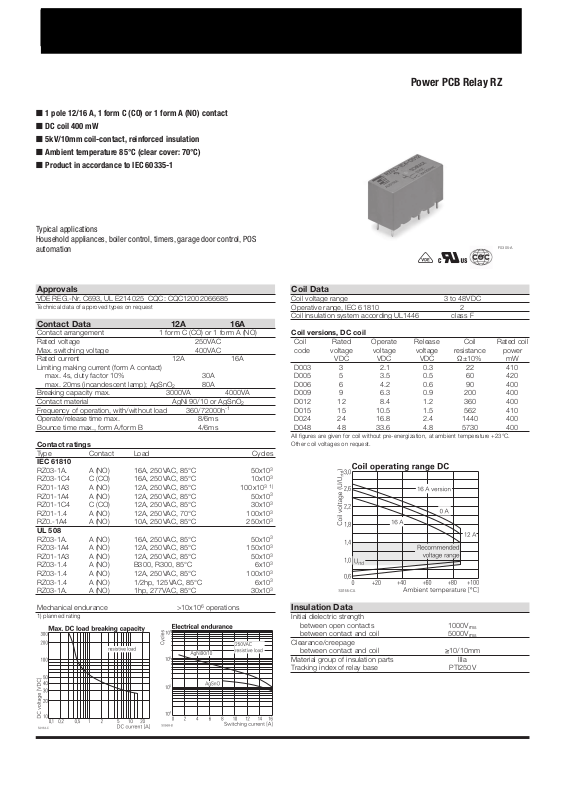

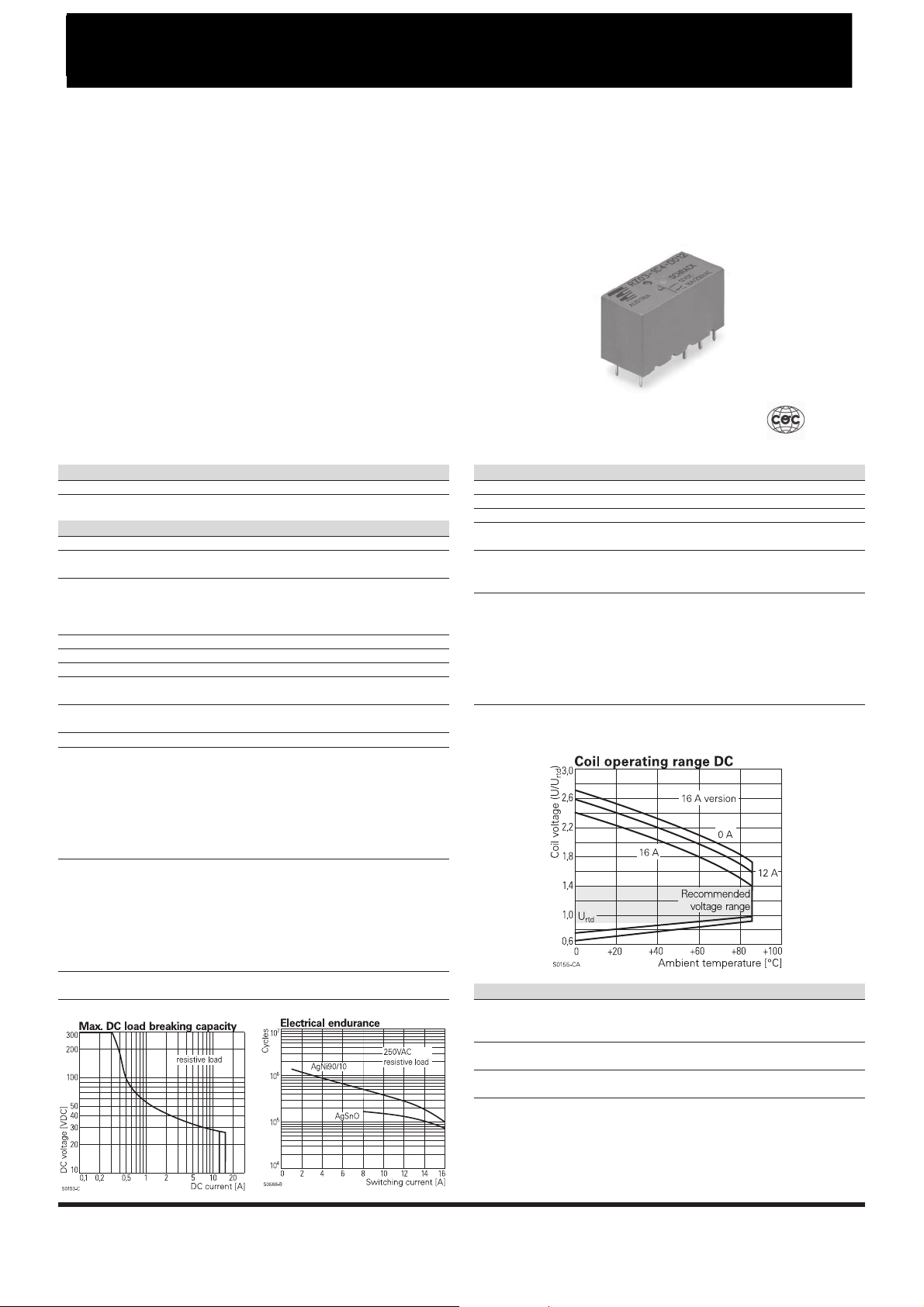

Power PCB Relay RZ
Coil Data
Coil voltage range 3 to 48VDC Operative range, IEC 61810 2 Coil insulation system according UL1446 class F
Coil versions, DC coil
All figures are given for coil without pre-energization, at ambient temperature +23°C. Other coil voltages on request.
Insulation Data
Initial dielectric strength between open contacts 1000V
rms
between contact and coil 5000V
rms
Clearance/creepage between contact and coil ≥10/10mm Material group of insulation parts IIIa Tracking index of relay base PTI250V
Q
1 pole 12/16 A, 1 form C (CO) or 1 form A (NO) contact
Q
DC coil 400 mW
Q
5kV/10mm coil-contact, reinforced insulation
Q
Ambient temperature 85°C (clear cover: 70°C)
Q
Product in accordance to IEC 60335-1
Typical applications Household appliances, boiler control, timers, garage door control, POS automation
Approvals
VDE REG.-Nr. C693, UL E214025 CQC: CQC12002066685
Technical data of approved types on request
Contact Data 12A 16A
Contact arrangement 1 form C (CO) or 1 form A (NO) Rated voltage 250VAC Max. switching voltage 400VAC Rated current 12A 16A Limiting making current (form A contact) max. 4s, duty factor 10% 30A max. 20ms (incandescent lamp); AgSnO
2
80A Breaking capacity max. 3000VA 4000VA Contact material AgNi 90/10 or AgSnO
2
Frequency of operation, with/without load 360/72000h
-1
Operate/release time max. 8/6ms Bounce time max., form A/form B 4/6ms
Contact ratings
Type Contact Load Cycles
IEC 61810
RZ03-1A. A (NO) 16A, 250VAC, 85°C 50x10
3
RZ03-1C4 C (CO) 16A, 250VAC, 85°C 10x10
3
RZ01-1A3 A (NO) 12A, 250VAC, 85°C 100x103
1)
RZ01-1A4 A (NO) 12A, 250VAC, 85°C 50x103 RZ01-1C4 C (CO) 12A, 250VAC, 85°C 30x10
3
RZ01-1.4 A (NO) 12A, 250VAC, 70°C 100x10
3
RZ0.-1A4 A (NO) 10A, 250VAC, 85°C 250x10
3
UL 508
RZ03-1A. A (NO) 16A, 250VAC, 85°C 50x10
3
RZ03-1A4 A (NO) 12A, 250VAC, 85°C 150x10
3
RZ01-1A3 A (NO) 12A, 250VAC, 85°C 50x10
3
RZ03-1.4 A (NO) B300, R300, 85°C 6x10
3
RZ03-1.4 A (NO) 12A, 250VAC, 85°C 100x10
3
RZ03-1.4 A (NO) 1/2hp, 125VAC, 85°C 6x10
3
RZ03-1A. A (NO) 1hp, 277VAC, 85°C 30x10
3
Mechanical endurance >10x10
6
operations
1) planned rating
F0305-A
ZV
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content refer to the Product Compliance Support Center at www.te.com/customersupport/rohssupportcenter Resistance to heat and fire standard cover version according EN 60335-1, par.30 Ambient temperature standard version -40 to 85°C clear cover -40 to 70°C Category of environmental protection IEC 61810 RTII - flux proof Vibration resistance (functional), 30 to 500Hz closing form A contact >15g opening form A contact >20g opening form B contact >5g Shock resistance (destructive) 100g Terminal type PCB-THT Mounting distance standard version ≥0mm clear cover ≥14mm Weight 10g Resistance to soldering heat THT IEC 60068-2-20 270°C/10s
2)
Packaging/unit tube/20 pcs., box/500 pcs.
2) The use of foaming flux is not permitted.
Recommended pcb hole for manual mounting: k1.3mm
For automated mounting please ask for detailed drawing.

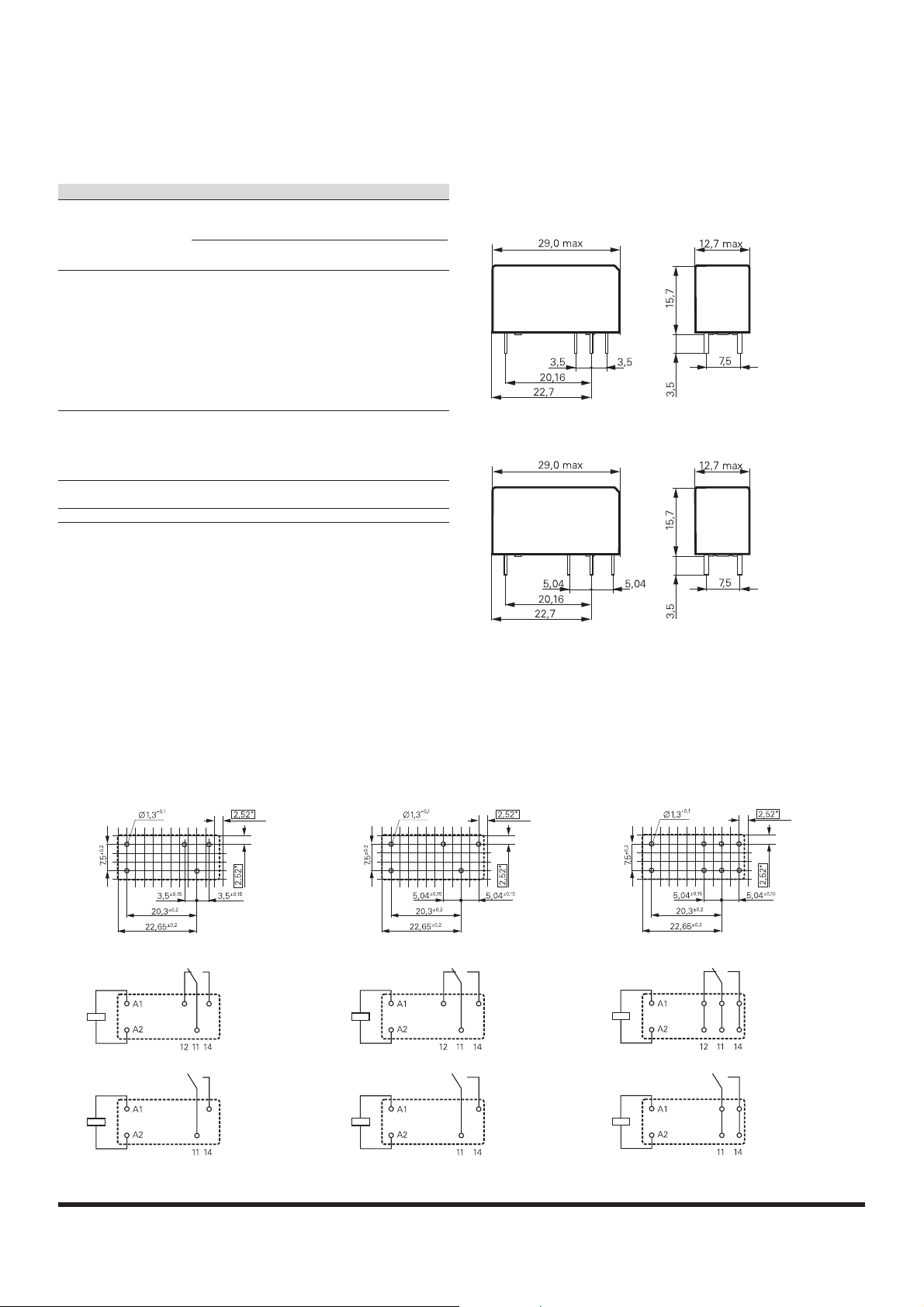

PCB layout / terminal assignment
Bottom view on solder pins
12 A, pinning 3.5 mm
1 form C (CO) contact
1 form A (NO) contact
S0418-CB
S0163-BG
S0163-BH
12 A, pinning 5 mm
1 form C (CO) contact
1 form A (NO) contact
S0418-CN
S0163-BC
S0163-BD
16 A, pinning 5 mm
1 form C (CO) contact
1 form A (NO) contact
S0418-CA
S0163-BE
S0163-BF
Dimensions
S0557-AA
12 A, pinning 3.5 mm
12A, 16 A, pinning 5 mm
S0557-AB
02-2012, Rev. 0212
3
Product code Version Contacts Contact material Coil Part number
RZ01-1A3-D005 12A 1 form A (NO) AgSnO2 5VDC 3-1415899-7 RZ01-1A3-D006 pinning 3.5mm 6VDC 3-1415899-8 RZ01-1A3-D012 12VDC 3-1415899-9 RZ01-1A3-D024 24VDC 4-1415899-0 RZ01-1A3-D048 48VDC 4-1415899-1 RZ01-1A4-D005 AgNi 90/10 5VDC 1415899-1 RZ01-1A4-D006 6VDC 1415899-2 RZ01-1A4-D009 9VDC 1415899-3 RZ01-1A4-D012 12VDC 1415899-4 RZ01-1A4-D024 24VDC 1415899-5 RZ01-1A4-D048 48VDC 1415899-6 RZ01-1C3-D005 1 form C (CO) AgSnO
2
5VDC 4-1415899-2 RZ01-1C3-D006 6VDC 4-1415899-3 RZ01-1C3-D012 12VDC 4-1415899-4 RZ01-1C3-D024 24VDC 4-1415899-5 RZ01-1C3-D048 48VDC 4-1415899-6 RZ01-1C4-D005 AgNi 90/10 5VDC 1415899-7 RZ01-1C4-D006 6VDC 1415899-8 RZ01-1C4-D009 9VDC 1415899-9 RZ01-1C4-D012 12VDC 1-1415899-0 RZ01-1C4-D024 24VDC 1-1415899-1 RZ01-1C4-D048 48VDC 1-1415899-2 RZ03-1A3-D005 16A 1 form A (NO) AgSnO
2
5VDC 4-1415899-7 RZ03-1A3-D006 pinning 5mm 6VDC 4-1415899-8 RZ03-1A3-D012 12VDC 4-1415899-9 RZ03-1A3-D024 24VDC 5-1415899-0 RZ03-1A3-D048 48VDC 5-1415899-1 RZ03-1A4-D005 AgNi 90/10 5VDC 1-1415899-3 RZ03-1A4-D006 6VDC 1-1415899-4 RZ03-1A4-D009 9VDC 1-1415899-5 RZ03-1A4-D012 12VDC 1-1415899-6 RZ03-1A4-D024 24VDC 1-1415899-7 RZ03-1A4-D048 48VDC 1-1415899-8 RZ03-1C3-D005 1 form C (CO) AgSnO
2
5VDC 5-1415899-2 RZ03-1C3-D006 6VDC 5-1415899-3 RZ03-1C3-D012 12VDC 5-1415899-4 RZ03-1C3-D024 24VDC 5-1415899-5 RZ03-1C3-D048 48VDC 5-1415899-6 RZ03-1C4-D005 AgNi 90/10 5VDC 1-1415899-9 RZ03-1C4-D006 6VDC 2-1415899-0 RZ03-1C4-D009 9VDC 2-1415899-1 RZ03-1C4-D012 12VDC 2-1415899-2 RZ03-1C4-D015 15VDC 8-1415899-2 RZ03-1C4-D024 24VDC 2-1415899-3 RZ03-1C4-D048 48VDC 2-1415899-4
RZ01-1C4-D012-000C
Clear cover AgNi 90/10 12VDC 6-1415899-8
RZ01-1C4-D024-000C
12A, pinning 3.5mm 24VDC 6-1415899-9
RZ03-1A4-D012-000C
Clear cover 1 form A (NO) 12VDC 7-1415899-2
RZ03-1A4-D024-000C
16A, pinning 5mm 24VDC 7-1415899-3
RZ03-1C4-D012-000C
1 form C (CO) 12VDC 7-1415899-0
RZ03-1C4-D024-000C
24VDC 7-1415899-1 This list represents the most common types and does not show all variants covered by this datasheet. Other types on request
Product code structure Typical product code RZ 0 3 -1C 4 -D012
Type RZ Power PCB Relay RZ Version 0 standard version Version
1 3.5mm pinning, 12 A 3 5 mm double pinning, 16 A 2 5mm pinning, 12 A H High Performance 5mm double pinning, 16 A
Contact configuration 1A 1 form A (1 NO) contact 1C 1 form C (1 CO) contact Contact material
4 AgNi 90/10 3 AgSnO
2
Coil version Coil code: please refer to coil versions table Cover version
blank standard (orange) 000C clear (transparent) R reinforced flux proof (epoxy)
