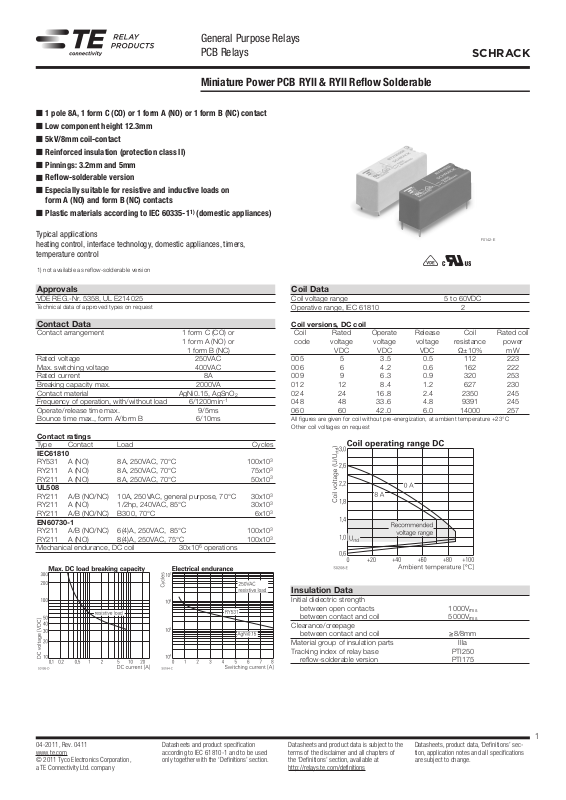

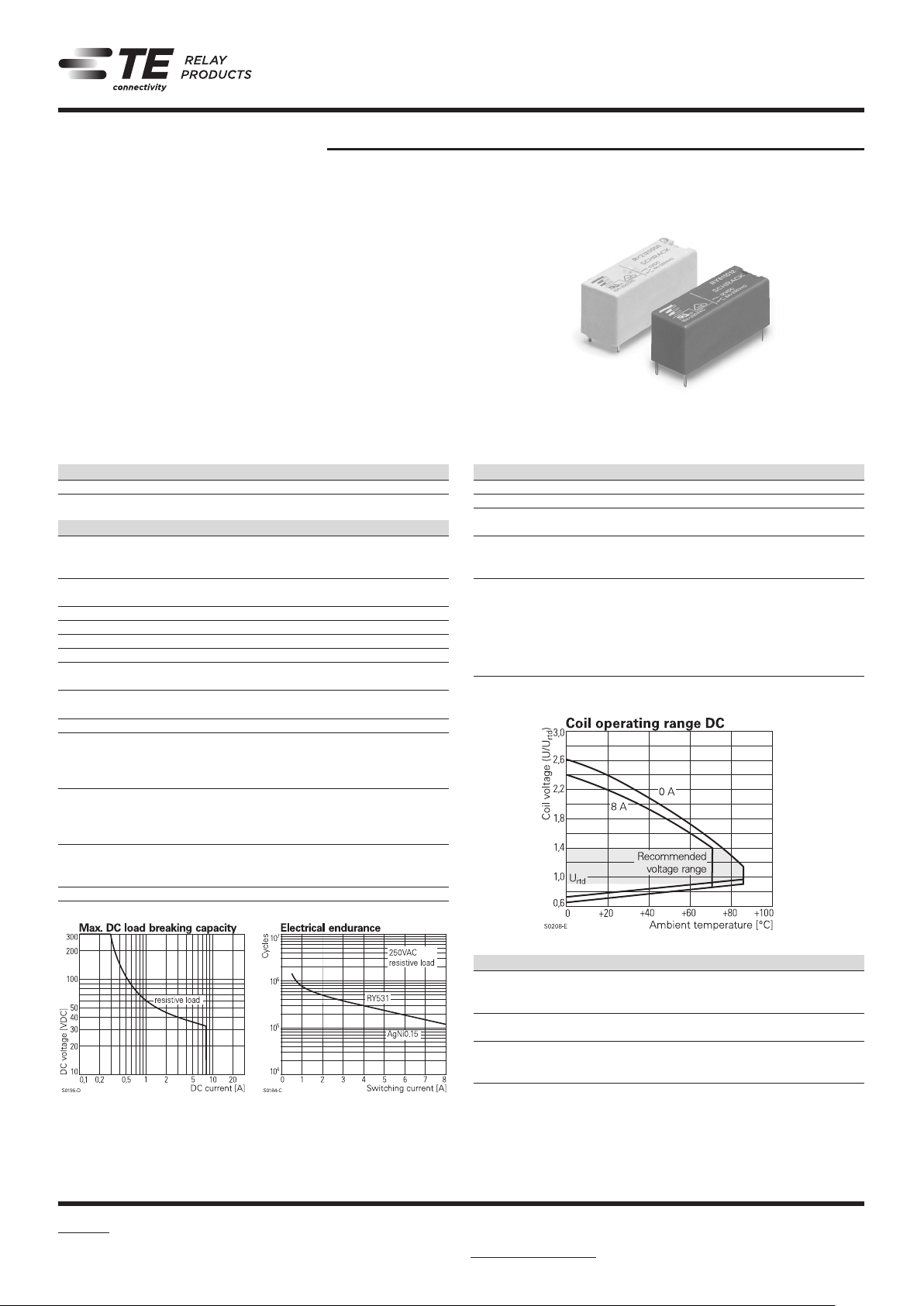

General Purpose Relays
Z
V
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable
n
1 pole 8A, 1 form C (CO) or 1 form A (NO) or 1 form B (NC) contact
n
Low component height 12.3mm
n
5kV/8mm coil-contact
n
Reinforced insulation (protection class II)
n
Pinnings: 3.2mm and 5mm
n
Reflow-solderable version
n
Especially suitable for resistive and inductive loads on
form A (NO) and form B (NC) contacts
n
Plastic materials according to IEC 60335-11) (domestic appliances)
SCHRACK
Typical applications
heating control, interface technology, domestic appliances, timers,
temperature control
1) not available as reflow-solderable version
Approvals
VDE REG.-Nr. 5358, UL E214025
Technical data of approved types on request
Contact Data
Contact arrangement 1 form C (CO) or
1 form A (NO) or
1 form B (NC)
Rated voltage 250VAC
Max. switching voltage 400VAC
Rated current 8A
Breaking capacity max. 2000VA
Contact material AgNi0.15, AgSnO
Frequency of operation, with/without load 6/1200min
Operate/release time max. 9/5ms
Bounce time max., form A/form B 6/10ms
Contact ratings
Type Contact Load Cycles
IEC61810
RY531 A (NO) 8A, 250VAC, 70°C 100x10
RY211 A (NO) 8A, 250VAC, 70°C 75x10
RY211 A (NO) 8A, 250VAC, 70°C 50x10
UL508
RY211 A/B (NO/NC) 10A, 250VAC, general purpose, 70°C 30x10
RY211 A (NO) 1/2hp, 240VAC, 85°C 30x10
RY211 A/B (NO/NC) B300, 70°C 6x10
EN60730-1
RY211 A/B (NO/NC) 6(4)A, 250VAC, 85°C 100x10
RY211 A (NO) 8(4)A, 250VAC, 75°C 100x10
Mechanical endurance, DC coil 30x106 operations
2
-1
F0142-E
Coil Data
Coil voltage range 5 to 60VDC
Operative range, IEC 61810 2
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10% mW
005 5 3.5 0.5 112 223
006 6 4.2 0.6 162 222
009 9 6.3 0.9 320 253
012 12 8.4 1.2 627 230
024 24 16.8 2.4 2350 245
048 48 33.6 4.8 9391 245
060 60 42.0 6.0 14000 257
All figures are given for coil without pre-energization, at ambient temperature +23°C
Other coil voltages on request
3
3
3
3
3
3
3
3
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Insulation Data
Initial dielectric strength
between open contacts 1000V
between contact and coil 5000V
Clearance/creepage
between contact and coil ≥8/8mm
Material group of insulation parts IIIa
Tracking index of relay base PTI250
reflow-solderable version PTI175
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
rms
rms
1
General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
SCHRACK
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature -40 to +70°C
+85°C at 6A
Category of environmental protection
IEC 61810 RTII - flux proof
RTIII - wash tight
1)
Vibration resistance (functional),
form A (NO)/form B (NC) 20/5g
Shock resistance (functional)
form A (NO)/form B (NC) 20/5g
Shock resistance (destructive) 100g
Terminal type PCB-THT, PCB-THR
Weight 8g
Resistance to soldering heat THT
IEC 60068-2-20 RTII : 270°C/10s
RTIII : 260°C/5s
Resistance to soldering heat THR
IEC 60068-2-58 250°C, no infrared heating allowed
Packaging/unit
standard version tube/20 pcs., box/500 pcs.
reflow version box/1120 pcs.
1) not available as reflow-solderable version
Accessories
For details see datasheet Accessories Miniature PCB Relay RY

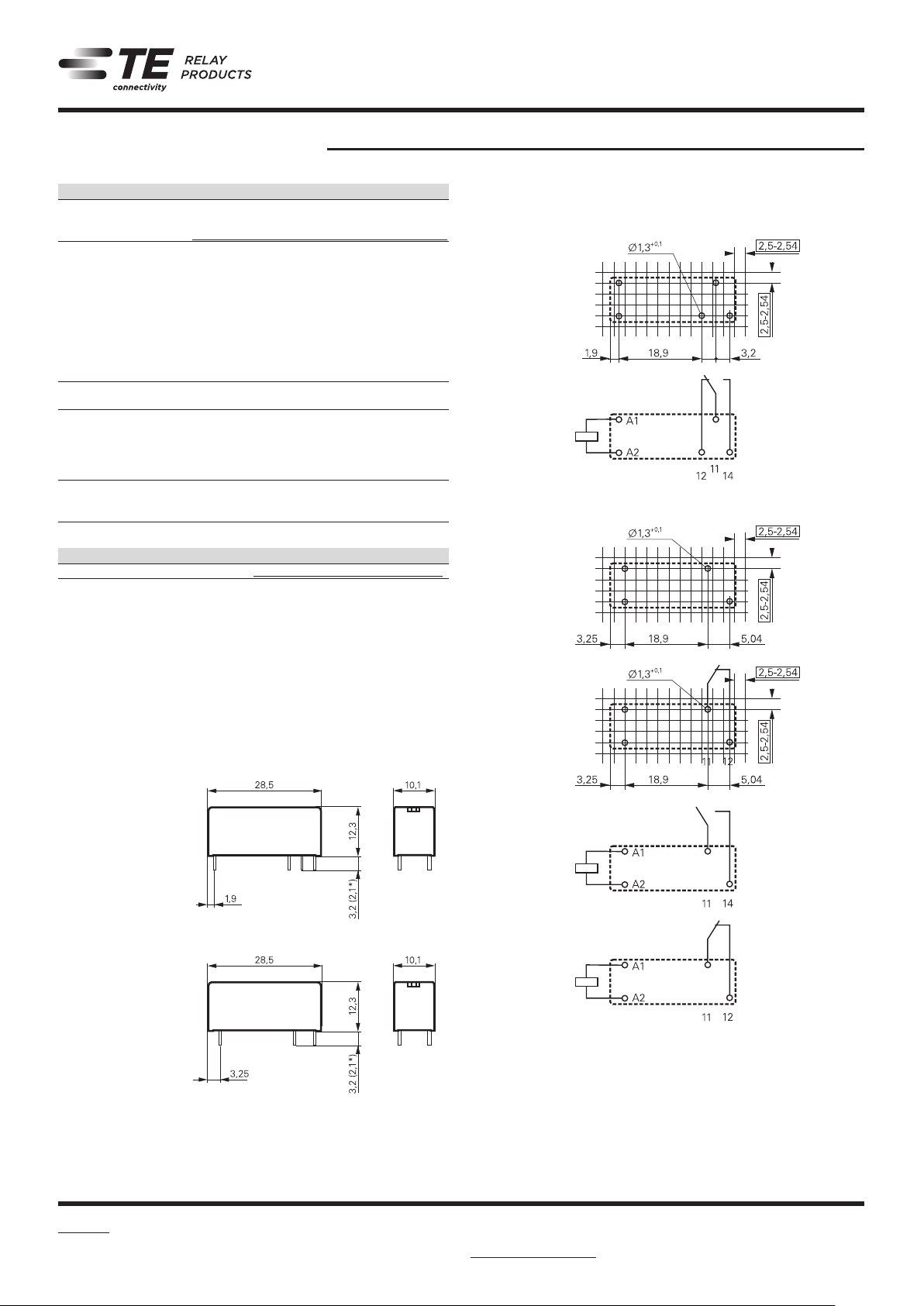

PCB layout / terminal assignment
Bottom view on solder pins
1 form C (CO) contact, 3.2 mm
S0254-AA
S0254-AB
1 form A (NO), 1 form B (NC) contact 5 mm
S0254-AC
Dimensions Pinning 3.2 mm
Pinning 5 mm
2
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
S0274-CA
S0274-CB
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
S0254-AE
S0254-AD
S0254-AF
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.

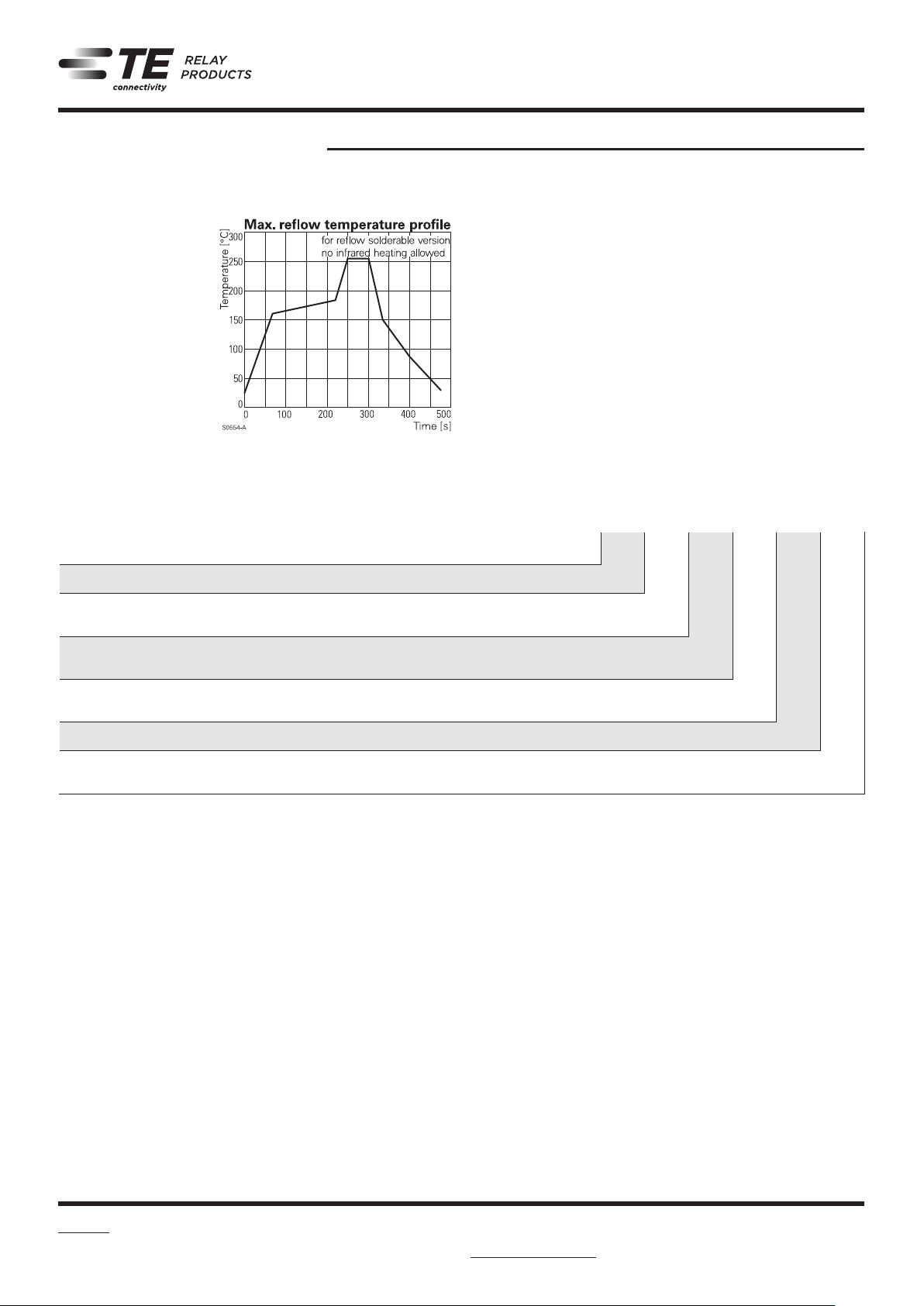

Soldering profile for
reflow-solderable version
General Purpose Relays
PCB Relays
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
SCHRACK
Product code structure Typical product code RY 6 1 1 012
Type
RY Miniature Power PCB RYII & RYII reflow solderable
Version
2 pinning 3.2mm, flux proof 6 pinning 3.2mm, wash tight
5 pinning 5mm, flux proof A pinning 5mm, wash tight
Contact arrangement
1 1 form C (1 CO), pinning 3.2mm 3 1 form A (1 NO), pinning 5mm
5 1 form B (1 NC), pinning 5mm
Contact material
1 AgNi 0.15 2 AgNi 0.15 gold plated
3 AgSnO
Coil
Coil code: please refer to coil versions table
Version
Blank Standard version
R reflow-solderable
2) not available as reflow-solderable version
2
2)
2)
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
3
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
SCHRACK
Miniature Power PCB RYII & RYII Reflow Solderable (Continued)
Product code Version Contacts Contact material Coil Part number
RY211005 Pinning 3.2 mm 1 form C, AgNi 0.15 5VDC 4-1393224-2
RY211012 flux proof 1 CO contact 12VDC 4-1393224-6
RY211024 24VDC 4-1393224-9
RY211048 48VDC 5-1393224-1
RY212005 AgNi 0.15 5VDC 5-1393224-2
RY212012 gold plated 12VDC 5-1393224-5
RY212024 24VDC 5-1393224-8
RY212048 48VDC 5-1393224-9
RY213005 AgSnO2 5VDC 6-1393224-0
RY213012 12VDC 6-1393224-1
RY213024 24VDC 6-1393224-2
RY213048 48VDC 6-1393224-3
RY531005 Pinning 5 mm 1 form A, AgNi 0.15 5VDC 7-1393224-6
RY531012 flux proof 1 NO contact 12VDC 7-1393224-9
RY531024 24VDC 8-1393224-2
RY531048 48VDC 8-1393224-3
RY532012 AgNi 0.15 12VDC 8-1393224-4
RY532024 gold plated 24VDC 8-1393224-5
RY533012 AgSnO2 12VDC 8-1393224-8
RY533024 24VDC 8-1393224-9
RY533048 48VDC 9-1393224-0
RY611005 Pinning 3.2 mm 1 form C, AgNi 0.15 5VDC 1-1393225-7
RY611012 wash tight 1 CO contact 12VDC 1-1393225-9
RY611024 24VDC 2-1393225-1
RY611048 48VDC 2-1393225-2
RY612005 AgNi 0.15 5VDC 2-1393225-3
RY612012 gold plated 12VDC 2-1393225-6
RY612024 24VDC 2-1393225-9
RY612048 48VDC 3-1393225-0
RY613005 AgSnO2 5VDC 5-1419136-2
RY613012 12VDC 3-1393225-1
RY613024 24VDC 3-1393225-3
RY613048 48VDC 3-1393225-4
RY631024 1 form A, AgNi 0.15 24VDC 4-1415400-1
RYA31005 Pinning 5 mm 1 NO contact 5VDC 1393224-7
RYA31012 wash tight 12VDC 1393224-9
RYA31024 24VDC 1-1393224-2
RYA31048 48VDC 1-1393224-3
RYA32005 AgNi 0.15 5VDC 1-1393224-4
RYA32012 gold plated 12VDC 1-1393224-6
RYA32024 24VDC 1-1393224-8
RYA33005 AgSnO2 5VDC 1-1393224-9
RYA33024 24VDC 2-1393224-1
Product code Version Contacts Contact material Coil Part number
RY211005R pinning 3.2mm 1 form C, AgNi 0.15 5VDC 1-1956170-2
RY211012R flux proof 1 CO contact 12VDC 1-1956170-6
RY211024R reflow solderable 24VDC 1956164-1
RY531005R pinning 5.0mm 1 form A, 5VDC 1-1956171-1
RY531012R flux proof 1 NO contact 12VDC 1-1956171-4
RY531024R reflow solderable 24VDC 1-1956171-7
4
04-2011, Rev. 0411
www.te.com
© 2011 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ section, application notes and all specifications
are subject to change.
