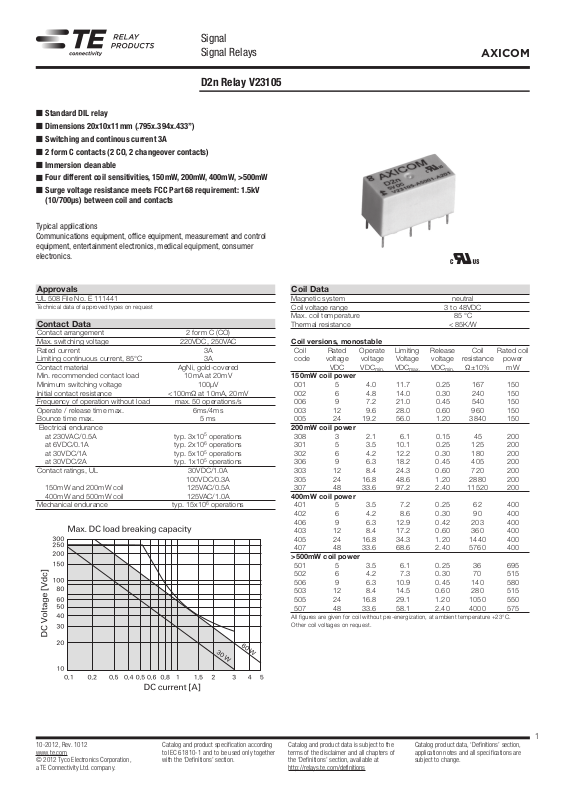

Signal
Z
Signal Relays
D2n Relay V23105
n
Standard DIL relay
n
Dimensions 20x10x11mm (.795x.394x.433”)
n
Switching and continous current 3A
n
2 form C contacts (2 CO, 2 changeover contacts)
n
Immersion cleanable
n
Four different coil sensitivities, 150mW, 200mW, 400mW, >500mW
n
Surge voltage resistance meets FCC Part 68 requirement: 1.5kV
(10/700μs) between coil and contacts
Typical applications
Communications equipment, office equipment, measurement and control
equipment, entertainment electronics, medical equipment, consumer
electronics.
AXICOM
Approvals
UL 508 File No. E 111441
Technical data of approved types on request
Contact Data
Contact arrangement 2 form C (CO)
Max. switching voltage 220VDC, 250VAC
Rated current 3A
Limiting continuous current, 85°C 3A
Contact material AgNi, gold-covered
Min. recommended contact load 10mA at 20mV
Minimum switching voltage 100μV
Initial contact resistance <100mΩ at 10mA, 20mV
Frequency of operation without load max. 50 operations/s
Operate / release time max. 6ms/4ms
Bounce time max. 5 ms
Electrical endurance
at 230VAC/0.5A typ. 3x10
at 6VDC/0.1A typ. 2x10
at 30VDC/1A typ. 5x10
at 30VDC/2A typ. 1x10
Contact ratings, UL 30VDC/1.0A
100VDC/0.3A
150mW and 200mW coil 125VAC/0.5A
400mW and 500mW coil 125VAC/1.0A
Mechanical endurance typ. 15x10
5
operations
6
operations
5
operations
5
operations
6
operations
Coil Data
Magnetic system neutral
Coil voltage range 3 to 48VDC
Max. coil temperature 85 °C
Thermal resistance < 85K/W
Coil versions, monostable
Coil Rated Operate Limiting Release Coil Rated coil
code voltage voltage Voltage voltage resistance power
VDC VDC
150mW coil power
001 5 4.0 11.7 0.25 167 150
002 6 4.8 14.0 0.30 240 150
006 9 7.2 21.0 0.45 540 150
003 12 9.6 28.0 0.60 960 150
005 24 19.2 56.0 1.20 3840 150
200mW coil power
308 3 2.1 6.1 0.15 45 200
301 5 3.5 10.1 0.25 125 200
302 6 4.2 12.2 0.30 180 200
306 9 6.3 18.2 0.45 405 200
303 12 8.4 24.3 0.60 720 200
305 24 16.8 48.6 1.20 2880 200
307 48 33.6 97.2 2.40 11520 200
400mW coil power
401 5 3.5 7.2 0.25 62 400
402 6 4.2 8.6 0.30 90 400
406 9 6.3 12.9 0.42 203 400
403 12 8.4 17.2 0.60 360 400
405 24 16.8 34.3 1.20 1440 400
407 48 33.6 68.6 2.40 5760 400
>500mW coil power
501 5 3.5 6.1 0.25 36 695
502 6 4.2 7.3 0.30 70 515
506 9 6.3 10.9 0.45 140 580
503 12 8.4 14.5 0.60 280 515
505 24 16.8 29.1 1.20 1050 550
507 48 33.6 58.1 2.40 4000 575
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
min.
VDC
max.
VDC
Ω±10% mW
min.
10-2012, Rev. 1012
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
1
application notes and all specifications are
subject to change.
Signal
108-98007 Rev A
Telecom-, Signal and RF Relays
D2n V23105 Relay
AXICOM
Coil Operating Range
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
-30-20 -10010 20 30 40 50 60 70 80 90 100 110 120
200 mW coil
Umax. at 0 A
Umax. at 2 x 2 A
Umax. at 2 x 1 A
Unom. nominal coil voltage
Uop. min.
Urel. min.
Ambient Temperature [°C]
Coil Voltage [U/Unom]
200 mW
108-98007 Rev A
108-98007 Rev A
Telecom-, Signal and RF Relays
D2n V23105 Relay
AXICOM
Coil Operating Range
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
-30-20 -100 10 20 30 40 50 60 70 80 90 100 110 120
550 mW coil
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
3.0
-30-20 -100 10 20 30 40 50 60 70 80 90 100 110 120
150 mW coil
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
-30-20 -10010 20 30 40 50 60 70 80 90 100 110 120
200 mW coil
U
max.
at 0 A
U
max.
at 2 x 2 A
U
max.
at 2 x 1 A
U
nom.
nominal coil voltage
Uop. min.
Urel. min.
Ambient Temperature [°C]
Coil Voltage [U/Unom
]
Umax. at 0 A
Umax. at 2 x 2 A
U
max.
at 2 x 1 A
Unom. nominal coil voltage
Uop. min.
Urel. min.
Ambient Temperature [°C]
Coil Voltage [U/Unom]
Umax. at 0 A
Umax. at 2 x 2 A
Umax. at 2 x 1 A
Unom.
Uop. min.
Urel. min.
Ambient Temperature [°C]
Coil Voltage [U/U
nom
]
150 mW
200 mW
550 mW
108-98007 Rev A
0
0.2
0.4
0.6
0.8
1
1.2
1.4
1.6
1.8
2
2.2
2.4
2.6
2.8
3
-30-20 -10010 20 30 40 50 60 70 80 90 100 110 120
200 mW coil
U
max.
at 0 A
U
max.
at 2 x 2 A
U
max.
at 2 x 1 A
Unom. nominal coil voltage
U
op. min.
Urel. min.
Ambient Temperature [°C]
Coil Voltage [U/Unom]
200 mW
Signal Relays
AXICOM
Coil Data (continued)
3.0
2.8
2.6
2.4
2.2
]
2.0
nom
1.8
1.6
1.4
1.2
U
nominal coil voltage
nom.
1.0
Coil Voltage [U/U
0.8
0.6
0.4
0.2
0.0
-30-20 -100 10 20 30 40 50 60 70 80 90 100 110 120
3
2.8
2.6
2.4
2.2
]
2
nom
1.8
1.6
1.4
1.2
Unom. nominal coil voltage
1
Coil Voltage [U/U
0.8
0.6
0.4
0.2
0
-30-20 -10010 20 30 40 50 60 70 80 90 100 110 120
3.0
2.8
2.6
2.4
2.2
2.0
nom]
1.8
1.6
1.4
1.2
1.0
Unom.
Coil Voltage [U/U
0.8
0.6
0.4
0.2
0.0
-30-20 -100 10 20 30 40 50 60 70 80 90 100110 120
3.0
2.8
2.6
2.4
2.2
]
2.0
nom
1.8
1.6
1.4
1.2
1.0
U
nom.
Coil Voltage [U/U
0.8
0.6
0.4
0.2
0.0
-30-20 -100 10 20 30 40 50 60 70 80 90 100 110 120
2
10-2012, Rev. 1012
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Ambient Temperature [°C]
Ambient Temperature [°C]
Ambient Temperature [°C]
Ambient Temperature [°C]
D2n Relay V23105
150 mW coil
150 mW
U
at 0 A
max.
Umax. at 2 x 1 A
Umax. at 2 x 2 A
Uop. min.
Urel. min.
200 mW coil
200 mW
U
at 0 A
max.
Umax. at 2 x 1 A
U
at 2 x 2 A
max.
op. min.
U
Urel. min.
400 mW coil
400 mW
Umax. at 0 A
Umax. at 2 x 1 A
Umax. at 2 x 2 A
Uop. min.
Urel. min.
550 mW coil
550 mW
Umax. at 0 A
Umax. at 2 x 1 A
Umax. at 2 x 2 A
Uop. min.
Urel. min.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
(Continued)
Coil Data (continued)
Coil operative range graphs
U
Nominal coil voltage
nom
U
Upper limit of the operative range of the coil voltage (limiting
max
voltage) when coils are continously energized
U
Lower limit of the operative range of
op. min.
the coil voltage (reliable operate voltage)
Lower limit of the operative range of
U
rel. min.
the coil voltage (reliable release voltage)
Insulation Data
Initial dielectric strength
between open contacts 750V
between contact and coil 1050V
between adjacent contacts 750V
Initial surge withstand voltage
rms
rms
rms
between open contacts 1500V
between contact and coil 1500V
between adjacent contacts 1500V
Initial insulation resistance at 500 VDC > 10
9
Ω
Capacitance
between open contacts max. 2pF
between contact and coil max. 4pF
between adjacent contacts max. 2 pF
RF Data
Isolation at 100MHz/900MHz -39.0dB/-20.7dB
Insertion loss at 100MHz/900MHz -0.02dB/-0.27dB
Voltage standing wave ratio (VSWR)
at 100MHz/900MHz 1.04/1.40
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Ambient temperature -40 to +85°C
Category of environmental protection
IEC 61810 RT III - immersion cleanable
Degree of protection, IEC 60529 IP 67
Vibration resistance (functional) 10g, 10 to 55Hz
Shock resistance (functional)
IEC 60068-2-27 (half sine) 10g
Shock resistance (destructive) 50g
Terminal type PCB-THT
Weight max. 6g
Resistance to soldering heat THT
IEC 60068-2-20 265°C/10s
Ultrasonic cleaning not recommended
Packaging unit 1000 pcs.
Terminal assignment
TOP view on component side of PCB
PCB layout
TOP view on component side of PCB
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
application notes and all specifications are
subject to change.
Signal
Signal Relays
AXICOM
D2n Relay V23105
Dimensions Packing
(Continued)
Product code structure Typical product code V23105-A5 001 A201
Type
V23105-A5 D2n Series Signal Relay
Coil
Coil code: please refer to coil versions table
Coil power
0xx 150 mW 4xx 400 mW
3xx 300 mW 5xx 550 mW
Contacts
A201 2 form C, 2 CO, AgNi+Au contacts
Product Code Version Coil power Coil voltage Part number
V23105A5001A201 AgNi+Au 150mW 5VDC 8-1393792-5
V23105A5002A201 contacts 6VDC 8-1393792-7
V23105A5006A201 9VDC 9-1393792-1
V23105A5003A201 12VDC 8-1393792-8
V23105A5005A201 24VDC 9-1393792-0
V23105A5308A201 200mW 3VDC 1393793-5
V23105A5301A201 5VDC 9-1393792-3
V23105A5302A201 6VDC 9-1393792-5
V23105A5306A201 9VDC 1393793-2
V23105A5303A201 12VDC 9-1393792-7
V23105A5305A201 24VDC 9-1393792-9
V23105A5307A201 48VDC 1393793-3
V23105A5401A201 400mW 5VDC 1393793-6
V23105A5402A201 6VDC 1393793-7
V23105A5406A201 9VDC 1-1393793-0
V23105A5403A201 12VDC 1393793-8
V23105A5405A201 24VDC 1393793-9
V23105A5407A201 48VDC 1-1393793-1
V23105A5501A201 >500mW 5VDC 1-1393793-6
V23105A5502A201 6VDC 1-1393793-8
V23105A5506A201 9VDC 2-1393793-3
V23105A5503A201 12VDC 1-1393793-9
V23105A5505A201 24VDC 2-1393793-1
V23105A5507A201 48VDC 2-1393793-4
V23105A5475A201 BT 47 type 5VDC 1-1393793-2
V23105A5479A201 spec T4563C 10VDC 3-1393794-0
V23105A5476A201 (current tested) 12VDC 1-1393793-3
V23105A5477A201 24VDC 1-1393793-4
V23105A5478A201 48VDC 1-1393793-5
10-2012, Rev. 1012
www.te.com
© 2012 Tyco Electronics Corporation,
a TE Connectivity Ltd. company.
Catalog and product specification according
to IEC 61810-1 and to be used only together
with the ‘Definitions’ section.
Catalog and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Catalog product data, ‘Definitions’ section,
3
application notes and all specifications are
subject to change.
