Tecom Co WM5030OD Users manual
WM5030-OD WiMAX Outdoor Modem
Quick Installation Guide
Version1.3
TECOMCO.,LTD
2009/9/1
WM5030-OD QIG
TABLE OF CONTENTS
1. UNPACK THE OUTDOOR MODEM.......................................................................................................................1
2. MAKING CONNECTIONS........................................................................................................................................ 2

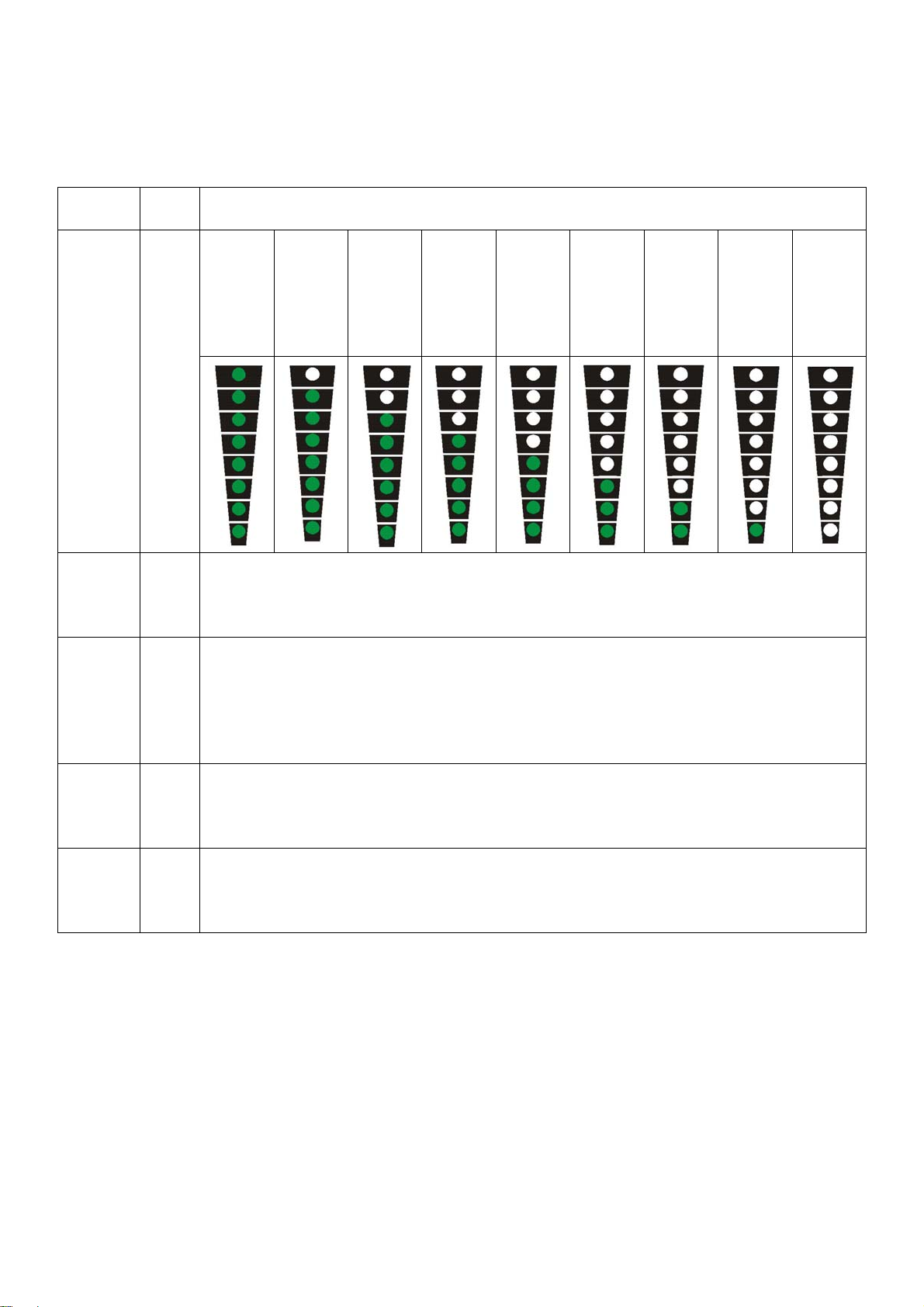

3. OMK.............................................................................................................................................................................. 3
4. NETWORK CONFIGURATION...............................................................................................................................5

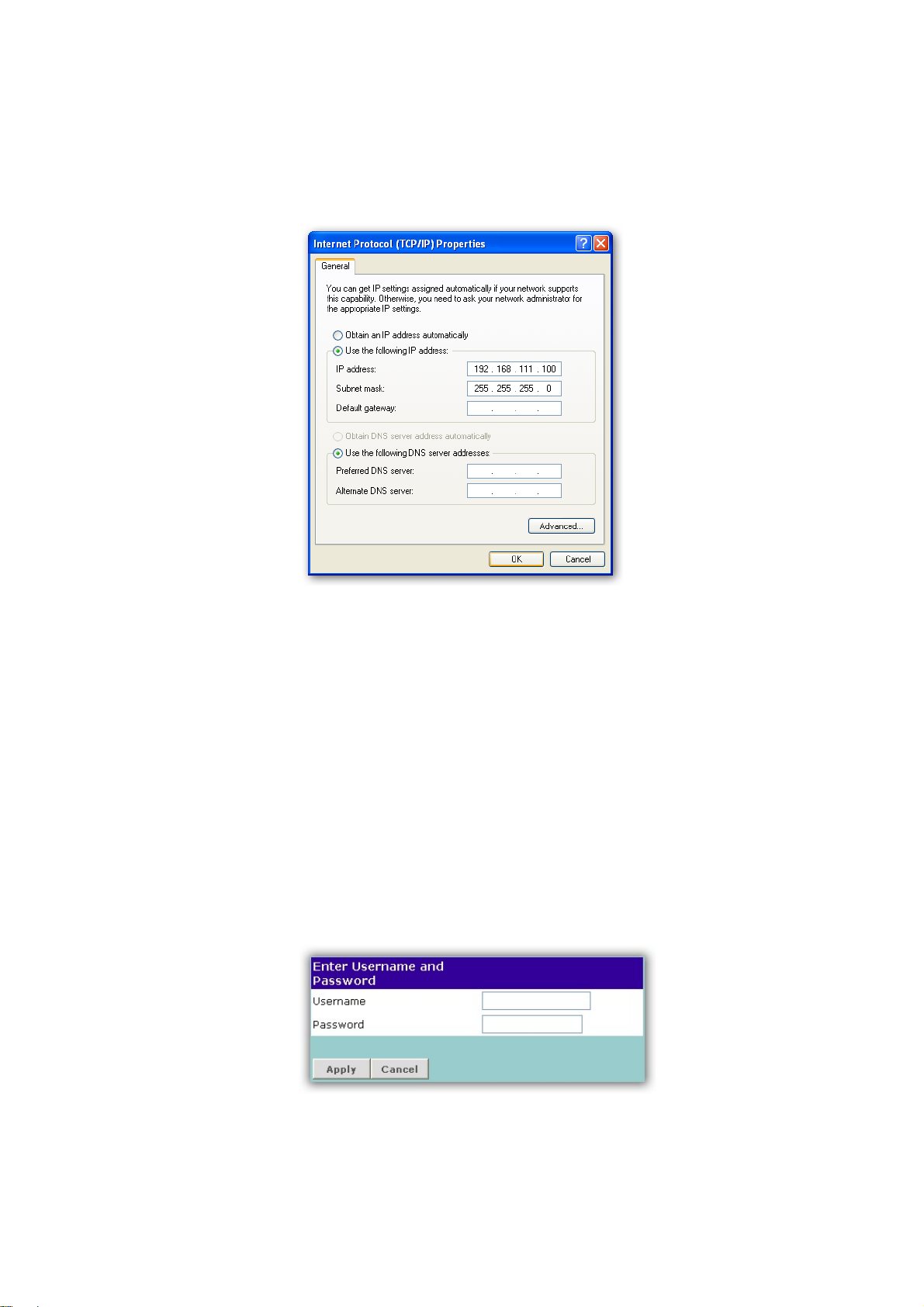

4.1 S

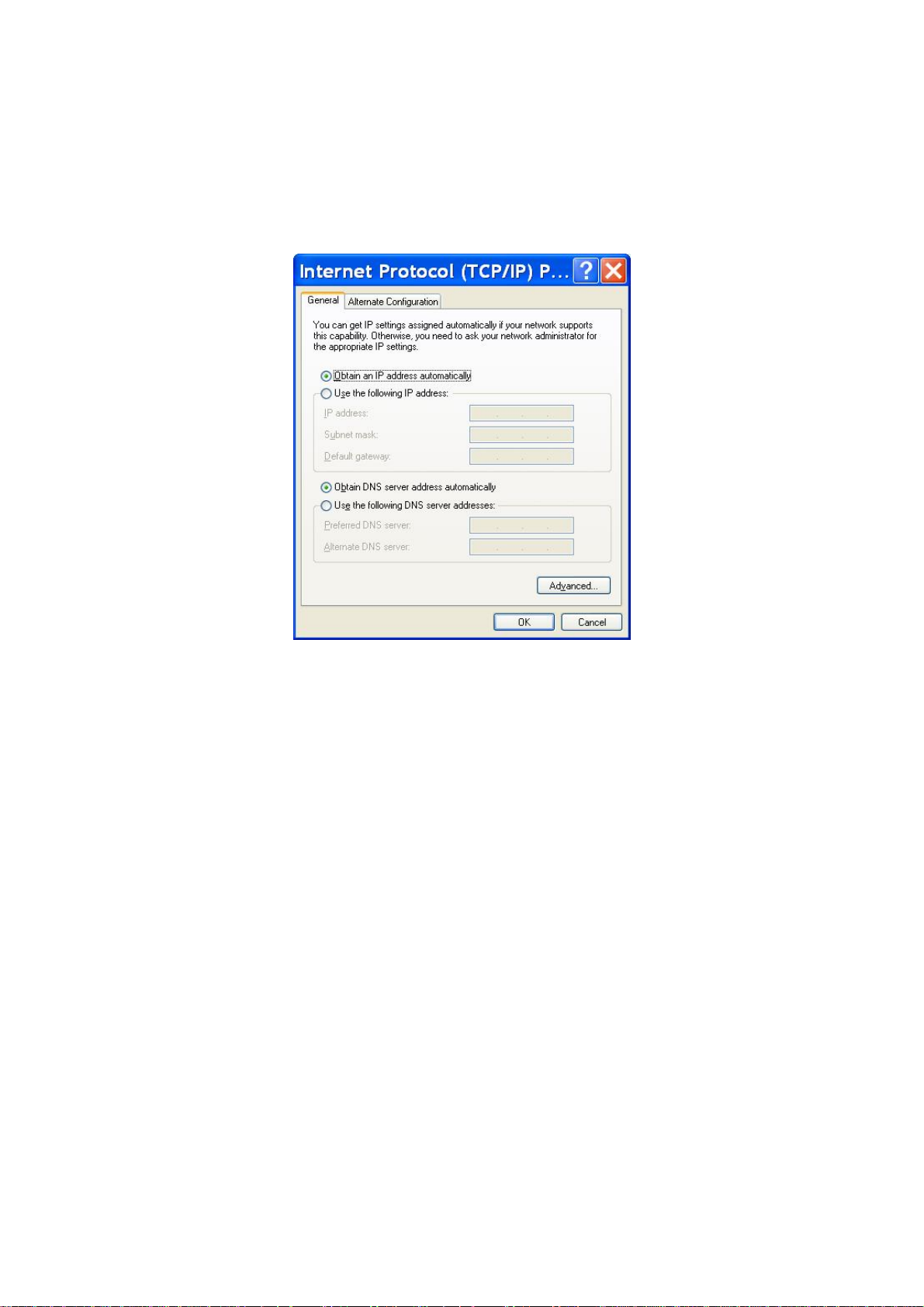

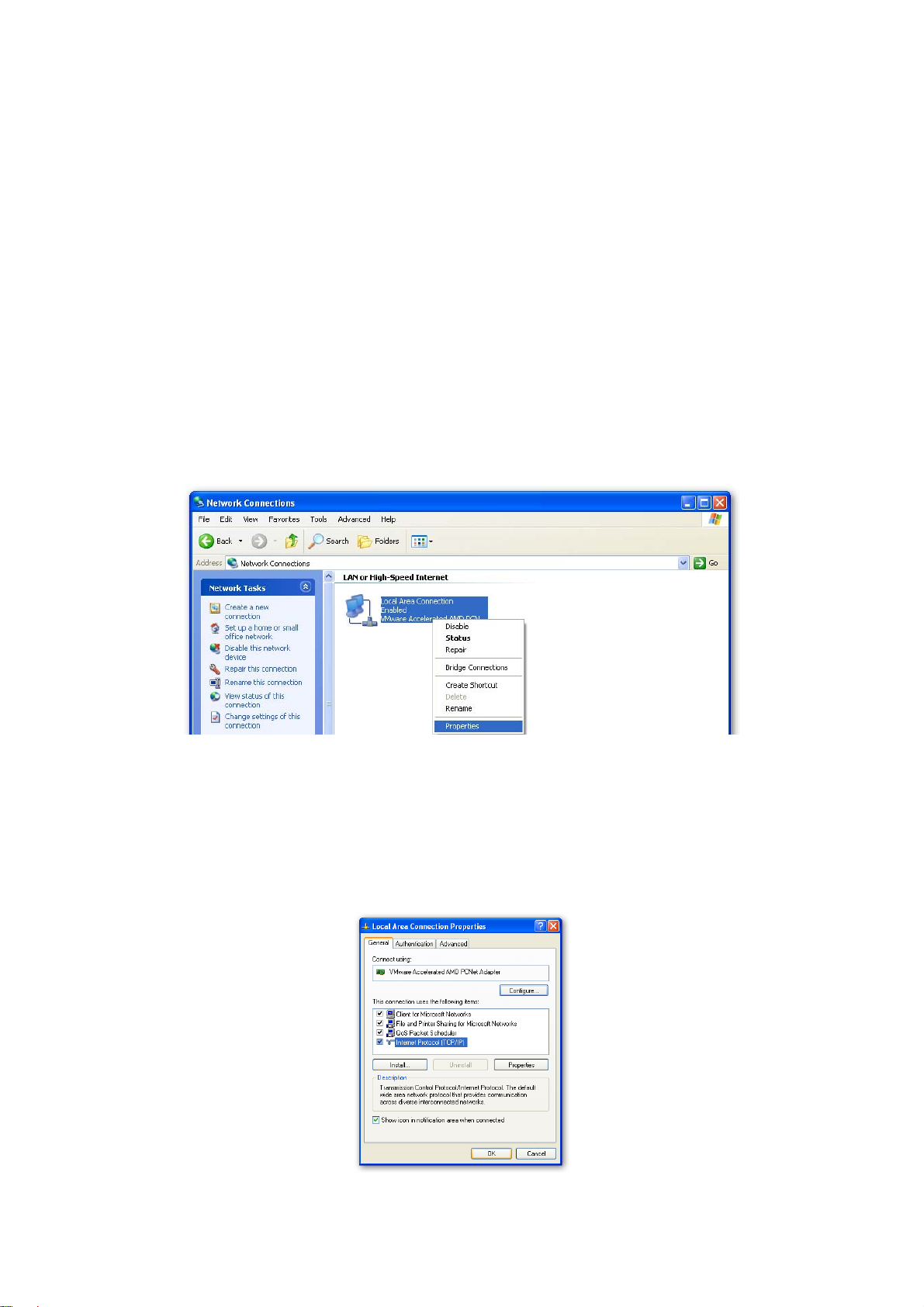

ETUP YOUR COMPUTER TO CONFIGURE

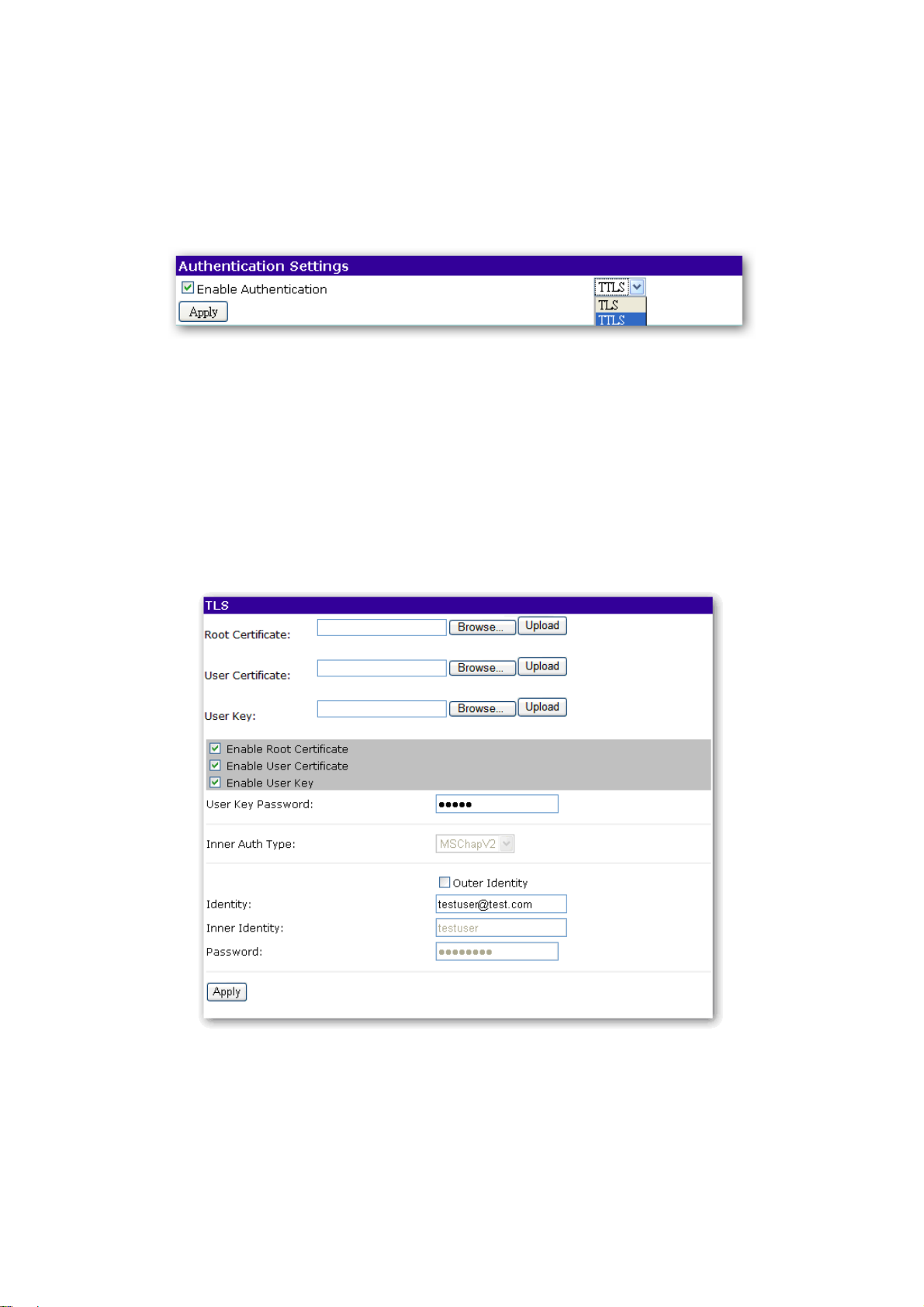

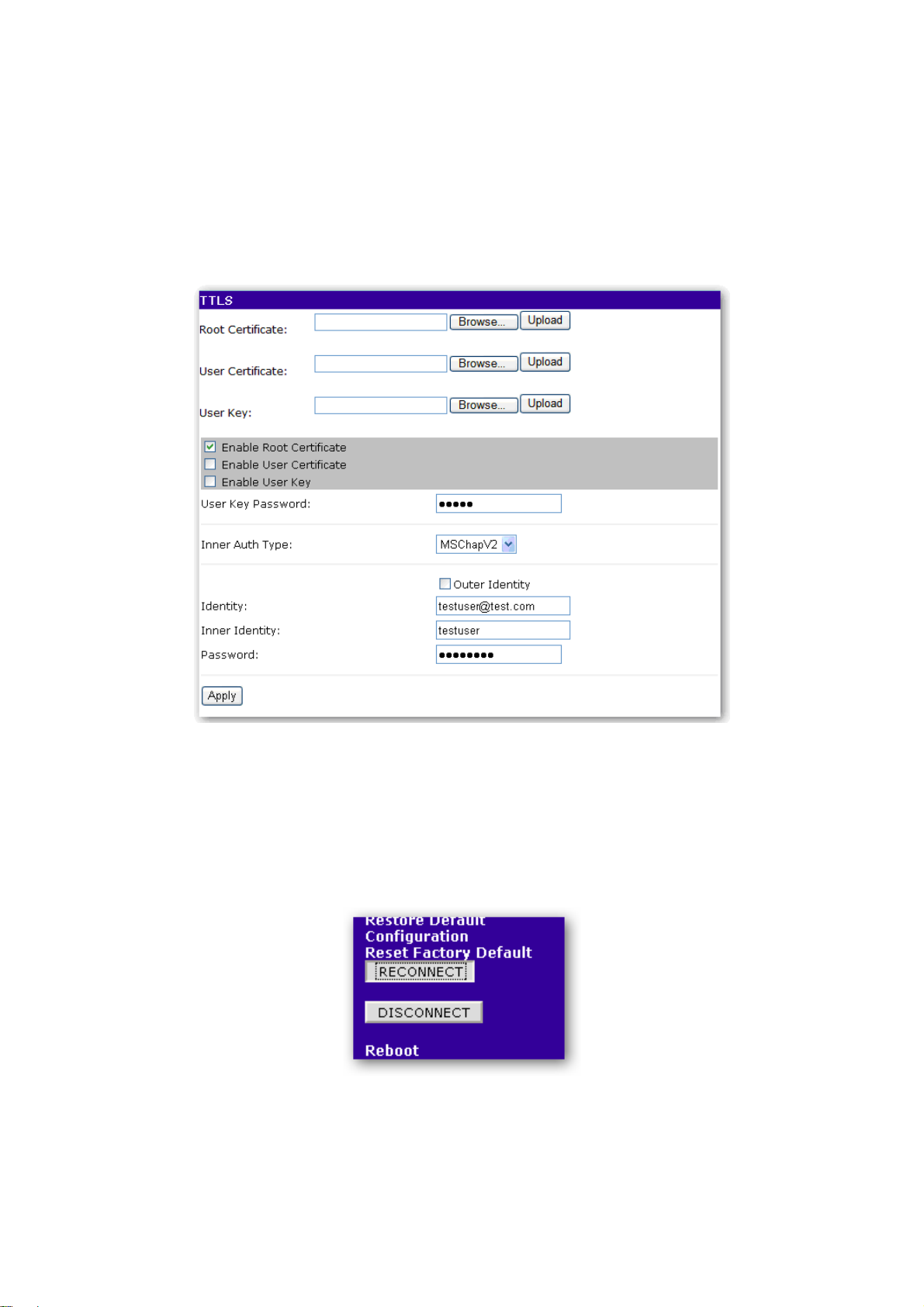

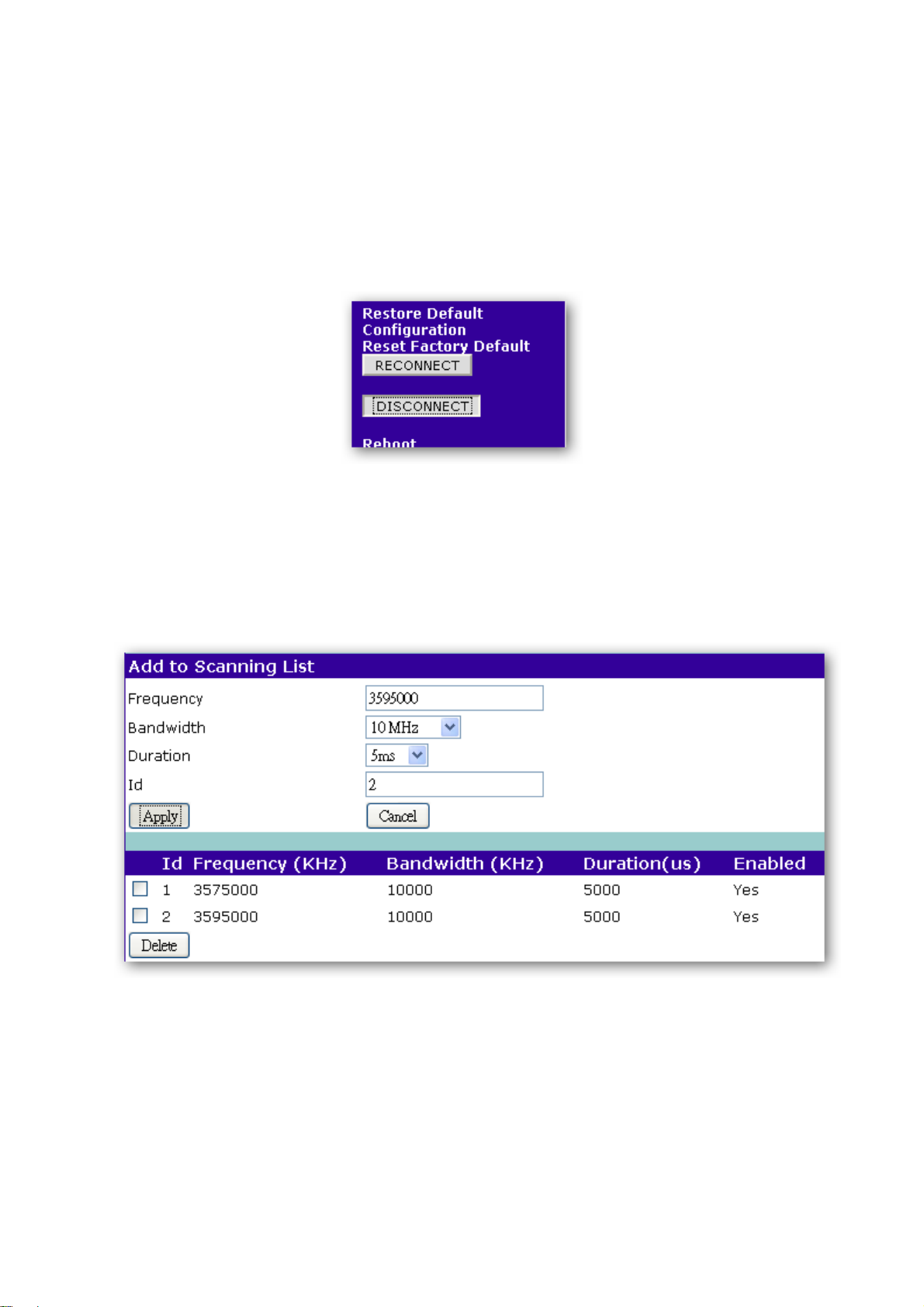

4.2 M
AKING CONNECTION TO WI
MAX N
WM5030-OD..........................................................................................5
ETWORK
...........................................................................................................7
i
WM5030-OD QIG
1. UNPACK THE OUTDOOR MODEM
The following figure lists the items shipped with WM5030OD outdoor modem:
1. PoE Adapter: Qty 1
2. 1.5 M 8P4C gray Ethernet cable (between computer and PoE): Qty 1
3. 1 M 8P8C white Ethernet cable (between PoE and Modem)
4. Quick Installation Guide: Qty 1
5. WM5030-OD outdoor modem: Qty 1
6. Mounting kit: Qty 1
7. RJ45 connector water sealing plug: Qty 1
8. CD-ROM: Qty 1
9. 1.5M Power Cable for PoE Adapter: Qty 1
note
: Qty 1
Warranty Card
10.
Note: The length of Ethernet cable required connecting outdoor modem and PoE adapter pending on
actual installation requirements, and it is thus not provided. The cable provided is for configuration or
testing purpose only – not for installation purpose.
: Qty 1
Figure 1. WM5030 Outdoor Modem Package Contents
1
WM5030-OD QIG
2. MAKING CONNECTIONS
In order to configure WM5030 outdoor modem, please take the following steps:
1. Connect the white Ethernet cable between the RJ-45 connector located at the bottom of the outdoor
modem and the “Data & Power Out” port of PoE adapter.
2. Connect the gray Ethernet cable between the “data in” port of the PoE adapter and your personal
computer.
3. Plug the PoE adapter power cable to power outlet

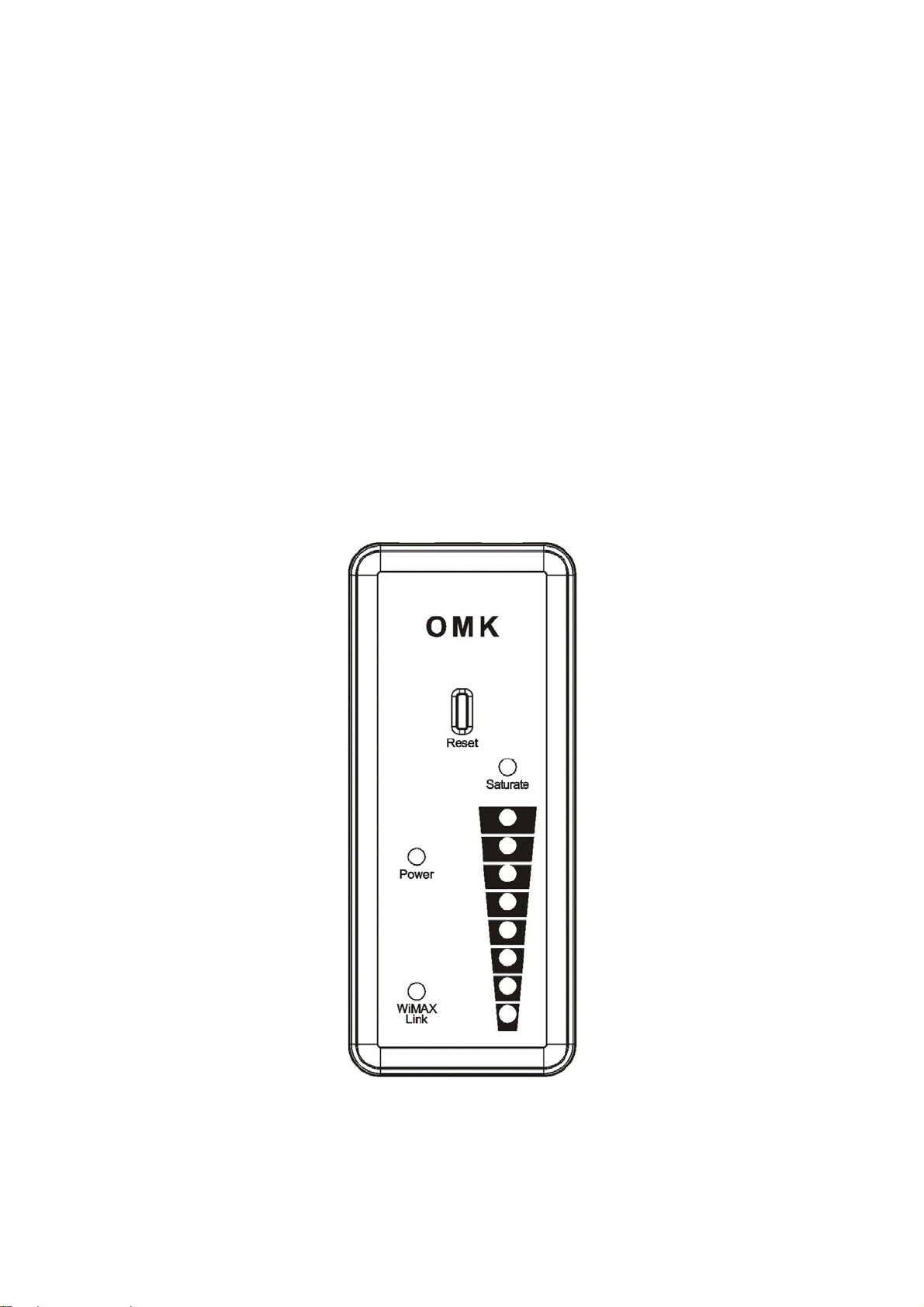

4. Plug the OMK (Outdoor modem Monitoring Kit) to OMK connector
Figure 2. Typical Installation Diagram
2
