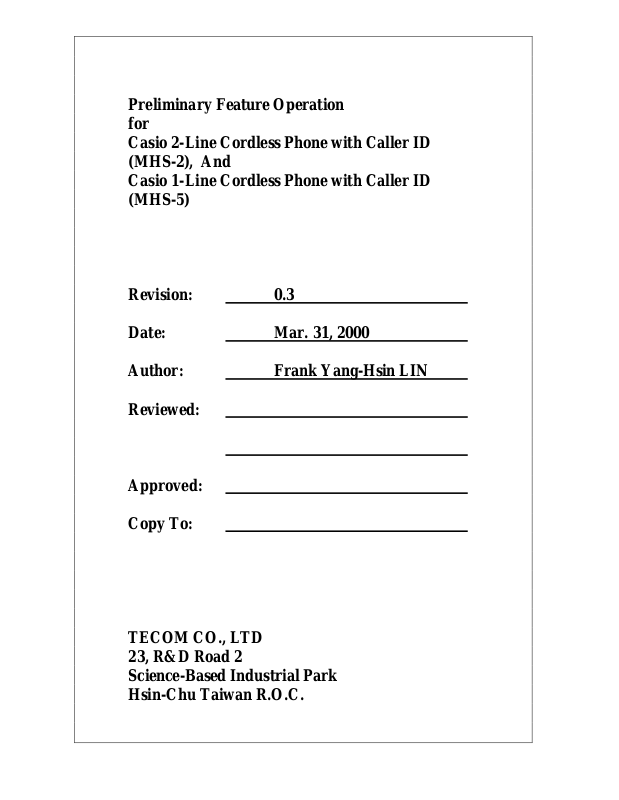

Tecom Co MF3770 User Manual

Preliminary Feature Operation
for
Casio 2-Line Cordless Phone with Caller ID
(MHS-2), And
Casio 1-Line Cordless Phone with Caller ID
(MHS-5)

Revision: 0.3

Date: Mar. 31, 2000

Author: Frank Yang-Hsin LIN

Reviewed:

Approved:

Copy To:

TECOM CO., LTD

23, R&D Road 2
Science-Based Industrial Park
Hsin-Chu Taiwan R.O.C.

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:1/73

Version and Amendment Records

Version # Description Date

0.01 1. Preliminary Operation Manual Jan. 27, 2000

0.02 1. Modify the mistakes and add the MHS-2 function Feb. 24, 2000

0.3 1. Modify the programming item Mar. 31, 2000

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:2/73

TABLES OF CONTENT

I. INTRODUCTION...........................................................................................................................7

1. Becoming Familiar with Your Wireless System .............................................................................................................. 7

2. The Features....................................................................................................................................................................... 7

II. INDICATIONS................................................................................................................................8

1. Lamp Cadence.................................................................................................................................................................... 8

2. Indicator on the Base unit (For MHS-5 Base)................................................................................................................. 8

3. Indicators on the Base unit (For MHS-2 Base)................................................................................................................ 8

4. Icons on the Handset unit.................................................................................................................................................. 9

4.1 CO Line Status............................................................................................................................................................... 9

4.2 Other Status................................................................................................................................................................... 9

III. PROGRAMMING ( HANDSET UNIT ONLY).....................................................................10

1. Summary of the Programming and Function Codes..................................................................................................... 10

1.1 Programming Codes .................................................................................................................................................... 10

1.2 Function Codes............................................................................................................................................................ 10

2. Programming the System Security Code on the Handset............................................................................................. 11

3. Handset ID Setting........................................................................................................................................................... 11

4. CO Line Ring Programming........................................................................................................................................... 11

5. Ringer Type Programming.............................................................................................................................................. 12

6. FLASH Time Programming............................................................................................................................................ 12

7. Tone/Pulse Mode Programming ..................................................................................................................................... 13

8. Hold Reminder Time Programming............................................................................................................................... 13

9. LIU (Line In Use) Enable/Disable Programming..........................................................................................................14

10. Line Select Enable/Disable Programming.................................................................................................................... 14

11. Privacy Enable/Disable Programming ......................................................................................................................... 15

12. First Line Select Programming..................................................................................................................................... 15

13. Ringer Level Programming........................................................................................................................................... 16

14. Handset Reset programming.........................................................................................................................................16

IV. PROGRAMMING ( MHS-2 BASE UNIT ONLY) ................................................................18

1. Summary of the Programming........................................................................................................................................ 18

2. Programming the System Security Code on the Base ................................................................................................... 18

3. CO Line Ring Programming........................................................................................................................................... 18

4. Tone/Pulse Mode Programming ..................................................................................................................................... 19

5. LIU (Line In Use) Enable/Disable Programming..........................................................................................................19

6. Line Select Enable/Disable Programming...................................................................................................................... 20

7. Privacy Enable/Disable Programming ........................................................................................................................... 20

8. First Line Select Programming....................................................................................................................................... 21

9. Date/Time Programming................................................................................................................................................. 21

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:3/73

10. Hold Reminder Time Programming............................................................................................................................. 22

11. FLASH Time Programming.......................................................................................................................................... 23

12. Ringer Type Programming............................................................................................................................................ 23

13. Ringer Level Programming........................................................................................................................................... 23

14. Base Reset programming............................................................................................................................................... 24

V. INSTALLATION ( MHS-5 ONLY )............................................................................................25

1. Configuration ................................................................................................................................................................... 25

2. System Security Code Programming.............................................................................................................................. 25

VI. BASIC OPERATION ( HANDSET UNIT ONLY )...............................................................26

1. Standby Mode................................................................................................................................................................... 26

1.1 Handset Link with the "Idle" Base Unit....................................................................................................................... 26

1.2 Handset Link with the "Busy" Base Unit..................................................................................................................... 26

1.3 Handset Can Not Link with the Base Unit................................................................................................................... 26

2. Making Outside Line Call ............................................................................................................................................... 26

2.1 Making An Outgoing Call by Manual Dialing............................................................................................................. 27

2.2 End An Outgoing Call.................................................................................................................................................27

3. Answering Call................................................................................................................................................................. 27

4. Last Number Redial (LNR)............................................................................................................................................. 28

4.1 Making An Outgoing Call by LNR.............................................................................................................................. 28

4.2 Making An Outgoing Call by LNR with Pre-Dialing .................................................................................................. 28

5. Placing an Outside Call on Hold..................................................................................................................................... 29

5.1 Placing an Outside Call on Hold ................................................................................................................................. 29

5.2 Hold Reminder ............................................................................................................................................................ 29

5.3 Hold Recall Ring......................................................................................................................................................... 29

6. Retrieve a Line on Hold................................................................................................................................................... 29

7. Making an Intercom Call................................................................................................................................................. 30

7.1 If the Called Party is Idle and Access-able.................................................................................................................. 30

7.2 If the Called Party is Busy and Access-able ................................................................................................................ 30

7.3 If the Called Party is in DND (Ringer Off) Mode and Access-able............................................................................. 31

7.4 If the Called Party is UN-Accessible by Intercom Path Busy...................................................................................... 31

7.5 If the Called Party is an Illegal Number ...................................................................................................................... 31

7.6 Page All Handsets........................................................................................................................................................ 31

8. Answering an Incoming Intercom Call........................................................................................................................... 32

9. Conference Call................................................................................................................................................................ 32

9.1 Two CO Lines Conference Call................................................................................................................................... 32

10. Transferring CO Call..................................................................................................................................................... 33

10.1 Transferring a Call..................................................................................................................................................... 33

10.2 Transferring Recall :.................................................................................................................................................. 33

11. FLASH Function............................................................................................................................................................ 34

12. PAUSE Function ............................................................................................................................................................ 34

13. TONE Function.............................................................................................................................................................. 35

14. DND Function................................................................................................................................................................. 36

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:4/73

14.1 Setting DND Mode....................................................................................................................................................36

14.2 Canceling the DND Mode......................................................................................................................................... 36

15. MUTE Function ............................................................................................................................................................. 36

16. Out Of Range Warning ................................................................................................................................................. 37

16.1 Handset Walks Back to the Base Unit....................................................................................................................... 37

16.2 Handset Keeps Walking Out From the Base Unit ..................................................................................................... 37

17. Battery Low Warning.................................................................................................................................................... 38

18. Complete with Headset.................................................................................................................................................. 38

19. Volume Control.............................................................................................................................................................. 38

VII. BASIC OPERATION (MHS-2 BASE UNIT ONLY) ............................................................39

1. Standby Mode................................................................................................................................................................... 39

2. Making Outside Line Call ............................................................................................................................................... 39

2.1 Making An Outgoing Call ........................................................................................................................................... 39

3. Answering Call................................................................................................................................................................. 39

4. End An Outgoing Call...................................................................................................................................................... 40

5. Last Number Redial (LNR)............................................................................................................................................. 40

5.1 Making An Outgoing Call by LNR.............................................................................................................................. 40

5.2 Making An Outgoing Call by LNR with Pre-Dialing .................................................................................................. 40

6. Placing an Outside Call on Hold..................................................................................................................................... 40

6.1 Placing an Outside Call on Hold ................................................................................................................................. 40

6.2 Hold Reminder ............................................................................................................................................................ 41

6.3 Hold Recall Ring......................................................................................................................................................... 41

7. Retrieve a Line on Hold................................................................................................................................................... 41

8. Page All Handsets............................................................................................................................................................. 41

9. Making an Intercom Call................................................................................................................................................. 41

9.1 If the Called Party is Idle and Access-able.................................................................................................................. 41

9.2 If the Called Party is Busy and Access-able ................................................................................................................ 42

9.3 If the Called Party is in DND (Ringer Off) Mode and Access-able............................................................................. 42

9.4 If the Called Party is UN-Accessible by Intercom Path Busy...................................................................................... 42

9.5 If the Called Party is an Illegal Number ...................................................................................................................... 42

10. Answering an Incoming Intercom Call......................................................................................................................... 43

11. Conference Call.............................................................................................................................................................. 43

11.1 Two CO Lines Conference Call................................................................................................................................. 43

12. Transferring CO Call..................................................................................................................................................... 44

12.1 Transferring a Call..................................................................................................................................................... 44

12.2 Transferring Recall :.................................................................................................................................................. 44

13. FLASH Function............................................................................................................................................................ 44

14. PAUSE Function ............................................................................................................................................................ 45

15. TONE Function.............................................................................................................................................................. 45

16. MUTE Function ............................................................................................................................................................. 45

17. Volume Control.............................................................................................................................................................. 45

VIII. DIRECTORY OPERATION ( HANDSET UNIT ONLY )...................................................46

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:5/73

1. Storing the Information into Directory.......................................................................................................................... 46

2. Reviewing the Information from Directory ................................................................................................................... 47

3. Dialing Information from Directory............................................................................................................................... 47

4. Editing Information from Directory............................................................................................................................... 48

5. Removing All Information From Directory................................................................................................................... 48

6. Removing one Information From Directory.................................................................................................................. 49

IX. DIRECTORY OPERATION ( MHS-2 BASE UNIT ONLY )..............................................50

1. Storing the Information into Directory.......................................................................................................................... 50

2. Reviewing the Information from Directory ................................................................................................................... 50

3. Dialing Information from Directory............................................................................................................................... 51

4. Editing Information from Directory............................................................................................................................... 51

5. Removing All Information From Directory................................................................................................................... 52

6. Removing one Information From Directory.................................................................................................................. 52

X. ONE-TOUCH SPEED DIAL OPERATION ( MHS-2 BASE UNIT ONLY ).........................54

1. Storing the Information into One-Touch Speed Dial.................................................................................................... 54

2. Reviewing the Information from One-Touch Speed Dial ............................................................................................. 54

3. Dialing Information from One-Touch Speed Dial......................................................................................................... 55

4. Editing Information from One-Touch Speed Dial.........................................................................................................55

5. Removing one Information From One-Touch Speed Dial............................................................................................ 56

XI. CALLER ID OPERATION ( HANDSET UNIT ONLY ).....................................................58

1. Caller ID Call Back Dialing method............................................................................................................................... 58

1.1 Programming the Dialing Method...............................................................................................................................58

1.2 Programming the Area Code ....................................................................................................................................... 58

1.3 Erasing the Area Code................................................................................................................................................. 59

2. Ringing Line Caller ID Function .................................................................................................................................... 59

2.1 View the Caller ID Information Between Ringing Calls ............................................................................................. 60

3. Caller ID Data Base Function.........................................................................................................................................61

3.1 Enter the CID Data Base Retrieve Mode..................................................................................................................... 61

3.2 Delete All Callers from the Caller Data Base.............................................................................................................. 61

3.3 Scroll the Calls in the CID Data Base.......................................................................................................................... 62

3.4 View the Completed Caller Information...................................................................................................................... 62

3.5 Dial Back for the Caller on the Display....................................................................................................................... 63

3.6 Delete a Caller from the Caller Data Base................................................................................................................... 64

3.7 Store a Caller Number into the Directory Memory ..................................................................................................... 64

3.8 Leave the CID Data Base Retrieve Mode.................................................................................................................... 65

4. Caller ID on Call Waiting ( Type II Call ID )................................................................................................................ 65

XII. CALLER ID OPERATION ( MHS-2 BASE UNIT ONLY ) ................................................67

1. Caller ID Call Back Dialing method............................................................................................................................... 67

1.1 Programming the Dialing Method...............................................................................................................................67

1.2 Programming the Area Code ....................................................................................................................................... 67

1.3 Erasing the Area Code................................................................................................................................................. 68

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:6/73

2. LCD Icon for Caller ID Function ................................................................................................................................... 68

3. Ringing Line Caller ID Function .................................................................................................................................... 68

3.1 View the Caller ID Information Between Ringing Calls ............................................................................................. 69

4. Caller ID Data Base Function.........................................................................................................................................69

4.1 Enter the CID Data Base Retrieve Mode..................................................................................................................... 69

4.2 Delete All Callers from the Caller Data Base.............................................................................................................. 69

4.3 Scroll the Calls in the CID Data Base.......................................................................................................................... 70

4.4 Dial Back for the Caller on the Display....................................................................................................................... 70

4.5 Delete a Caller from the Caller Data Base................................................................................................................... 71

4.6 Store a Caller Number into the Directory Memory ..................................................................................................... 71

4.7 Store a Caller Number into the One-Touch Speed Dial............................................................................................... 72

5. Caller ID on Call Waiting ( Type II Call ID )................................................................................................................ 72

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:7/73

I. INTRODUCTION

1. Becoming Familiar with Your Wireless System

The system consists of one base unit and up to sixty wireless handsets. The base unit provides four voice (RF) channels for Intercom
or outside calling by any wireless handset.

2. The Features

The system provides many features such as:

2 CO line Capacity. (MHS-5 only with 1 CO line capacity)
15 * 2 LCD with icons (MHS-2 Base Unit Only)
12 * 2 LCD with icons
Tone/Pulse Dialing.
Directory. (80 Numbers and name)
Speed Dialing (12 Numbers and name, MHS-2 Base Unit Only)
Last Number Redial (LNR).
Intercom calling.
Conference.
Call Transfer.
Hold.
Flash.
Pause.
Do Not Disturb (DND).
Ringer On/Off control.
Ringer Level Control.
Volume Level Control.
Headset Compatibility.
Caller ID. (50 Caller ID)

PS: The second line features described in this manual may not apply to MHS-5 model.

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:8/73

II. INDICATIONS

1. Lamp Cadence

Dark solid dark
Lit solid lit
Slowest 1sec off, 1sec on repeatedly.
Slow 0.5sec off, 0.5sec on repeatedly.
Fast 0.125sec off, 0.125sec on, repeatedly.
Flick1 0.125sec off, 1.875sec on, repeatedly.
Flick2 0.125sec off, 0.125sec on, 0.125sec off, 1.625sec on, repeatedly.
Flick3 0.125sec off, 0.125sec on, 0.125sec off, 0.125sec on, 0.125sec off, 1.125sec on, repeatedly.

2. Indicator on the Base unit (For MHS-5 Base)

-- POWER: indicates the AC power and the Base unit status.

Dark: The AC power lost.
Slow: 0.5sec on, 0.5sec off, repeatedly.

Within power on 15 seconds, waiting to receive the new S.S.C. period,
Base unit in S.S.C. Programming mode.

Fast: 0.125sec on, 0.125sec off, repeatedly.

The S.S.C. is empty in the Base unit.
Lit: Base unit is in idle mode.
Flick1: Base unit is in normal operation.
Flick2: Base unit is in charge mode.
Flick3: Base unit is in busy mode.

3. Indicators on the Base unit (For MHS-2 Base)

The LED on the Faceplate Top

Lit: Normal operation.
Slow: CO Ring, Transfer Ring, Recall Ring, Intercom Ring.

Page LED

Dark: Intercom Idle.
Slow: Base receives an intercom ring.

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:9/73

Flick1: Base unit is in use the intercom trunk.
Lit: Handset units are in use the intercom trunk.

Speaker LED

Dark: Idle mode.
Lit: Speakerphone mode.

Headset LED

Dark: Idle mode.
Lit: Headset mode.

Line1/Line2 Red LEDs

Dark: CO line is idle.
Slow: CO line is ringing.
Fast: Handset unit user holds the CO line.
Lit: Handset unit user uses the CO line.

Line1/Line2 Green LEDs

Dark: CO line is idle.
Slow: Base receives a transfer call, or a CO line “hold recall ring”.
Fast: Base unit holds the CO.
Lit: Base unit user uses the CO line.

4. Icons on the Handset unit

The LCD of the handset is 2*15 dot matrix with some icons. There are 2 CO line icons to show the CO line status on the LCD.
They have many different combinations to show the line status, including Idle, Ring, Talk, Hold, Transfer Ring, … etc. And
battery power status.

4.1 CO Line Status

For all 2 CO Lines status. There are 3 different icons on each CO line. They are “Handset”, “Ring”, and “Ring Off” icons
Ring Off Icon: (I) For the CO line is programmed to the “Ring Off” mode.
Handset Icon: (I) Off: CO Line is idle.

Ring Icon: (I) Off: CO Line doesn’t ring.

(II) On: CO Line is in use.

(III) Flash: CO Line is held.

Handset and Ring Icons: (I) Both Flash: Transfer Ring or Recall Ring

4.2 Other Status

The other icon is for battery low status.
Battery Icon: For the battery power status.

(II) Flash: CO Line is ringing.

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:10/73

III. PROGRAMMING ( HANDSET UNIT ONLY)

1. Summary of the Programming and Function Codes

1.1 Programming Codes

There are some programming parameters on the handset, and here are the operation and the list.

. Standby, the LCD displays:

R i n g : M i d

I D : 1 1

< i c o n s >

Note: 1. "Ring": Ringer volume that may be Low, Mid, Hi or DND.

2. "ID": Identification Number of the handset.

3. <icons>: Icons for the status of CO lines, and battery.

. Press [PRG] and then enter the programming items, you may press the [ s ]/[ t ] to select the item you want to change

1. System Security Code (S.S.C.)

2. Register Programming

3. Handset ID Programming.

4. CO Line Ring Programming.

5. Handset Ring Type Programming.

6. Hold-Reminder Time Programming.

7. FLASH Time Programming.

8. Tone/Pulse Mode Programming.

9. Caller ID Area Code Dialing Method Programming (Refer to the Caller ID Operation)

10. LIU (Line In Use) Enable/Disable Programming

11. Line Select Enable/Disable Programming

12. Privacy Enable/Disable Programming

13. First Line Select Programming

14. Ringer Level Programming

15. Handset RESET Programming.

1.2 Function Codes

There are some function access codes on the handset, here is the summary.
For more details, please refer to the following paragraphs.
Each time you press the [ FCN ] will form a function access key by followed function access code [ 1/4/7/* ].

. Standby, press [FCN]

R i n g : M i d

I D : 1 1



< i c o n s >

The symbol "" indicates [FCN] key prompt

[FCN] [1] DELETE code, to delete the SPEED/CID list memory, or CID area Code
[FCN] [4] DND code, to activate Do Not Disturb feature
[FCN] [7] PAUSE code, to insert a delay during digits
[FCN] [*] CONFERENCE code, to bridge 3-way conference call

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:11/73

2. Programming the System Security Code on the Handset

. Standby, press [PRG] and the LCD displays:

M E M

< i c o n s >

. Press [s]/[t] to select the item to set the system security code

S e c . C o d e

( E m p t y )

< i c o n s >

Or

S e c . C o d e
1 2 3 4 5 6

< i c o n s >

1. MEM : Programming start prompt

2. Sec.Code : Sec.Code programming mode prompt

3. (Empty) : Sec.Code is not programmed

4. 123456 : The Sec.C code already exists.

. Enter [ # ] to enter the changing mode, and then,
. Enter [ 1/2/3/4/5/6/7/8/9/0/*/#/PAUSE/FLASH ] 6 digits for new S.S.Code, say 775141. The LCD will display:

S e c . C o d e
7 7 5 1 4 1

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

3. Handset ID Setting

. Standby, press [PRG]
. Press [s]/[t] to select the item to enter the handset ID programming and the LCD will display:

H a n d s e t I D

1 1

Or

H a n d s e t I D

1 5

1. Handset ID : Programming handheld ID mode

2. ID:11 : The default handset ID number

3. ID:15 : The original handset ID number

< i c o n s >

< i c o n s >

< i c o n s >

. Enter [ # ] to enter the changing mode, and then,
. Enter [ 11 - 70 ] 2 digits intercom station number. Default '11'.
For example: we enter the new [ 1 ] [ 2 ] handset ID number

H a n d s e t I D

1 2

< i c o n s >

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

4. CO Line Ring Programming

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:12/73

You may program each the CO line incoming call will ring or not on your handset. Default all the 2 CO lines will ring.

. Standby, press [PRG].
. Press [s]/[t] to select the item to select the line you want to program, say CO1

L 1 R i n g
O n ( # : c h g )

< i c o n s >

or

L 1 R i n g
O f f ( # : c h g )

< i c o n s >

1. L1 Ring : You are programming CO line#1 ring On/Off.

2. On/Off : The current setting is On/Off.

. Press [#] to toggle the CO line ringing On/Off status. The LCD will display:

L 1 R i n g
O f f ( # : c h g )

< i c o n s >

or

L 1 R i n g
O n ( # : c h g )

< i c o n s >

1. L1 Ring : You are programming CO line#1 ring On/Off.

2. Off/On : Disable/Enable CO1 ring.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

5. Ringer Type Programming

You may select one of the four types ringer sound on your handset. Default is the type 1.

. Standby, press [PRG].
. Press [ s ]/[ t ] to select the ringer type programming mode. The LCD will display:

R i n g T y p e

1 ( # : c h g )

< i c o n s >

1. Ring Type : Ringer type.

2. 1 : The old programmed type

. Press [#] to select the new ringer type you prefer.
Each time you change, there is a new ringer type sounds for your reference.
For example, if we select [2], the LCD will display:

R i n g T y p e

2 ( # : c h g )

< i c o n s >

1. Ring Type : Ringer type.

2. 2 : Type 2

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

6. FLASH Time Programming

You may program the FLASH time duration as your service need.

. Standby, press [PRG]

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:13/73

. Press [s]/[t] to select the FLASH Time programming mode. The LCD will display:

F l a s h T i m e

6 0 0 m s ( # : c h g )

< i c o n s >

1. Flash Time : Flash time programming mode

2. 0.6 Sec. : Programmed FLASH time

. Press [#] to select the new FLASH time selection: 600/375/275/100ms

F l a s h T i m e

2 7 5 m s ( # : c h g )

< i c o n s >

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

Note: When any handset changes its Flash Time, the other handsets are automatically changed to the same universal
Flash time setting.

7. Tone/Pulse Mode Programming

You may program your phone to be a Tone or Pulse dialing phone.

. Standby, press [PRG].
. Press [s]/[t] to select the Tone/Pulse programming mode.

T o n e / P u l s e
T o n e ( # : c h g )

< i c o n s >

or

T o n e / P u l s e
P u l s e ( # : c h g )

< i c o n s >

1. Tone/Pulse : You are programming Tone/Pulse.

2. Tone or Pulse: The current setting is Tone/Pulse.

. Press [#] to toggle between the Tone and Pulse modes. The LCD will display:

T o n e / P u l s e
P u l s e ( # : c h g )

< i c o n s >

or

T o n e / P u l s e
T o n e ( # : c h g )

< i c o n s >

1. Tone/Pulse : You are programming Tone/Pulse mode.

2. Pulse or Tone: Changed to Pulse/Tone Mode.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

8. Hold Reminder Time Programming

Default: 30 seconds.
. Standby, press [PRG].
. Press [s]/[t] to select the Hold Reminder Time programming mode. The LCD will display:

H o l d R e m i n d

3 0 S e c ( # : c h g )

< i c o n s >

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:14/73

1. Hold Remind : Hold Reminder Time programming mode

2. 30 Sec. : Programmed Reminder Time.

. Press [#] to select the Hold Reminder Time setting.
For example, disable the function of Hold Reminder. The LCD will display:

H o l d R e m i n d
O f f ( # : c h g )

< i c o n s >

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

9. LIU (Line In Use) Enable/Disable Programming

You may program the LIU detection function enable or disable. Default the LIU function is enable.

. Standby, press [PRG], press [s]/[t] to select this item.

L I U D e t e c t
O n ( # : c h g )

< i c o n s >

or

L I U D e t e c t
O f f ( # : c h g )

< i c o n s >

1. LIU Detect : You are programming the LIU function On/Off.

2. On/Off : The current setting is On/Off.

. Press [#] to toggle the LIU function On/Off status. The LCD will display:

L I U D e t e c t
O f f ( # : c h g )

< i c o n s >

or

L I U D e t e c t
O n ( # : c h g )

< i c o n s >

1. LIU Detect : You are programming the LIU function On/Off.

2. Off/On : Disable/Enable LIU function.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

10. Line Select Enable/Disable Programming

You may program the Auto Line Select function enable or disable. Default the function is disable.
The user off-hooks the handset, the ringing CO line will be picked up when the function is on.

. Standby, press [PRG], press [s]/[t] to select this item.

L i n e S e l e c t
O n ( # : c h g )

< i c o n s >

or

L i n e S e l e c t
O f f ( # : c h g )

< i c o n s >

1. Line Select: You are programming the Auto Line Select function On/Off.

2. On/Off : The current setting is On/Off.

. Press [#] to toggle the selection. The LCD will display:

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:15/73

L i n e S e l e c t
O f f ( # : c h g )

< i c o n s >

or

L i n e S e l e c t
O n ( # : c h g )

< i c o n s >

1. Line Select: You are programming the Auto Line Select function On/Off.

2. Off/On : Disable/Enable Auto answer.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

11. Privacy Enable/Disable Programming

You may program the Privacy function enable or disable. Default the function is disable.
The other user can join the conversation easily when you are talking the CO line and this function is off.

. Standby, press [PRG], press [s]/[t] to select this item.

P r i v a c y
O n ( # : c h g )

< i c o n s >

or

P r i v a c y
O f f ( # : c h g )

< i c o n s >

1. Privacy : You are programming the Privacy function On/Off.

2. On/Off : The current setting is On/Off.

. Press [#] to toggle the selection. The LCD will display:

P r i v a c y
O f f ( # : c h g )

< i c o n s >

or

P r i v a c y
O n ( # : c h g )

< i c o n s >

1. Privacy : You are programming the Privacy function On/Off.

2. Off/On : Disable/Enable Privacy function.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

12. First Line Select Programming

You may program the First Line Select function. Default the function is L1.

. Standby, press [PRG], press [s]/[t] to select this item.

F i r s t L i n e
L 1 ( # : c h g )

< i c o n s >

or

F i r s t L i n e
L 2 ( # : c h g )

< i c o n s >

1. First Line : You are programming the First Line function.

2. L1/L2 : The current setting is L1/L2.

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:16/73

. Press [#] to toggle the Selection. The LCD will display:

F i r s t L i n e
L 2 ( # : c h g )

< i c o n s >

or

F i r s t L i n e
L 1 ( # : c h g )

< i c o n s >

1. First Line : You are programming the First Line function.

2. Off/On : Disable/Enable CO1 ring.

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

13. Ringer Level Programming

You may select one of the three ringer level sound on your handset. Default is the middle.
. Standby, press [PRG].
. Press [ s ]/[ t ] to select the ringer level programming mode. The LCD will display:

R i n g L e v e l

M i d ( # : c h g )

< i c o n s >

1. Ring Level : Ringer level.

2. Mid : The old programmed level

. Press [#] to change the ringer level to Low/Mid/Hi. Each time you change, there is a new ringer level sounds for
your reference. For example, if we change to Hi level, the LCD will display:

R i n g L e v e l
H i ( # : c h g )

< i c o n s >

1. Ring Level : Ringer Level.

2. Hi : Ringer level is Hi

. Press [OFF], or [PRG], or [s]/[t] to confirm and quit the new setting or change to the other programming.

14. Handset Reset programming

You may RESET the handset and clear all the programmed data, all the parameters will back to the default values.

- S.S.Code: Empty

- Ringer Volume: Middle level

- Handset ID: 11

- CO Ring Assign: Both 2 lines will ring

- Ring Type: Type 1

- Hold-Reminder Time: 30 seconds

. Standby, press [PRG]
. Press the [s]/[t] to select the RESET programming mode. The LCD will display:

R e s e t ?
P R G : r e s e t

< i c o n s >

--- "Reset ?" : Handset RESET prompt.

. Press [PRG] again, and a confirmation signal to indicate the successful programming. The LCD will display:

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:17/73

M E M O K !

R e s e t

< i c o n s >

1. MEM OK! : Programming end & OK prompt.

2. Reset: Reset programming mode prompt.

. After 15 seconds, the handset will back to standby mode automatically, and the display shows:

R i n g : M i d

I D : 1 1

< i c o n s >

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:18/73

IV. PROGRAMMING ( MHS-2 BASE UNIT ONLY)

1. Summary of the Programming

There are some programming parameters on the base unit, and here are the operation and the list.
. Press [PROGRAM] and then enter the programming items.
Rotate the Data Dial to select the item you want to change

1. System Security Code (S.S.C.)

2. CO Line Ring Programming.

3. Tone/Pulse Mode Programming.

4. LIU (Line In Use) Enable/Disable Programming

5. Line Select Enable/Disable Programming

6. Privacy Enable/Disable Programming

7. First Line Select Programming

8. Date/Time Programming

9. Caller ID Area Code Dialing Method Programming (Refer to the Caller ID Operation)

10. Date/Time Programming

11. Hold-Reminder Time Programming.

12. FLASH Time Programming.

13. Ring Type Programming.

14. Ringer Level Programming

15. Base RESET Programming.

2. Programming the System Security Code on the Base

. Standby, press [PROGRAM] and the LCD displays:

P r o g r a m

. Rotate the Data Dial to select the item to set the system security code

S e c u r i t y C o d e

( E m p t y )

Or

S e c u r i t y C o d e

1 2 3 4 5 6

1. Program : Programming start prompt

2. Security Code : Security Code programming mode prompt

3. (Empty) : Security Code is not programmed

4. 123456 : The Security Code already exists.

. Press the center of the Data Dial to select this item,
. Enter [ 1/2/3/4/5/6/7/8/9/0/*/#/PAUSE/FLASH ] 6 digits for new S.S.Code, say 775141. The LCD will display:

S e c u r i t y C o d e

7 7 5 1 4 1

. Press the center of Data Dial to accept the new security code.

3. CO Line Ring Programming

You may program each the CO line incoming call will ring or not on your handset. Default all the 2 CO lines will ring.

. Standby, press [PROGRAM]

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:19/73

. Rotate the Data Dial to select the item to set the system security code

L 1 R i n g

O n

or

L 1 R i n g

O f f

1. L1 Ring : You are programming CO line#1 ring On/Off.

2. On/Off : The current setting is On/Off.

. Press the center of the Data Dial to select this option
. Rotate the dial to select either ON or Off. The LCD will display:

L 1 R i n g

< O f f >

or

L 1 R i n g

< O n >

1. L1 Ring : You are programming CO line#1 ring On/Off.

2. Off/On : Disable/Enable CO1 ring.

. Press the center of the Data Dial to accept.

4. Tone/Pulse Mode Programming

You may program your phone to be a Tone or Pulse dialing phone.

. Standby, press [PROGRAM]
. Rotate the Data Dial to select the Tone/Pulse programming mode.

T o n e / P u l s e

T o n e

or

T o n e / P u l s e

P u l s e

1. Tone/Pulse : You are programming Tone/Pulse.

2. Tone or Pulse: The current setting is Tone/Pulse.

. Press the center of the Data Dial to select this option
. Rotate the dial to select from the Tone and Pulse modes. The LCD will display:

T o n e / P u l s e

< P u l s e >

or

T o n e / P u l s e

< T o n e >

. Press the center of the Data Dial to accept.

5. LIU (Line In Use) Enable/Disable Programming

You may program the LIU detection function enable or disable. Default the LIU function is enable.

. Standby, press [PROGRAM]
. Rotate the Data Dial to select this item.

L I U D e t e c t

O n

or

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:20/73

L I U D e t e c t

O f f

1. LIU Detect : You are programming the LIU function On/Off.

2. On/Off : The current setting is On/Off.

. Press the center of the Data Dial to select this option
. Rotate the dial to select from the LIU function On/Off status. The LCD will display:

L I U D e t e c t

< O f f >

or

L I U D e t e c t

< O n >

1. LIU Detect : You are programming the LIU function On/Off.

2. Off/On : Disable/Enable LIU function.

. Press the center of the Data Dial to accept.

6. Line Select Enable/Disable Programming

You may program the Auto Line Select function enable or disable. Default the function is disable.
The user off-hooks the handset, the ringing CO line or an idle CO line will be picked up when the function is on.

. Standby, press [PROGRAM]
. Rotate the Data Dial to select this item.

L i n e S e l e c t

O n

or

L i n e S e l e c t

O f f

1. Line Select : You are programming the Auto Lien Select function On/Off.

2. On/Off : The current setting is On/Off.

. Press the center of the Data Dial to select this option
. Rotate the dial to change the selection. The LCD will display:

L i n e S e l e c t

< O f f >

or

L i n e S e l e c t

< O n >

1. Line Select : You are programming the Auto Lien Select function On/Off.

2. Off/On : Disable/Enable Auto answer.

. Press the center of the Data Dial to accept.

7. Privacy Enable/Disable Programming

You may program the Privacy function enable or disable. Default the function is disable.
The other user can join the conversation easily when you are talking the CO line and this function is off.

. Standby, press [PROGRAM]
. Rotate the Data Dial to select this item.

P r i v a c y

O n

or

P r i v a c y

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:21/73

O f f

1. Privacy : You are programming the Privacy function On/Off.

2. On/Off : The current setting is On/Off.

. Press the center of the Data Dial to select this option
. Rotate the dial to change the selection. The LCD will display:

P r i v a c y

< O f f >

or

P r i v a c y

< O n >

1. Privacy : You are programming the Privacy function On/Off.

2. Off/On : Disable/Enable Privacy function.

. Press the center of the Data Dial to accept.

8. First Line Select Programming

You may program the First Line Select function. Default the function is L1.

. Standby, press [PROGRAM]
. Rotate the Data Dial to select this item.

F i r s t L i n e

L 1

or

F i r s t L i n e

L 2

1. First Line : You are programming the First Line function.

2. L1/L2 : The current setting is L1/L2.

. Press the center of the Data Dial to select this option
. Rotate the dial to change the selection. The LCD will display:

F i r s t L i n e

< L 2 >

or

F i r s t L i n e

< L 1 >

1. First Line : You are programming the First Line function.

2. Off/On : Disable/Enable CO1 ring.

. Press the center of the Data Dial to accept.

9. Date/Time Programming

You may set the calendar by your base unit. Default is: 00:00AM Jan. 01, 2000

. Standby, press [PROGRAM]
. Rotate the Data Dial to select this item.

Y e a r & D a t e

2 0 0 0 0 1 / 0 1

. Press the center of the Data Dial to select this option.
. Rotate the dial to change the year. The LCD will display:

Y e a r & D a t e

TECOM SOHO Department Preliminary Feature Operation for Casio 1&2-Line Cordless Phone

Issued by: Frank Yang-Hsin LIN Date: Mar. 31, 2000
Revision: 0.3 Page:22/73

< 2 0 0 1 > 0 1 / 0 1

. Press the center of the Data Dial to select the year.

. And rotate the dial to select the month option.
. Press the center of the Data Dial to select this option.
. Rotate the dial to change the month. The LCD will display:

Y e a r & D a t e

2 0 0 1 < 1 2 > / 0 1

. Press the center of the Data Dial to select the month.

. And rotate the dial to select the date option.
. Press the center of the Data Dial to select this option.
. Rotate the dial to change the date. The LCD will display:

Y e a r & D a t e

2 0 0 1 1 0 / < 2 5 >

. Press the center of the Data Dial to accept.

Then, rotate the Data Dial to select the time setting.

T i m e

0 0 : 0 0 A M

. Press the center of the Data Dial to select this option.
. Rotate the dial to change the hour. The LCD will display:

T i m e

< 0 3 > : 0 0 P M

. Press the center of the Data Dial to select the hour. The AM/PM will be changed automatically.

. And rotate the dial to select the minute option.
. Press the center of the Data Dial to select this option.
. Rotate the dial to change the minute. The LCD will display:

T i m e

0 3 : < 4 5 > P M

. Press the center of the Data Dial to select the minute.

10. Hold Reminder Time Programming

Default: 30 seconds.
. Standby, press [PROGRAM]
. Rotate the Data Dial to select the Hold Reminder Time programming mode. The LCD will display:

H o l d R e m i n d

3 0 S e c .

1. Hold Remind : Hold Reminder Time programming mode

2. 30 Sec. : Programmed Reminder Time.

. Press the center of the Data Dial to select this option
. Rotate the dial to select from the Tone and Pulse modes. The LCD will display:

H o l d R e m i n d

< O f f >

. Press the center of the Data Dial to accept.
