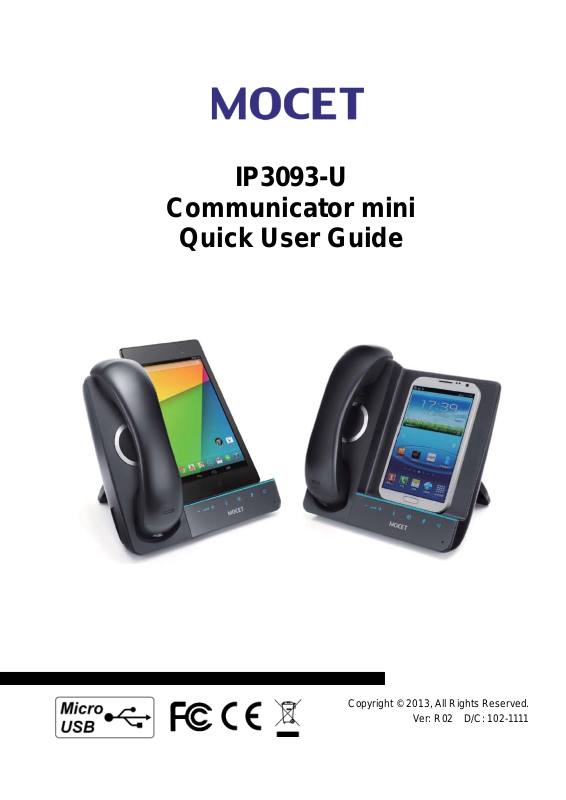

IP3093-U

Communicator mini

Quick User Guide

Copyright © 2013, All Rights Reserved.

Ver: R02 D/C: 102-1111

MOCET IP3093-U Communicator mini Quick User Guide

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:

 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and receiver.
 Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

CE Declaration of Conformity

This equipment complies with the requirements relating to electromagnetic compatibility, EN55022
class B for ITE and EN 50082-1. This meets the essential protection requirements of the European
Council Directive 89/336/EEC on the approximation of the laws of the Member States relating to
electromagnetic compatibility.

Environment

The device you have purchased, as well as any used batteries must not be disposed of with
household waste. You should return these to your distributor if they are to replaced or dispose of
them in an approved recycling center.

Trademarks

Android, Google and Nexus are registered trademarks of Google. Samsung and and Galaxy Note
are trademarks of Samsung Electronics Co., Ltd. iPad™ and iPhone™ are registered trademarks of
Apple Inc., USA. Windows, Skype and Lync2013 are trademarks of Microsoft Corporation in the
United States and/or other countries. Viber, Line and others as well as Unified Communications (UC)
apps, like CounterPath™ Bria™, Cisco™ Jabber™, Avaya™ one-X® Mobile, Radvision™ Scopia™,
Polycom™ RealPresenc™ or others are registered trademarks of their respective oeners.

WARNING! ▼

1. Read these installation instructions carefully before connecting the device to its power.

2. To reduce the risk of electric shock, do not remove the cover from the device or attempt to

dismantle it. Opening or removing covers may expose you to dangerous voltage levels.
Equally, incorrect reassembly could cause electric shock on re-use of the appliance.

3. Do not expose the device to Fire, direct sunlight or excessive heat.

4. Do not expose the device to rain or moisture and do not allow it to come into contact with

water.

5. Do not install the device in an environment likely to present a THREAT OF IMPACT.

!

Page 2

MOCET IP3093-U Communicator mini Quick User Guide

6. You may clean the device using a fine damp cloth. Never use solvents (such as

trichloroethylene or acetone), which may damage the device’s plastic surface. Never spray
the device with any cleaning product whatsoever.

7. The device is designed to work in temperatures from 5

o

C to 40oC.

8. The device must be installed at least 1 meter from radio frequency equipment, such as TVs,

radios, hi-fi or video equipment (which radiate electromagnetic fields).

9. Do not attempt to upgrade device in an unstable power environment. This could cause

unexpected issues.

10. Do not work on the system or connect or disconnect cables during lightning storms.

11. Children don't recognize the risks of electrical appliances. Therefore use or keep the phone

only under supervision of adults or out of the reach from children.

12. No repair can be performed by the end user, if you experience trouble with this equipment,

for repair or warranty information, please contact your supplier.

Page 3

MOCET IP3093-U Communicator mini Quick User Guide

Introduction

The MOCET™ Communicator mini™ is an innovative audio accessory that enables you to
use your mobile tablet or smart phone, like Google Nexus 7, or Nexus 4, Samsung Galaxy
series or Galaxy Note series, as a desktop phone with popular Social Networking apps like
Skype, Viber, Line and others as well as Unified Communications (UC) apps, like
CounterPath Bria Android Edition, Cisco Jabber Video, Avaya one-X® Mobile,
RADVISION’s SCOPIA Mobile, Polycom RealPresence Mobile, Microsoft Lync2013™, and
others, available from the Google Play Store and Windows Phone Store.

The high definition audio-enabled handset and speakerphone on the Communicator mini
dramatically enhances your communications and ensures privacy and comfort. For a large
office or medium to small sized conference room, there is even an optional desktop
microphone set available to ensure all participants in the room can be heard clearly on on
the call. For a more enjoyable multimedia experience, there is an available external
speaker to play high quality stereo audio when listening to music or watching movies or
YouTube videos.

The Communicator mini stand is adjustable between 0º and 125º, allowing you to find the
most convenient viewing angle for watching movies or participating in video conferencing
calls at your desk. The Communicator mini has a built-in fast charger so you can play and
work all day, and when you leave, your tablet or smart phone will be fully charged and
ready to go. Using the built-in USB host port, you can even charge a second phone or
mobile device.

And because it pairs using Bluetooth, Android tablet/smart phone, iPhone/iPad mini,
Windows phone and other Bluetooth-enabled devices can also benefit from the
Communicator mini’s HD handset and speakerphone for better call quality and comfort as
well.

What’s In the Package?
