Tecom Co IP3092 User Manual
IP3092 Communicator
App User Quick Guide
Copyright © 2012, All Rights Reserved.
Ver: R04 D/C: 101-1016
MOCET IP3092 Communicator Series Quick User Guide
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN55022 class
B for ITE and EN 50082-1. This meets the essential protection requirements of the European Council
Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic
compatibility.
Environment
The phone you have purchased, as well as any used batteries must not be disposed of with household
waste. You should return these to your distributor if they are to replaced or dispose of them in an
approved recycling center.
Trademarks
iPad™, iPod™, iPhone™, iPad2™, the new iPad™, iTunes™, iOS™, Safari™, AirplayTM and Facetime™
are registered trademarks of Apple Inc., USA. All other company, brand and product names, like
Metaswitch™, Broadsoft™, Freeswitch™ and Asterisk™ are registered trademarks of their
respective owners.
WARNING! ▼
!
1. Read these installation instructions carefully before connecting the IP phone to its power
2. To reduce the risk of electric shock, do not remove the cover from the IP phone or attempt to
dismantle it. Opening or removing covers may expose you to dangerous voltage levels. Equally,
incorrect reassembly could cause electric shock on re-use of the appliance.
3. Do not expose the IP Phone to Fire, direct sunlight or excessive heat.
4. Do not expose the IP Phone to rain or moisture and do not allow it to come into contact with water.
5. Do not install the IP phone in an environment likely to present a THREAT OF IMPACT.
6. You may clean the IP phone using a fine damp cloth. Never use solvents (such as
trichloroethylene or acetone), which may damage the phone’s plastic surface and LCD screen.
Never spray the phone with any cleaning product whatsoever.
7. Take care not to scratch the LCD screen.
8. The IP phone is designed to work in temperatures from 5
o
C to 40oC.
9. The IP phone must be installed at least 1 meter from radio frequency equipment, such as TVs,
radios, hi-fi or video equipment (which radiate electromagnetic fields).
10. Do not connect the LAN/PC port to any network other than an Ethernet network.
11. Do not attempt to upgrade your IP phone in an unstable power environment. This could cause
unexpected issues.
12. Do not work on the system or connect or disconnect cables during lightning storms.
13. Children don't recognize the risks of electrical appliances. Therefore use or keep the phone only
under supervision of adults or out of the reach from children.
14. No repair can be performed by the end user, if you experience trouble with this equipment,
for repair or warranty information, please contact your supplier.
Page 2
MOCET IP3092 Communicator Series Quick User Guide
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna
or transmitter.
Page 3
MOCET IP3092 Communicator Series Quick User Guide
Introduction
The MOCET™ Communicator™ is an innovative accessory for the Apple™ iPad™ that will
enable you to use your iPad as your desk phone with popular APPs including FaceTime™ and
Skype™.
Use the high definition audio-enabled handset and speakerphone on the Communicator to
enhance your communication and ensure privacy and comfort. For small office use, an external
desktop microphone can be attached improving the conference call experience. The enhanced
dynamic range stereo speakers make listening to music and watching music a more engaging
experience.
The Communicator stand is adjustable between 30º and 75º, allowing you to find the most
convenient viewing angle for watching movies or participating in video conferences. The
Communicator can fast charge and power your iPad for all day work and play. And the USB port
can offer charging to your iPhone of Mobile phone.
Bluetooth-enabled iPad/iPhone/ Android Pad/ mobile phones can be paired with the
Communicator allowing calls to be directed to the handset or speakerphone for better call
quality and comfort as well.
The Communicator supports more specifications and functions, especially a powerful
embedded VoIP engine. But if you are a regular App-oriented user, please don’t care for
them below.
(1) One micro-SD and one USB host port port on the IP3092 which allows user to connect
WiFi dongle, keyboard or other supported device.
(2) Two 10/100 Ethernet ports on Communicator’s IP3092 and IP3092D models allows you
to connect your computer as a pass-through to your network, requiring only one
Ethernet to your switch or router for both.
(3) The IP Commander App can be downloaded from the App stores can support the
operation and control of VoIP function which is embedded in the IP3092.
Hardware Installation
The Communicator comes with all the accessories needed to get going right away. Included
in the box are Quick Guide, the handset, handset cord, power supply adapter, and an
Ethernet cable. Please check on the Communicator and proceed the following sections of
this Quick Guide.
Set Up the Communicator:
- Unpacking the package box, place the Communicator on the table and turn its stand to a
proper angle (say 45 degree, please see Figure 1).

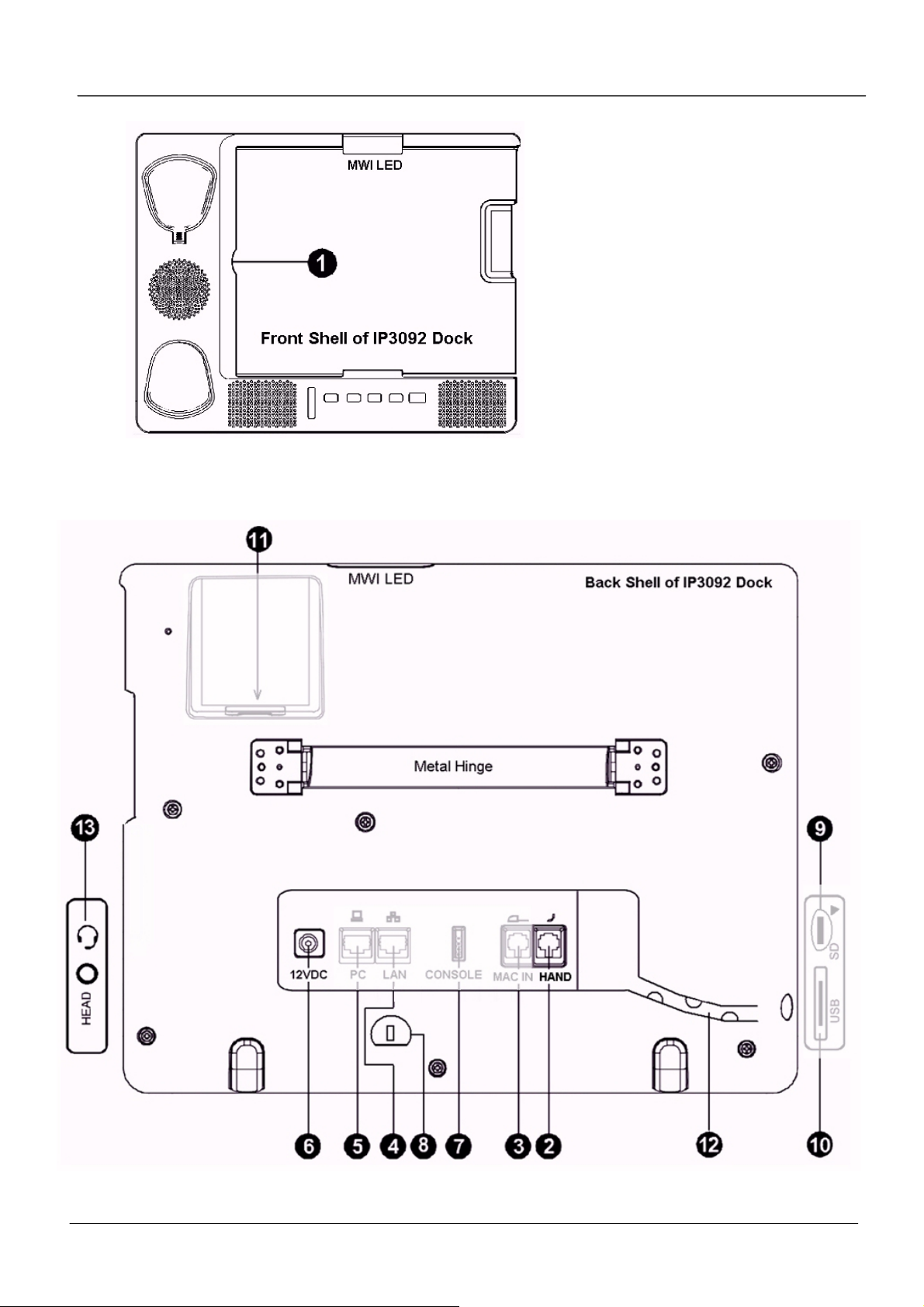

- Then connect the handset to the curly handset cord first and plug the other end of the cord
to the phone jack marked HAND on the rear panel of the Communicator. Please refer to
Page 4
