Tecom Co FP8134T User Manual

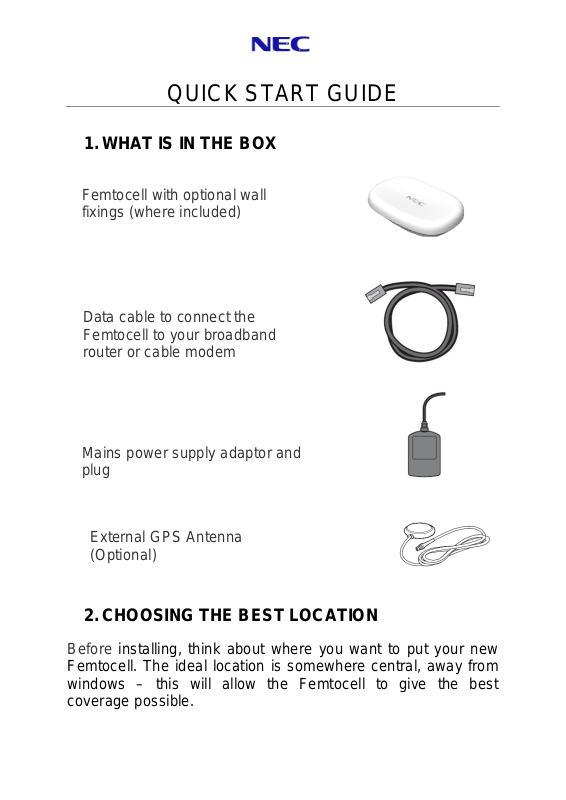

QUICK START GUIDE

1. WHAT IS IN THE BOX

Femtocell with optional wall
fixings (where included)

Data cable to connect the
Femtocell to your broadband
router or cable modem

Mains power supply adaptor and
plug

External GPS Antenna
(Optional)

2. CHOOSING THE BEST LOCATION

Before installing, think about where you want to put your new

Femtocell. The ideal location is somewhere central, away from
windows – this will allow the Femtocell to give the best
coverage possible.

3. HOW TO INSTALL YOUR FEMTOCELL

STEP 1 – Insert the SIM Card

Insert the SIM card provided by your Network Operator with
the Femtocell. The SIM card will not lock in place if it is
inserted incorrectly – please take care not to force the SIM
card in to the slot.

STEP 2 – Connect the network cable

Connect one end to the Femtocell and the other end to your
broadband router or cable modem.

STEP 3 – Connect the power adaptor and then switch on at the
mains

STEP 4 – Wait 10 minutes for the Femtocell to be ready to use

The green light will stop flashing and become solid green
when the Femtocell is ready to use
