1. Introduction

The FC1080-B1G-US , 3G Residential Femto Access Point (FAP) is a standalone
WCDMA Femtocell with up to 8 CS/ PS simultaneous users. It’s designed to allow
users to receive better mobile service coverage and capacity in the home with IPSec
as secured backhaul through any broadband internet connection to a mobile service
provider.

Carrier board of FC1080-B1G-US is used to monitor and remote control the
Femtocell. In this document, only carrier board related functions are included. For
more details of FC1080-B1G-US , please refer the other related documents.

Features

 IP configuration and DNS

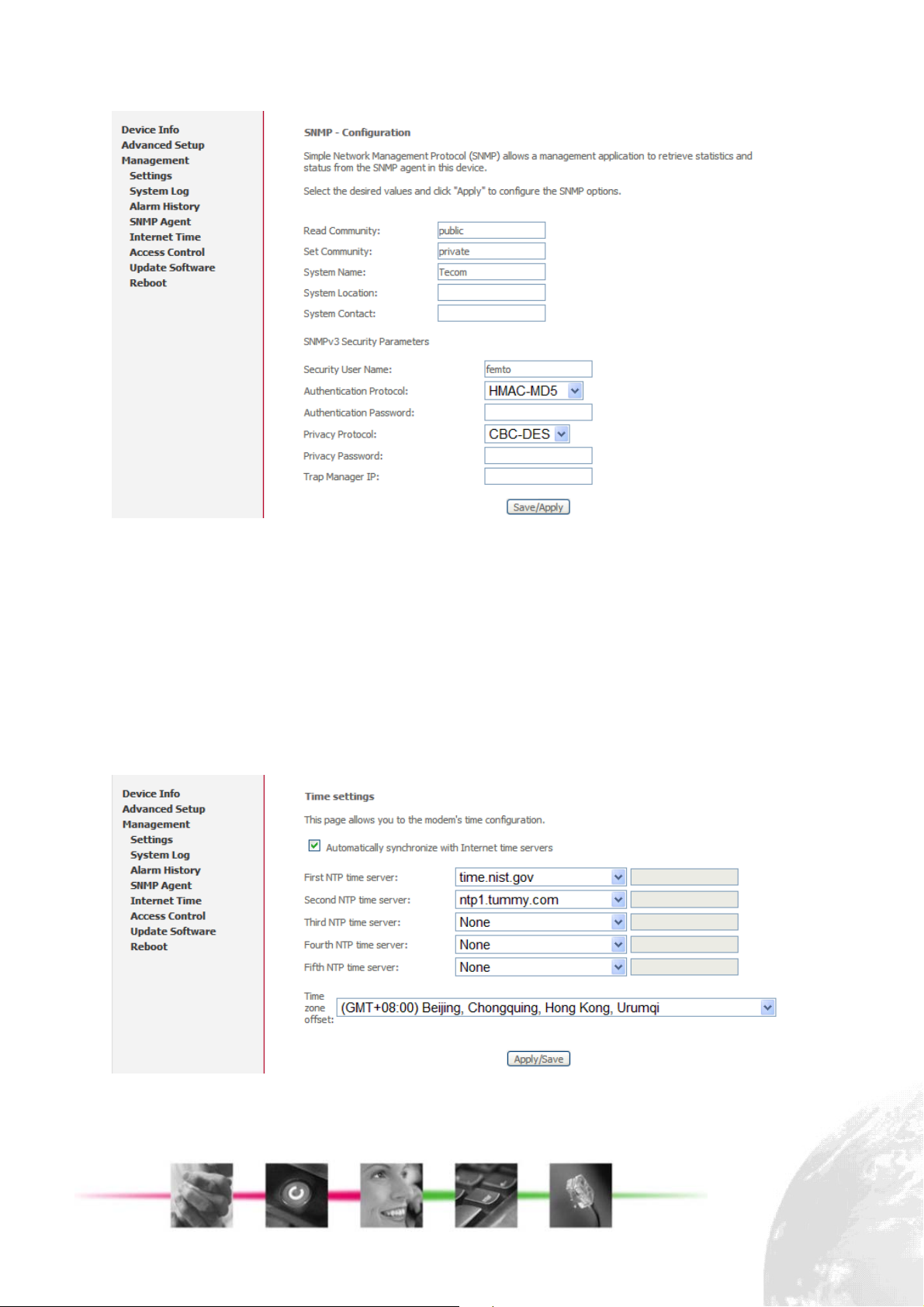

 SNMP v1, v2c, v3

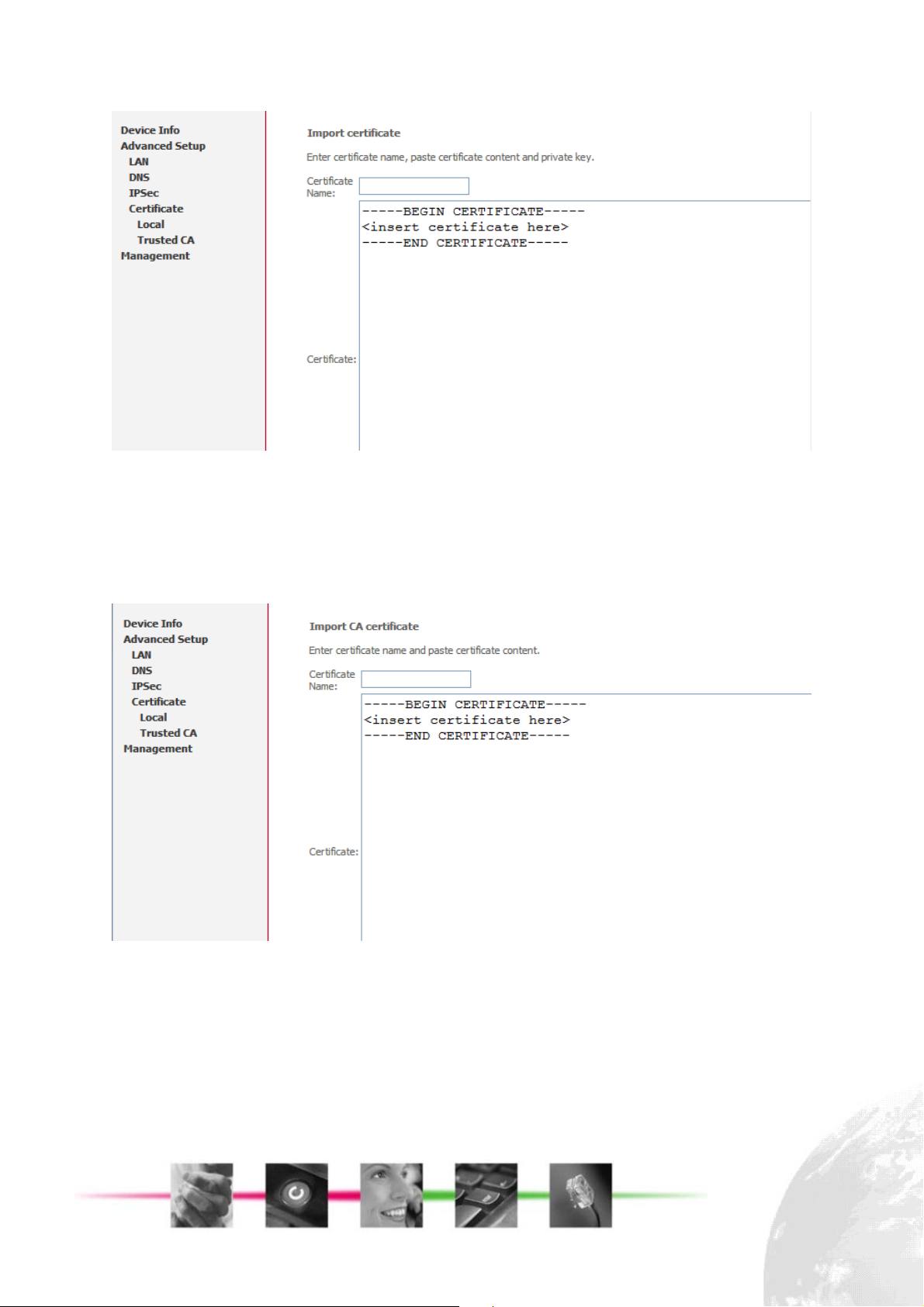

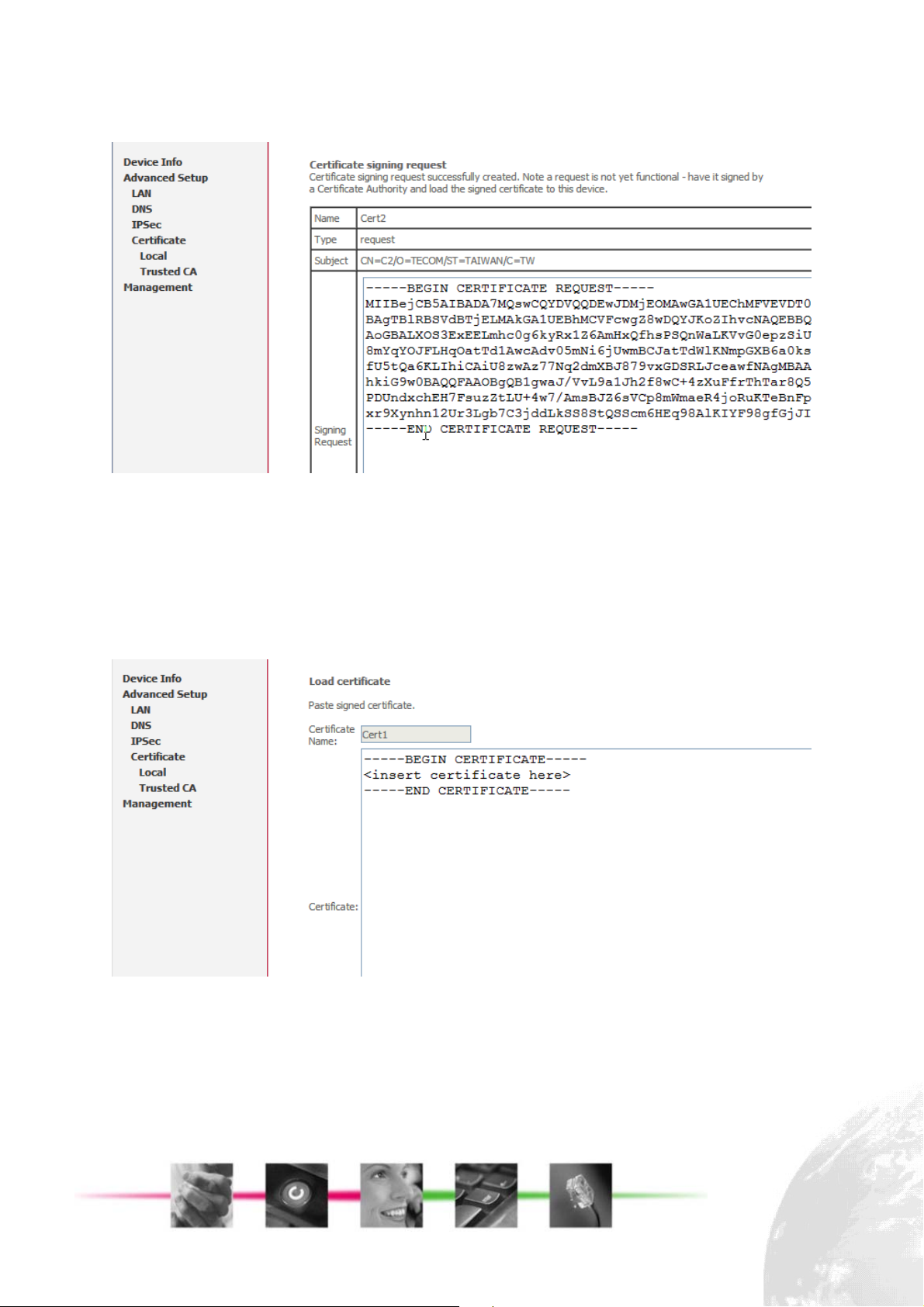

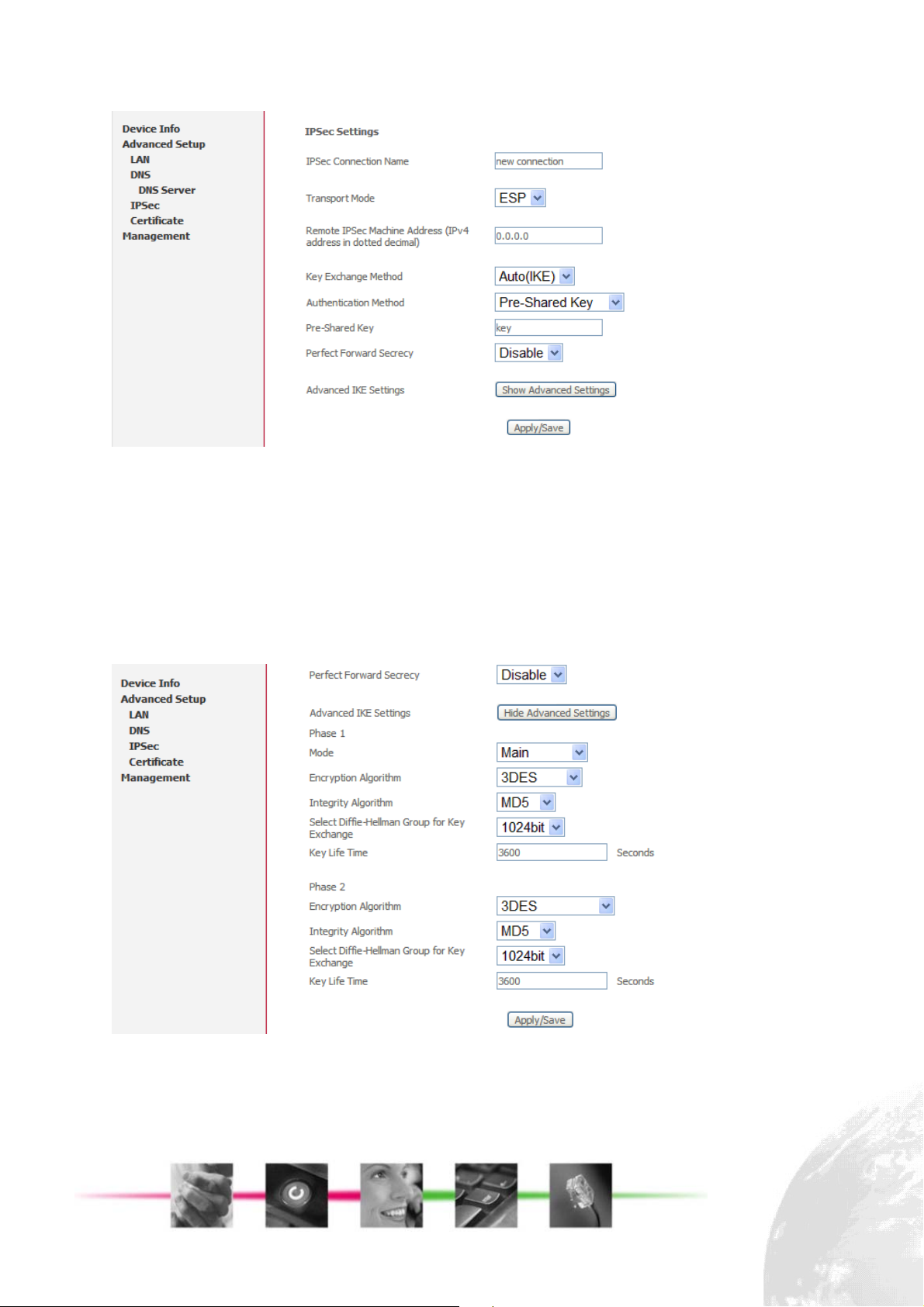

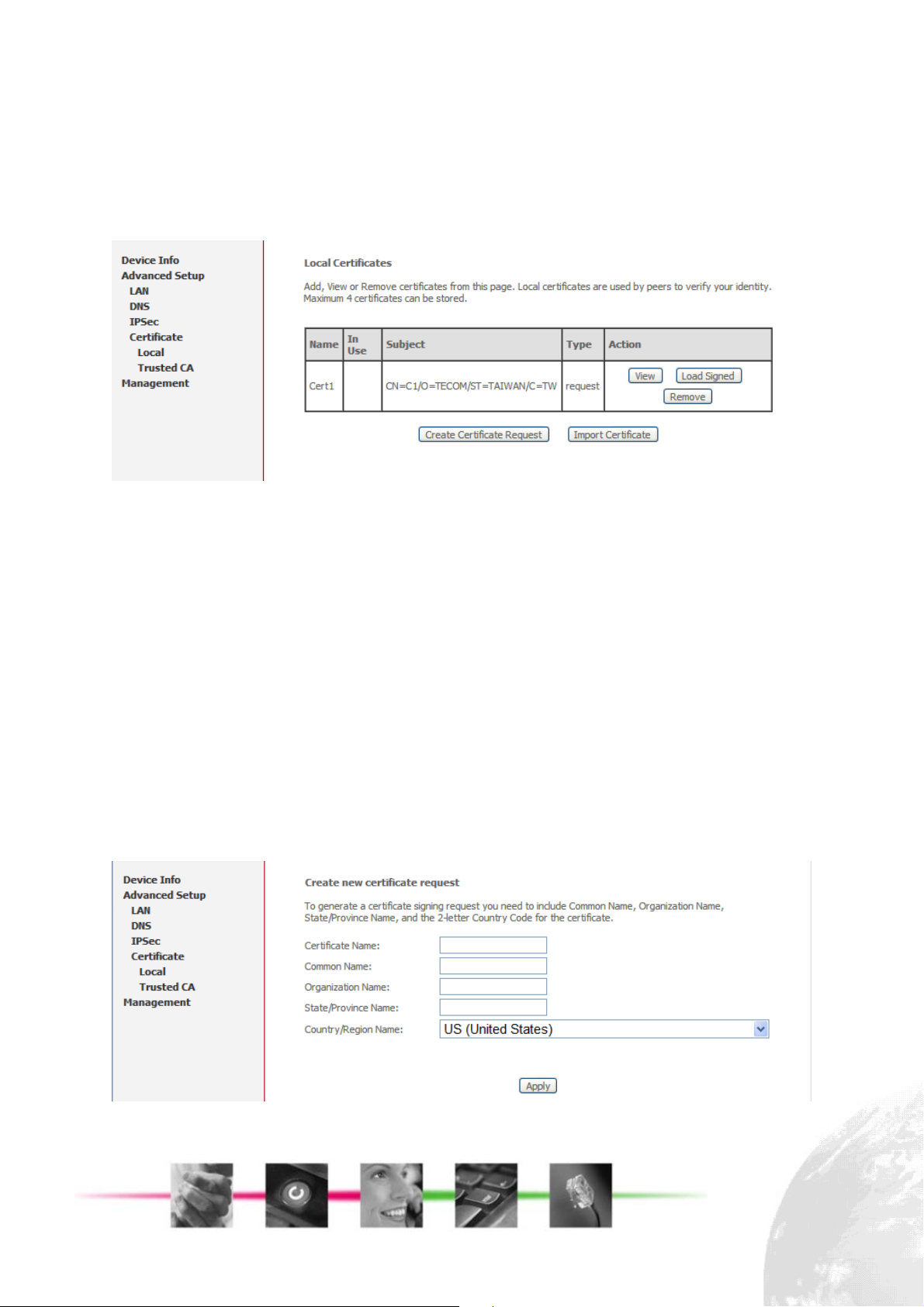

 IPSec
 NTP for time sync
 SSH interface for management
 Web-based configuration

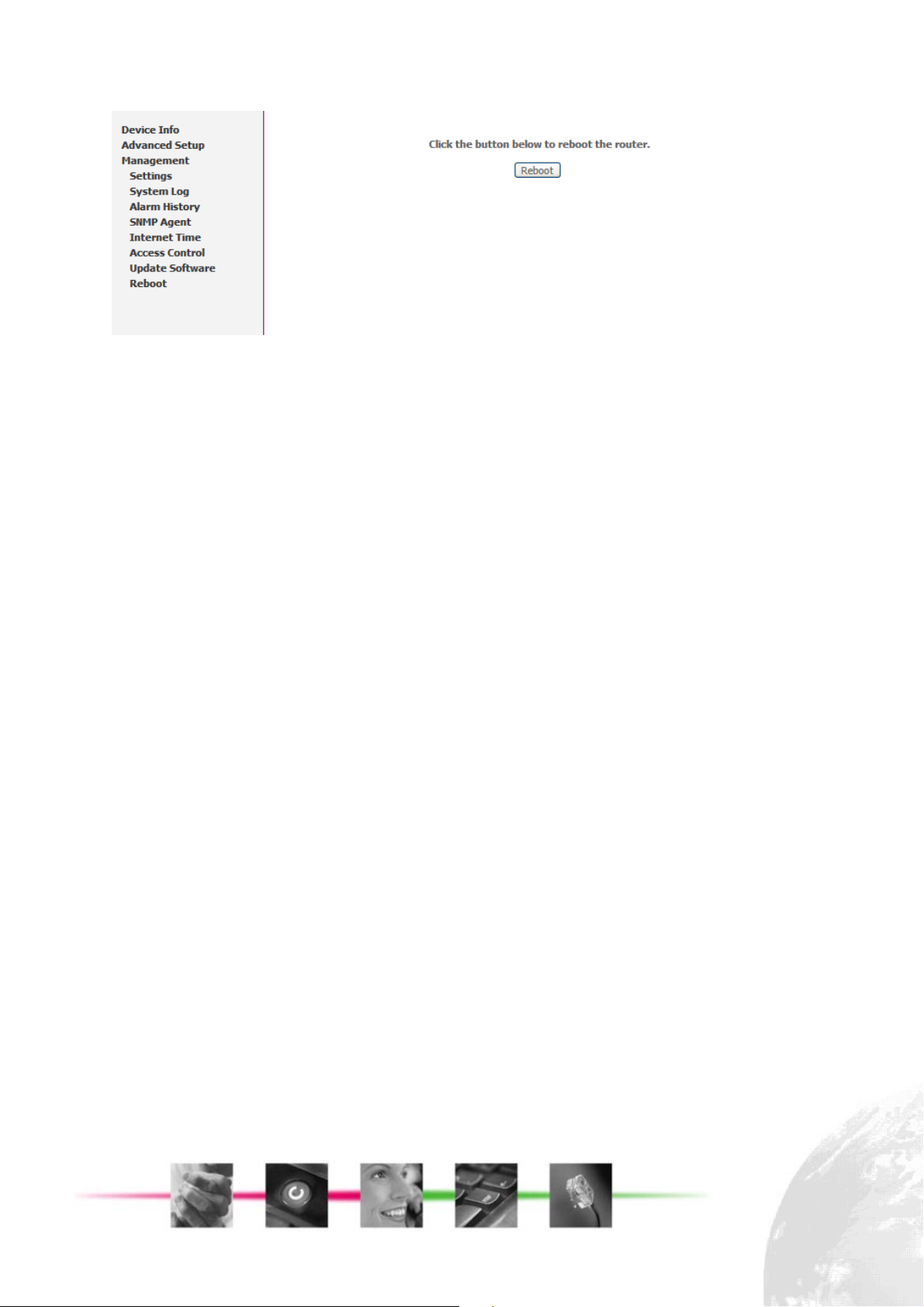

 Remotely intervene to reset, restore default or power cycle the product
 Power Supply/Temperature/Case Open monitoring and alarming

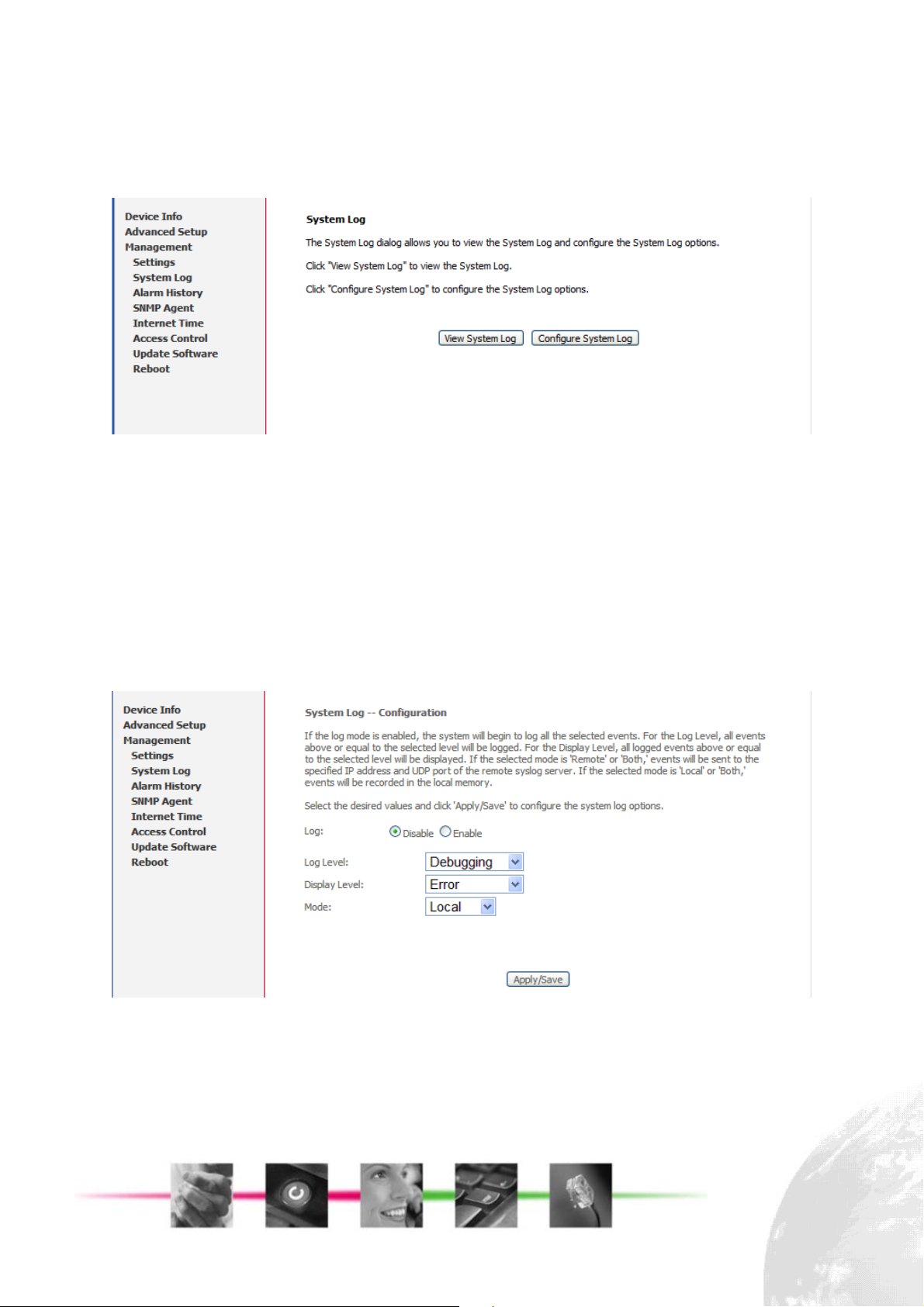

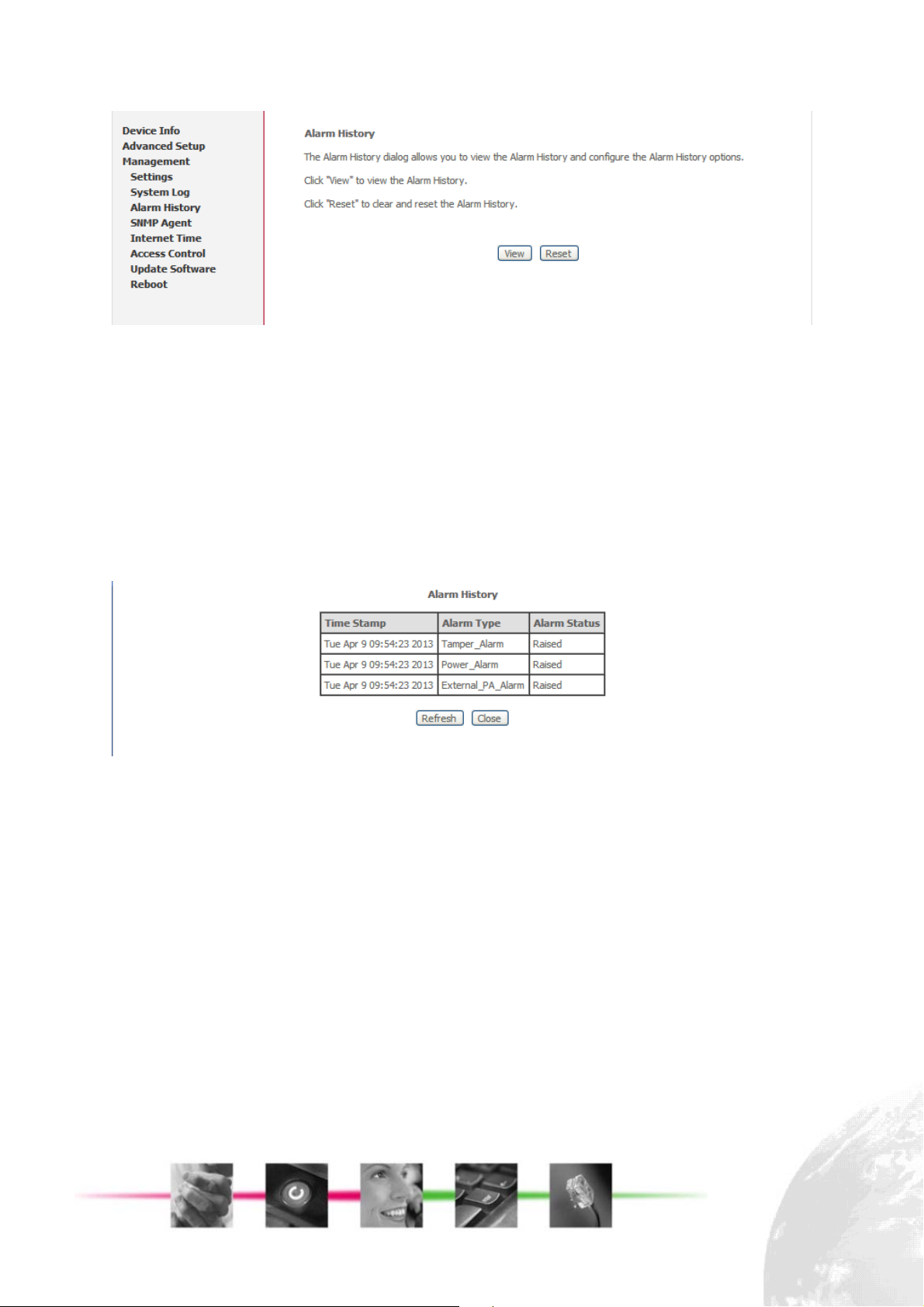

 Show and manage alarm history

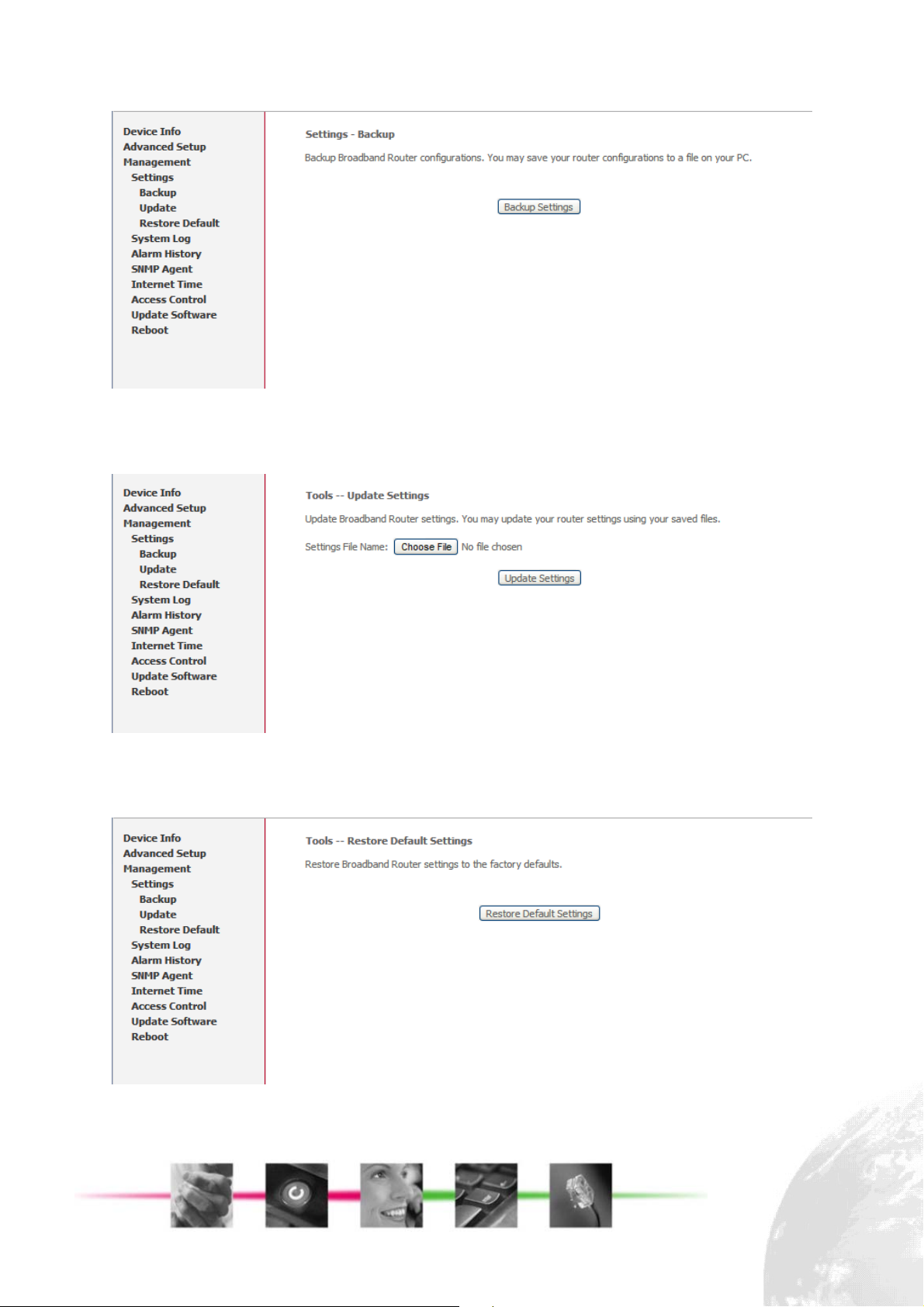

 Configuration backup and restore

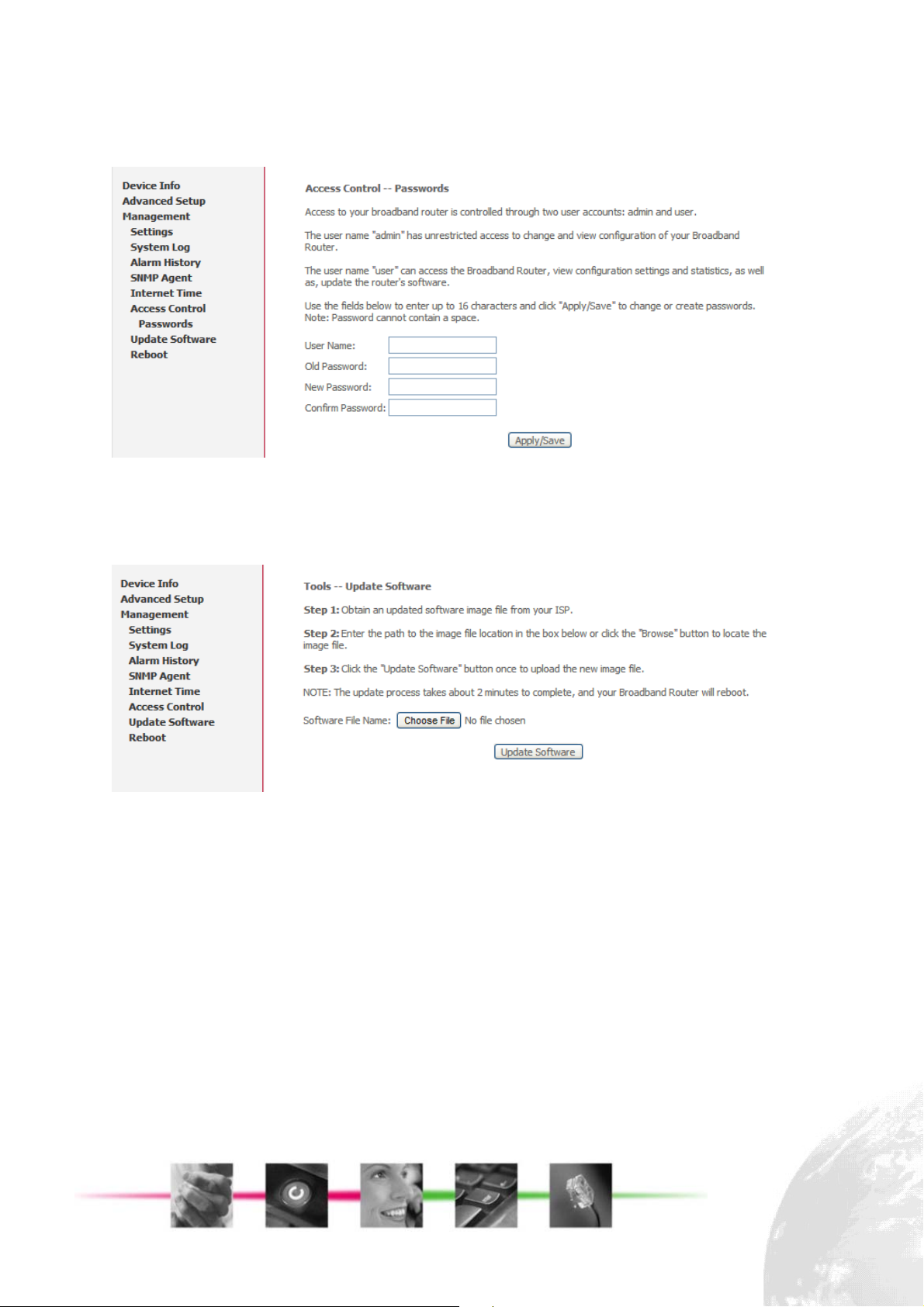

 Firmware upgrade thru web

System Requirements

Along with FC1080-B1G-US , you also need the following equipments or services
before installation.

 Computers which equips at least an Ethernet 10Base-T/100Base-T network

interface card (port)

 A web browser, such as Microsoft Internet Explorer (V5.0 or later version) or

Firefox, Chrome, which is used to configure the FC1080-B1G-US.

Page 1

2. Hardware Installation

Please refer system installation guide

Page 1

3. Configuration

3.1. Before Configuration

Before configuration, you have to connect and power FC1080-B1G-US and PC.
Then connect the Ethernet port of PC to LAN port of FC1080-B1G-US. The default
IP address of FC1080-B1G-US is “192.168.1.1” and the default port number is 80.

3.2. Establish the Connection

Enter the IP address and Port (default is 192.168.1.1:80) on your web browser. A
dialogue box is popped up and requests to enter the user name and password.
(Figure 3-2-1)

Figure 3-2-1. Authentication

Please use the default user name and password, “admin” and “admin”, and click OK
button to login into the system.

Once authentication process is verified, the home page “Device Info - Summary” is
shown on your browser. (Figure 3-2-2)

Figure 3-2-2. Device Info Page

Page 1

In “Device Info” page, it shows you the basic information about the equipment, such
as software version, MAC address, LAN IP and DNS.

3.3. Device Info

3.3.1. Summary

This page is already introduced in section 3.2.

3.3.2. Statistics

In this page (Figure 3-3-1) you can get the network statistics of the LAN. Click “Reset
Statistics” to clean up all network statistics.

Figure 3-3-1. Device Info - Statistics

3.3.3. Route

In this page you can get the IP route information of the device. (Figure 3-3-2)

Figure 3-3-2. Device Info - Route

3.3.4. ARP

This page shows an ARP table which maps IP network addresses to hardware
addresses used by data link level protocol. (Figure 3-3-3)

Page 2

Figure 3-3-3. Device Info - ARP

3.4. Advanced Setup

3.4.1. LAN

Click the “Advanced Setup/LAN” button on the left hand side to enter into the
configuration of LAN.(Figure 3-4-1)

Figure 3-4-1. Advanced Setup - LAN

In this page, you may program the IP address of LAN, its subnet mask and the
default gateway.

Before you leave, please click “Apply/ Save” button to save the changes you made.

3.4.2. DNS

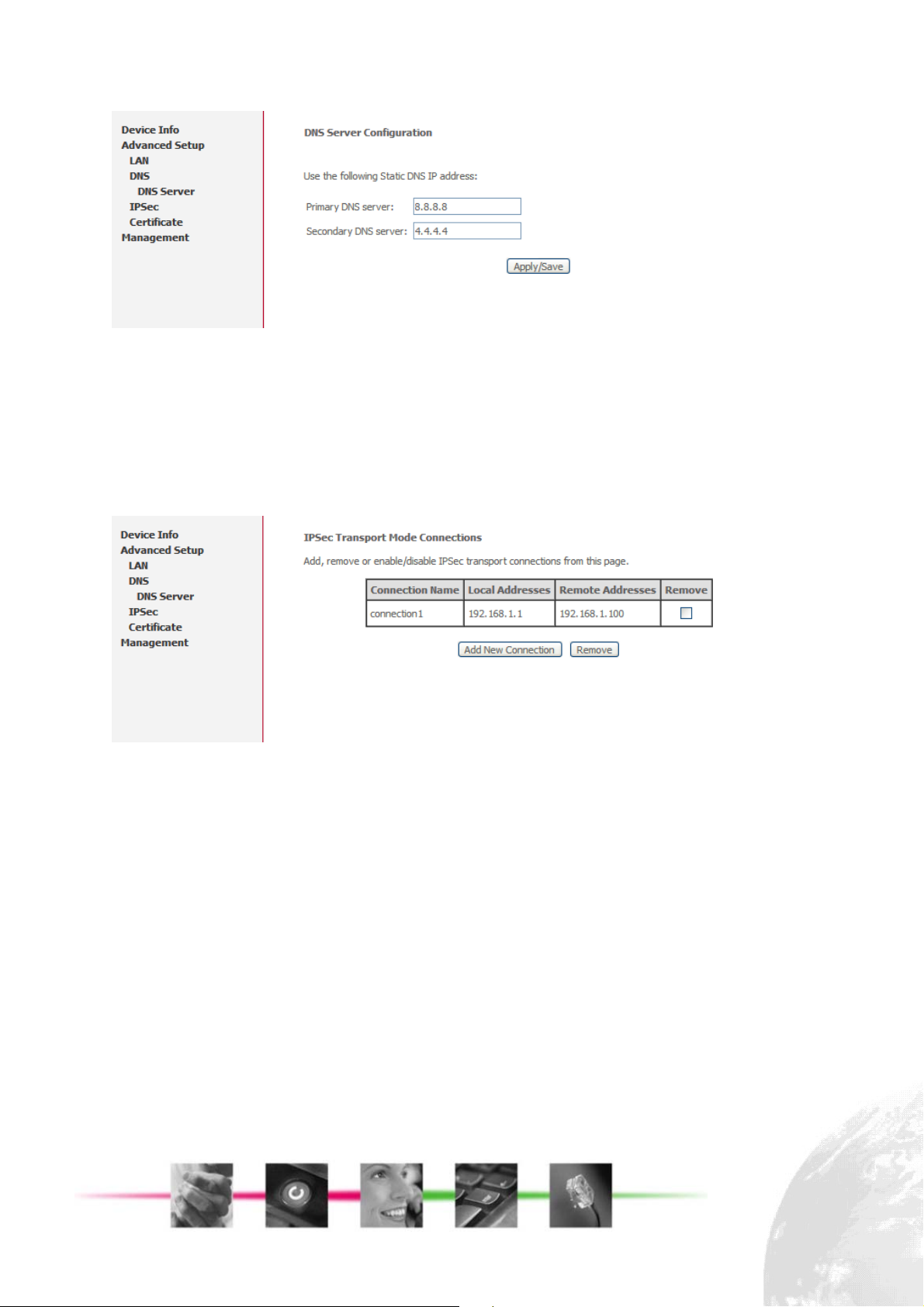

Click the “Advanced Setup/DNS” button on the left hand side of the web page to
enter into the DNS server configuration. (Figure 3-4-2)

Page 3
