Administrative Guide Configuration

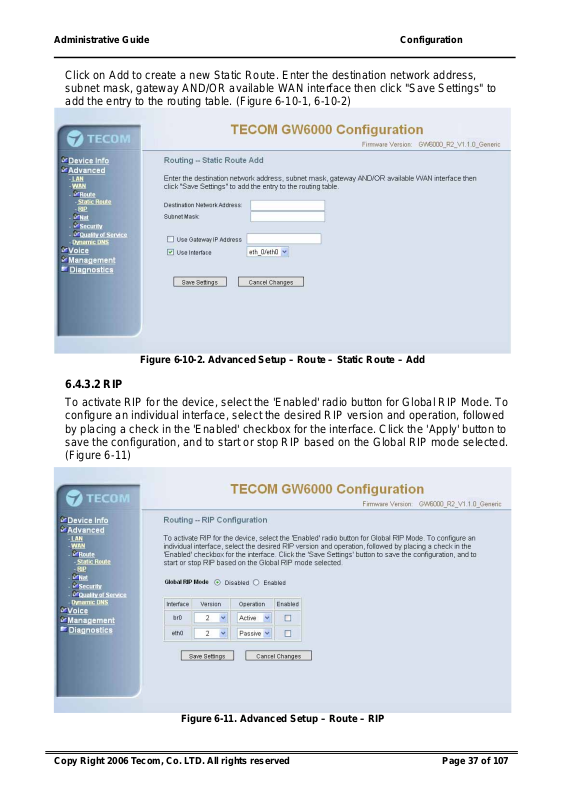

Click on Add to create a new Static Route. Enter the destination network address,
subnet mask, gateway AND/OR available WAN interface then click "Save Settings" to
add the entry to the routing table. (Figure 6-10-1, 6-10-2)
Figure 6-10-2. Advanced Setup – Route – Static Route – Add
6.4.3.2 RIP
To activate RIP for the device, select the 'Enabled' radio button for Global RIP Mode. To
configure an individual interface, select the desired RIP version and operation, followed
by placing a check in the 'Enabled' checkbox for the interface. Click the 'Apply' button to
save the configuration, and to start or stop RIP based on the Global RIP mode selected.
(Figure 6-11)
Figure 6-11. Advanced Setup – Route – RIP
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 37 of 107
Administrative Guide Configuration
6.4.4 NAT
It’s separated into three parts: Virtual Servers, Port Trigger, and DMZ.
6.4.4.1 Virtual Servers
Virtual Server allows you to direct incoming traffic from WAN side (identified by Protocol,
IP address and service port) to the internal server with private IP address on the LAN
side. The Internal port is required only if the external port needs to be converted to a
different port number used by the server on the LAN side. (Figure 6-12-1, Figure 6-12-2)
Figure 6-12-1. Advanced Setup – NAT – Virtual Servers
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 38 of 107
Administrative Guide Configuration
Figure 6-12-2. Advanced Setup – NAT – Virtual Servers – Add
6.4.4.2 Port Triggering
Some applications require that specific port(s) in the Router's firewall be opened for
access by the remote parties. Port Trigger dynamically opens up the 'Open Ports' in the
firewall when an application on the LAN initiates a TCP/UDP connection to a remote
party using the 'Triggering Ports'. The Router allows the remote party from the WAN
side to establish new connections back to the application on the LAN side using the
'Open Ports'. (Figure 6-13-1, 6-13-2)
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 39 of 107
Administrative Guide Configuration
Figure 6-13-1. Advanced Setup – NAT – Port Triggering
Figure 6-13-2. Advanced Setup – NAT – Port Triggering – Add
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 40 of 107
Administrative Guide Configuration
6.4.4.3 DMZ
The EUT will forward IP packets from the WAN that do not belong to any of the
applications configured in the Virtual Servers table to the DMZ host computer. (Figure 6-
14)
Figure 6-14. Advanced Setup – NAT – DMZ
6.4.5 Security
The configuration display only when WAN page’s security option is selected. It’s
separated into three parts: Incoming Filter, Output Filter, and Parental Control.
6.4.5.1 Incoming Filter
It allows the users to create a filter rule to identify incoming IP traffic by specifying a new
filter name and at least one condition. All of the specified conditions in this filter rule
must be satisfied for the rule to take effect. (Figure 6-15-1, Figure 6-15-2)
By default, all incoming IP traffic from the WAN will be blocked if it is not consistent with
the incoming filter rules. In fact, EUT has opened some necessary ports such as
web port, sip ports and rtp ports, to make sure that voice application can communicate
well.
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 41 of 107
Administrative Guide Configuration
Figure 6-15-1. Advanced Setup – Security – Incoming IP Filtering
Figure 6-15-2. Advanced Setup – Security – Incoming IP Filtering – Add
6.4.5.2 Output Filter
It allows the users to create a filter rule to identify outgoing IP traffic by specifying a new
filter name and at least one condition. All of the specified conditions in this filter rule
must be satisfied for the rule to take effect. (Figure 6-16-1, Figure 6-16-2)
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 42 of 107
Administrative Guide Configuration
Figure 6-16-1. Advanced Setup – Security – Outgoing IP Filtering
Figure 6-16-2. Advanced Setup – Security – Outgoing IP Filtering – Add
6.4.5.3 Parental Control
It adds time restriction to a special LAN device connected to the Router. The 'Browser's
MAC Address' automatically displays the MAC address of the LAN device where the
browser is running. To restrict other LAN device, click the "Other MAC Address" button
and enter the MAC address of the other LAN device. (Figure 6-17-1, Figure 6-17-2)
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 43 of 107
Administrative Guide Configuration
Figure 6-17-1. Advanced Setup – Security –Parental Control
Figure 6-17-2. Advanced Setup – Security –Parental Control – Add
6.4.6 Quality of Service
It’s separated into two parts: Traffic Class, and Bandwidth Control.
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 44 of 107
Administrative Guide Configuration
6.4.6.1 Traffic Class
Click on Add to create a class to identify the IP traffic by specifying at least one condition
below. If multiple conditions are specified, all of them should be satisfied to make sure
the rule will take effect. (Figure 6-18-1, Figure 6-18-2)
IP QoS is applied to the traffic from LAN to WAN; the traffic from WAN to LAN will not be
applied.
Enter the QoS class name for this policy. Define the priority for this policy, and the
priority will be used by the next bandwidth control setting. EUT will modify the IP
header with new IP Precedence and/or IP Type Of Service fields.
It’s a IP Layer QoS policy. At least (but not limited to) one condition must be configured.
Figure 6-18-1. Advanced Setup – Quality of Service – Traffic Class
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 45 of 107
Administrative Guide Configuration
Figure 6-18-2. Advanced Setup – Quality of Service – Traffic Class – Add
6.4.6.2 Bandwidth Control
This page allows you to control WAN port's upstream bandwidth according to your
settings (Figure 6-19). And it can ensure the highest priority IP packets' traffic firstly. By
default, all voice packets has been queued in the highest IP packets, and the others has
been queued in the normal IP packets if they have not been set in the priority field of the
traffic class rule.
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 46 of 107
Administrative Guide Configuration
Figure 6-19. Advanced Setup – Quality of Service – Bandwidth Control
6.4.7 Dynamic DNS
The Dynamic DNS service allows you to alias a dynamic IP address to a static
hostname in any of the many domains, allowing your DSL router to be more easily
accessed from various locations on the Internet. (Figure 6-20-1, Figure 6-20-2)
Figure 6-20-1. Advanced Setup – Dynamic DNS
Figure 6-20-2. Advanced Setup – Dynamic DNS - Add
Copy Right 2006 Tecom, Co. LTD. All rights reserved Page 47 of 107
