User Manual for BT3070
Bluetooth Stereo Headphone
BT3070 Bluetooth Stereo Headphone User's Guide 1
Notice : The changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no
change to the antenna or the device is permitted. Any change to the antenna or the device
could result in the device exceeding the RF exposure requirements and void user’s authority
to operate the device.
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
AND(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAYCAUSE UNDESIRED OPERATION.
CAUTION: Avoid using BT3070 headphone with the volume turned up for a long
time. Doing so can damage your hearing. It is advisable to keep the volume at a
moderate level at all times.
Copyright © 2005, TECOM Co., Ltd All rights reserved.
User’s Guide
BT3070 Bluetooth Universal Stereo Headphone
Third Edition (December 2005)
BT3070 Bluetooth Stereo Headphone User's Guide 2
Table of Contents
I. About BT3070 Stereo Headphone......................................................................... 4
1.1、 BT3070 Stereo Headphone Overview........................................................ 4
1.2、 General Features ......................................................................................... 5
II. Setup BT3070 Headphone...................................................................................... 6
2.1、 Turn on/off stereo headphone..................................................................... 6
2.2、 Pairing with devices.................................................................................... 6
2.3、 Connecting BT3070 headphone with multiple devices............................ 11
2.4、 Charging headphone ................................................................................. 11
III. Play Music with BT3070 Headphone.................................................................. 13
IV. Make/Answer Calls with BT3070 Headphone ................................................... 15
V. The LED Indicator Mean..................................................................................... 17
BT3070 Bluetooth Stereo Headphone User's Guide 3
I. About BT3070 Stereo Headphone
r
t
1.1、 BT3070 Stereo Headphone Overview
< Left side >
Retractable
Microphone
< Right side >
Forward
Volume Up
Play/ Pause/ Stop/
Pairing Button
Blue/ Red Status
LED Indicator
Backward
Volume Down
Power On/ Off
Floating Slider
Orange LED
Charging Indicato
Mini USB
Charging Socke
BT3070 Bluetooth Stereo Headphone User's Guide 4
1.2、 General Features
Phone Call:
BT3070 is equipped with a retractable microphone and
supports Bluetooth hand-free profile for wireless
phone call.
Music Streaming:
Remote Control:
Clarity:
Others
BT3070 supports Bluetooth A2DP (Advanced Audio
Distribution Profile). User can enjoy omni-direction
high quality wireless music play up to 15 meters away.
BT3070 supports Bluetooth AVRCP (Audio Video
Remote Control Profile). User may use BT3070
interface to control music play remotely.
Advanced DSP (Digital Signal Processing) technology
is incorporated for noise reduction and echo
cancellation during wireless phone conversation.
Up to 5 Bluetooth phones or MP3 players can be
paired with single BT3070.
Standby time up to 400 hours.
Supports continuous music play up to 8 hours and
continuous talking up to 10 hours.
One-push the retractable microphone for picks up
a call.
BT3070 Bluetooth Stereo Headphone User's Guide 5
II. Setup BT3070 Headphone
2.1、 Turn on/off stereo headphone

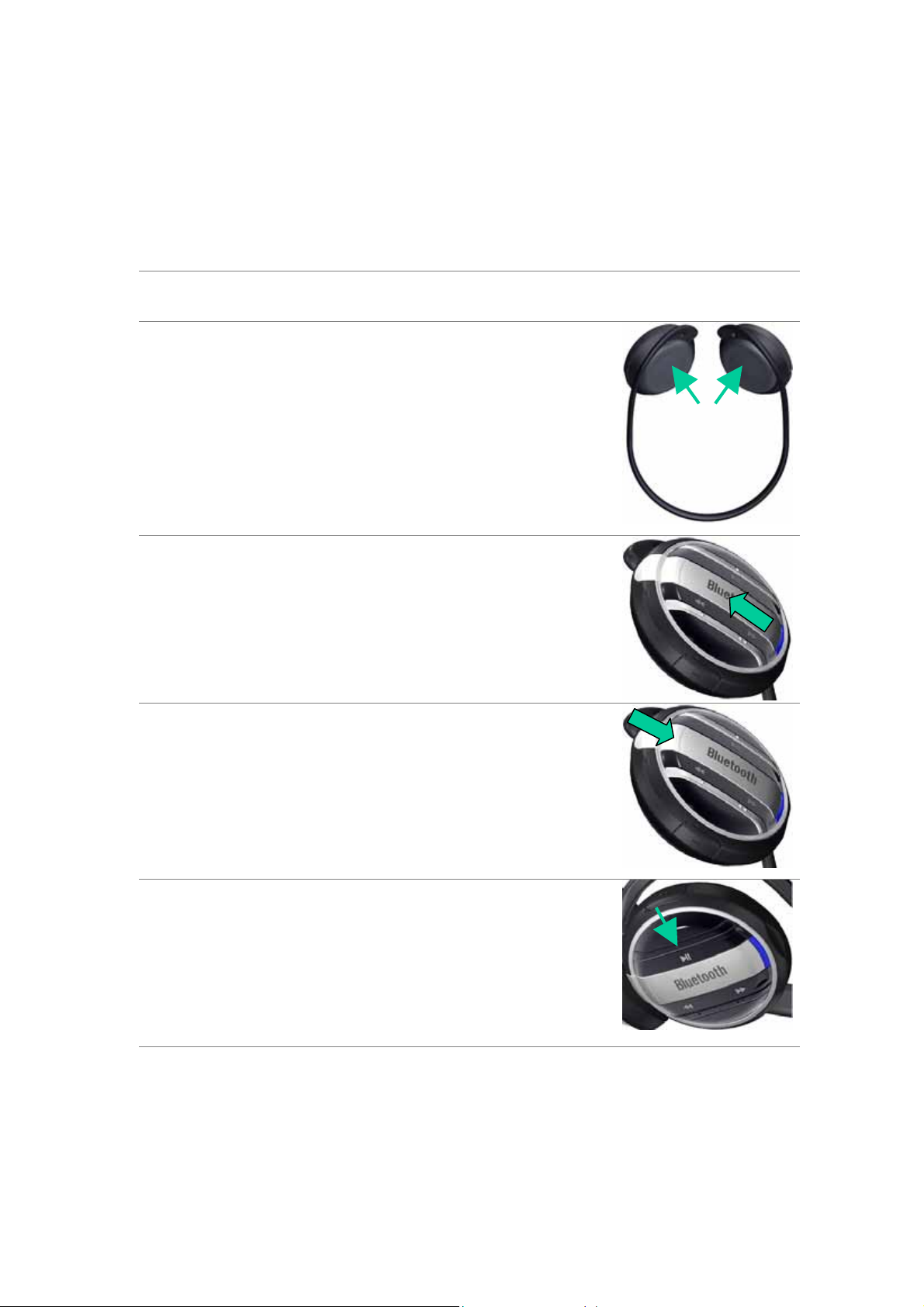

Put the Power On/Off Floating Slider to ON
side for turning on your headphone – when the
headphone is opened, a short tone will be heard
and the LED indicator will flash slowly in blue.
Put the Power On/Off Floating Slider to OFF
side for turning the headphone off.
2.2、 Pairing with devices
Before using BT3070 headphone you must pair up with Dongle or/and mobile
phone or other bluetooth enabled devices.
Put the headphone into pairing mode
Press and hold the Play button (about 5
seconds) until the LED indicator flash blue
and red alternately – 2 short tones will be
heard.
Set your Dongle or mobile phone or other device to “discover” the BT3070
headphone and then pair with it.
Please follow Dongle /or phone or other devices instruction guide.
Tecom Dongle for example: (Operating System: Windows XP pro. SP2)
BT3070 Bluetooth Stereo Headphone User's Guide 6

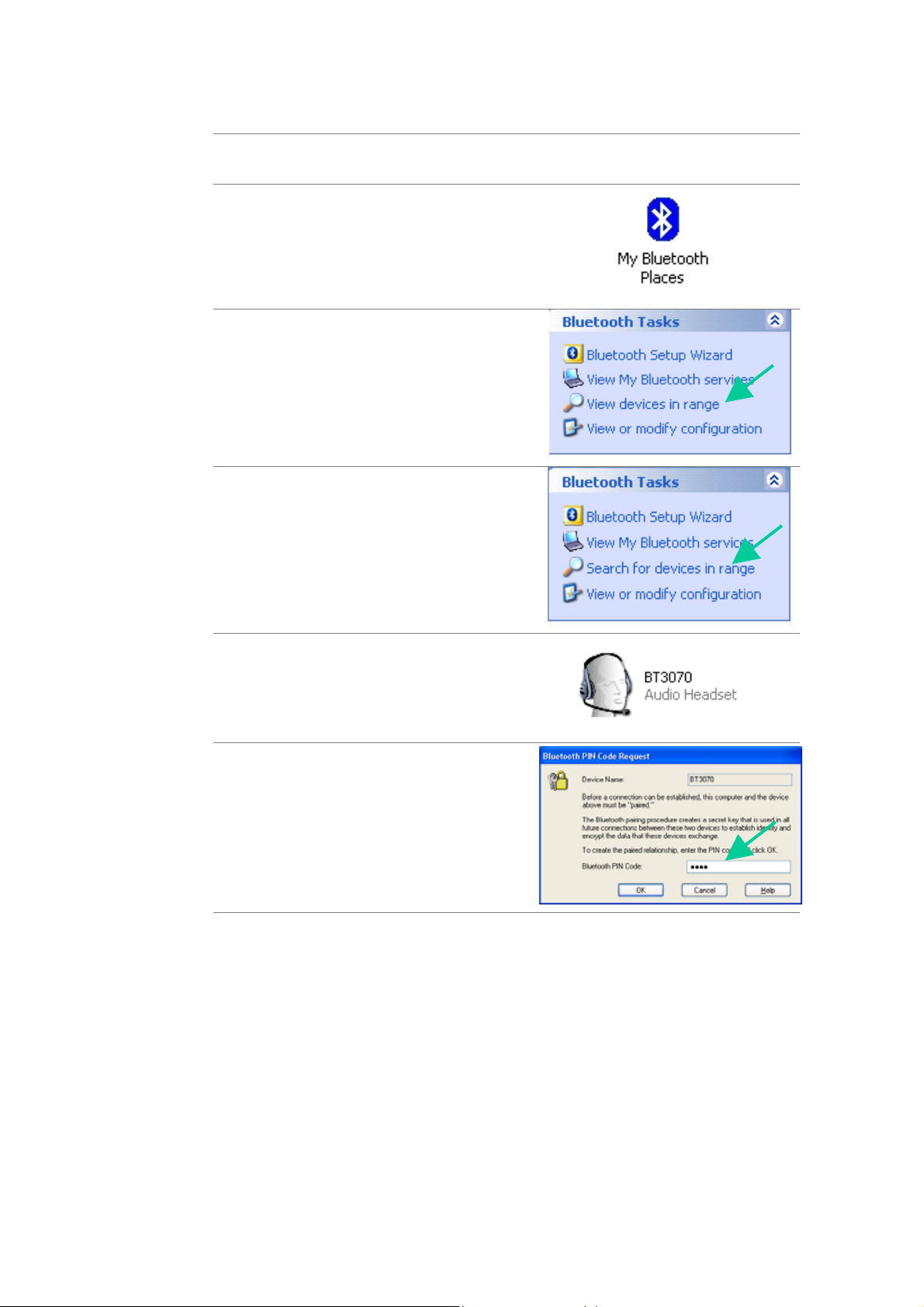

Steps Actions Illustration
1 Double click “My Bluetooth
Places” icon on the desktop first.
2 Click “View the device in range”
3 Click “Search for device in
range” to discover the BT3070
headphone.
4 Dongle will find the BT3070
headphone, right click to find out
its related services.
5 It will require the PIN code,
please confirm with PIN = 0000
(4 zero’s).
In case of unsuccessful pairing please repeat above steps.
BT3070 Bluetooth Stereo Headphone User's Guide 7
Nokia 6230 for example:

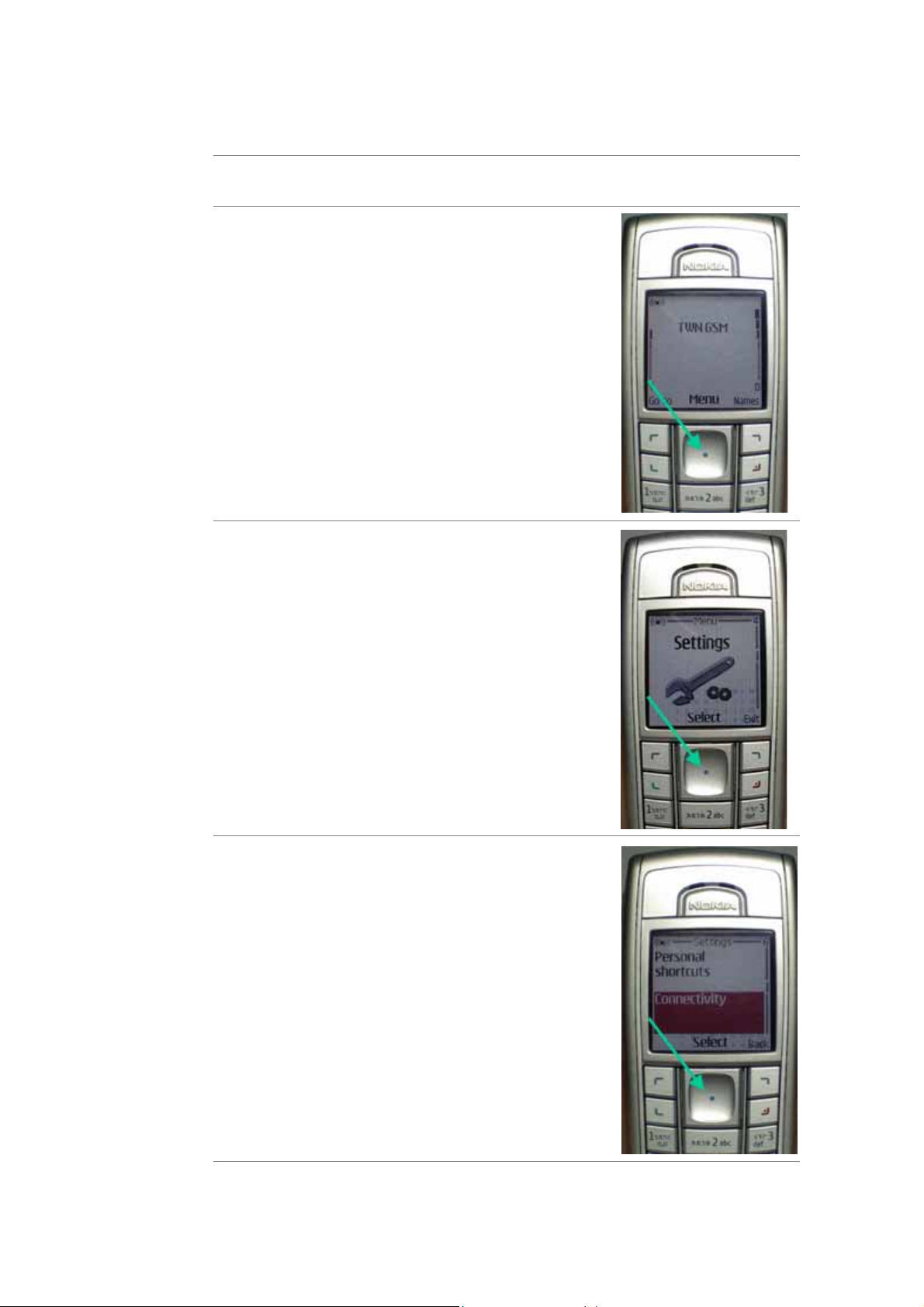

Steps Actions Illustration
1 Click “Menu” button first.
2 Select “Settings”.
3 Select “Connectivity”
BT3070 Bluetooth Stereo Headphone User's Guide 8

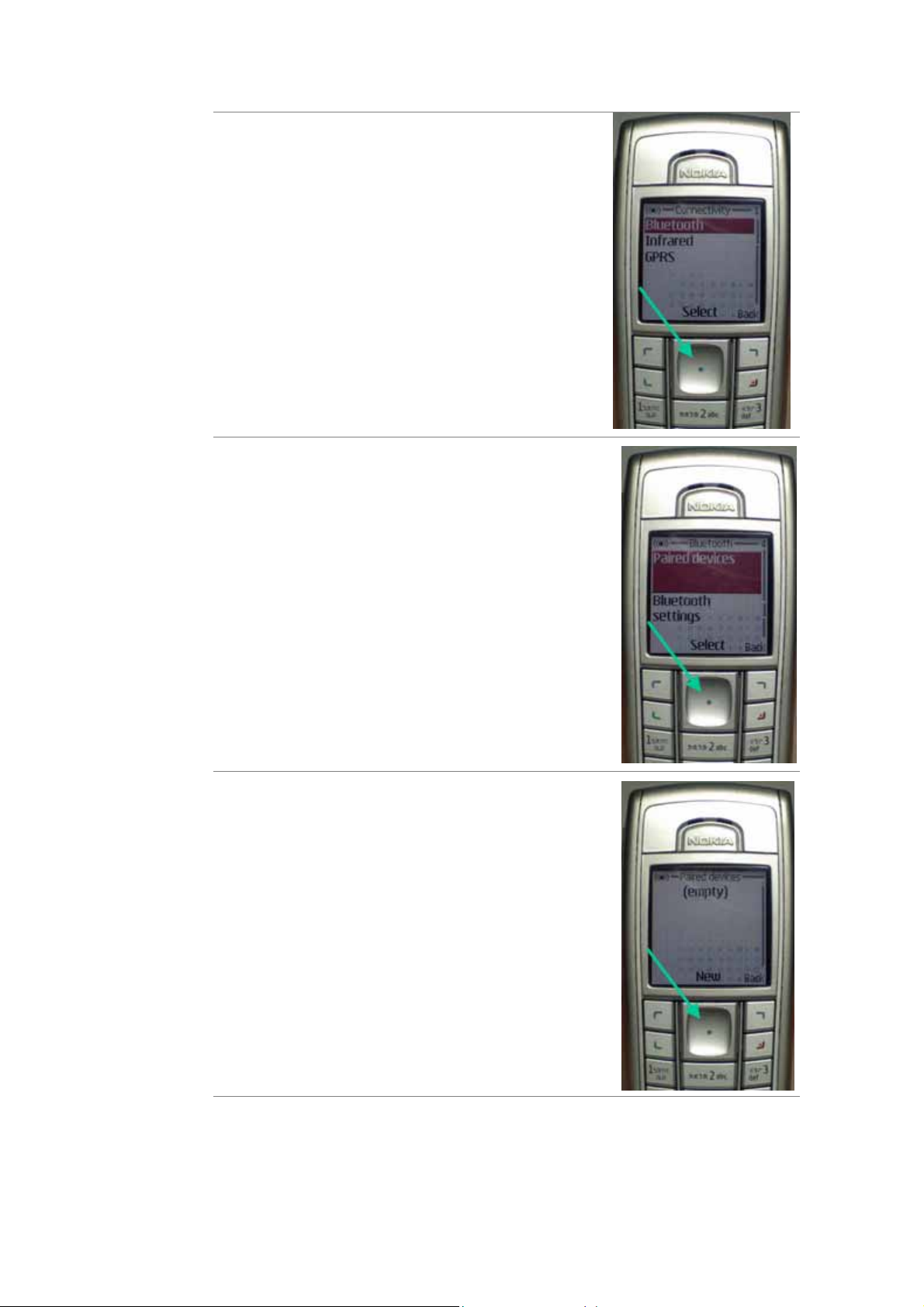

4 Select “Bluetooth”
5 Select “Paired devices”
6 Please click “New” to search for the
BT3070 headphone.
BT3070 Bluetooth Stereo Headphone User's Guide 9

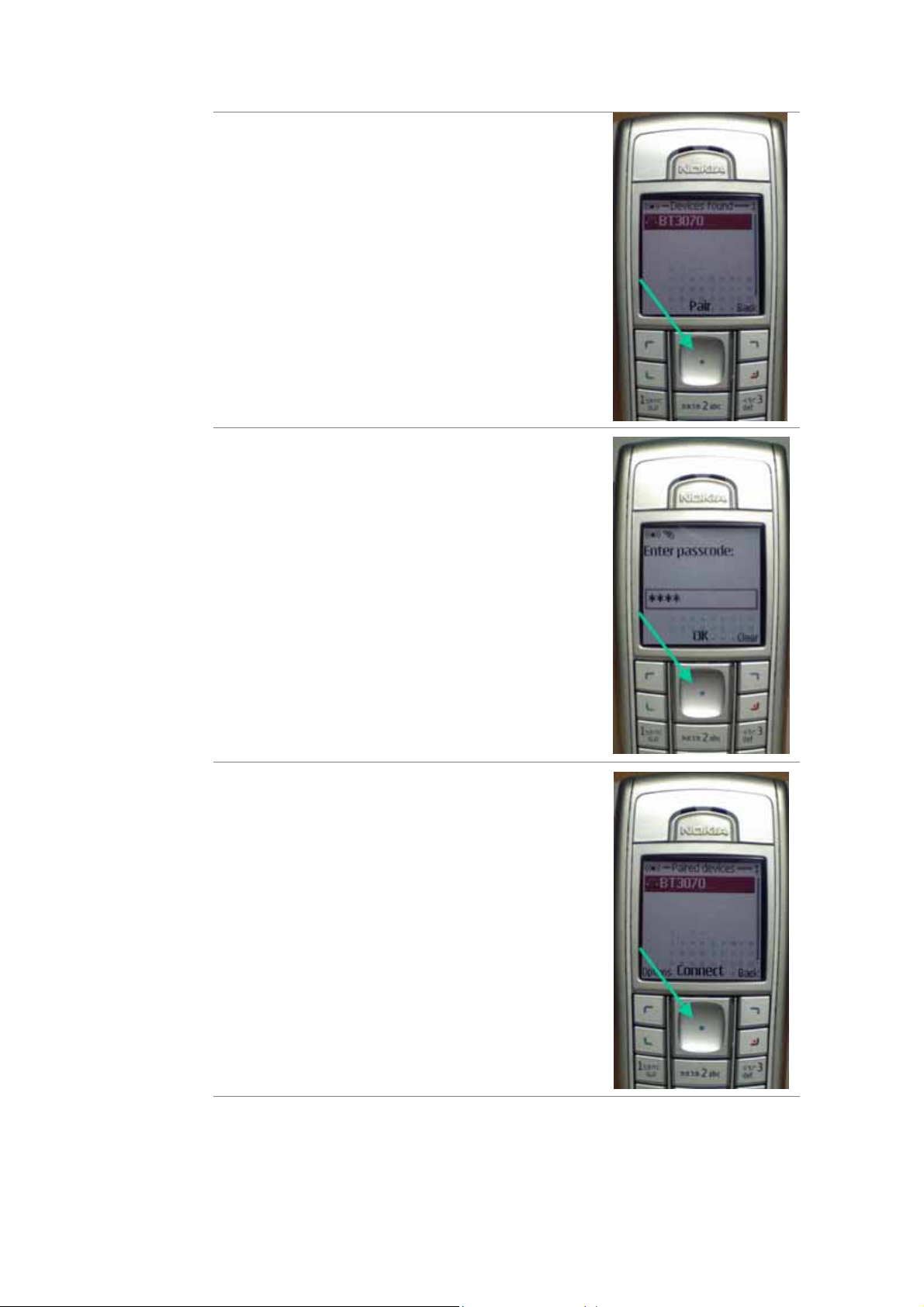

7 Mobile phone will find the BT3070
headphone. Please click “Pair” to pair with
the BT3070 headphone.
8
Mobile phone will require the passcode
(PIN code), please confirm with passcode
= 0000 (4 zero’s) and then click “OK”.
9 Click “Connect” to connect with the
BT3070 headphone.
When connected, mobile phone’s operating tone will automatically be
transferred to your headphone.(Depend on mobile’s type, some of mobiles may
be fail to hear operate tone from BT3070 after connected.)
BT3070 Bluetooth Stereo Headphone User's Guide 10
In case of unsuccessful pairing/connecting please repeat above steps.
2.3、 Connecting BT3070 headphone with multiple devices
You are able to connect BT3070 headphone with audio source and mobile phone
simultaneously. Please refer to your music-player/phone manual for details
regarding pairing/connecting bluetooth enabled devices.
2.4、 Charging headphone
WARNING: This headphone contains a lithium polymer rechargeable battery. To
reduce the risk of fire or burns, do not disassemble, crush, puncture, short external
contacts, or dispose of in fire or water
If you hear warning tone regularly (every 10 seconds), it stands for BT3070 in the
low battery mode. Try to charge the headphone as below:

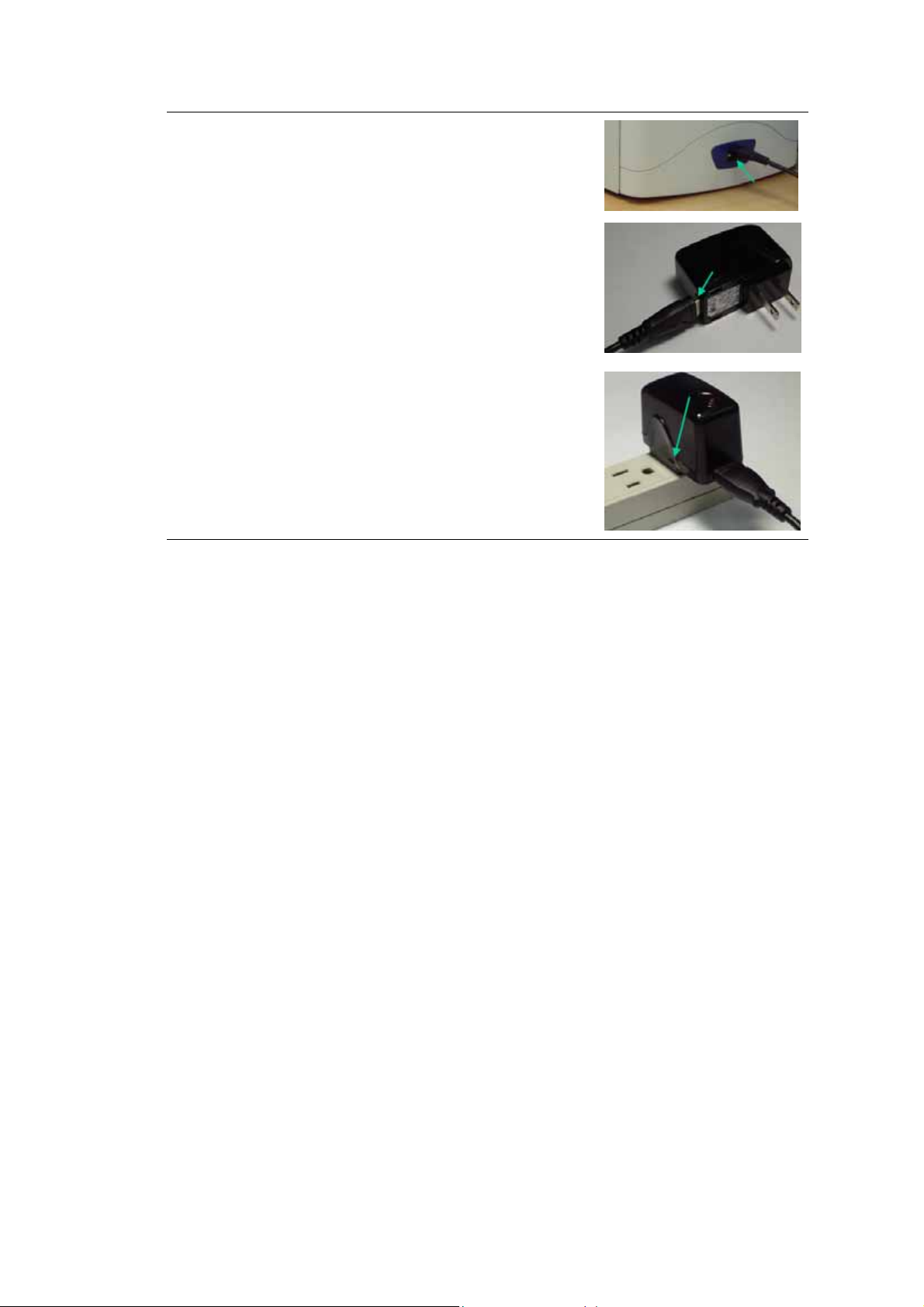

Steps Actions Illustration
1 Turn off the headphone by put the Power
On/Off Floating Slider to OFF side
2 Take the USB cable and then plug in the Mini
USB Charging Socket on your headphone.
BT3070 Bluetooth Stereo Headphone User's Guide 11
3 Connect the other side of this USB cable to PC
or the AC adaptor.
4 Plug the AC adapter into an electrical outlet if
you use the AC adaptor to charge.
When the LED indicator turns to solid orange, headphone is charging. When the
LED indicator goes off, the headphone is fully charged. The headphone may take
2.5 hours to fully charge.
BT3070 Bluetooth Stereo Headphone User's Guide 12
III. Play Music with BT3070 Headphone
To play music or other audio file, ensure that BT3070 headphone is connected with
another device (PC, MP3-player etc.). The left side of BT3070 headphone is used
for remote control the stereo music.

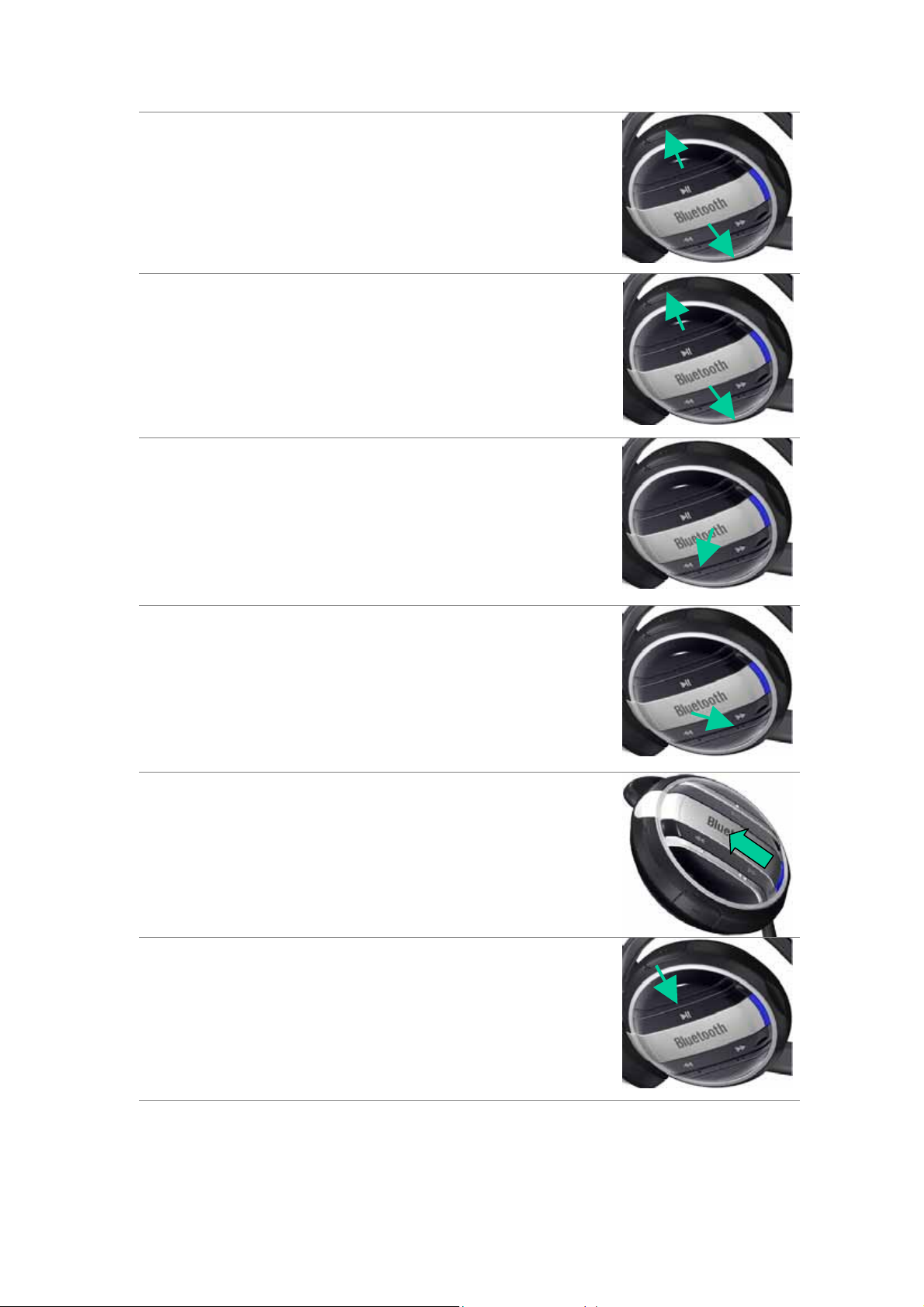

Functions Remote Control
Commands
To Play Tap the Play button once. N/A
Tone
Illustration
To Pause Tap the Play button
once – tap again to
resume playing.
To Stop Tap the Play button 2
times consecutively.
To Volume up Tap the Volume Up
button once.
N/A
N/A
N/A *
To Volume
down
BT3070 Bluetooth Stereo Headphone User's Guide 13
Tap the Volume Down
button once.
N/A

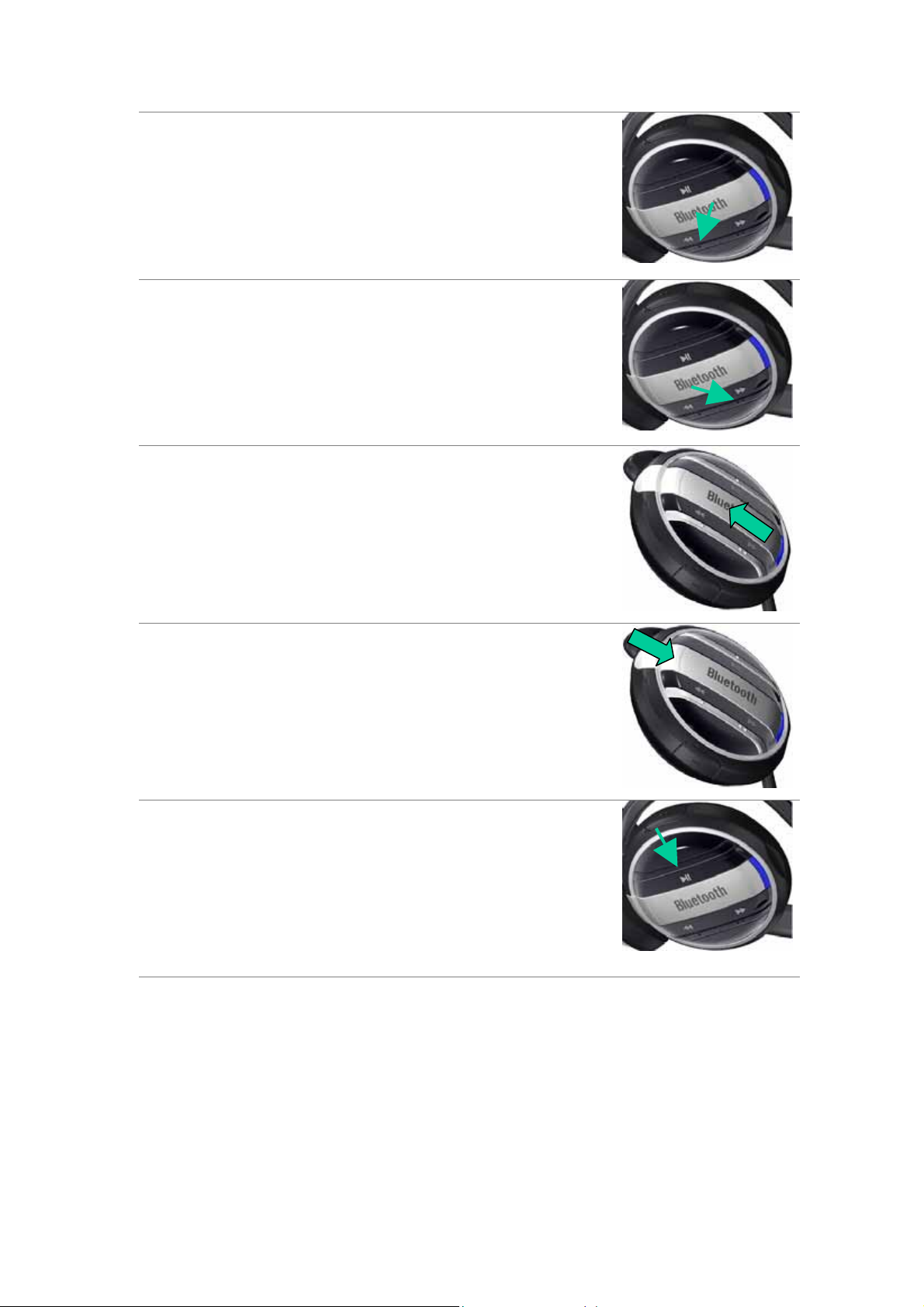

Skip one track
forward
Skip one track
backward
Answer a call
when playing
music
Tap the Forward button
once – continue tapping
to skip several tracks
forward.
Tap the Backward button
once – continue tapping
to skip several tracks
backward.
Slide down the
Retractable Microphone
to answer a call.
N/A
N/A
A short tone
End a call to
keep playing
music
Reconnect Tap the Play button once
Slide up the Retractable
Microphone to end an
active call.
A short tone
A short tone
to reconnect stereo
service with paired audio
source. (Dongle etc.)
* When achieve maximum volume, a warning tone will be heard.
BT3070 Bluetooth Stereo Headphone User's Guide 14
IV. Make/Answer Calls with BT3070 Headphone
To make/answer a call with BT3070 headphone, please make sure headphone has
connected to the mobile phone.

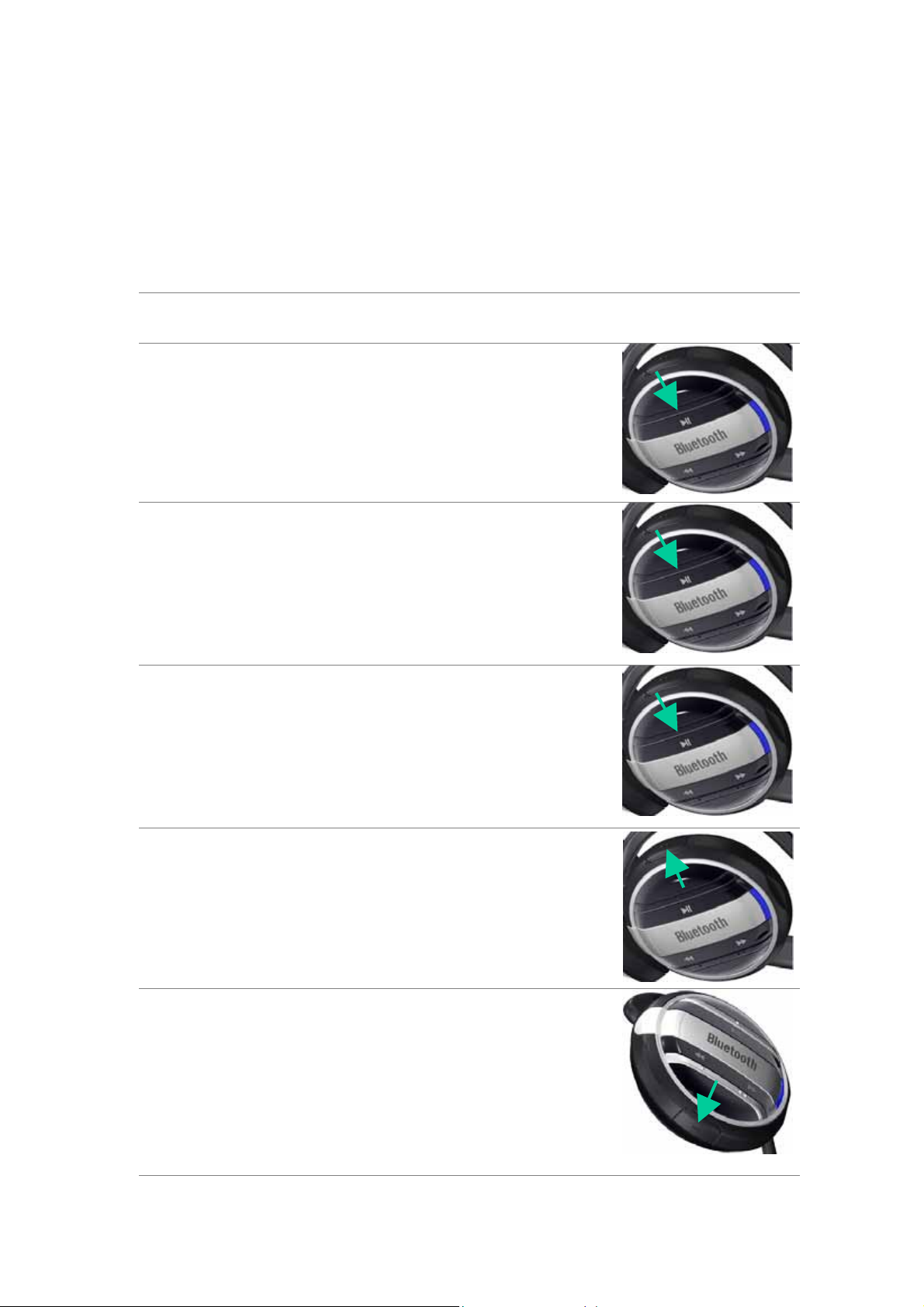

Actions Remote control
commands
Tone
Illustration
Make a call with
mobile phone
Answer a call Slide down the Retractable
End a call Slide up the Retractable
Before making a call from
mobile phone, remember
slide down the Retractable
Microphone first. (The call
will automatically be heard
on the headphone)
Microphone to answer a
call when phone is ringing.
(An warning tone will be
heard for indicate there’s an
incoming call.)
Microphone to end an
active call.
A short tone
A short tone
A short tone
Reject a call Press and hold the Play
button 1 second to reject an
incoming call.
BT3070 Bluetooth Stereo Headphone User's Guide 15
A short tone
Adjust volume Tap the Volume Up or
Volume Down button once
to adjust the volume.
Mute Press and hold the Volume
up and Volume down
button at the same time 2
seconds to mute the
microphone – press and
hold 2 seconds again to
resume.
Redial last
outgoing call
Press and hold the Forward
button 1 second to redial.
N/A **
2 short tones
A short tone
Redial last
incoming call
Press and hold the
Backward button 1 second
to redial.
Reconnect Slide down the Retractable
Microphone to reconnect
again with paired mobile
phone. After connected,
please remember to slide
up the Retractable
Microphone.
Cancel an
outgoing call
Press and hold the Play
button 1 second during
dialing for cancel an
outgoing call.
A short tone
A short tone
A short tone
** When achieve maximum volume, a warning tone will be heard.
BT3070 Bluetooth Stereo Headphone User's Guide 16
LED Indicator State Mapping
Flashing blue light
Flashing red light
V. The LED Indicator Mean
Flashing every 10 seconds – Power on
Flashing 2 times every 10 seconds – Connected to mobile
Flashing every 3 seconds – Connected mobile in using
Flashing every 6 seconds – Connected to stereo audio
device
Regularly consecutive flashing 2 times every 6 seconds –
Mute
Regularly consecutive flashing 3 times every 10
seconds – Low battery warning
Flashing blue and red light
alternately
Solid orange light Charging (light switch off when fully charge)
Flashing every 0.6 second – In pairing/ Incoming call/
Outgoing call
BT3070 Bluetooth Stereo Headphone User's Guide 17
