Tecom Co AG300PLUS2 User Manual

AG-300 Plus2
Gateway
Copyright © 2017, All Rights Reserved.
Ver: R01 D/C: 106-1121
Federal Communications Commission (FCC) Statement Statement shall be listed in the label
(if the product is smaller than palm size, it could be listed in user manual for instead.)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause undesired operation of the device.
Statement shall be listed in the manual
15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment.
15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) this device may not cause harmful interference and
2) this device must accept any interference received, including interference that may cause
undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters from your body.
USB Port only connection Vibration gauge (VB-200STU)
Tecom AG-300 Plus2 IoT Gateway Operation Manual
Table of contents
Overview ............................................................................................................................................3
AG-300 Plus2 Configuration ........................................................................................................ 5
1. System structure..............................................................................................................5
2. Equipment wiring ............................................................................................................5
3. RS485 wiring .....................................................................................................................7
4. Power bank wiring...........................................................................................................8
5. Equipment dimension.................................................................................................... 8
6. AG-300 Plus2 view...........................................................................................................9
Equipment setup............................................................................................................................10
1. Network setup................................................................................................................10

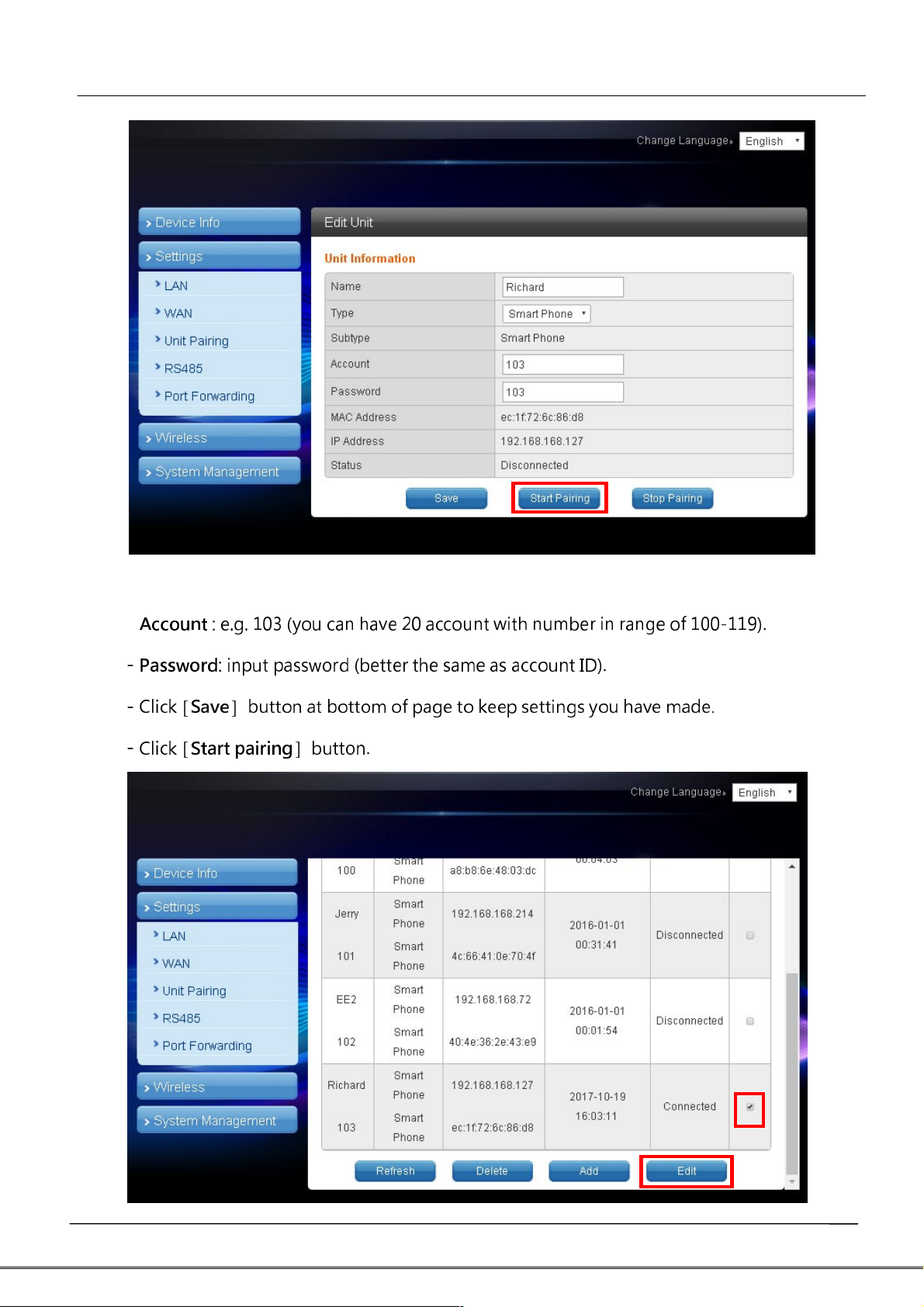

2. Account setup.................................................................................................................12

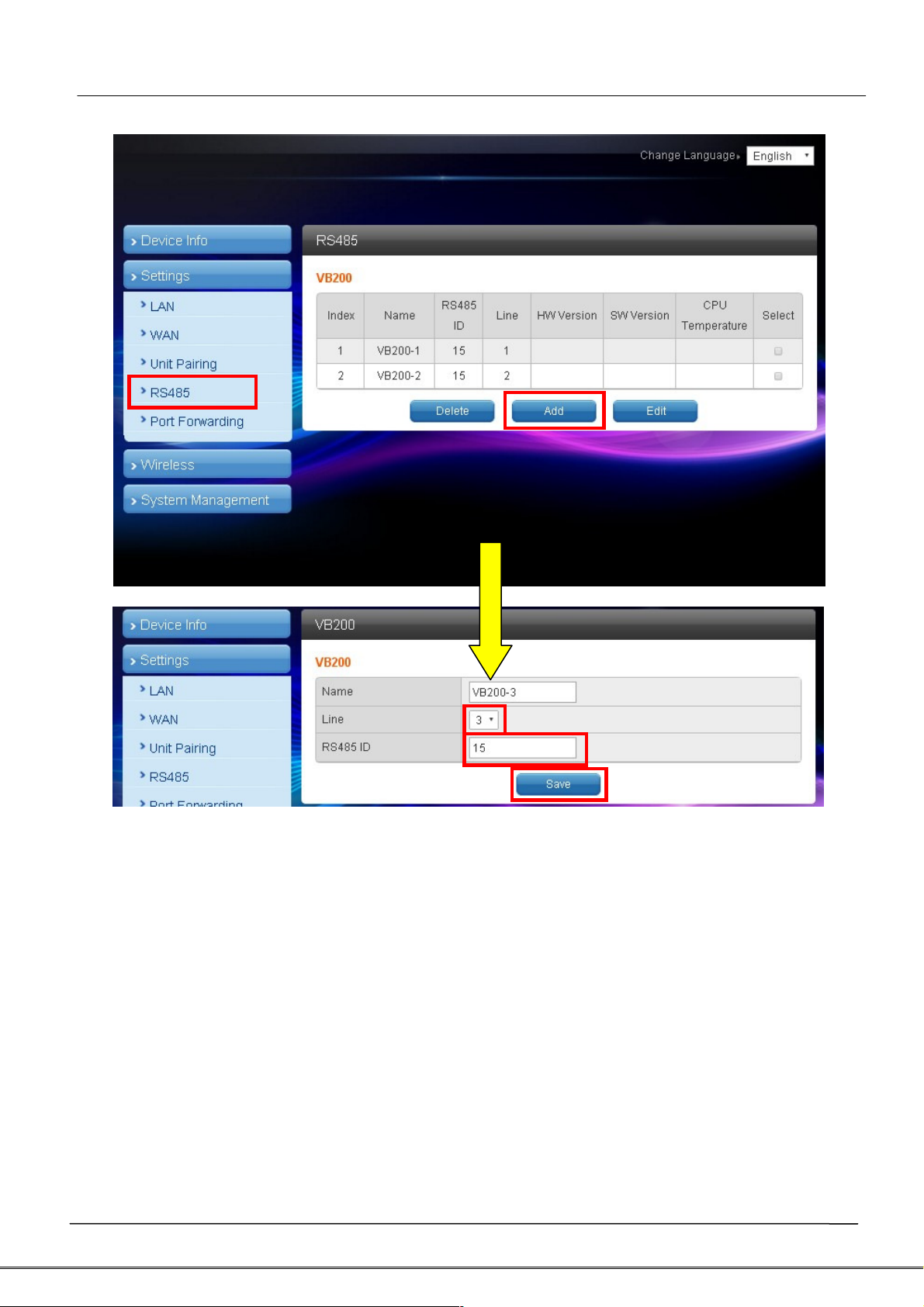

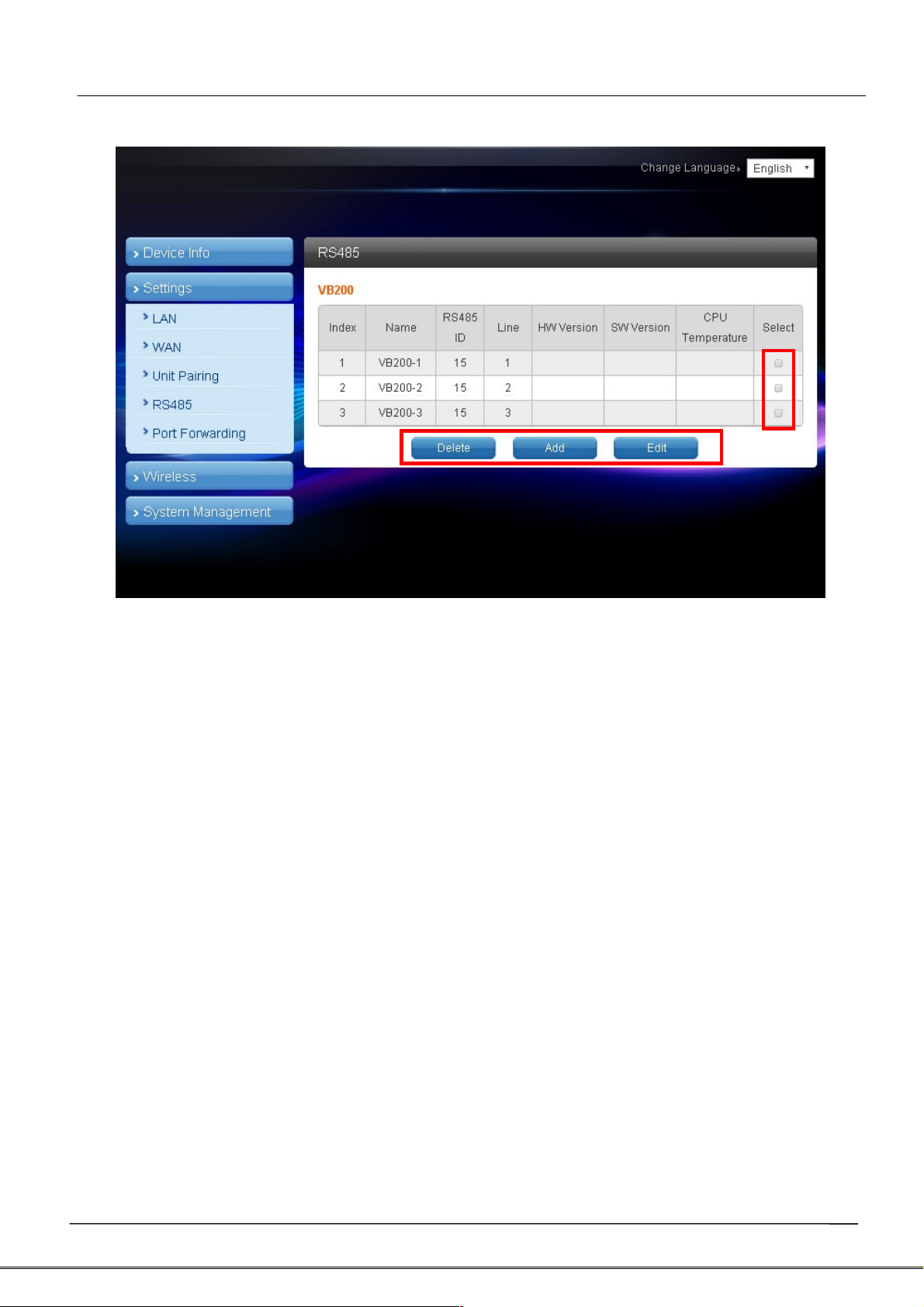

3. VB200 setup ....................................................................................................................14
4. Wireless setup ................................................................................................................17

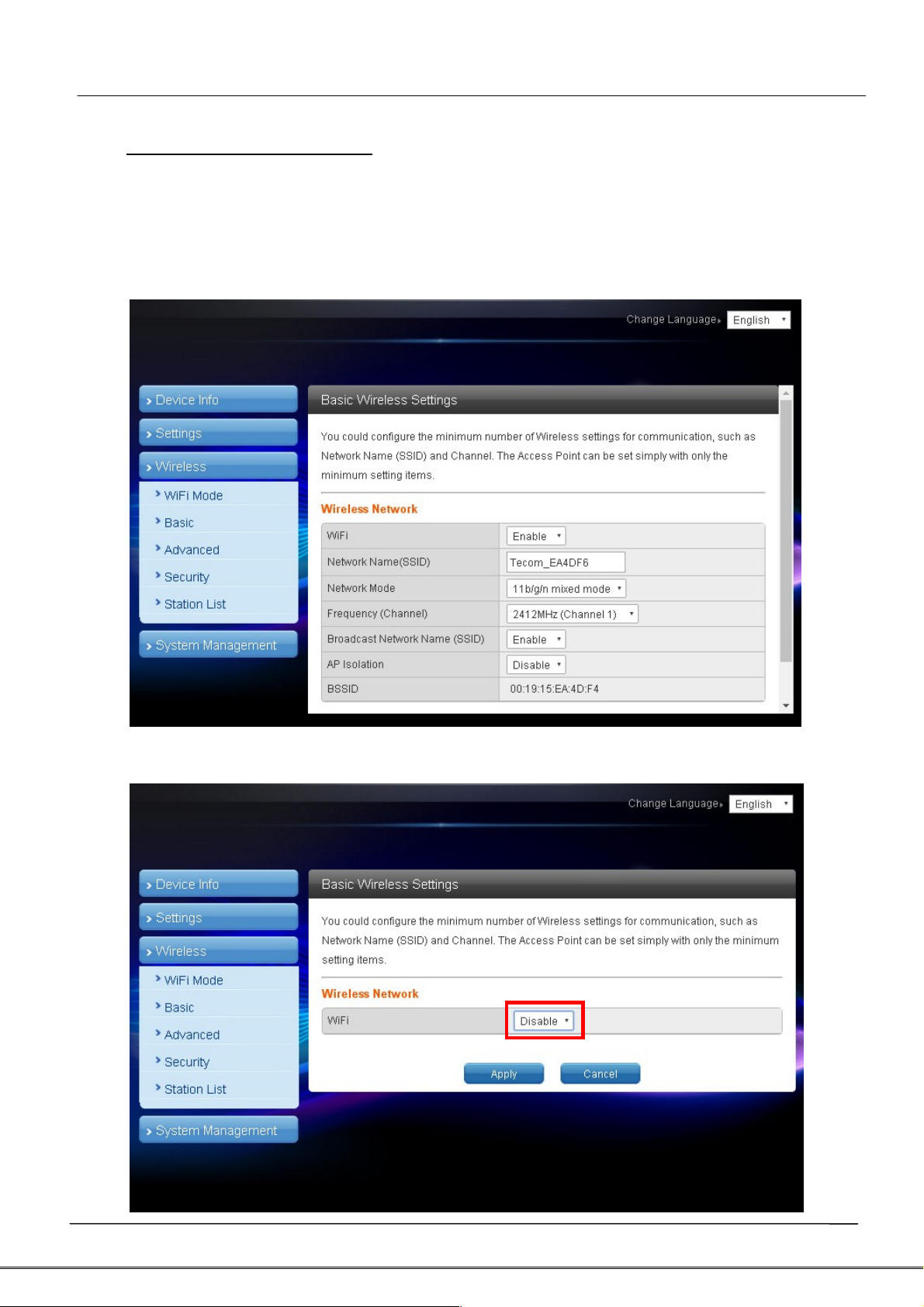

4.1 The wireless AP mode configuration (WiFi mode setup).........................17

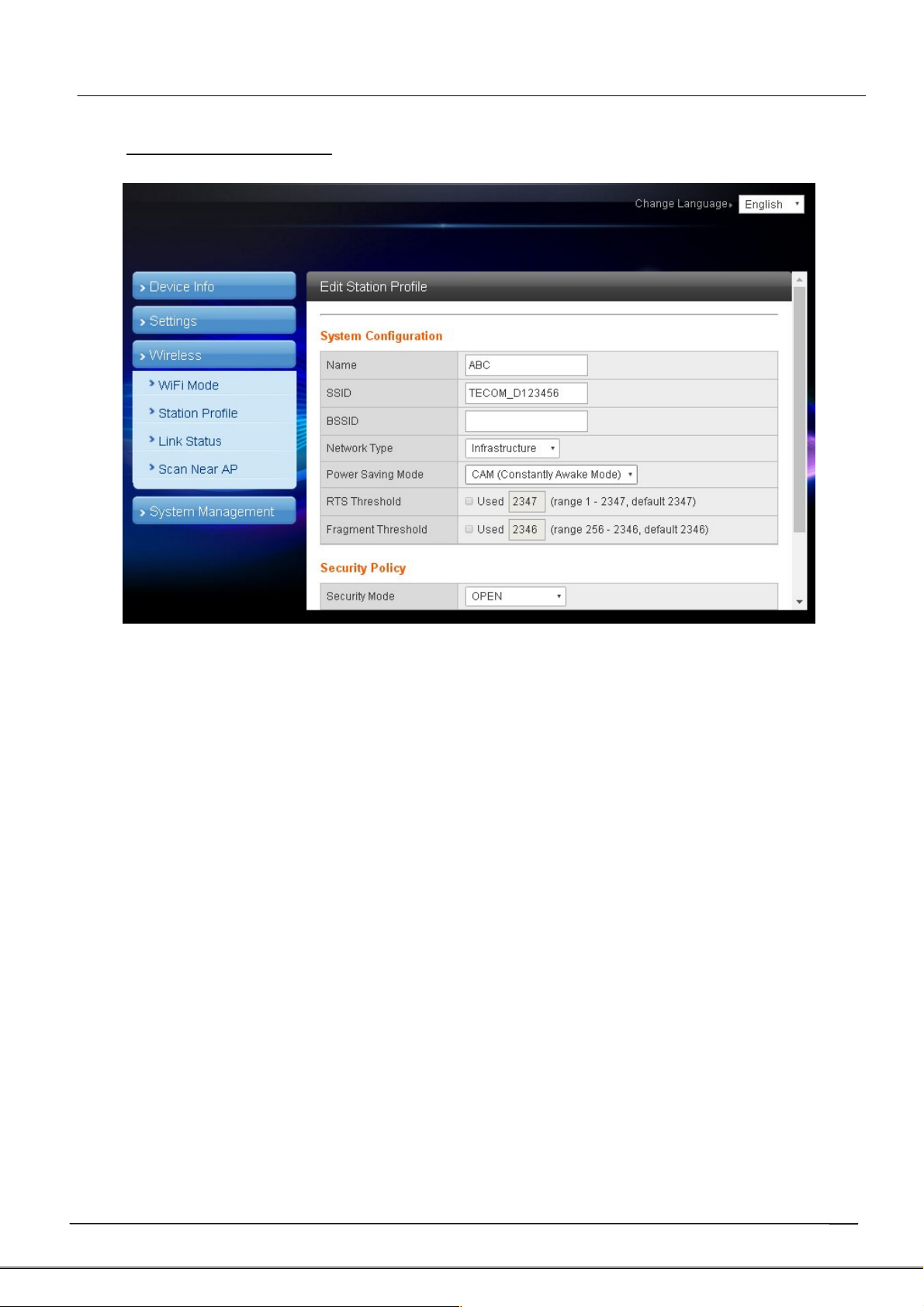

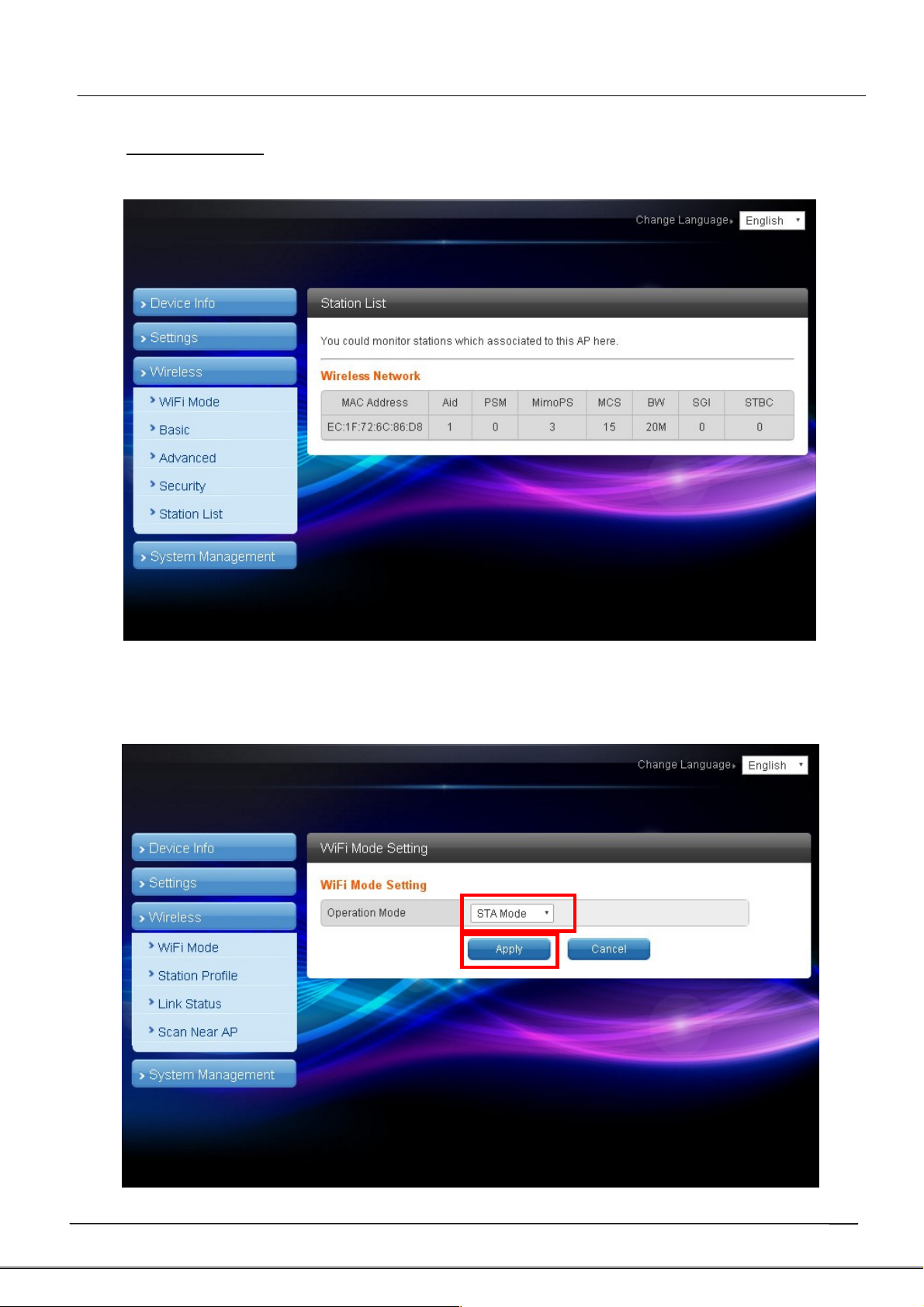

4.2 WiFi mode setting................................................................................................22
5. Hardware setup..............................................................................................................26

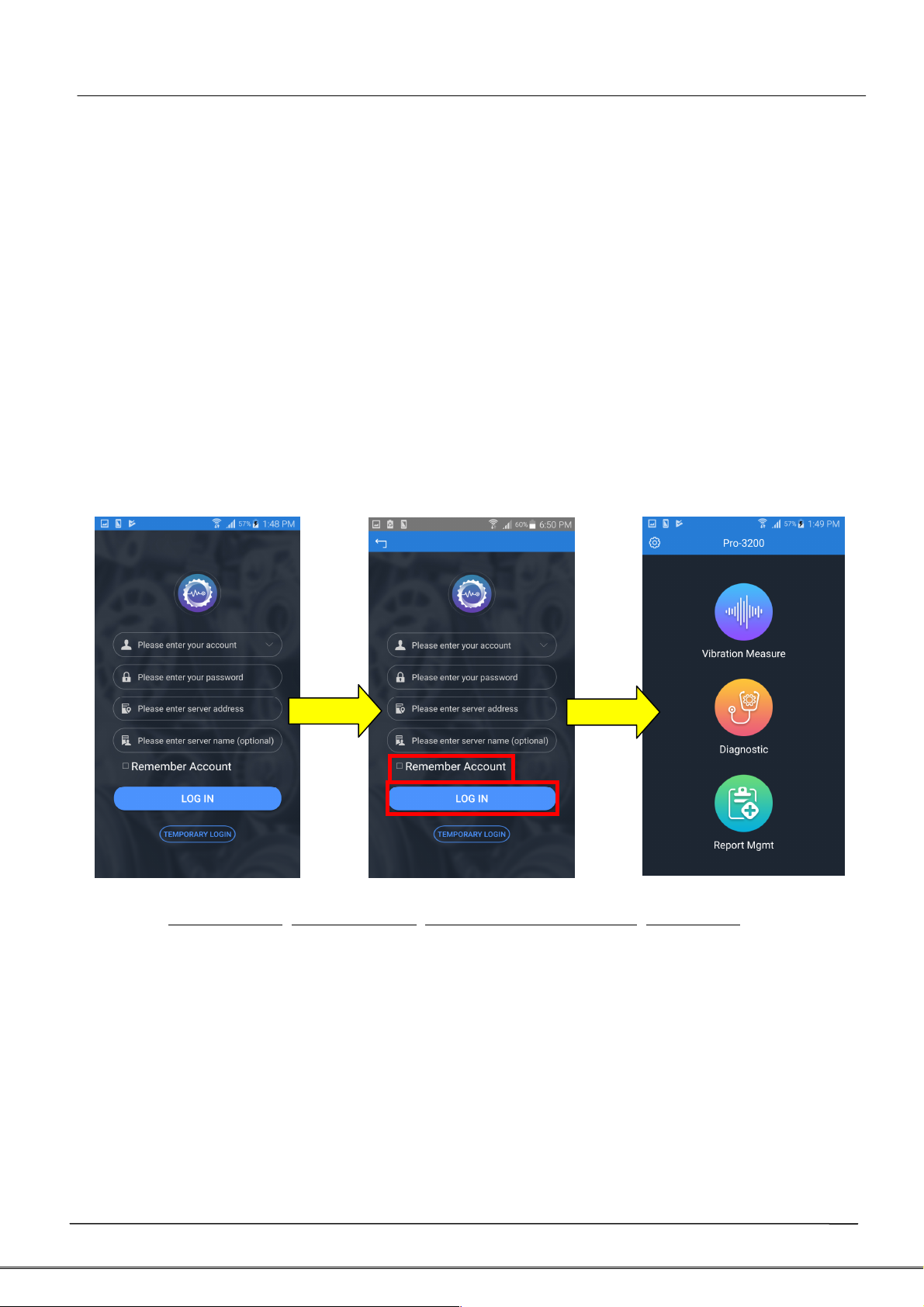

APP software operation...............................................................................................................27
Tecom AG-300 Plus2 IoT Gateway Operation Manual
Overview
Tecom smart portable vibration diagnosis instrument is one of the most innovative
mobile maintenance products in the world. By making the most of IoT, sensor, and
management software technology it is designed to measure vibration of running E&M
equipment without extra power cord or network cable. With fully PnP based
convenience, it is ideal for small and medium size manufacturers and enterprises in
pursuing productivity 4.0.
Featuring IoT WiFi gateway (AG-300 Plus2), integrated vibration gauge VB-200STU, IR
temperature sensor, power bank, and iOS and Android platform available diversified
smartphone APP (which can be downloaded, installed, and used immediately), Tecom
smart portable vibration diagnosis instrument system is ideal for equipment
installation or maintenance engineers for measuring temperature and vibration at
equipment power contact, E&M, rotary machinery, and motor on the spot. In addition,
it combines measurements made on site with interactive analysis and diagnosis of the
system to provide instant, helpful, and effective target E&M equipment health analysis
which, in turn, not only enable easy manufacturing E&M equipment management and
upkeep in healthy status but also prevent hazardous system shutdown from
happening.
Tecom smart portable vibration diagnosis instrument may connect up to 4 vibration
gauges for multiple diagnosis at the same time. With a breakthrough in vibration
measurement concept, it integrates vibration measurement, analysis, and diagnosis
operation in one portable device to save working hours and reduce onsite
maintenance and repair time significantly.
Tecom smart portable vibration diagnosis instrument system may help acquiring full
first commissioning operation data that is critical for later maintenance and big data
analysis for manufacturer in future product release.
Tecom AG-300 Plus2 IoT Gateway Operation Manual
In situ and instant vibration diagnosis information
Productivity 4.0
Tecom AG-300 Plus2 IoT Gateway Operation Manual
IR temperature
sensor
Fan
Gen
erator
Pump
ment
Analysis
AG-300 Plus2 Configuration
1.
System structure
Target E&M
Compressor
Installation
Motor
Measure-
Tecom smart portable
Mobile
communication
gateway AG-300 Plus 2
VB-200STU
(Built-in WiFi)
VB-200STU
Power bank
Diagnosis
Vibration
Report
2.
Equipment wiring
Open portable vibration diagnosis instrument carrying case and belt, and connect
them according to wiring diagram shown below.
A. Connect AG-300 Plus2 to VB-200STU with RS485(1/2)
B. Connect AG-300 Plus2 DC Jack to power bank to the power cord
C. WiFi connect smartphone to built-in WiFi router of AG-300 Plus2
D. Mount (magnetic) vibration gauge to target equipment according to its installation
guidelines
Tecom AG-300 Plus2 IoT Gateway Operation Manual
RS485#1
Vibration
g
auge
Vibration gauge
AG-300 Plus2
B
RS485#2
B-1
e-Gateway
RS485#4
RS485#3
A
B-2
C
Vibration gauge
B-3
Power
bank
Vibration gauge
B-4
IR Temp. Sensor
VB-200STU
VB-200STU
VB-200STU
Optional accessories,
VB-200STU
Once wired according to aforementioned diagram, your smartphone is now ready to
execute test, analysis, and diagnosis over target equipment with the "vibration
diagnosis" APP; follow the following diagram and steps E~F for computer and the
Internet connection as required.
E. Connect AG-300 Plus2 WAN port (blue) and LAN port of ADSL modem with
network cable
F. Connect AG-300 Plus2 LAN port (yellow) and PC with network cable (for system
setup only)
Tecom AG-300 Plus2 IoT Gateway Operation Manual
Comput
AG-300 Plus2
The Internet
A
ADSL modem
B
e-Gateway
A
C
C
3.
RS485 wiring
(1) AG-300 Plus2
E-gateway AG-300 Plus2 supports up to 4 vibration gauge with RS485 (USB)
connection as shown in figure below:
RS485 (USB) set 1
VB-200STU
RS485 (USB) set 2
VB-200STU
RS485 (USB) set 3
Reserved
RS485 (USB) set 4
Reserved
(2) VB-200STU
This portable vibration diagnosis instrument comes with 2 built-in vibration gauges
VB-200STU; featuring integrated RS485 cable and USB connector the latter may direct
connect to e-gateway AG-300 Plus2 as shown inthe figure below:
Tecom AG-300 Plus2 IoT Gateway Operation Manual
USB
Magnetic vibration gauge
VB-200STU
RS485(USB)
AG-300 Plus2
Target E&M
equipment (motor)
VB-200STU
4.
Power bank wiring
This portable vibration diagnosis instrument comes with power bank power cord,
vibration gauge
please connect DC Plug to DC jack of AG-300 Plus2 and USB connector to USB port in
power bank as shown in figure below:
e-gateway AG-300 Plus2
DC power plug
Power bank
Power bank power cord
5.
Equipment dimension
AG-300 Plus2 dimension: 130mm (length) x 90mm (width) x 36 mm (height)
