Tecom Co 8825CCP User Manual

2.4GHz Cordless EKT
User Manual

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

Revision and Amendment Records

Revision # Description Date
01 1. Preliminary Manual Mar. 29, 2004

02 1. Add New Function Setting --- Auto Pick up and Release

May. 31, 2004

Call. (Item-5 and 6 of Section-III)

2. Add Extra Function (Section-IV)

03 1. Modify the Auto Pick Up and Release Call.

Jul. 23, 2004

(Item-5 and 6 of Section-III)

2. Modify the Sleep Mode Status. (Item-5 of Section-IV)

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
Author: SOHO Department, CPE R&D Division, TECOM Revision: 03
Email: [e-mail] Page:2/26

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

Table of Content

I. Introduction........................................................................................... 4

II. System Installation .............................................................................. 6

1. Easy Installation.......................................................................................................................6

2. De-Registration Programming by the Base...........................................................................8

III. Programming Setting (Handset)...................................................... 13

1. Language Selection Programming........................................................................................13

2. Registration Programming....................................................................................................14

3. De-Registration Programming by the Handset...................................................................16

4. Vibration Programming........................................................................................................17

5. Auto Pick Up Programming..................................................................................................19

6. Release Call Programming....................................................................................................20

7. Reset Handset Programming................................................................................................21

IV. Extra Function Information............................................................. 23

1. Low Battery Power Status.....................................................................................................23

2. Out Of Range Status ..............................................................................................................23

3. No Link to Base Status...........................................................................................................24

4. Ring and Vibrator Status.......................................................................................................24

5. Sleeping Mode Status.............................................................................................................25

6. Key Lock Mode Status...........................................................................................................25

7. Power On/Off Mode Status ...................................................................................................26

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
Author: SOHO Department, CPE R&D Division, TECOM Revision: 03
Email: [e-mail] Page:3/26

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

I. Introduction

The cordless DK EKT system must connect to the Tecom DK System. It will provide powerful and
convenient cordless function for business user.

There are 2 EKT lines from KSU to the base in the cordless system. If the handset ID is #1, it
means the handset is connected to the Line#1. If the handset ID is #2, it means the handset is
connected to the Line#2.

The system also provides simply setup function to install the cordless system easily.
User just presses and holds the [F1] key over 1 second. The system will automatically enter the
System Programming mode. It will allow users to set up the system and more friendly function.
And, the LCD will display:

>LANGUAGE
REGISTRATION

When user enters the [System Programming Mode], all [Soft keys] will be changed the following
programming function key:

[F1] key: [DOWN] key.
[F2] key: [UP] key.
[F3] key: [OK] key.
[Hold] key: [EXIT] key.

User can use the above programming function keys to set up your powerful cordless system.

There are 3 different LED flash cadence for user’s reference.
(1) Normal Operation: LED Flash [Normally]: 500ms on, 500ms off, repeatedly.

In normal mode, users can make/receive a cal by the handset unit through the base unit.

(2) Base is in transition mode: LED Flash [Slowly]: 1000ms on, 1000ms off, repeatedly.

In the transition mode, user is changing the DIP switches status. The system will wait for 5

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
Author: SOHO Department, CPE R&D Division, TECOM Revision: 03
Email: [e-mail] Page:4/26

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

II. System Installation

1. Easy Installation

The [Registration] programming will allow handset user to register the handset to the base unit.

(1) First of all, enter the registration mode on the base unit.
(2) And then, select the handset is in the registration mode, too.

(3) Move the handset near the base.
(4) The system will automatically register the handset and assign the handset ID.

Operation Procedure:

(1) First of all, enter the registration mode on the base unit.

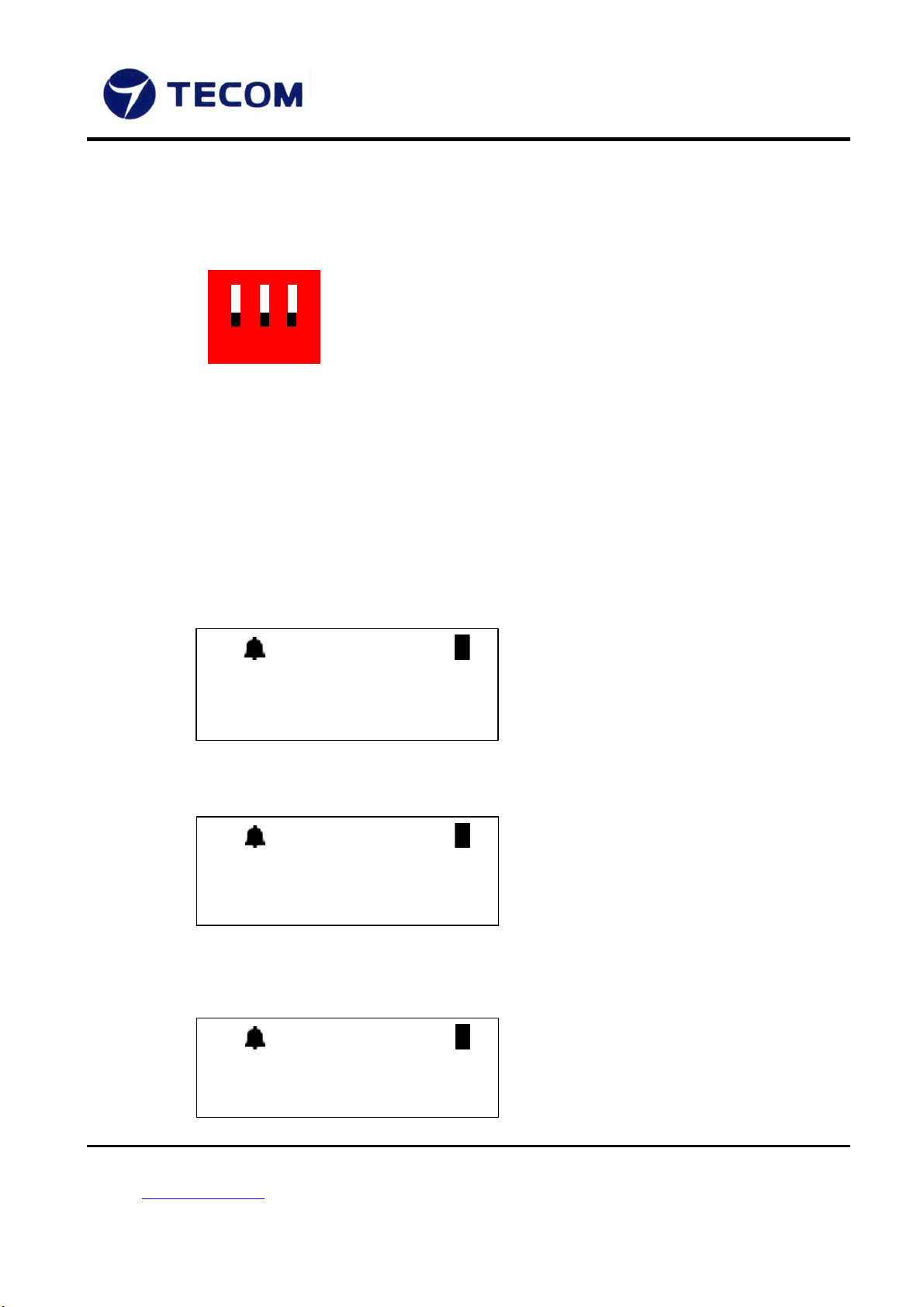

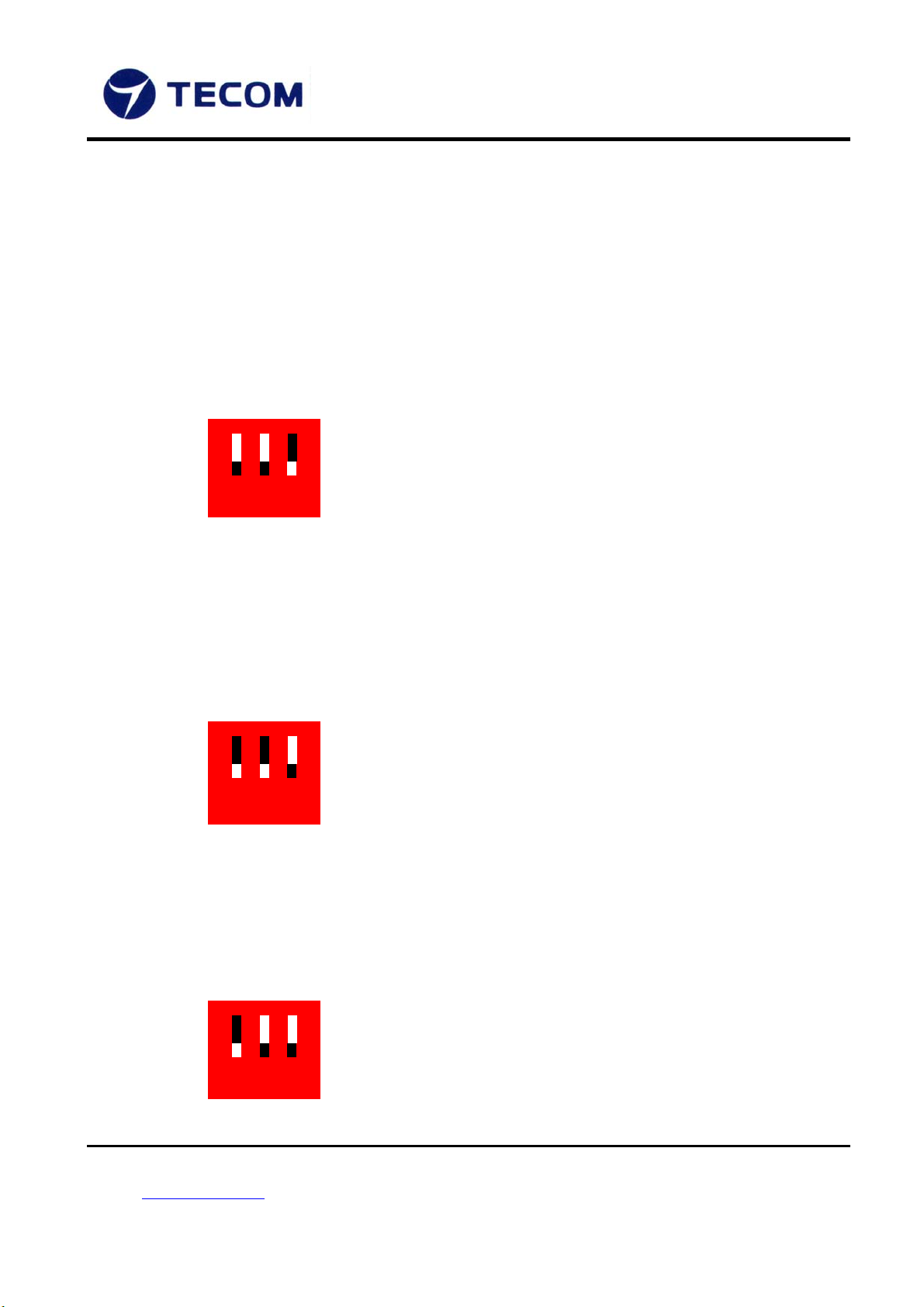

Turn on the DIP SWITCH-1 and turns off the other 2 switches. After 5 second, the system will
enter the registration mode.

1 2 3

Note: The LED on the base will flash [Fast] when enter the registration mode.

(2) If the handset was never registered, the LCD will display the following message.

PLEASE
REGISTER!

(It means: Switch-1 is OFF, Switch-2 and 3 are ON)

Or, press and hold the [F1] key over 1 second to enter the System Programming mode.
The LCD will display:

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
Author: SOHO Department, CPE R&D Division, TECOM Revision: 03
Email: [e-mail] Page:6/26

GIS

S

And then, press [F1] or [F2] to select registration mode.

And then, press [OK] key to enter registration mode, the LCD will display:

>LANGUAGE
RE

TRATION

>REGISTRATION
DE-REGISTER

REGISTRATION
NO?

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

Press [F1/F2] key to select the [YES?] mode.

You can select [YES] to register, or [NO] to exit this mode.

Press [F3] (the same as [OK] key) to confirm, the LCD will display: (e.g. [YES])

(3) Move the handset near the base. The system will start to register with the base unit.

If the registration operation is successful, the LCD will display:

REGISTRATION
YE

?

REGISTERING...
PLEASE WAIT!

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
Author: SOHO Department, CPE R&D Division, TECOM Revision: 03
Email: [e-mail] Page:7/26

TECOM CO., LTD.

23, R&D ROAD 2, SBIP

HSIN-CHU, TAIW AN, ROC

PHONE: [phone]

FAX: [phone]

REGISTERED

Note:

1. There are 2 EKT lines from KSU to the base.

2. If the handset ID is #1 means the handset is connect to the Line#1. If the handset ID is #2
means the handset is connect to the Line#2.

(4) If the registration function fails, the LCD will display:

FAILED!

Note:
If user wants to register again, he can follow the above procedure to re-register to base unit.

(6) Finally, change the DIP SWITCH on the base changes to normal mode.

(It means: Switch-1, 2, and 3 are OFF)

Note:

1. The LED on the base will flash [Normally] when the unit comes back to normal mode.

2. About the Programming mode, please refer to the part of the programming mode for further
detail.

1 2 3

ON

2. De-Registration Programming by the Base

If user wants to de-register all handsets or remove one handset only, user can de-registration the
handset by the base unit. But, the handset unit must be moved to near the base to receive
de-registration command from base unit. After de-registration, the handset unit won’t link with the

Subject: Quick System Setup and Reference Guide for Cordless DK Telephone System Date: Jul. 23, 2004
