TECOM BT3034 User Manual

g

Model Name: BT3034

User Guide

January 2002

©2002 by TECOM CO,. LTD. All rights reserved.

Printe d in Taiwan

BLUETOOTH is a trademark owned by Bluetooth SIG., U.S.A. and licensed to T ECOM Co., Ltd.

All Brand names and trademarks are t he p rop erty of t heir resp ect ive owners

Product Fe at ure s

The BT3034 BluetoothTM USB Do ngle is co mplia nt w it h Blue to o t h sta nd ard to ass ist yo u to
enjoy the wireless data connectivity experience among different Bluetooth enabled devices
such as desktop & notebook PC, printer, or PDA. The product provides the following
features:

● Compliant with Bluetooth Specification V.1.1

● USB bus-powered; an external power supply is not required

● Supports device drivers for: Microsoft Windows 98SE, Microsoft Windows ME,

Microsoft Windows 2000, Windows XP

● Supports 20 dBm (Class 1) Output Power; operating distance up to 100 meters

● Supports many user-friendly app lication profiles for LAN access, files transfer,

dial-up networking, and data synchronization between devices etc.

● Supports data rates up to 723 Kbps

Product Quick Installation Guide

● Check Product Contents

● Insert Software Installation CD to install software

● Plug in BT3034 to your computers USB port to install driver

● Configuring the ap plication parameters

● Enjoy the B luetooth connecti vi ty



●

1 Quick Installation Guide

●

1 Bluetooth USB Dongle

●

1 CD-ROM for Installation Software & Documentation

●

1 USB extension cable

Syste m Re quire me nt

To run the software properly, please make sure your Desktop PC or Notebook PC meets the
follo wing req uireme nts:

●

Hardware: Pentium Class PC, CPU speed 200 MHz or above

●

RAM: 128MB or above

●

USB port, supports USB 1.1 standard

●

Operating System: Windows 98SE, or Windows Me, or Windows 2000, or Windows

XP.

Software Setup & Driver Installation

To install the Bluetooth Software for Windows, follow the instructions described below:

Note: When installing under Windows XP, the installation process might be a slightly
different in from installing under Windows 98SE, ME, and 2000.

1. Before software installation, do not insert Bluetooth USB Dongle into the USB port.

2. Insert the Software Installation CD-Rom into the CD-Rom drive.

3. A Software Installation Wizard window appears, click on Next to begin the process.

4. Choose “ I accept the terms in the license agreement” to accept the license

agreement; click on Next.

6. Specify the location of the driver & software to be installed; click on Next.

8. C onfirm the c omple t io n of installa tio n; click Finis h and then start the system.

qy

This device complies with part 15 of the FCC Rules. Operation is subject t o the following two conditions:

1. This device may not cause harmful interference.

2. T his device must accept any int erference received, including interference that may cause undesired operation.
IMPO RTAN T NOTE:

1. TO COM PLY WITH T HE FCC RF EXPOSURE COM PLIANCE REQUIREMENTS, A
SEPARATION DISTANCE OF AT LEAST 20CM MU ST BE M A IN TAINED BET WEEN
THE ANTENNA OF THIS DEVICE AND ALL PERSONS. NO CHANGE TO THE
ANTENNA OR THE DEVICE IS PERMITTED. ANY CHANGE TO THE ANTENNA OR
THE DEVICE CO ULD RESULT IN THE DEVICE EXCEEDING T HE RF EXPOSURE
REQUIREMENTS AND VOID USER’S AUTHORITY TO OPERATE THIS DEVICE.

2. THE CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY
RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO
OPERATE THE EQ UIPM ENT.

Note:
This equipment has been tested and found to comply with the limit s for a Class B digital device, p ursuant to p art 15 of the
FCC Rules . T hese limit s are des igned to p rovide reasonable p rotect ion against harmful interference in a res idential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance wit h the instruct ions, may cause harmful int erference to radio communications. However, t here is no guarant ee
that int erference will not occur in a part icular installat ion. If this equipment does not cause harmful interference to radio or
television recep tion, which can be determined by turning the equipment off and on, the user is encouraged to t ry to correct
the int erference by one or more of t he follow ing measures: (1) Reorient or relocate the receiving antenna, (2) Increase the
sep aration betw een t he equip ment and receiver, (3) Connect the equipment into an outlet on a\circuit different from that to
which the receiver is connected, (4) Consult the dealer or an experienced radio/TV technician for help.

De partment of Communications-Canada

Canadian Compliance State me nt

This Class B Digital apparatus meets all the requirements of the Canadian Interference Causing Equipment Regulations.
Cet ap p areil numerique de la clas se B resp ect les exigencies du Reglement sur le mat erial broilleur du Canada.

This device comp lies wit h Class B Limit s of Industry of Canada. Operation is subject to the following two conditions: 1)
this device may not cause harmful int erference, and 2) this device must accep t any int erference received, including
interference that may cause undesired operation.
This device is certified to the requirements of RSS-139-1 and RSS-210 for 2.4 GHz spread spectrum devices. The use of
this device in a system operating ether p artially or completely outdoors may require the user to obtain a license for the
sy s t em according to the Canadian regulations. For further information, contact local Industry Canada office.

For the following equipment:
Product Name: Bluetooth USB Dongle
Model Name: BT3034

Is herewith confirmed to comply with the requirements set out in the Council Directive on the App roximation of the Laws
of the M ember States relating t o 1999/5/EC R&TTE Directive. For the evaluation regarding the Directives, the following
standards were app lied: ETSI 300

FROM: _______________________________

_______________________________

PLEASE

STAM

P

TO: TECOM Co,. LTD

IMSD 23, R&D Road 2, Science-Based Indus Hsin-Chu 300

Taiwan

,gpy(),y()yg
of purchase, completed and returned the Registration Card which accompanied the products
when ship p ed, (2) return the failed p rod uct to TEC O M de signa ted re p air fa c ility with
shipping charge prepaid, and (3) provide TECOM with proof of the original date of p urchase.
Repaired or replacement products will be retur ned t o yo u with shipping charge s prep aid.

Replacement products may be refurbished or contain refurbished materials. If TECOM by its
sole determination, is unable to repair or replace the defective product, it will re fund the
depreciated purchase price of the product.

This warranty does not apply if, in the judgment of TECOM, the product fails due to damage
from shipment, handling, storage, accident, abuse or misuse, or if it has been used or
mainta ined in a manne r not co nfo r ming to prod uct manua l instruc t io ns, has b een modifie d in
any way, or has had any serial number removed or defected. Repair by anyone other than
TEC OM o r an a ppro ved age nt will void this warra nty. The maximum liab ility of TEC O M
und er this wa rranty is limited to t he purcha se rice o f the p rod uct co vere d by the warra nty.

Prior to returning any defective product, the end customer or the reseller from whom the end
customer original purchased the product must obtain a Return Materials Authorization
(RMA) number from TECOM. All defective products should be returned to TECOM with
shipping charges prepaid.

Except as specifically provided in this statement or as required by law, the warranties
and remedies stated above are exclusive and in lieu of all others, oral or written,
e xpre ss or implie d. Any and all other warrantie s , including implie d warranties of
merchantability, fitnes s for a particular purpos e and non-infringe ment of third party
rights are e xpres sly e xclude d. TECOM s hall not unde r any circumstance s be liable to
any person for any special, incidental, indirect or consequential damages, including
without or revenues or costs of replacement goods, even if TECOM is informed in
advance of the possibility of such damages.

Name: __________________________________________________________
Title: ____________________________________________________________
Company Name: __________________________________________________

Address (1): ______________________________________________________
Address (2): ______________________________________________________
Telephone: _______________________________________________________
E-mail : _________________________________________ _________________
Purchase Date: ____________________________________________________

Where did you purchased the product?
____ Mail order
____ Reseller/VAR
____ Retail Store
____ Internet
Reseller Name: ___________________________________________________
Reseller Address __________________________________________________
Telephone: _______________________________________________________
Fax: _____________________________________________________ ________

What PC will this TECOM product be used?
____ Desktop PC
____ Notebook PC

Where will the product primaril y be used?
____ Home
____ Office
____ Personal Use

** P LEASE ATTACH A PHOTOCOP Y OF RECIPE T OF ORIG INAL PURCH ASE ! **

10. Choose “Specify the location of the driver (advanced)”; then click on Next.

11. Select the location of device driver, please specify “C:\Program Files

\Widc o mm\Bluetoo th So ftwa re\bin\”, c lic k on Next.

12. Confirm the device driver found; click on Next.

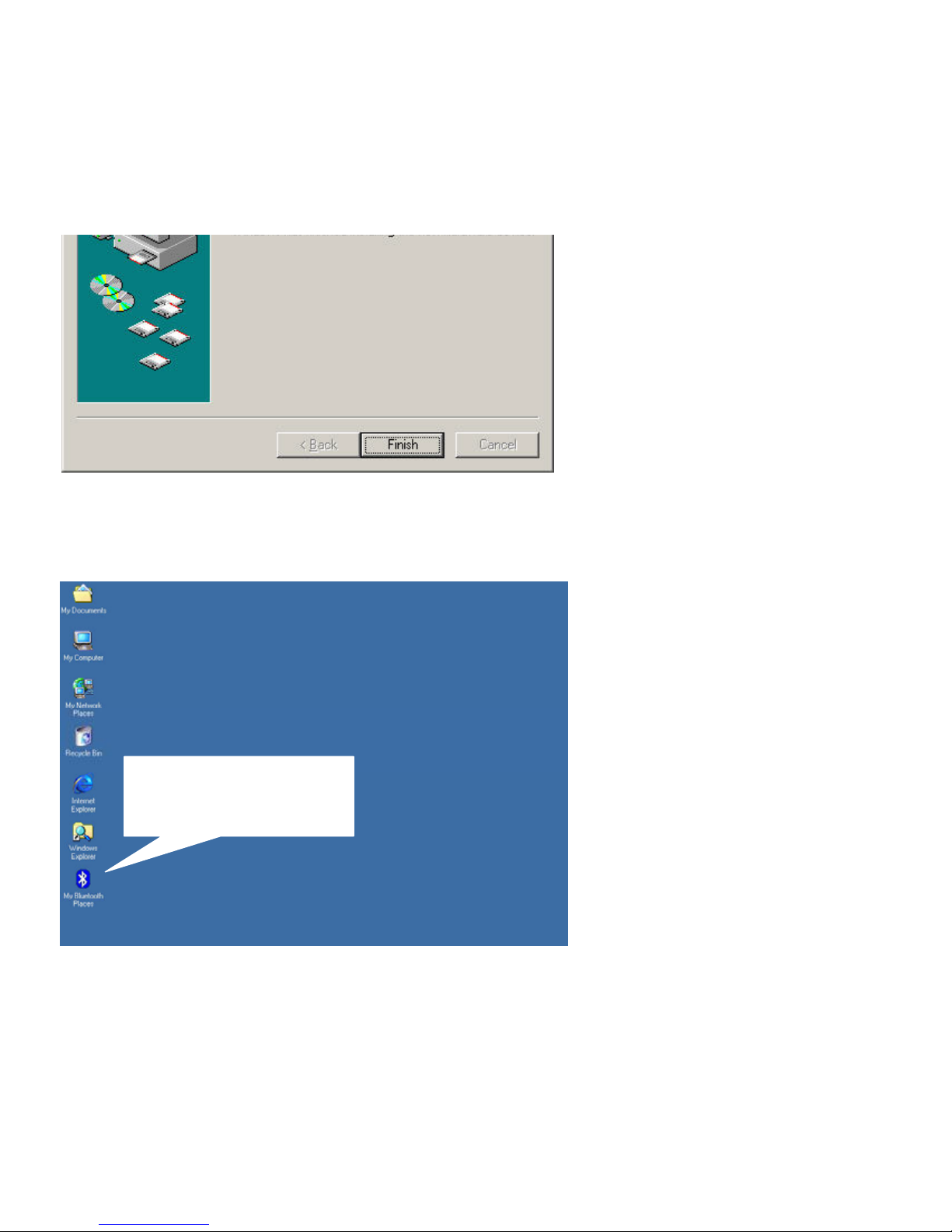

14. A “My Bluetooth Places” icon appears on the desktop.

Note: More detailed explanations and the operation of each Bluetooth

services can

be found in Us e r’s Manual in the CD-R OM .

My Bluetooth Places

icon appears on the

items, Security and C onfiguration , of Setup option.

2. Click on “Configuration”, the “General” Section of Bluetooth Configuration allows

you to customize the device’s user name, type, and security type.

3. The “Acce s sibility” Sec t io n a llo ws yo u to sp e cify which individ ua l d evic es are a llow

to access to the user’s device.

M ore detaile d e xplanations and the ope ration of e ach B lue tooth s e rvice s can be found
in Use r’s M anual in the CD-ROM.

To use the “My Bluetooth Places” program, follow the instructions describe d below:

1. Click “ My Bluetooth Places” on PC desktop, the “My Bluetooth Places” window

appears, three icons, “My Device” , “Entire Blue tooth Ne ighborhood” & “Add

Blue tooth Conne ction” appears inside the window.

2. Click My Device from the “Bluetooth Neighborhood” window to see which

application services is available to the other devices. The icon with “ X” or without

“ X” indic a tes the Bluetoo t h service availab ilit y of this device.

3. Click on Entire Blue tooth N e ighborhood from the “My Bluetooth Places” window

to search for available devices. Once Bluetooth devices are detected, icons with

device names will be d ispla yed o n the scre e n; clic k on each icon to see what services

are available to you. Click on each available service to begin with the service.

4. Click on any available device, for example, a device name “BT98” from the

“My Bluetooth Places” window to see which services are available to you.

Double click on each icon to begin with different services

.
