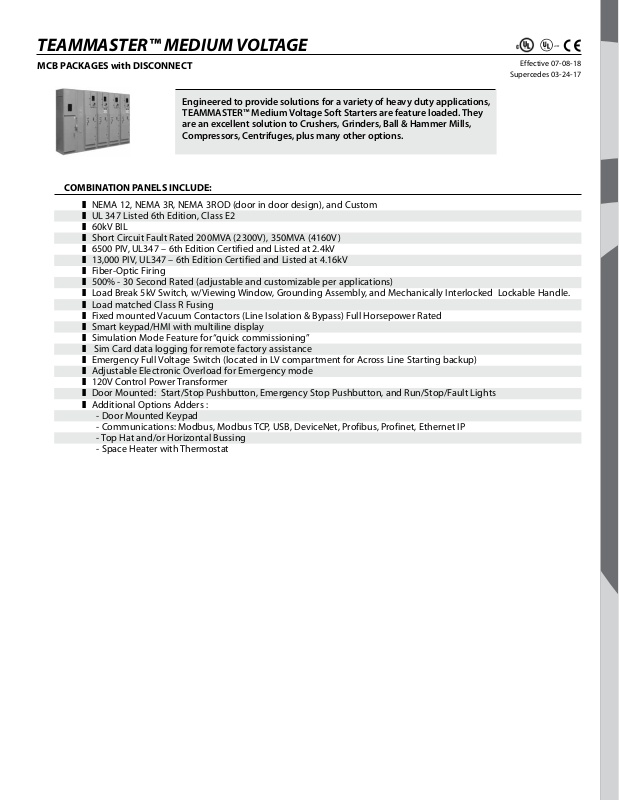

TEAMMASTER™ MEDIUM VOLTAGE

MCB PACKAGES with DISCONNECT

Engineered to provide solutions for a variety of heavy duty applications, TEAMMASTER™ Medium Voltage Soft Starters are feature loaded. They are an excellent solution to Crushers, Grinders, Ball & Hammer Mills, Compressors, Centrifuges, plus many other options.

COMBINATION PANELS INCLUDE:

z NEMA 12, NEMA 3R, NEMA 3ROD (door in door design), and Custom z UL 347 Listed 6th Edition, Class E2 z 60kV BIL z Short Circuit Fault Rated 200MVA (2300V), 350MVA (4160V) z 6500 PIV, UL347 – 6th Edition Certified and Listed at 2.4kV z 13,000 PIV, UL347 – 6th Edition Certified and Listed at 4.16kV z Fiber-Optic Firing z 500% - 30 Second Rated (adjustable and customizable per applications) z Load Break 5kV Switch, w/Viewing Window, Grounding Assembly, and Mechanically Interlocked Lockable Handle. z Load matched Class R Fusing z Fixed mounted Vacuum Contactors (Line Isolation & Bypass) Full Horsepower Rated z Smart keypad/HMI with multiline display z Simulation Mode Feature for “quick commissioning” z Sim Card data logging for remote factory assistance z Emergency Full Voltage Switch (located in LV compartment for Across Line Starting backup) z Adjustable Electronic Overload for Emergency mode z 120V Control Power Transformer z Door Mounted: Start/Stop Pushbutton, Emergency Stop Pushbutton, and Run/Stop/Fault Lights z Additional Options Adders :

- Door Mounted Keypad

- Communications: Modbus, Modbus TCP, USB, DeviceNet, Profibus, Profinet, Ethernet IP

- Top Hat and/or Horizontal Bussing

- Space Heater with Thermostat

Effective 07-08-18

Supercedes 03-24-17

TEAMMASTER™ - STANDARD pACKAGE

MEDIUM VOLTAGE CRUSHER DUTY

ACROSS -THE-LINE BYPASS

2300 VOLT NEMA 12

MODEL NO. HP FLA AMPS

TMVE-0110-V02-N12 500 110 92.5 36 30 1800 TMVE-0200-V02-N12 900 200 92.5 36 30 1800 TMVE-0360-V02-N12 1750 360 92.5 36 30 1800

4160 VOLT NEMA 12

MODEL NO. HP FLA AMPS

TMVE-0110-V04-N12 900 110 92.5 36 30 1800 TMVE-0200-V04-N12 1500 200 92.5 36 30 1800 TMVE-0360-V04-N12 3000 360 92.5 36 30 1800

2300 VOLT NEMA 3R

MODEL NO. HP FLA AMPS

TMVE-0110-V02-N3R 500 110 92.5 36 30 2000 TMVE-0200-V02-N3R 900 200 92.5 36 30 2000 TMVE-0360-V02-N3R 1750 360 92.5 36 30 2000

HEIGHT WIDTH DEPTH

DIMENSIONS (in.)

Effective 07-08-18

Supercedes 03-24-17

WEIGHT

(lbs.)

WEIGHT

(lbs.)

WEIGHT

(lbs.)

4160 VOLT NEMA 3R

MODEL NO. HP FLA AMPS

TMVE-0110-V04-N3R 900 110 92.5 36 30 2000 TMVE-0200-V04-N3R 1500 200 92.5 36 30 2000 TMVE-0360-V04-N3R 3000 360 92.5 36 30 2000

HEIGHT WIDTH DEPTH

DIMENSIONS (in.)

WEIGHT

(lbs.)

MODULAR OPTIONS

MODEL STANDARD OPTIONS

RTD

TCP

Notes:

(1) Starters are top entry. Bottom exit available upon request. Dimensions and weights are approximate. (2) Power fuses ship loose. Please provide motor full load amps at time of order for proper fuse sizing. (4) The TEAMMaster™ series was designed as an integrated package.

Listed above are the available modular options. For systems requiring more extensive requirements, please call the factory.

(6) Built-to-order: Please allow 1-2 weeks for shipment of complete TEAMMaster™ unit when ordering these options to a stock starter.

E-Stop (Red Mushroom Head) 12 – RTD input Top Entry Top Hat (18” x 36” x 20”) DeviceNet Interface Profibus Interface Profinet Interface Ethernet IP Interface Modbus TCP Interface Modbus Interface
