Battery Box
V33/65-80-100 Type
User’s Manual
Page 2
Index
1 Safety Warnings ............................................................................ 1
1.1 Product Disposal ......................................................................... 1
1.2 Lead Batteries ............................................................................ 1
2 Mechanical Drawings ...................................................................... 2
3 Internal Battery Location - Connection Instructions ................................ 3
4 Battery Box Models and Technical Characteristics .................................. 4
5 Connections with the UPS ................................................................ 4
© Copyright 2011 TECNOWARE s.r.l. All rights reserved.
All trademarks are property of their respective owners.
TECNOWARE s.r.l.
Via Montetrini, 2E – Molino del Piano – Florence – Italy
www.tecnoware.com
This manual has been printed and edited by TECNOWARE s.r.l.
April 2011 edition – version 1.1
Page 3
Battery Box Type V33/65-80-100 1 User’s Manual
1 Safety Warnings
Risk of electric shock: if all the batteries are connected, inside the Battery Box there are
internal parts which are at a high Voltage and are potentially dangerous, capable of
causing injury or death by electric shock.
Any repair or maintenance work must be performed exclusively by qualified technical
personnel authorized by TECNOWARE. TECNOWARE declines any responsibility if this
warning is disregarded.
Battery fuses shall only be replaced with fuses of same rating or equivalent.
Danger of explosion and fire if the batteries of the wrong type or number are used.
Do not dispose of batteries in a fire. The batteries may explode. Do not open or mutilate
batteries. Released electrolyte is harmful to the skin and eyes. It may be toxic
The Battey Box is compliant with the European Community directives. Hence it is marked:
1.1 Product Disposal
This Battery Box cannot be disposed as an urban waste, but must be treated as a separate waste. Any
violation is indictable with financial sanctions as per in force regulations.
An incorrect waste disposal or an improper use of the same or of any parts can be damaging for the
environment and for human health.
A correct waste disposal of products having the dustbin symbol marked by a cross help to avoid
negative consequences to the environment and to human health.
1.2 Lead Batteries
The Battery Box may contain lead acid, sealed, maintenance free batteries.
This kind of batteries, if handled by non-experienced personnel, can cause electric shock or shortcircuit.
For this reason the batteries can be removed only by qualified technical personnel, specialized and
authorized by Tecnoware. Tecnoware declines any responsibilities if this rule is not followed.
The batteries cannot be disposed as an urban waste, but must be treated in conformity with
2006/66/CE European Directive; any violation is indictable with financial sanctions as established into
2006/66/CE European Directive.
Page 4
User’s Manual 2 Battery Box Type V33/65-80-100

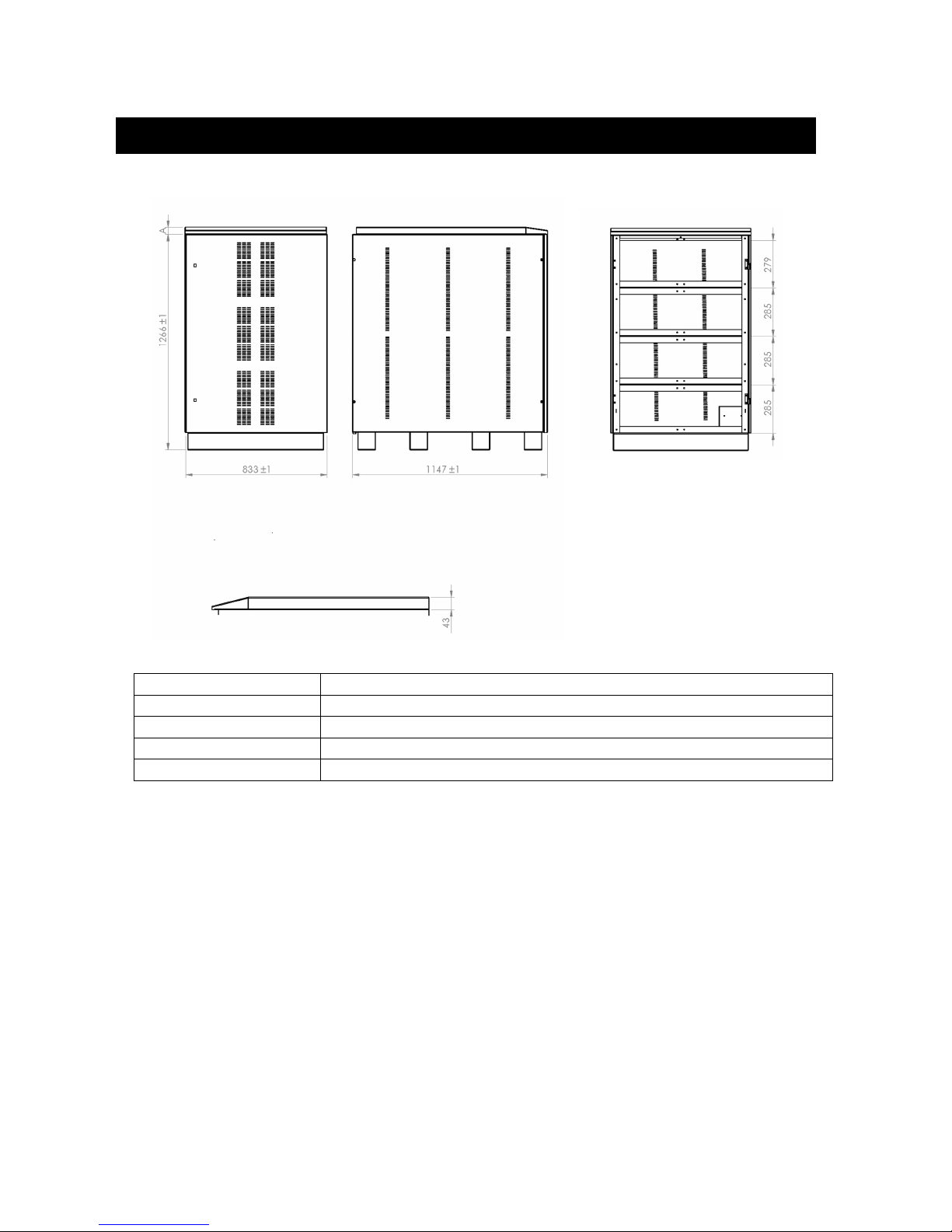

2 Mechanical Drawings
Dimension (W x H x D) (83,3 x 130,9 x 114,7) cm
Net Weight without Batteries 140 Kg
Net Weight with Batteries 65Ah 800 Kg
Net Weight with Batteries 80Ah 925 Kg
Net Weight with Batteries 100Ah 1100 Kg
Page 5
Battery Box Type V33/65-80-100 3 User’s Manual

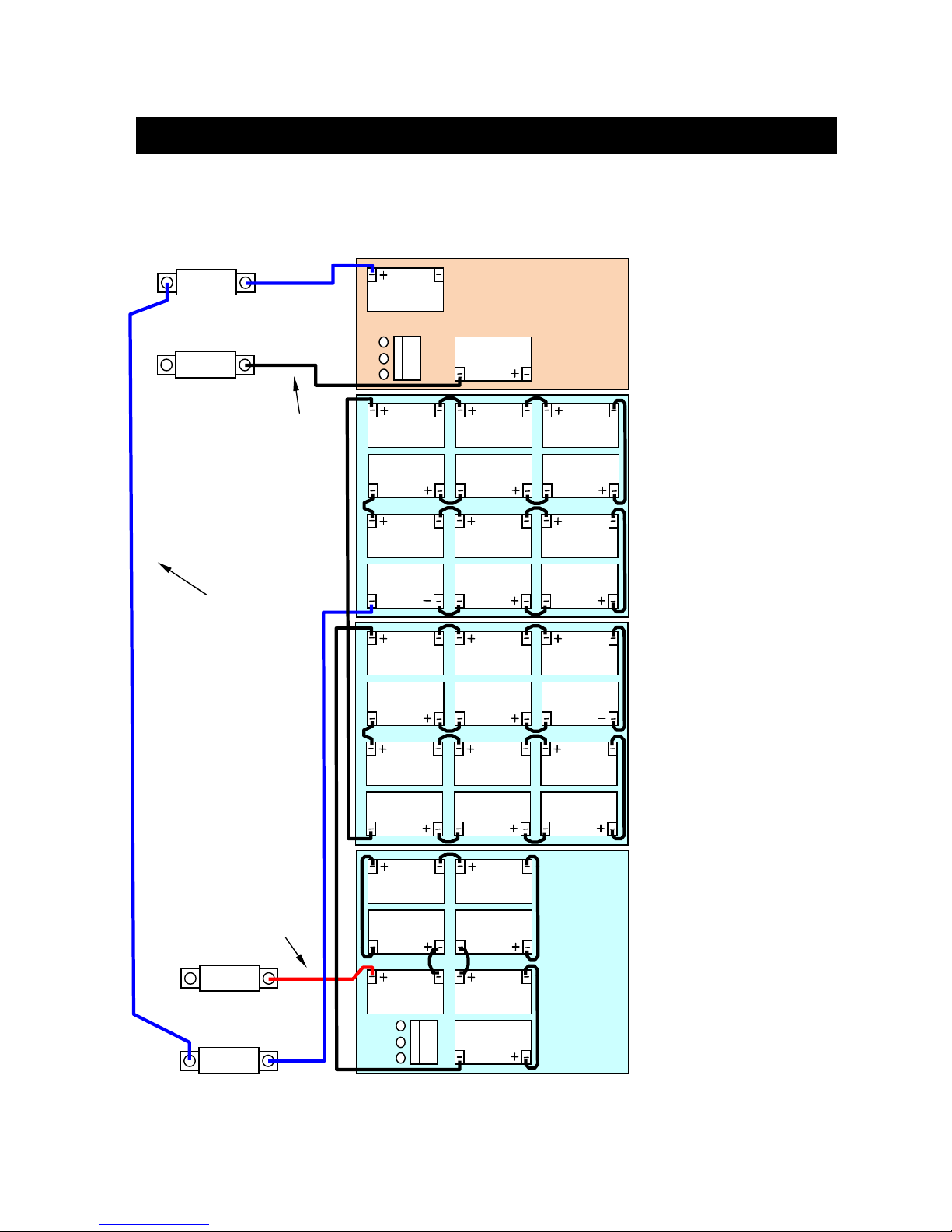

3 Internal Battery Location - Connection Instructions
50cm
REAR SIDE
140cm
FIRST
BATTERY
SHELF
THIRD
BATTERY
SHELF
SECOND
BATTERY
SHELF
UP
DOWN
RED
(+ BATTERY)
BLUE
(NEUTRAL)
BLACK
(-
BATTER
Y)
50cm
140cm
180cm
15cm
15cm
15cm
NH FUSE
NH FUSE
+
N
FRONT SIDE
TOP VIEW OF SHELVES
32
62
20
22
25 23
26
28
31
29
8 10
11
14 16
19 17
2 5
1
6
7
3
NH FUSE
NH FUSE
N
-
SECOND BOX BATTERY
FIRST BOX BATTERY
50cm
25cm
50cm
13
Page 6
User’s Manual 4 Battery Box Type V33/65-80-100

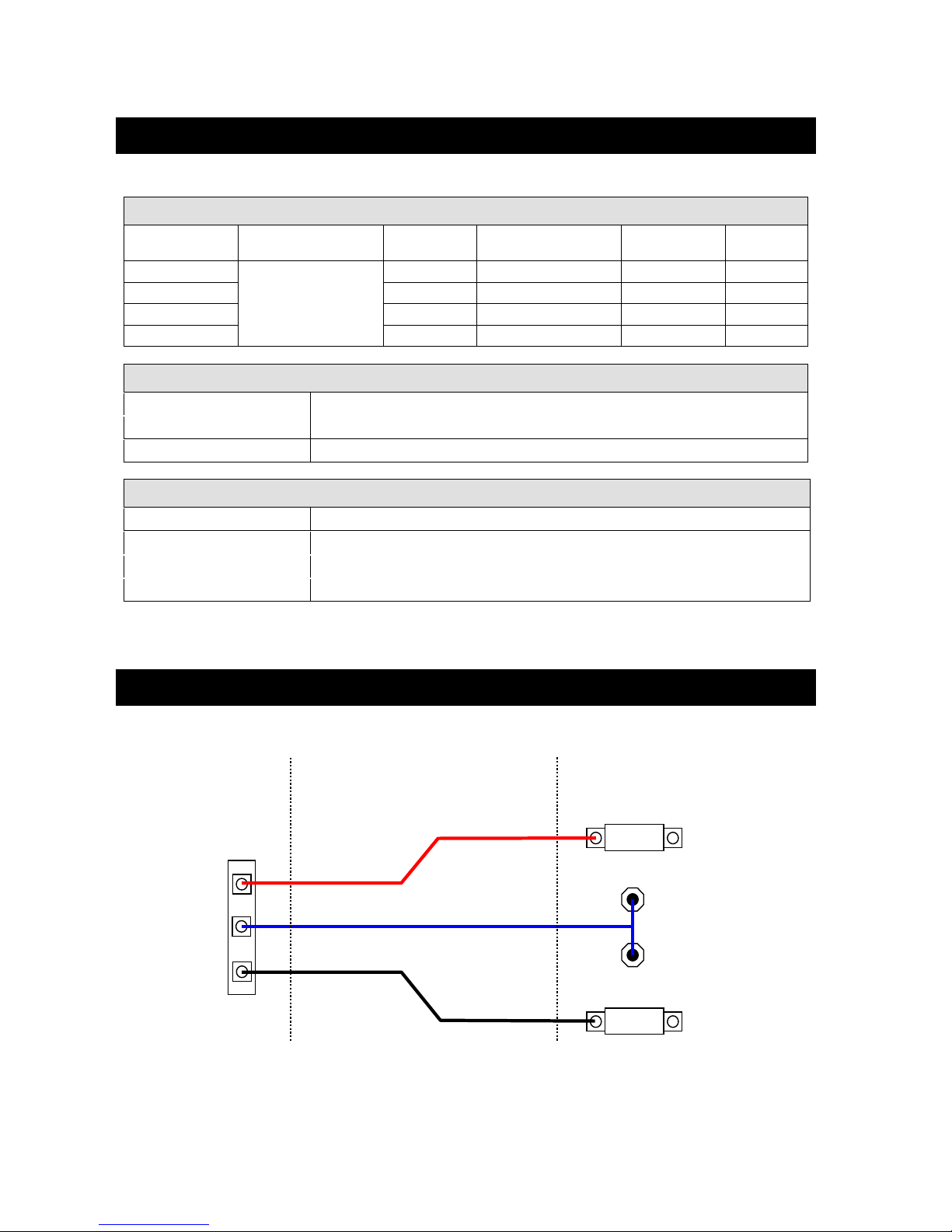

4 Battery Box Models and Technical Characteristics
BOX BATTERY MODELS
Box Battery Code Description UPS Power
Battery Capacity
Cables Section
Fuse Max
Current
FBBV33/65-100
Battery Box Compatible
with UPS EVO DSP TT
40 KVA 65-80-100 Ah 16 mm2 80 A
FBBV33/65-100 60 KVA 65-80-100 Ah 25 mm2 100 A
FBBV33/65-100 80 KVA 65-80-100 Ah 35 mm2 160 A
FBBV33/65-100 100 KVA 65-80-100 Ah 35 mm2 200 A
BATTERIES
Battery Type Lead acid, sealed, free maintenance, 12 Vdc
Battery Number 2 x 31
Nominal Battery Voltage 2 x 372 Vdc
ENVIRONMENTAL CONDITIONS
Storage Temperature Range -25°C to +55°C (15°C to 40°C recommended for longer Battery life)
Operating Temperature Range 0°C to +40°C (20°C to 25°C recommended for longer Battery life)
Relative Humidity Range 0% - 95% (non condensing)
Max. Altitude without Derating 1000 meters
5 Connections with the UPS
NH FUSE
NH FUSE
+
BATTERY
-
BATTERY
NEUTRAL
-
BATTER
Y
NEUTR
AL
BATTERY BOX
BATTERY
+
N
-
UPS
BOX 1
BOX 2
