Tecnoware Ups Pro User Manual
Uninterruptible Power Supply
Ups Pro
User’s manual
Manuale utente
Index
Safety Warnings ................................................................................ 1
1 Introduction ................................................................................. 2
2 General Characteristics ................................................................... 3
3 Receipt and site selection ................................................................ 3
4 EXTERNAL DESCRIPTION .................................................................. 4
4.1 Front Panel ............................................................................. 4
4.1.1 LCD Display .................................................................................5
4.2 Rear Side ................................................................................ 6
5 Electrical Installation and First Start Up ............................................... 7
6 Functioning ................................................................................. 8
6.1 Normal Mode ........................................................................... 8
6.2 Battery Mode ........................................................................... 8
6.3 Low Battery and Automatic Restart ................................................. 8
6.4 Load Control ............................................................................ 9
6.5 Fault Condition ........................................................................ 9
7 Communication Interfaces ............................................................... 9
8 Technical Characteristics ................................................................ 10
9 Maintenance ............................................................................... 11
9.1 UPS Cleaning ......................................................................... 11
9.2 Battery ................................................................................ 11
9.3 Operator Safety ...................................................................... 11
10 Troubleshooting ........................................................................... 12
Conformity to the European Directives ................................................... 13
Product Disposal ............................................................................... 13
Lead Batteries ................................................................................. 13
© Copyright 2012 TECNOWARE s.r.l. All rights reserved.
All trademarks are property of their respective owners.
TECNOWARE s.r.l.
Via Montetrini, 2E – Molino del Piano – Florence – Italy
www.tecnoware.com
Edition: March 2012 – version: 1.0
No part of this manual may be reproduced, even partially, without the
authorisation of TECNOWARE s.r.l.
TECNOWARE s.r.l. reserves the right to change specifications at any time
and without notice.
Indice
Avvisi di Sicurezza ............................................................................ 14
1 Introduzione ............................................................................... 15
2 Caratteristiche Generali ................................................................. 15
3 Ricevimento e Collocazione ............................................................. 16
4 Descrizione Esterna ....................................................................... 17
4.1 Pannello Frontale .................................................................... 17
4.1.1 Display LCD ............................................................................... 18
4.2 Retro................................................................................... 19
5 Installazione e Prima Accensione ...................................................... 20
6 Funzionamento ............................................................................ 21
6.1 Modo Normale ........................................................................ 21
6.2 Modo Batteria ........................................................................ 21
6.3 Fine Autonomia e Riaccensione Automatica ..................................... 21
6.4 Controllo del Carico ................................................................. 21
6.5 Segnalazioni di Guasto .............................................................. 22
7 Interfacce di Comunicazione ............................................................ 22
8 Caratteristiche Tecniche................................................................. 23
9 Manutenzione .............................................................................. 24
9.1 Pulizia dell’UPS ...................................................................... 24
9.2 Batterie ............................................................................... 24
9.3 Sicurezza dell’Operatore ........................................................... 24
10 Anomalie ed Interventi ................................................................... 25
Conformità alle Direttive Europee ......................................................... 26
Smaltimento del Prodotto ................................................................... 26
Batterie al Piombo ............................................................................ 26
ENGLISH
User’s Manual - English
Safety Warnings
Read this manual carefully and completely before installing and using the TECNOWARE Ups Pro
Uninterruptible Power Supply, which, from here after, will also be referred to as UPS.
This manual should be kept close to the UPS and read before the UPS is installed and used.
The UPS must be used only by properly trained personnel. To ensure correct and safe
operations, it is necessary that operators and maintenance personnel observe the general
safety Standards as well as the specific instructions included in this manual.
Risk of electric shock: do not remove the cover. The UPS contains internal parts, which are at a
high Voltage and are potentially dangerous, capable of causing injury or death by electric
shock.
There are no internal parts in the UPS, which are user serviceable. Any repair or maintenance
work must be performed exclusively by qualified technical personnel authorized by
TECNOWARE. TECNOWARE declines any responsibility if this warning is disregarded.
Warning to the technical personnel authorized for Service: since internal components are
connected to the batteries, they will remain powered, and therefore dangerous, even after the
UPS has been disconnected from AC power mains. Before any repair or maintenance work,
disconnect the batteries, by removing the positive cable (red colour) from the positive pole of
the battery.
It is compulsory to ground the UPS according to Safety Standards. The AC mains power supply
socket used to power the UPS must have an earth connection.
In the event of AC main power supply failure (when the UPS works in Battery mode), do not
unplug the power supply cable to the UPS to ensure earth continuity to the connected loads.
Since the AC mains power supply cable acts as a separation device, the AC mains power socket
used to supply the UPS and/or the rear side of the UPS must be accessible to easily disconnect
the cable in case of dangerous conditions.
Risk of electric shock at the Output lines when the UPS is ON.
Risk of electric shock at the Output lines while the unit is connected to the AC utility line.
Do not obstruct ventilation slots or holes and do not rest any object on top of the UPS.
Do not insert objects or pour liquids in the ventilation holes.
Install the UPS indoors, in a protected, clean and moisture-free environment.
Do not expose to the direct sun light.
Do not keep liquids, flammable gases or corrosive substances near the UPS.
Ups Pro 1 User’s manual
ENGLISH
1 Introduction
Ups Pro is a Line Interactive Pure Sinewave UPS (Uninterruptible Power Supply) specifically designed to protect
your Mac Pro from any type of irregularities in the AC line (such as black-outs, under or over voltages, microinterruptions), which often cause damage to your Hardware and Software.
Under normal AC line condition, Ups Pro performs output voltage regulation and filters frequently occurring
electrical disturbances (such as transients, spikes, interferences, etc.), this protecting all devices connected to
the outlets, and recharging the batteries in an ideal way. In case of anomaly to the AC line, the UPS continues
feeding the protected equipment.
Ups Pro is equipped with a USB interface which can be used to notify a power failure or a low battery condition
directly to a computer: this makes it possible to automatically save your data during an extended black-out.
Read this manual carefully before using the Ups Pro; it includes important safety
warnings and useful advices for correct use and installation.
This manual is a guide that enables you to correctly install and use your Ups Pro. This
manual includes important SAFETY instructions for the operator, for the UPS correct
installation, and gives useful advice on the product and battery maintenance. For any
type of problem, please refer to this manual before calling the customer service.
Ups Pro is constantly being developed and improved: consequently, your unit may differ somewhat from the
description contained in this manual.
This manual includes the following models:
• Ups Pro (1500 VA)
In this manual Ups Pro will simply be referred to as UPS.
User’s manual 2 Ups Pro
ENGLISH
2 General Characteristics
Ups Pro has all the advanced features, which guarantee maximum reliability and safety:
• All functions are controlled by a microprocessor, giving full guarantee of high reliability.
• Output Voltage regulation through AVR (Automatic Voltage Regulation).
• Overload protection both in normal mode and in battery mode.
• High performance battery charger, which extends the battery medium life ensuring an optimal recharge.
• Start up even if the electrical network is not available.
• Automatic restart after an automatic shut down due to a low battery condition once the AC utility power
returns.
• Adapts automatically to 50 or 60 Hz input frequency.
• LCD display for the visualization of the Input and Output Voltage, Battery Level percentage, Load Level
percentage, functioning modes, alarm and fault conditions.
• Acoustic signals of various kinds indicating functioning modes and alarm/fault condition.
• Communication with the computer through USB interfaces.
• Fast swappable battery.
• High efficiency
• Maximum reliability
• Smart design and easy to use
3 Receipt and site selection
Carefully remove the UPS from its packaging, and carry out a meticulous inspection. We recommend keeping the
original packaging in a secure place, in case you need to send the UPS for maintenance purposes. In case of
transport damage, notify the carrier and dealer immediately.
We recommend paying attention to the below points in order to choose a correct placement for your UPS:
• The UPS is designed to operate in a protected environment (e.g. offices). We therefore recommend
installing it in a place with very little or no humidity, dust or smoke.
• In all circumstances, see the “Technical Characteristics” chapter for environmental specifications and
check that the selected area meets these specifications.
• During normal operation the UPS discharges a minimal amount of heat. So it is necessary to leave at least
20 cm of unobstructed space all around the UPS in order to keep it properly ventilated.
• Do not obstruct ventilation holes.
• Do not insert objects or pour liquids in the ventilation holes.
• Do not rest any object on top of the UPS.
• Do not keep liquids, flammable gases or corrosive substances near the unit.
• Install the UPS on a properly tiled floor. Avoid the installation on a floor that is not tiled flat.
Ups Pro 3 User’s manual
ENGLISH
4 EXTERNAL DESCRIPTION
4.1 Front Panel
The front panel informs the user about operating status, alarm conditions and measurements. Front panel shown
below consists of two parts:
1. LCD display provides information about input and output voltage, battery level percentage, load level
percentage, functioning modes, alarm and fault conditions.
2. ON/OFF button: enables the user to turn ON/OFF the UPS.
1
2

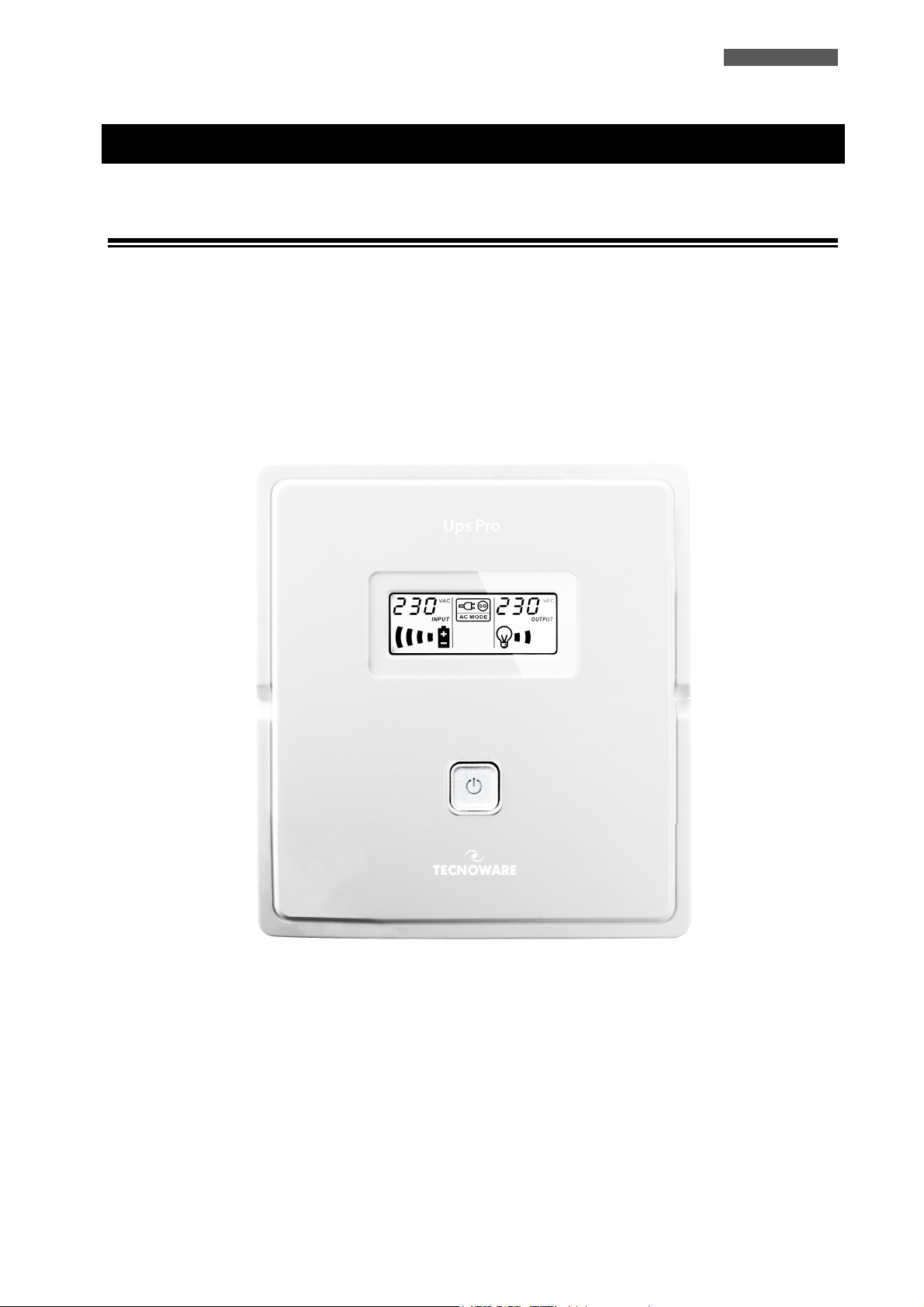

Figure 1 – Front panel
User’s manual 4 Ups Pro
6
4.1.1 LCD Display
Please refer to figure 2.
ENGLISH
1
3
7

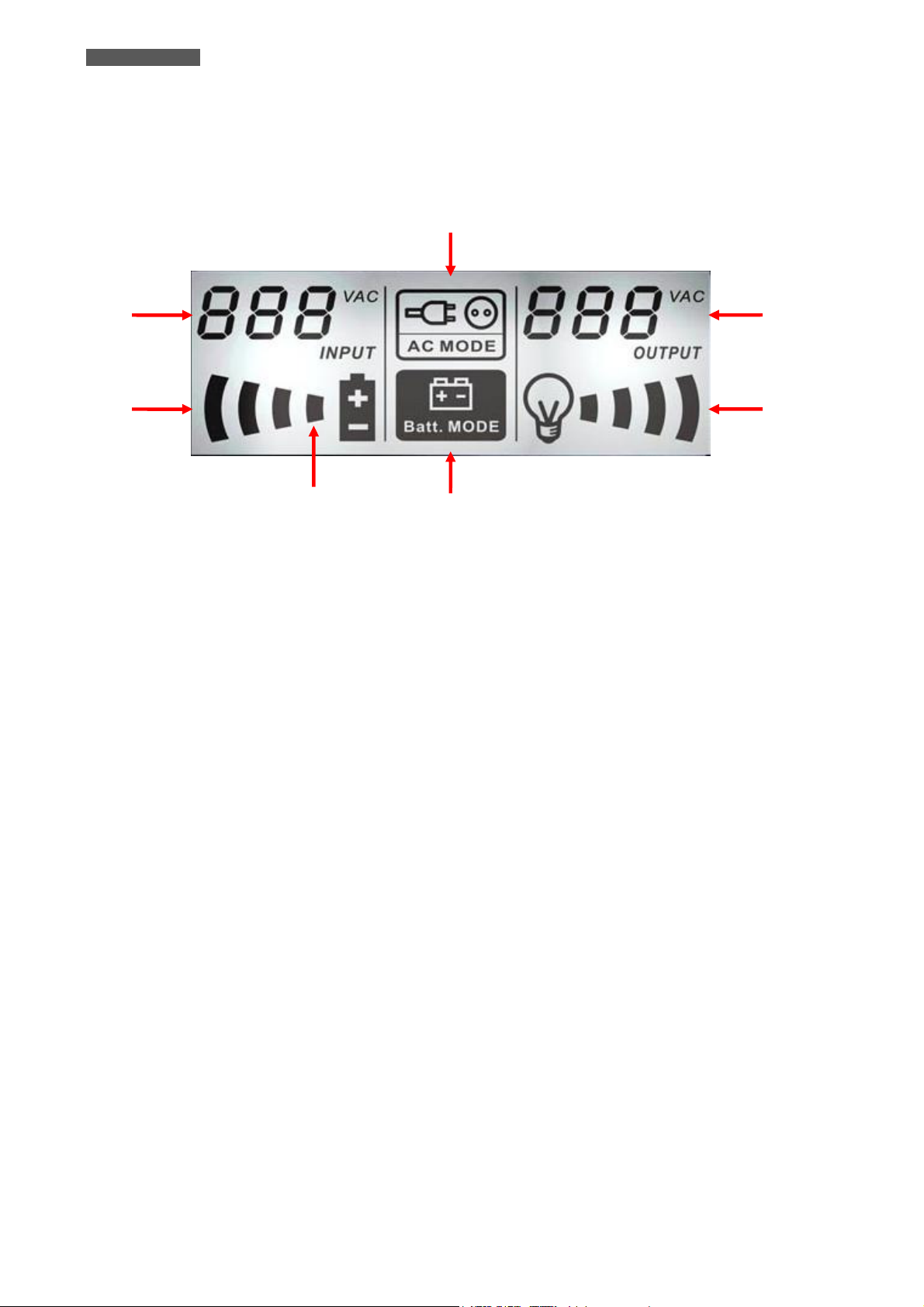

Figure 2 –LCD Display
1. INPUT: the 3 digits indicate the Input Voltage.
5
2
4
2. OUTPUT: the 3 digits indicate the Output Voltage.
3. BATTERY LEVEL: is a four-segment light bar. This bar indicates the battery charging percentage as
explained below:
•
• 0~25%: only 1 segment is on.
••
•
• 25~50%: 2 segments are on.
••
•
• 50~75%: 3 segments are on.
••
•
• 75~100%: all the 4 segments are on.
••
4. LOAD LEVEL: is a four-segment light bar. This bar indicates the Output Load percentage as explained below:
•
• 0~25%: only 1 segment is on.
••
•
• 25~50%: 2 segments are on.
••
•
• 50~75%: 3 segments are on.
••
•
• 75~100%: all the 4 segments are on.
••
5. AC MODE: this icon is on to indicate the UPS is working in Normal mode.
6. BATTERY MODE: this icon is on to indicate the UPS is working in Battery mode.
7. LOW BATTERY: is on to indicate the Low Battery condition.
Ups Pro 5 User’s manual
ENGLISH
3
4.2 Rear Side
4
5
2
1
3
2

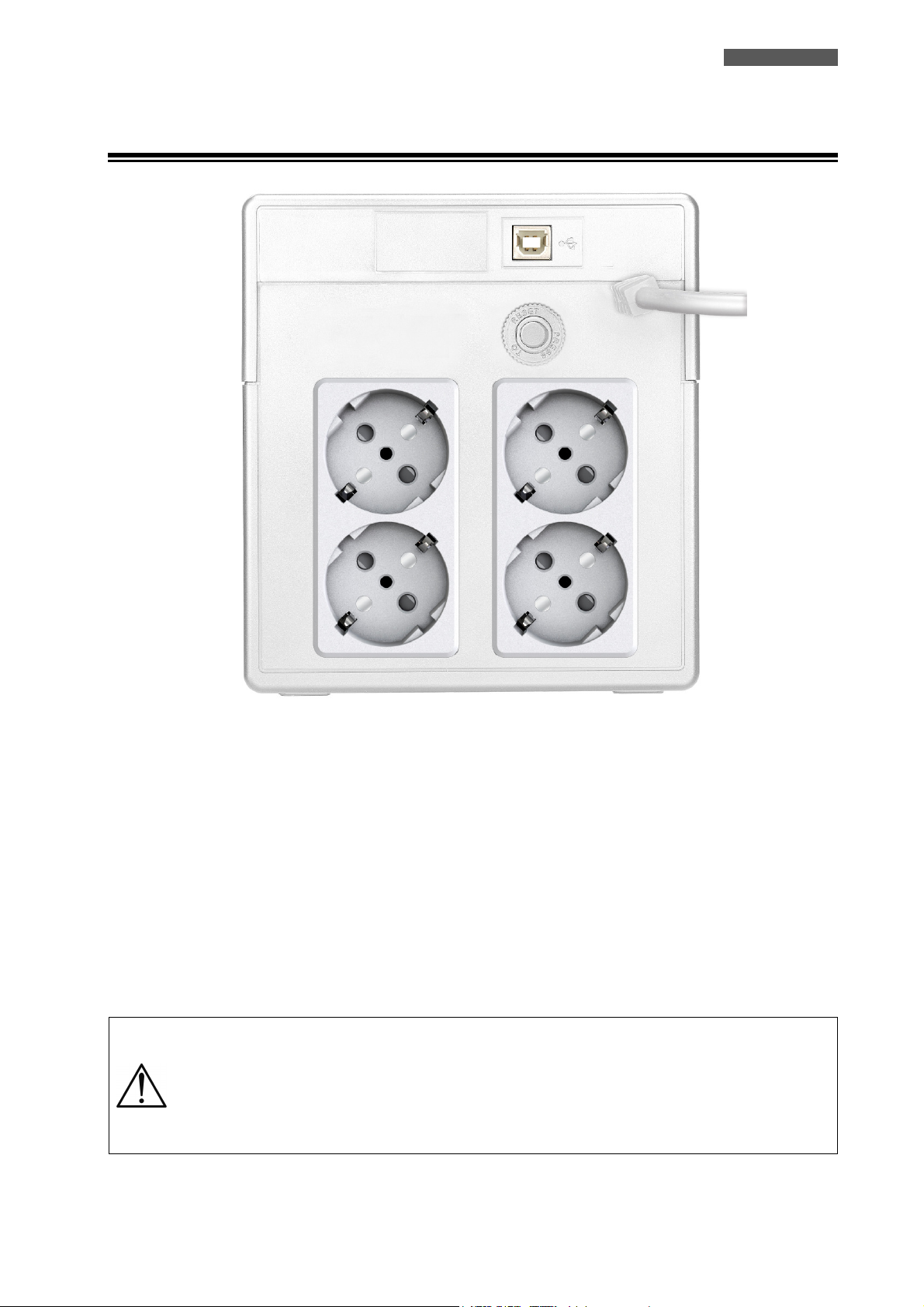

Figure 3 – Rear Side
1. Grounded AC Input power cable: Schuko type; to connect the UPS to the AC utility line.
2. Grounded UPS Output receptacles: Italian/Schuko type, white colour, to supply critical loads.
3. Grounded (ONLY FILTERED) Output receptacles: Italian/Schuko type, white colour, to supply NOT-critical
loads.
4. Computer Interface (USB connector): it is the communication USB port.
5. Input circuit braker: electrical specification: max current 7A, voltage 250 V.
The ONLY FILTERED Output receptacle (#3), protects only the devices connected from
overvoltage and disturbances of the AC line. Please connect ONLY the NON-critical
devices to the ONLY FILTERED Output receptacle.
In case of anomaly to the AC line (black-out), ONLY the UPS Output receptacles (white
colour, #2) continue supplying the correct power to all connected equipment. Please
connect all the non-critical devices to the UPS Output receptacles.
User’s manual 6 Ups Pro
Loading...
