Page 1
AIDA BABY
USING INSTRUCTION
ENGLISH
Page 2
AIDA BABY
2 TECNOVAP REV.0 – 10/2010
INTERPRETATION OF THE SYMBOLS PLACED ON THE UNIT
BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL.
IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO
THE FOLLOWING OWNERS.
PLEASE READ THE SAFETY INSTRUCTIONS ON THIS HANDBOOK BEFORE PROCEEDING ON THE
FIRST USE.
EVENTUAL DAMAGES DUED TO THE CARRIAGE MUST BE COMUNICATED AS SOON AS POSSIBLE TO
YOUR OWN RETAILER.
ATTENTION!!
STEAM…. BURNING DANGER
ATTENTION !
READ THE OPERATING MANUAL
OPRATING MANUAL;
OPERATING INSTRUCTIONS
Page 3
AIDA BABY
3 TECNOVAP REV.0 – 10/2010
ENVIRONMENT PROTECTION
ALL DEVICES NOT USED ANYMORE CONTAIN PRECIOUS
RECICLABLE MATERIALS THAT SHOULD BE DELIVERED TO THE
CENTERS SUITABLE FOR THE DISPOSING OF THE WASTE.
ELECTRIC AND ELECTRONIC EQUIPMENT, BATTERIES, OIL AND
SIMILAR SUBSTANCES MUST BE RECICLED IN THE PROPER
RECICLING CENTERS AND MUST NOT BE LEFT IN THE
ENVIRONMENT.
SUBSTANCES SUCH AS OIL FOR MOTORS, DIESEL OIL, PETROL
MUST NOT BE LEFT IN THE ENVIRONMENT AND MUST BE
RECICLED IN THE PROPER RECICLING CENTERS ACCORDING TO
THE ENVIRONMENTAL REGULATIONS.
ALL THE PACKINGS ARE RECYCLABLE, PACKINGS DO NOT HAVE
TO BE THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE
DELIVERED TO THE CENTERS SPECIALIZED FOR THE DISPOSING
OF THE WASTE.
Page 4
AIDA BABY
4 TECNOVAP REV.0 – 10/2010
1. SUMMARY
1. SUMMARY 4
2. SECURITY REGULATIONS 4
3. PREFACE 6
4. TECHNICAL CHARACTERISTICS 6
5. TECHNICAL DRAWING AIDA BABY 7
6. NOMENCLATURE AIDA BABY 8
7. TECHNICAL DRAWING KIT STAR 9
8. NOMENCLATURE KIT STAR 10
9. TECHNICAL DRAWING KIT OPTIONAL (DRY, KIT JULY, IRON) 11
10. NOMENCLATURE KIT OPTIONAL (DRY, KIT JULY, IRON) 12
11. USING INSTRUCTION 13
12. MAINTENANCE 12
13. BEFORE REFERRING TO THE TECHNICAL SERVICE 23
14. DECLARATION OF CONFORMITY 24
2. SECURITY REGULATIONS
It is recommended that the electric supply to this machine should include either a
residual current device that will interrupt the supply if the leakage current to earth
exceeds 30ma for 30ms or a device, which will prove the earth circuit.
SAFETY VALVE This machine is equipped with one safety valve, able to ensure the
safety of the machine itself in case other primary control devices are inefficient (due to
a failure). Due to the extreme importance of this component and as not to compromise
the safety of the machine, it is recommended to provide to check it and to substitute it
through an authorized service center every 2 years starting from the purchasing date.
PRESSURE SWITCH This machine is equipped with a pressure switch able to check
and to maintain the pressure under certain preset limits (ref. “rated pressure” on the
technical label underneath the machine). In case there would be a steam leakage on
the lower side of the machine, it means that the functioning of this device has been
compromised and the safety valve has been involved as to limit the boiler’s internal
pressure. It is recommended not to use the machine, immediately unplug the
machine from the power feeding and call the service center.
MUD DRAIN FROM THE BOILER If you are not acquainted with the hardness level
of the used water, it is recommended to proceed with the boiler cleaning (according to
the procedure indicated in the proper section) after 24 hours of usage. On the
contrary, if you know the hardness level and it is between 0 and 4 French degrees ,
the boiler cleaning can be carried out after 100 hours of usage.
Page 5
AIDA BABY
5 TECNOVAP REV.0 – 10/2010
ATTENTION. The high pressure jets can be dangerous if not used properly. The jet
does not have to be directed against persons, electrical devices under tension, like the
interior of the oven, or the unit itself.
Do not direct the jet against yourself or others in order to clean clothes or footwear.
The appliance should be disconnected from the power supply after the usage and
before proceeding with its cleaning or with the maintenance effected by the user.
This device is not intended to be used by persons (including children) with a reduced
physical, mental or sensorial ability or with insufficient experience and/or competence,
unless they are not supervised by a person responsible for their safety and they are
not instructed by that person on how to use the device.
Monitor the children so they cannot play with the machine.
To ensure the machine’s safety, use only original spare parts from the manufacturer or
spare parts approved by the manufacturer.
ATTENTION. Pressure hoses, fitting and couplings are important for the safety of the
machine. Use only hoses, fitting and couplings recommended by the manufacturer.
Do not use the machine if the power cord or other important parts of the machine are
damaged, i.e. safety devices, pressure hoses and trigger gun.
If an extension cord is used, the plug and socket must be of a watertight construction.
ATTENTION. Inadequate extension cords can be dangerous.
The user must not leave the iron (optional) unattended when it is connected to the
power supply.
Do not use inside swimming pools when filled with water
Do not disassemble the accessories while the machine is supplying steam.
Do not operate this device with wet hands.
Pour only clean water into the water tank. The manufacturer's warranty loses its
validity in case of the introduction of other liquids.
Never turn the machine over or on its side during use.
Page 6
AIDA BABY
6 TECNOVAP REV.0 – 10/2010
3. PREFACE
Dear client,
we would congratulate you on your choice for this TECNOVAP model.
Please consider that the machine before leaving our factory has been tested and tweaked
by qualified and specialized personnel.
In order to improve and to update its production, as well as to always offer new technological
models, TECNOVAP has projected and realized AIDA BABY steam generator.
Both model have a reliable stainless steel boiler which allows to obtain a powerful and
steady stem flow.
Read carefully this instructions manual as to be able to fully exploit the specifications of
your TECNOVAP steam generator and keep it with you in case of future clarifications.
4. TECHNICAL CHARACTERISTICS
To verify the technical data of your model, consult the plate under the appliance.
Page 7
AIDA BABY
7 TECNOVAP REV.0 – 10/2010
5. TECHNICAL DRAWING AIDA BABY (SYSTEM 1,2,3)
Page 8
AIDA BABY
8 TECNOVAP REV.0 – 10/2010
6. NOMENCLATURE AIDA BABY (SYSTEM 1,2,3)
1) POWER CORD STEAM GENERATOR
2) “LOW WATER” INDICATOR
3) “READY STEAM” INDICATOR
4) BOILER SWITCH
4A) GENERAL SWITCH
5) BOILER CAP VALVE
6) DRAIN CAP
7) CARRYING HANDLE STEAM GENERATOR
8) STEAM SOCKET + CONNECTOR (9 PIN)
9) ELETTRIC SOCKET (16 A) VACUUM CLEANER
10) CARRYING HANDLE VACUUM CLEANER
11) VACUUM SWITCH
12) ELECTRONIC VARIABLE OF POWER
13) STAINLESS STEEL DRUM 18/10
14) VACUUM NOZZLE
15) SYSTEM FOR CONNECTING SYSTEM 1 (STEAM) AND SYSTEM 2 (VACUUM)
16) VACUUM TROLLEY
17) LATCHES FOR VACUUM HEAD CLAMPING
18) HOSE CLAMPING LATCH
18A) AIR-WATER TUBE-ELBOW
19) POWER CORD VACUUM CLEANER
20) GRILL PROTECTON FOR SEPARATOR
20/A) SECURITY SCREW
21) LOCKING NUT FOR SEPARATOR
22) SEPARATOR
23) O-RING (SPARES)
24) CONVEYOR CAP
25) ANTI-ALLERGENS HEPA FILTER (OPTIONAL)
26) FILLING BOTTLE 750 cc (OPTIONAL)
Page 9
AIDA BABY
9 TECNOVAP REV.0 – 10/2010

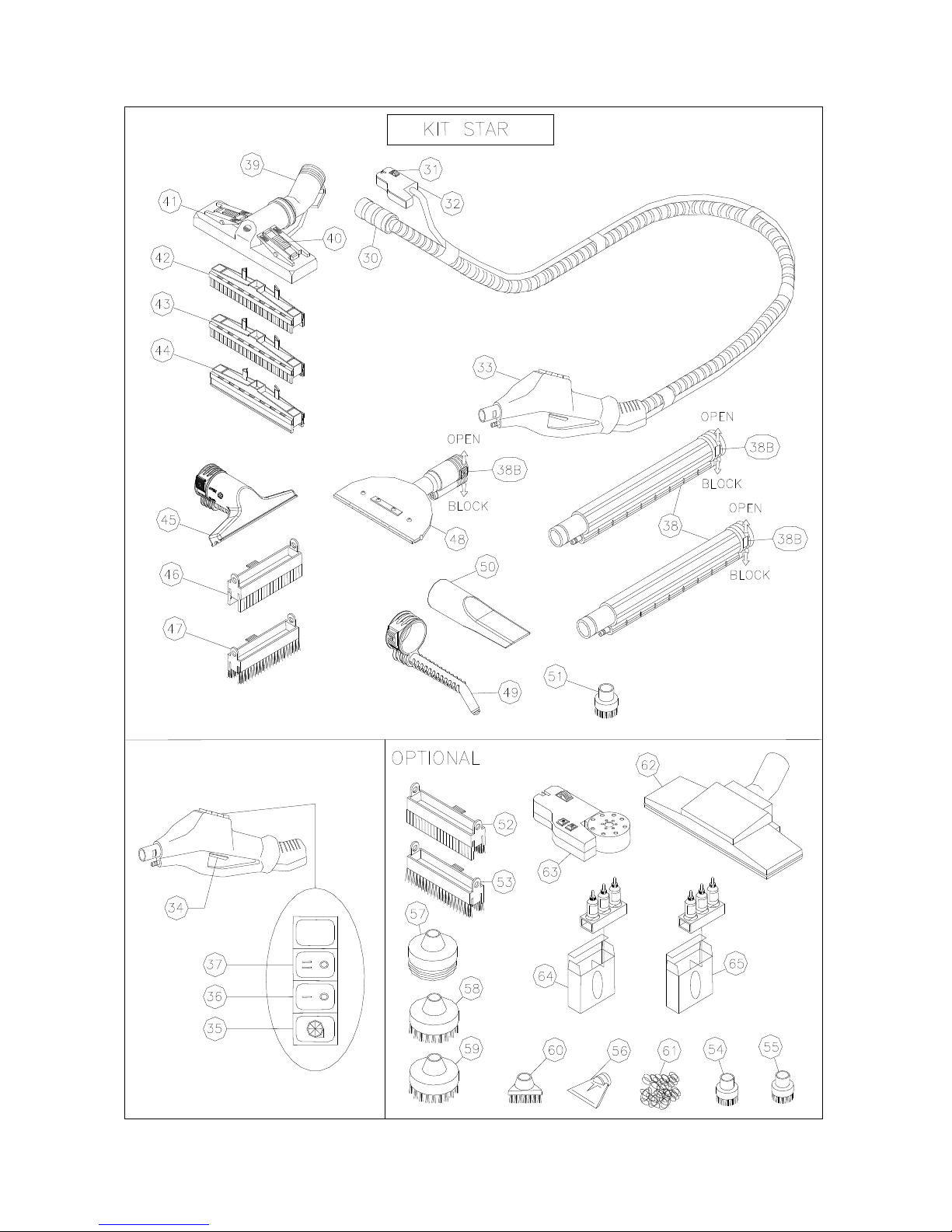

7. TECHNICAL DRAWING KIT STAR
Page 10
AIDA BABY
10 TECNOVAP REV.0 – 10/2010
8. NOMENCLATURE KIT STAR (kit standard)
30) FLEXIBLE HOSE
31) STEAM PLUG CLUMPING HOOK
32) STEAM PLUG
33) HAND GRIP STAR WITH FLEXIBLE HOSE
34) SECURITY TRIGGER FOR STEAM OUTLET
35) VACUUM SWITCH
36) STEAM FLOW COMMAND SWITCH MIN
37) STEAM FLOW COMMAND SWITCH MED
38) EXTENSION TUBES
38b) CLAMPING LATCHES FOR ACESSORIES
39) FLOOR TOOL (L.300)
40) LATCHES FOR BLOCKING INSERTS
41) CLOTH CLAMPS
42) INSERT SQUEEGEE / SQUEEGEE (L.300)
43) INSERT SQUEEGEE / BRUSH(L.300)
44) CARPET INSERT (L.300)
45) STEAM / VACUUM NOZZLE (L.145)
46) INSERT SQUEEGEE / SQUEEGEE (L.145)
47) INSERT SQUEEGEE / BRUSH (L.145)
48) WINDOW CLEANER (L.250)
49) STEAM / VACUUMING LANCE
50) VACUUMING NOZZLE
51) SMALL NYLON BRUSH Ø 28
ACCESSORIES OPTIONAL
52) SQUEEGEE / BRUSH INSERT (L.145)
53) BRUSH / BRUSH INSERT (L.145)
54) SMALL BRASS BRUSH Ø28
55) SMALL STAINLESS STEEL BRUSH Ø28
56) STEAM SCRAPER
57) PLUNGER
58) SMALL NYLON BRUSH Ø60
59) SMALL STAINLESS STEEL BRUSH Ø60
60) SMALL TRIANGULAR BRUSH
61) STAINLESS STEEL WOOL
62) TURBO BRUSH
63) VAPORIZER
64) SET OF 3 BALSAMIC ESSENCES
(Eucalyptus/Geranium/Lavandel)
65) SET OF 3 BALSAMIC ESSENCES
(Orange/Lemon/Mint)

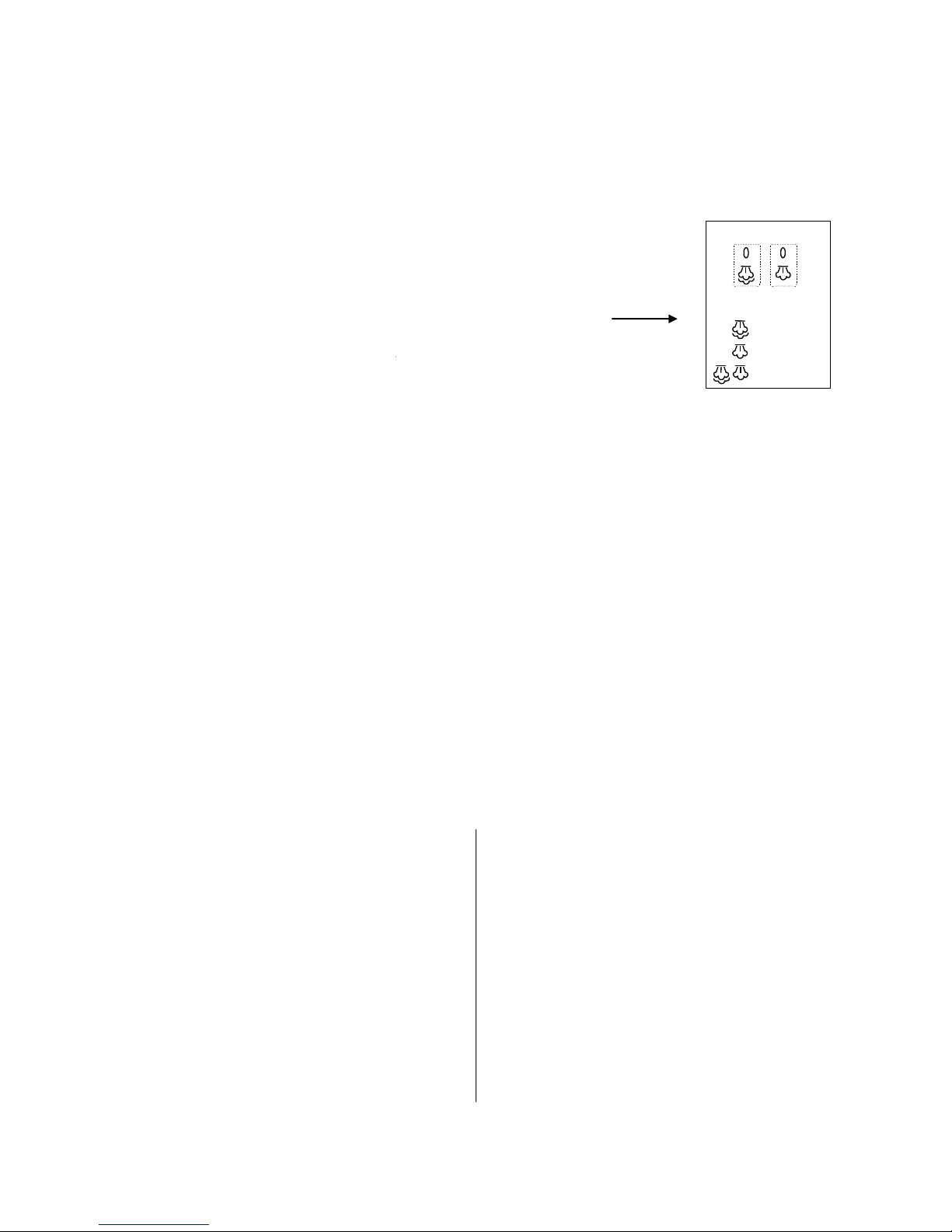

Switched OFF
Switched ON
Medium steam
Minimum steam
Maximum steam
Page 11
AIDA BABY
11 TECNOVAP REV.0 – 10/2010

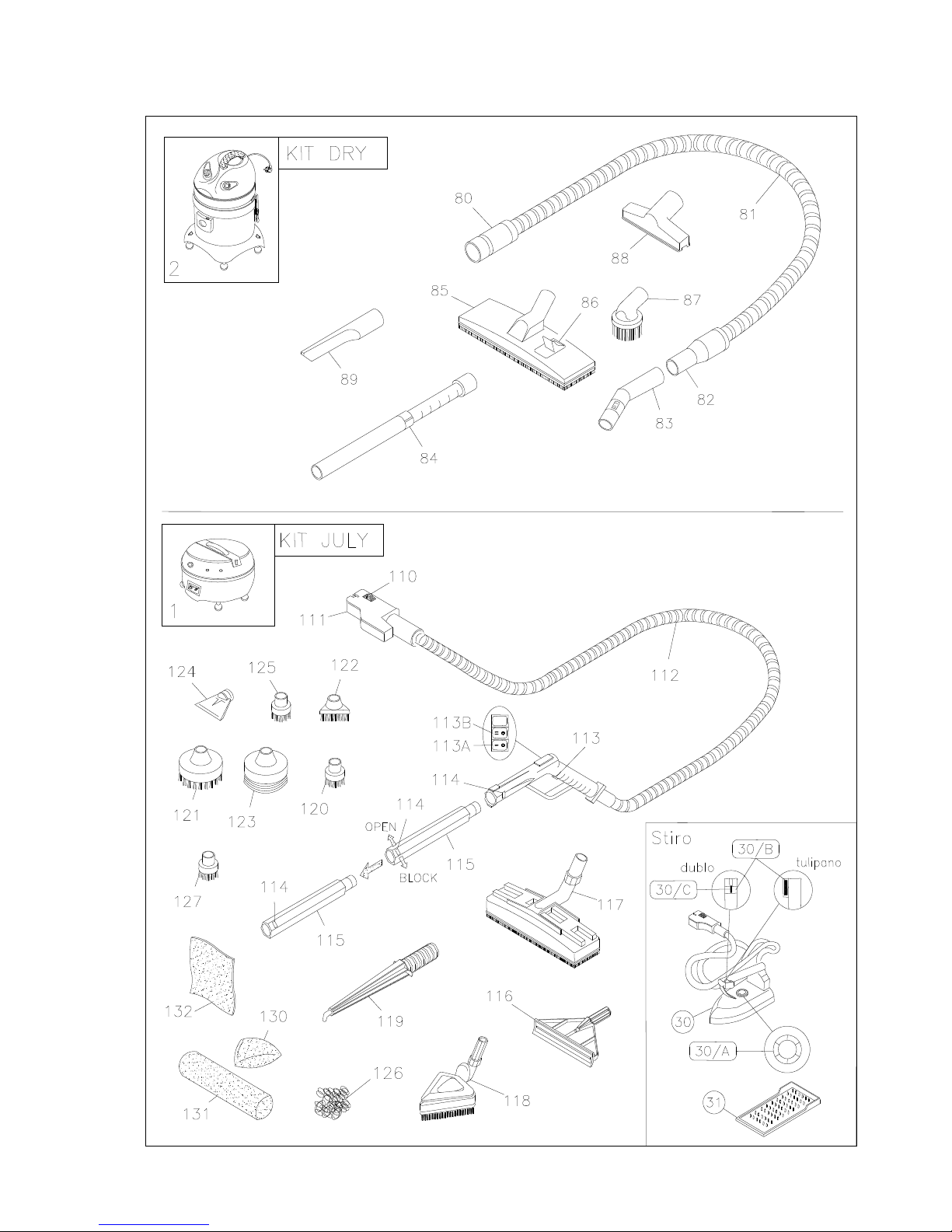

9. TECHNICAL DRAWING KIT OPTIONAL (DRY, JULY, IRON)
Page 12
AIDA BABY
12 TECNOVAP REV.0 – 10/2010
10. NOMENCLATURE KIT OPTIONAL (DRY, JULY, IRON)
KIT DRY (optional)
80) FLEXIBLE HOSE
81) FLEXIBLE TUBE Ø 36
82) COUPLING FOR HAND GRIP OR ACCESSORIES
83) CURVED HAND GRIP Ø 36
84) EXTENSION TELESCOPIC TUBE Ø 36
85) UNIERSAL FLOOR BRUSH
86) HOOK FOR LOCKING BRISTLE
87) ROUND BRUSH WITH SOFT BRISTLE
88) RECTANGULAR NOZZLE
89) FLAT LANCE
KIT JULY (optional)
110) CLAMPING LATCH FOR STEAM PLUG
111) STEAM PLUG
112) HAND GRIP JULY WITH FLEXIBLE HOSE
113) STEAM SECURITY SWITCH
113A) STEAM FLOW COMMAND SWITCH MIN
113B) STEAM FLOW COMMAND SWITCH MED.
114) CLAMPING LATCH FOR TUBES
115) EXTENSION TUBES
116) WINDOW CLEANER
117) RECTANGULAR BRUSH
118) TRIANGULAR BRUSH
119) STEAM LANCE
120) SMALL BRUSH Ø 28 WITH NYLON BRISTLE
130) TRIANGULAR STEAM BUFFER
121) SMALL BRUSH Ø 60 WITH NYLON BRISTLE
131) RECTANGULAR STEAM BUFFER
122) SMALL TRIANGULAR BRUSH WITH NYLON
BRISTLE
132) MICROFIBER CLOTH
123) SINK PLUNGER
124) STEAM SCRAPER
125) SMALL BRUSH Ø 28 WITH BRASS BRISTLE
126) STEEL WOOL
127) SMALL BRUSH Ø 28 WITH STEEL BRISTLE
IRON optional
30) PROFESSIONAL STEAM IRON TULIPANO OR
DUBLO
30A) THERMOSTAT
30B) STEAM COMMAND SWITCH
30C) STEAM SWITCH WITH LOCK FOR STEAM
OUTPUT (ONLY FOR DUBLO)
31) RUBBER REST PAD FOR IRON
Switched OFF
Switched ON
Medium steam
Minimum steam
Maximum steam
Page 13
AIDA BABY
13 TECNOVAP REV.0 – 10/2010
11.USING INSTRUCTIONS
TURNING ON THE APPLIANCE
A) Uscrew the valve cap (5) and fill the boiler using the filling bottle (26). The bottle holds
approx. 750 cc of water and the capacity of the boiler is approx. 2 liters. Screw on the
valve cap correctly.
B) Insert the power plug (1) of AIDA BABY, current socket checking that the voltage e
l’amperage corrispond to the data of the plate of the machine (on the inferior part of the
appliance and reported also at 10 of this manual).
C) Turn on the main power switch (4A) .
D) Turn on the boiler switch (4) .
E) When the ready steam indicator (2) lights up the machine is ready for operation.
F) Choose the accessory (iron or cleaning kit) and follow the instruction for the selected
tool.
USE OF AIDA BABY / BABY ECO COMPLETE (SYSTEM 3) WITH THE KIT STAR
Follow operating instructions from point A)-F):
g) Lift the vacuum head motor from the handle (10) using the latches (17). Pour approx. 1
liter of water in the drum (13) making sure that the superior water level of water
reaches the inferior part of the elbow tube air-water (18A).
h) Position the vacuum unit (SYSTEM. 2) on top the steam unit (SYSTEM. 1) fitting the
blocking pins (15) of the vacuum trolley into the slots (15) of the steam unit making
sure to position before the knobs on "OPEN". Insert and turn the knobs in the position
"BLOCK" position another time the head-motor on the drum (13) e block it using the
latches (17). Insert the pipe plug of the vacuum toward the bottom (19) in the socket
behind the steam unit (9).
i) Insert the vacuum plug of the flexible tube (32) in the steam socket (8), making sure
that the hook loking plug (31) is corectly inserted; insert than the plug flexible tube of
intake (30) in the nozzle(14) on the vacuum drum (13), inserting it in the locking tube
hook (18). Verify that the switch (11) on the head of the aspirator is on. The switches
(35, 36 e 37) on the hand grip should be off.
Page 14
AIDA BABY
14 TECNOVAP REV.0 – 10/2010
j) Now you can use your AIDA BABY as SYSTEM 3. choose the accessories best suited
for the type of work you are going to do, tacking particular attention to insert in position
"BLOCK" the security hook (38B).
k) Activating the switches (36 and 37) on the hand grip, you regulate the output of steam
according your requirement like the following: switch 36 steam flow MIN; switch 37
steam flow MED; switches 36 and 37, steam flow MAX. Push the security switch (34)
for the output of steam. The switch activate the vacuuming and can be switched on in
presence of steam producction to vacuum the dirt and liquids.
l) The liquids vacuum is full (SYSTEM 2), when the water level in the drum reaches the
maximum width of 3÷4 l, and a change in the noise of the motor is observed and there
is a diminuition or an absence of aspiration.
m) So turn off the switches (11 - 4 - 4A) and unplug la the power cord (19) from the socket
(9) so lift the head-motor (10) from the drum (13) using the latches (17) and empty the
drum making sure to have deteached flexible hose before (30). Rince and clean
accurately the drum. Place in a areate place per facilitate the drying of the head-drum.
n) When the red indicator lights up (3) (SYSTEM 1) the water is finished, turn off the boiler
switch (4), wait untill the reidual pression of the boiler decreases and finish the
remaining steam with the accessory. then turn off the general switch (4A) and unplug
the elettric power (1). Attention: the cup (5) has to be opened only when it doen’t
operate or the boiler is not under pressure. At this point you can procede with the
refilling of the boiler.
PRATICAL ADVICES
FOR THE USE OF THE ACCESSORIES STAR
Lance (49): with this accessory, using only steam, you can do the 80% of the
hosekeeping.
For the most resistant dirt: (such as cooking hobs, sinks and water taps, dishwash,
crevices, fridge seals, tile joints in the kitchen or in the bathroom, shower boxes, sanitary
etc.) you can use the lance only with the steam, regolating the switches (36 and 37) on
MAX and activating the handle of steam (34).
For the cleaning of radiator heaters: use again the lance with only MAX steam. It is
important to start cleaning at the top so that the dirt is taken down while working.
For the shutters: use the lance with only MED. o MAX steam. Direct the steam flow on
the crevices and use a cloth to remove the dissolvent dirt, so that the walls on the side do
not get dirty.
Page 15
AIDA BABY
15 TECNOVAP REV.0 – 10/2010
To remove water scale deposits: on water taps you can use the lance with only
MAX.steam and using a steel wool pad (61) (do not use on enamelled surfaces).
To clean deeply direct the steam flow (MAX) directly on stains, using a wool.
To defrost freezer: use directly the hand grip (33) without accessories directing the
steam, regulated on MAX, toward the ice and vacuuming, with the vacuum regulator in the
position MAX, to collect the ice pieces and the melted ice. You can use an extension tube
(38) to reach the bottom of the freezer cell..
For the deep cleaning of floor joints: put the lance directly on the joint with MAX. steam
flow (holding the lance inclined so that the dirt is pushed away). For bigger joints you can
use the lance with the nylon brush (51).
For more delicate cleaning: (i.e furniture, curtains, lamps, plants, delicate areas in
general etc.) use the lance only with steam, regulated on MAX, keeping it at a distance of
about 30 cm. Dry the forniture with a cloth after having used the steam.
Floor tool (39) with ideal insert (42-43-44): The various inserts are locked into place by
sliding the latches (40) to the inside and hold the insert in place applying a little pressure
while sliding the latches to the outside. Remember that the command switches on the
handgrip (35,36 and 37) should be switched off.
If necessary, attach the extension tubes (38) and lock them in place using the clamping
latches (38B). It is possible to apply one extension only.
To be able to choose the best suitable accessories for the surfaces to be cleaned and
according to the cleaning jobs to do, please read carefully the following list:
To clean windows: there are three systems.
In case of very dirty windows, use the lance (49) with the nylon brush (51) and dry with a
cloth afterwards.
In case of maintenance cleaning, use the lance (49) directing the MAX. steam flow to the
window, keeping it at a distance of 30 cm. Then dry with a cloth.
Another alternative would be using the window cleaner (48) cleaning simultaneously with
MAX. steam and MAX. vacuum.
To clean upholstery (45 o 39): (such as mattresses, sofas, armchairs, carpets, car seats
and other fabrics) there are two ways:
For deep cleaning use either the upholstery nozzle (45), or the floor tool (39) wrapped with
a cloth, fixed with the cloth clamps (41). Use at the same time MIN. steam and MAX.
vacuum.
For maintenance cleaning use only vacuum, regulated on MAX. with the floor tool (39) and
the carpet insert (44).
Page 16
AIDA BABY
16 TECNOVAP REV.0 – 10/2010
To clean floors (such as tiled floors, in terra cotta or ceramic): use the floor tool (39)
with the squeegee/squeegee insert (42).
For deep cleaning, use first only MAX. steam to degrease surfaces. Then use
simultaneosly steam and vacuum, both regulated on MAX, and finish with only MAX.
vacuumto dry the floor.
For the weekly maintenance, use at the same time MIN steam and MAX vacuum. You can
also use the floor tool (39) wrapped with a cloth fiwed with clamps (41) to create a shiny
effect.
For the daily maintenance use only vacuum regulated on (MAX) with the floor tool (39) and
the squeegee/brush insert (43).
To remove wax from floors: use the floor tool (39) with the squeegee/squeegee insert
(42) and clean simultaneously with steam and vacuum,both regulated on MAX.
To distribute wax on the floor: use the floor tool (39) wrapped with a cloth fixed with the
clamps (41) (pouring the wax directly on the cloth) and distribute the wax uniformly using
only MIN. steam.
USE ONLY OF THE STEAM UNIT (SYST.1) WITH IL KIT JULY
Follow operating instructions from point A)-F):
g) Connect the steam plug (111) to the steam outlet (8) making sure that the steam
command switch (113) on the hand grip is off.
h) you are going to do, tacking particular attention to insert in position "BLOCK" the
security hook (114).
i) To steam clean choose the appropriate accessory (rectangular brush (117) or
triangular (118), window cleaner (116), steam lance (119)etc.). At this point assemble
the extension tubes (115) and secure in place by setting the quick release latches
(114) in the position “BLOCK”. You can choose to use only an extension tube,
depending on the length you want to work with.
j) Wrap a cloth (132) on the rectangular brush (117) (or triangular, 118) and secure it by
using the special clamps (to clean the floors and linings).
k) Attache the brush (or another accessory) to the extension tube (115) and secure it by
setting the quick release latches (114) in the block position. If wanting to use the small
nylon brush (120) remember to first attache the steam lance (119). The steam lance
may also be used without the small brush especially to reach difficult areas (i.e in the
kitchen, in bathrooms etc.).
Page 17
AIDA BABY
17 TECNOVAP REV.0 – 10/2010
l) Make sure that the switches (11A and 11B) arranged on the handgrip are off. Isert the
steam plug (111) in the socket (7) making sure that the hook (110) is housed securely.
m) Activating the swithces (113A and 113B) on the handgrip, regulate the steam flow as
follows: switch 113A: MIN steam flow , switch 113B: MED steam flow; switches 113A
and 113B: MAX steam flow. Push the security switch (113) for the output of steam.
PRACTICAL ADVICESES
FOR USING THE ACCESSORIES
Direct the strong steam flow towars cracks, hidden areas, joints, kitchen tops, carpets,
carpets floor, arm chairs, sofas, tapestres, car engines, you will be able to remove easily
and completly grime, grease and dirt in general as well as to achieve a secure disinfecting
and sanitation: after this operation it will be indispensable to pass over with a dry cloth.
Lance (119): with this accessory, using only steam, you can do the 80% of the
hosekeeping.
In the kitchen: We suggest the use of the steam lance with the small brushes (120-125-
127). These brushes help to remove the most ostinate dirt from baking surfaces, suction
hoods, frying appliances etc. It is possibile to clean dishwashers by applying steam directly
with the turbo lance. in the case the incrustation is consistent we suggest the use of the
nylon brush (120).
In the bathroom: For all areas difficult to reach, we suggest applying to the steam hose
handgrip (112) the steam lance and a small brush (120). This accessory allows cleaning
radiator cerices and difficult points. In case of washbasin clogging, attach the plunger
(123) to the turbo lance and direct the steam on the water tube, and dry with a cloth.
WARNING
BY USING THE SMALL BRUSHES ON PORCELAIN EXERT THE LEAST POSSIBLE
PRESSURE BECAUSE YOU MIGHT SCRATCH THE SURFACE.
Window cleaner (116): Glass or plastic surfaces:
We suggest to use the window cleaner (116) by inserting it directly on the hose of the
handgrip (112), applying steam on the surface. Then use the squeegee on the window
cleaner to remove the dirt and water using vertical movements bringing the dirty water to
the base of surface. Use a dry cloth to dry the base of the surface.
Page 18
AIDA BABY
18 TECNOVAP REV.0 – 10/2010
Triangular brush (118): Adapted for the cleaning of armchairs, sofas, and mattresses we
suggest to use the triangular brush with a cloth fastened with a special clamp.
rectangular brush (117):
For tiled floors: To carry out specific grout cleaning we suggest that you use the steam
lance (119) with the small brush (120 or 125 according to the need). In this way it will be
possible to dislodge the most difficult dirt and remove it from the groust using the applied
pressure. To remove the dirt from the floor use the rectangular brush (117) wrapped in a
cloth, which will work as an “extractor” when fastened with the special clamps. We suggest
applying steam also while picking up the dirty water. To get a good result, work with
surface areas not larger than 5m² thus preventing dirt from drying and adhering on the
floor again. We suggest that you use the brush without the cloth when the dirt to be
disloged is considerable; and when the dirt is not considerable, it is enougth to work with
the brush wrapped in cloth.
When confronted with solid objects while cleaning the floor (i.e. chewing-gum) use the
special scraper (124) which can be attached to the steam lance (119) and is able to
remove stubborn objects without scratching the work surface.
To remove wax from the floor use a cloth fastened to the rectangular brush.The steam
helps loosen the wax so that its removal will be easier . To spread the wax on the floor use
as mentioned above a clean cloth fastened on the brush (117). Put the wax on the cloth,
the heat of the steam will help spread the wax evenly so that its penetration will be eassier
in also this case. When the wax is dry proceed with normal buffing methods.
Only the power of steam is able to replace all types of chemical products.
WARNING
THE GENERATOR PRODUCES STEAM WITH A TEMPERATURE OVER 100° C.
BEFORE STARTING THE CLEANING TASK WE SUGGEST TO TRY ON A SMALL
AREA TO AVOID DAMAGES.
Marble and parquet floor: We suggest adding a cotton cloth wrapped on the brush (117),
to avoid scratching the surface. To continue the cleaning it is necessary to charge the cloth
according to the quanity of dirt to be collected on the floor.
WARNING
THE STEAM SHOULD NOT BE IN DIRECT CONTACT WITH THE FLOOR FOR AN
EXTENDED PERIOD OF TIME. SUCH SURFACES MAY BE DAMAGED IN CASE OF
COMBINED USE OF EXCESSIVE HEAT, HUMIDITY AND BRISTLES. THEREFORE
CARRY OUT THE TASK IN THE SHORTEST POSSIBLE TIME.
Page 19
AIDA BABY
19 TECNOVAP REV.0 – 10/2010
Carpets floors: Before carrying out the cleaning task we suggest that you clean the
carpeted area with a vacuum cleaner.
Then use the brush (117 or 118) with a cotton cloth. The cloth should be replaced
according the quantity of dirt.
Car interiors: To clean car interiors (upholstery, carpets, seats) follow the cleaning
instructions as for the carpeted floors. To clean a dashboard it is enough to steam the
surface and wipe off with a dry cloth.
USE OF THE VACUUM UNIT (SYST.2) CON IL KIT DRY
Follow operating instructions from point A)-F):
g) Lift the vacuum head from the stainless steel drum (13) by releasing the latches (17).
Pour approx. 1 liter of clean water in the vacuum drum making sure that the water level
is sitting higher than the part of the internal air intake tube (18A). Reposition the
vacuum head (10) onto the drum (13) and clamp in place using the latches (17).
h) Insert the hose coupling from kit Dry (80) into the hose outlet (14) making sure the
clamping latch (18) has locked the hose securely. Verify that the vacuum power switch
(11) located on the vacuum head is off.
i) Insert the power cord (19) into the extension cord which should be of watertight
integrity, and then into the nearest electric outlet, and make sure that the voltage and
amperage correspond to those found on the rating plate (located on the head).
j) While using the vacuum cleaner as a wet vac, when the water level has reached its
maximum level in the drum 2÷3 L, there is a loss in suction power and a change in the
noise of the motor.
k) In this case, turn off the vacuum power switch (11) and unplug the power cord (19) and
lift the vacuum head from the stainless steel drum (13) by releasing the latches (17)
Empty the drum making sure to have detached the vacuum hose (80). Rince and refill
the drum as described in step (b) of this section.
l) When finished working lift the vacuum head (10) rince the drum and place the drum in
a secure place allowing it to dry.
Page 20
AIDA BABY
20 TECNOVAP REV.0 – 10/2010
PRACTICAL ADVICESES
FOR USING THE ACCESSORIES OF KIT DRY
Each accessory is simple to use and easy to attach.
Choose the accessory best suited to work surface and cleaning task.
Hand grip complete with flexible hose and telescopic extension tube (81-82-83-84):
used to connect all the accessories of kit Dry with the system 2 and allows you to have an
efficient vacuum of solids and liquids on all surfaces.
Flat nozze or lance (89): it is an accessory used for deep vacuuming in hard to reach
areas, crevices, corners, folds in cushions and sofas, arm chairs, car interiors, base
boards, radiators and also for vacuuming liquids (see norms for wet vacs).
Multifunction nozzle for vacuum (88): used for removing and eliminating dust and dirt
from curtains, tapestries and upholstery.
Brush for vacuum of carpets and floors (85): attached to the telescopic extension tube
(84) and used for hard floors and carpeted floors including parquet, linoleum, tiles, rugs
and carpets.
round brush for dusty (87): used for removing and eliminating dust especially from
stationary objects, such as furniture settings, shelves, portrait frames, books and even
delicate clothing. To remove the dust, pass over the surface area moving slowly and
consistently.
PROFESSIONAL STEAM IRON
Mod. Tulipano:
o) To iron with steam the iron thermostat (30A) should be positioned on “Lana” (wool) or
between the symbol “••” (wool) and the symbol “•••” cotton. Wait few minutes so as to
allow the iron to reach its ideal temperature. The steam flow is obtained by activating at
short intervals the red switch located on the iron handgrip.
p) For dry ironing do not press the red botton (30B). In this case position the thermostat
according to the type of cloth to be ironed.
Page 21
AIDA BABY
21 TECNOVAP REV.0 – 10/2010
Mod. Dublo:
q) To iron with steam the iron thermostat (30A) should be positioned on “Lana” (wool) or
between the symbol “••” (wool) and the symbol “•••” cotton. Wait few minutes so as to
allow the iron to reach its ideal temperature and once ready, the signal on the iron will
switch on. The red button on the hose (30B) can now be pressed to allow the steam
exit.
r) For dry ironing do not press the red button (30B). In this case position the thermostat
according to the type of cloth to be ironed.
PRACTICAL ADVICESES
FOR USING THE IRON
To remove the shine from clothes, brighten up wool tissue, curtains etc…use the iron vertically,
directing the steam flow onto the object.
12. MAINTENANCE
MAINTENANCE OF THE STEAM GENERATOR
WARNING
SWITCH OFF THE ELETTRIC SUPPLY BEFORE PROCEEDING TO THE USER’S
MAINTENANCE.
WE SUGGEST CLEANING THE BOILER ONLY WHEN THE MACHINE HAS COOLED
DOWN (SWITCHED OFF FOR AT LEAST 5 HOURS)
ELIMINATION OF SCALE DEPOSITS FROM THE BOILER
We suggest cleaning the boiler after every 100 hours of use, or also if the machine
produces water or dirty steam.
Unscrew the boiler cap (5), and fill with clean water. Position the machine over a recipient
container and remove the boiler drain cap (6). Pieces of scale could block the drain
opening. A screwdriver can be used to free the outlet. Once the water has drained, replace
the drain cap (6), and fill again the boiler with clean water Repeat this operation 2-3 times.
At this point, the rinsing of the boiler is complete and your. AIDA BABY is now again ready
for use.
Page 22
AIDA BABY
22 TECNOVAP REV.0 – 10/2010
MAINTENIANCE ON THE VACUUM CLEANER
An operation to be effected whenever the vacuum cleaner shows indications of vibrating
during use caused by dirt deposited on the separator, unbalancing the alignment of the
separator.
Unhook the vacuum head from the stainless steel drum (13) using the latches (17).
Remove the screw (20A) with the screwdriver and the protection grill (20) turning it
counterclockweis (see figurePage2).
Unscrew the locking nut (21) of the separator.
remove the separator (22).
Procede with cleaning the separator (22) with a small brush, or if you have a steam
generator (SYST. 1), with steam using the steam lance (49) included.
Than remount the separator (22) , making sure it fits correctly in the given slot.
Screw on the locking nut (21) of the grill protection (20) and the screw (20A).
MAINTENANCE OF THE IRON
This professional iron has a pure aluminium plate. only aluminium enables perfect ironing
but is subject to oxidation. To avoid this incovenience, we suggest placing the iron on one
side for cooling down so that the iron plate has no contact to other materials. Wrap the iron
in a cloth for storing.
MAINTENANCE OF THE ACCESSORIES
Clean and grease occasionally with grease approved from TECNOVAP the connections of
the hose extension and of the accessories.
Page 23
AIDA BABY
23 TECNOVAP REV.0 – 10/2010
13. BEFORE CALLING FOR SERVICE
THE MACHINE DOES NOT GENERATE STEAM – CHECK WHETHER:
- The plug is inserted correctly in the electric outlet, and the switch (4) and (4A) is on.
- The steam plug (32-111) is correctly inserted in the steam outlet (8).
- The water tank contains water.
WATER LEAKS FROM THE IRON – CHECK WHETHER:
- The thermostat is positioned on “lana” (wool) or between the symbol “••” (wool) and the
symbol “•••” (cotton).
- The iron switch is on.
- The steam plug is correctly inserted in the steam outlet (8).
- The filters of the iron are dirty
IMPORTANT
REPAIRS SHOULD BE CARRIED OUT EXCLUSIVELY BY AUTHORIZED
PERSONNEL.
EVENTUAL REPAIRS DONE BY NON QUALIFIED PERSONS COULD BE
HASARDOUS FOR THE USER.
NO RESPONSABILITY IS TAKEN FOR INCORRECT REPAIRS OR WRONG AND
INAPPROPRIATE MANIPULATIONS ON THE APPLIANCE.
KEEP PACKAGING. IT COULD BE USEFUL IN CASE OF NEED OF TECHNICAL
ASSISTANCE.
Page 24
AIDA BABY
24 TECNOVAP REV.0 – 10/2010
14.DECLARATION OF CONFORMITY
Via dei Sassi 1/A, Pescantina (VR) Italy - Tel. +39 045 6767252
Fax. +39 045 6703631 – E-mail: [email protected] – www.tecnovap.it
DICHIARAZIONE DI CONFORMITA’ CE
(EC DECLARATION OF CONFORMITY)
TECNOVAP S.R.L. con la presente dichiara che:
le macchine per pulizia a vapore modello:
(Certifies that the steam cleaning machine model):
T.Aida Baby
Risultano conformi alle specifiche delle direttive
(conforms to the specifications of directives)
2006/95/CE 2004/108/CE 2006/42/CE 2002/95/CE
Per il controllo della conformità alle sopraindicate direttive, sono stati seguiti i seguenti standard :
(For the checking of conformity to the above directives, the following standards have been used):
Riferimento alle norme armonizzate:
(Reference to harmonized standards):
EN 60335-1
EN 60335-2-2
EN 60335-2-54
EN 60335-2-3
EN 55014-1
EN 55014-2
EN 61000-3-2
EN 61000-3-3
PESCANTINA – VERONA (ITALY)02-02-2010
FRANCHINI Giuliano
(Managing Director)
Loading...
