Explosion
1
LCM Assembly
2
Front Housing Assembly
3
Sidkey FPC
4
Front housing rubber
5
Card Slot seal foam
6
Receiver Deco
7
Receiver seal foam
8
Receiver9Front CAM seal foam
10
LED rubber
11
PS rubber12Front Camera
13
Back Camera
14
Card Holder
15
Audio jack rubber
16
Main PCB17Front CAM ConductiveFabric
18
Shield Graphite Film
19
Coaxial Cable 2
20
Back Flash Seal Foam
21
Fingerprint Frame
22
Screw
23
Back CAM lens
24
Fingerprint ConductiveFoam
25
Fingerprint Module
26
LCM Connector PressedSteel
27
LCM BTB Mylar
28
Battery
Explosion
diagram
diagram
specification
specification
29
Battery Cover Assembly
30
Screw31Speaker32Main Mic Rubber
33
Motor34Coaxial cable 1
35
Main FPC36Usb Rubber
37
PCBA38Speaker FPC
Know
Volume key
Power key
Front camera
Know
your
your
phone
phone
SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD card installation.

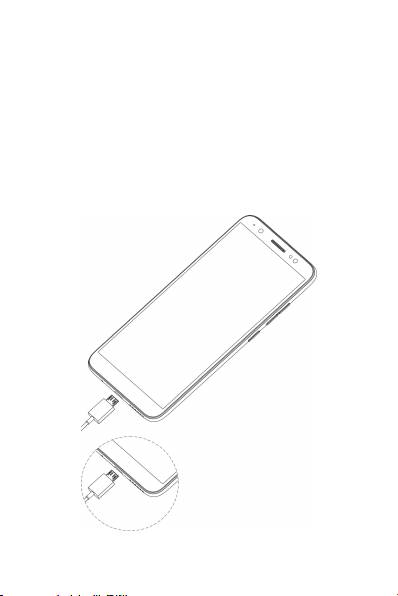

Charging
Charging
You can charge your device using a charger or by connecting it
to the computer using a USB cable (comes with the phone).
1. Please remind the front and back of the plug.
2. Use only TECNO charger and cables. Other chargers or cables
may damage the device or your device. This will invalidate
your phone warranty.
the
the
phone
phone
FCC Caution
Labelling requirements.
This device complies with part 15 of the FCC Rules. Operation is subject
to the condition that this device does not cause harmful interference.
Information to user.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Information to the user.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital de vice, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interfere nce will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipm ent off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) in formation:
This Mobile phone meets the government's requirements for exposure to
radio waves. The guidelines are based on standards that were developed
by independent scientific organizations through periodic and thorough
evaluation of scientific studies. The standards include a substantial safety
margin designed to assure the safety of all pers ons regardless of age or
health.
FCC RF Exposure Information and Statement The SAR limit of USA (FCC) is
1.6 W/kg ave raged over one gram of tissue. Device types: CA6(FCC ID:
2ADYY-CA6 ) has also been tested against this SAR limit. The highest
SAR value reported under this standard during product certification for
use at the ear is 0.37 W/kg and when properly worn on the body is 1.02
W/kg. This device was tested for typical body-worn operations with the
back of the handset kept 10mm from the body. To maintain compliance
with FCC RF exposure requirements, use accessories that maintain a
10mm separation distance between the use r's body and the back of the
handset. The use of belt clips, holsters and similar accessories should not
contain metallic components in its assembly. The use of accessories that
do not satisfy these requirements may not comply with FCC RF exposure
requirements, and should be av oided.
Body-worn Operation
This dev ice was tested for typi cal body-worn operations. To compl y with
RF exposure requirements, a minimum separation distance of 1.0 cm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories used
by this dev ice should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with RF
exposure requirements and should be avoided. Use only the supplied or
an approved antenna.
