TECHNICAL SPECIFICATIONS
* Made of stainless steel
* Equipped with adjustable feet. It can be positioned by the wall or
combined with other appliances as a central island.
* The base unit can be equipped with drawers, doors or runners
for GN containers
* Easy to reach controls and units thanks to the removable front
panel
* Independent heating controls for each plate
* Plate-internal temperature limiter to prevent overheating and curb
energy consumption
* Powerful electric hot plates hermetically sealed to the top
* 7-position power switches
* Signal lamps showing which hot plates are on
TECHNICAL SHEET
Power
kW
15,6
Frequency
Hz
50-60
Voltage
V
400 3N ~
Top Power
kW
15,6
Cooking Zones Power
n°x kW
6x2,6
Heating Plate Dimensions
cm
22x22
Cabinet inner Dimensions (WxDxH)
cm
113x57,4x39,5
Number of Cooking zones
n°
6
Width
cm
120
Depth
cm
70
Height
cm
90
Packaging Width
cm
125,0
Packaging Depth
cm
82,0
Packaging Height
cm
112,0
Net Weight
kg
63,0000
Gross Weight
kg
90,0000
Volume
m³
01,1500
Document created on: 01/11/2018
716014
PCS12FE7

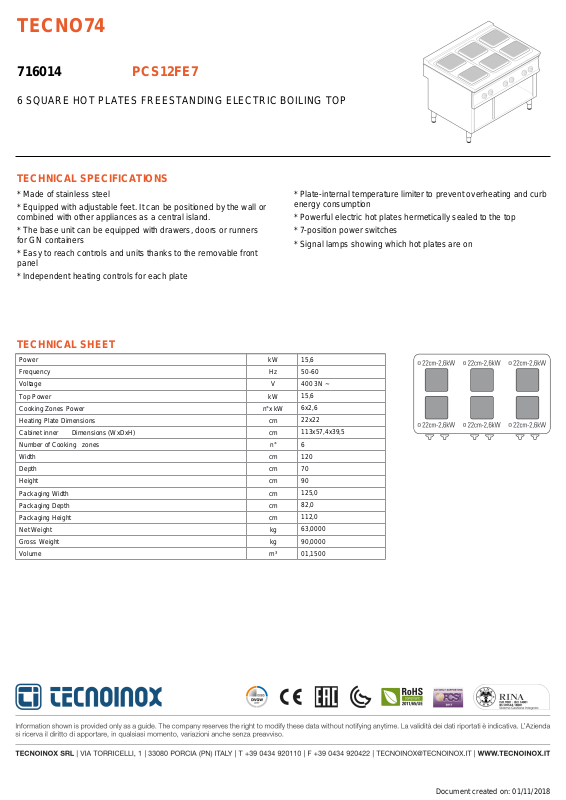

6 SQUARE HOT PLATES FREESTANDING ELECTRIC BOILING TOP
