TECHNICAL SPECIFICATIONS
* Made of stainless steel
* 2-mm-thick top
* Equipped with adjustable feet. It can be positioned by the wall or
combined with other appliances as a central island.
* The base unit can be equipped with drawers, doors or runners
for GN containers
* Easy to reach controls and units thanks to the removable front
panel
* Independent heating controls for each plate
* Plate-internal temperature limiter to prevent overheating and curb
energy consumption
* Powerful electric hot plates hermetically sealed to the top
* 7-position power switches
* Signal lamps showing which hot plates are on
TECHNICAL SHEET
Power
kW
8
Frequency
Hz
50-60
Voltage
V
400 2N ~
Top Power
kW
8
Cooking Zones Power
n°x kW
2x4
Heating Plate Dimensions
cm
30x30
Cabinet inner Dimensions (WxDxH)
cm
33x76,1x39,5
Number of Cooking zones
n°
2
Width
cm
40
Depth
cm
90
Height
cm
90
Packaging Width
cm
100,0
Packaging Depth
cm
46,0
Packaging Height
cm
115,0
Net Weight
kg
51,6000
Gross Weight
kg
62
Volume
m³
0,5300
Document created on: 25/08/2018
316009
PC4FE9

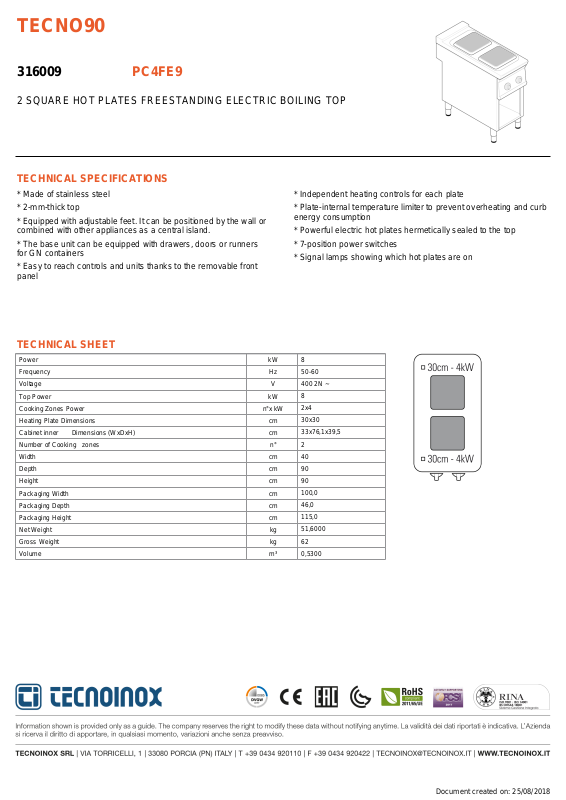

2 SQUARE HOT PLATES FREESTANDING ELECTRIC BOILING TOP
TECNO90
