Page 1
User Manual
N
Page 2
Mobile Phone
Model：KC8
Hereby, TECNO MOBILE LIMITED
declares that this Mobile Phone is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
اﺬﻫ نﺄﺑ TECNO MOBILE LIMITEDﺔﻛﴍ ﻦﻠﻌﺗ ،ﺔﻘﻴﺛﻮﻟا هﺬﻫ ﺐﺟﻮ
KC8 :ﻒﺗﺎﻬﻟا زاﺮﻃ
ﺔﻠﺼﻟا تاذ ﺔﻴﻬﻴﺟﻮﺘﻟا مﺎﻜﺣﻷاو ﺔﻴﺳﺎﺳﻷا تﺎﺒﻠﻄﺘﻤﻠﻟ ﻞﺜﺘ ﻒﺗﺎﻬﻟا
.وروﻷا دﺎﺤﺗﻻا/2014/53
KC8
Page 3
Know your phone
1. Front camera
2. Volume key
3. Power key
ﺔﻴﻣﺎﻣﻷا اﻣﺎﻜﻟا.1
تﻮﺼﻟا ىﻮﺘﺴﻣ حﺎﺘﻔﻣ .2
فﺎﻘﻳﻹاو ﻞﻴﻐﺸﺘﻟا حﺎﺘﻔﻣ .3
01
Page 4
SIM/SD
card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD
card installation.
ﻒﺗﺎﻬﻟا ﻞﻴﻐﺸﺗ فﺎﻘﻳﺈﺑ ﻢﻗ.1
.ةرﻮﺼﻟا ﰲ ﺒﻣ ﻮﻫ ﻛ ةﺮﻛاﺬﻟا ﺔﻗﺎﻄﺑو SIM ﺔﻗﺎﻄﺑ ﻞﺧدأ .2
::
::
02
Page 5

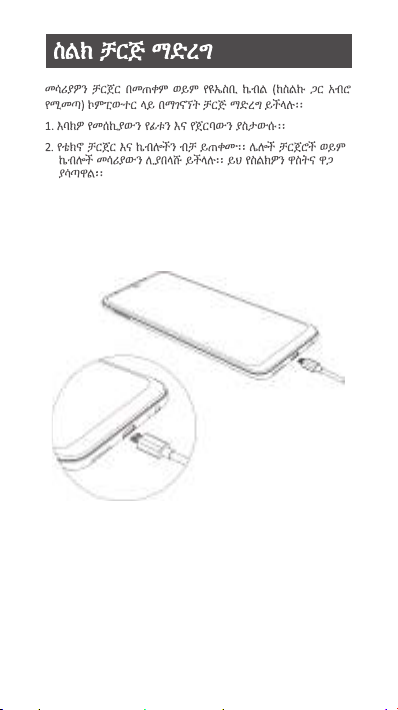

Charging the phone
Charging the phone
You can charge your device using a
charger or by connecting it to the
computer using a USB cable (comes
with the phone).
1. Please remind the front and back of
the plug.
2. Use only TECNO charger and cables.
Other chargers or cables may damage
the device. This will invalidate your
phone warranty.
03
Page 6
ﺮﺗﻮﻴﺒﻤﻜﻟا زﺎﻬﺠﺑ ﻪﻠﻴﺻﻮﺗ ﻖﻳﺮﻃ ﻦﻋ وأ ﻦﺣﺎﺷ ماﺪﺨﺘﺳﺎﺑ كزﺎﻬﺟ ﻦﺤﺷ ﻚﻨﻜ
.(ﻒﺗﺎﻬﻟا ﻊﻣ ﺮﻓﻮﺘﻳ) USB ﻞﺒﻛ ماﺪﺨﺘﺳﺎﺑ
وأ ﻦﺣاﻮﺸﻟا ﺐﺒﺴﺘﺗ ﺪﻗ .TECNO ﻦﺣﺎﺷ وأ تﻼﺑﺎﻛ ﻂﻘﻓ مﺪﺨﺘﺳا .2
.هﺮﻬﻇو ﺲﺑﺎﻘﻟا ﻪﺟو ﺑ ﺰﻴﻴﻤﺘﻟا ﻰﺟﺮُﻳ .1
.ﻚﻔﺗﺎﻫ نﺿ ﻞﻄﺒُﻳ نأ ﻪﻧﺄﺷ ﻦﻣ اﺬﻫو .زﺎﻬﺠﻟا ﻒﻠﺗ ﰲ ﺔﻔﻠﺘﺨﳌا تﻼﺑﺎﻜﻟا
040506
Page 7
Page 8
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX), 925-960MHz (RX)
DCS1800: 1710-1785MHz (TX), 1805-1880MHz
(RX)
WCDMA BAND I: 1920-1980MHz (TX),
2110-2170MHz (RX)
WCDMA BAND VIII: 880-915MHz (TX),
925-960MHz (RX)
LTE Band 1: 1920-1980MHz (TX), 2110-2170MHz
(RX)
LTE Band 3: 1710-1785MHz (TX), 1805-1880MHz
(RX)
LTE Band 7: 2500-2570MHz (TX), 2620-2690MHz
(RX)
LTE Band 8: 880-915MHz (TX), 925-960MHz (RX)
LTE Band 20: 832-862MHz (TX), 791-821MHz
(RX)
LTE Band 28A: 703-733MHz (TX), 758-788MHz
(RX)
Bluetooth: 2402-2480MHz (TX/RX)
WiFi(2.4G): 2412-2472MHz (TX/RX)
GPS: 1.57542GHz
FM: 87.5-108MHz
Modulation mode：
GMSK, 8PSK (GSM)
BPSK, QPSK, 16-QAM (WCDMA)
QPSK, 16-QAM, 64-QAM (LTE)
GFSK, π/4-DQPSK, 8DPSK (BT)
GFSK (BLE)
CCK for IEEE 802.11b (WiFi)
OFDM for IEEE 802.11 g/n (HT-20)/HT-40 (WiFi)
BPSK (GPS)
Page 9
RF Output Power：
Body parts
Test value
Test distance
Limit
Head
0.845W/Kg 10g
0cm
2.0 W/Kg 10g
Body
0.494W/Kg 10g
0.5cm
2.0 W/Kg 10g
GSM900: 33dBm±2dB
GSM1800: 30dBm±2dB
WCDMA BAND I/VIII: 24dBm+1dB/-3dB
LTE BAND 1/3/7/8/20/28A:
23dBm+/-2.7dB
Bluetooth: 0-10dBm
WiFi: 14dBm+/-3dB
Specific Absorption Rate (SAR)
Certification
THIS DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO WAVES
07
Page 10
CAUTION：
1. Use careful with the earphone maybe
excessive sound pressure from earphones
and headphones can cause hearing loss.
2. Risk of explosion if battery is replaced
by an incorrect type, dispose of used
batteries according to the instructions.
3. The product shall only be connected to
a USB interface of version USB 2.0.
4. Adapter shall be installed near the
equipment and shall be easily accessible.
5. EUT Temperature: -10℃～+65℃.
6. Adapter1: CU-52AT
Input: 100-240V 50/60Hz 200mA
Output: 5V /1.2A
Adapter2: U060TKA
Input: 100-240V 50/60Hz 300mA
Output: 5V /1.2A
7. The device complies with RF specifications when the device used at 5 mm from
your body, and the holder must not be of
metal composition.
8. To prevent possible hearing damage,
do not listen at high volume levels for long
periods.
9. Earphone and USB cable are shielded.
08
Page 11
Page 12
规格：70*125mm
P数：11P
材质：105g哑粉
印刷：80%单黑
工艺：折页
