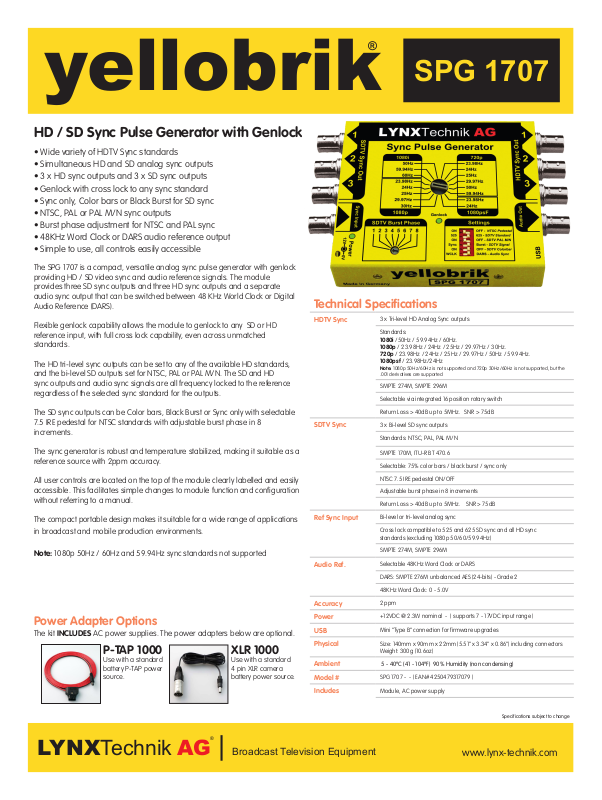

yellobrik
HD / SD Sync Pulse Generator with Genlock
• Wide variety of HDTV Sync standards
• Simultaneous HD and SD analog sync outputs
• 3 x HD sync outputs and 3 x SD sync outputs
• Genlock with cross lock to any sync standard
• Sync only, Color bars or Black Burst for SD sync
• NTSC, PAL or PAL M/N sync outputs
• Burst phase adjustment for NTSC and PAL sync
• 48KHz Word Clock or DARS audio reference output
• Simple to use, all controls easily accessible
The SPG 1707 is a compact, versatile analog sync pulse generator with genlock
providing HD / SD video sync and audio reference signals. The module
provides three SD sync outputs and three HD sync outputs and a separate
audio sync output that can be switched between 48 KHz World Clock or Digital
Audio Reference (DARS).
Flexible genlock capability allows the module to genlock to any SD or HD
reference input, with full cross lock capability, even across unmatched
standards.
The HD tri-level sync outputs can be set to any of the available HD standards,
and the bi-level SD outputs set for NTSC, PAL or PAL M/N. The SD and HD
sync outputs and audio sync signals are all frequency locked to the reference
regardless of the selected sync standard for the outputs.
The SD sync outputs can be Color bars, Black Burst or Sync only with selectable
7.5 IRE pedestal for NTSC standards with adjustable burst phase in 8
increments.
The sync generator is robust and temperature stabilized, making it suitable as a
reference source with 2ppm accuracy.
All user controls are located on the top of the module clearly labelled and easily
accessible. This facilitates simple changes to module function and configuration
without referring to a manual.
The compact portable design makes it suitable for a wide range of applications
in broadcast and mobile production environments.
Note: 1080p 50Hz / 60Hz and 59.94Hz sync standards not supported
Power Adapter Options
The kit INCLUDES AC power supplies. The power adapters below are optional.
P-TAP 1000
Use with a standard
battery P-TAP power
source.
XLR 1000
Use with a standard
4 pin XLR camera
battery power source.
Technical Specifications
HDTV Sync
SDTV Sync
Ref Sync Input
Audio Ref.
Accuracy
Power
USB
Physical
Ambient
Model #
Includes
SPG 1707
3 x Tri-level HD Analog Sync outputs
Standards:
1080i /50Hz / 59.94Hz / 60Hz.
1080p / 23.98Hz / 24Hz / 25Hz / 29.97Hz / 30Hz.
720p / 23.98Hz / 24Hz / 25Hz / 29.97Hz / 50Hz / 59.94Hz.
1080psf / 23.98Hz/24Hz
Note: 1080p 50Hz/60Hz is not supported and 720p 30Hz/60Hz is not supported, but the
.001 derivatives are supported
SMPTE 274M, SMPTE 296M
Selectable via integrated 16 position rotary switch
Return Loss > 40dB up to 5MHz. SNR > 75dB
3 x Bi-level SD sync outputs
Standards: NTSC, PAL, PAL M/N
SMPTE 170M, ITU-R BT 470.6
Selectable: 75% color bars / black burst / sync only
NTSC 7.5 IRE pedestal ON/OFF
Adjustable burst phase in 8 increments
Return Loss > 40dB up to 5MHz. SNR > 75dB
Bi-level or tri-level analog sync
Cross lock compatible to 525 and 625 SD sync and all HD sync
standards (excluding 1080p 50/60/59.94Hz)
SMPTE 274M, SMPTE 296M
Selectable 48KHz Word Clock or DARS
DARS: SMPTE 276M unbalanced AES (24-bits) - Grade 2
48KHz Word Clock: 0 - 5.0V
2 ppm
+12VDC @ 2.3W nominal - ( supports 7 - 17VDC input range )
Mini “Type B” connection for firmware upgrades
Size: 140mm x 90mm x 22mm (5.51” x 3.34” x 0.86”) including connectors
Weight: 300g (10.6oz)
5 - 40ºC (41 - 104ºF) 90% Humidity (non condensing)
SPG 1707 - - ( EAN# 4250479317079 )
Module, AC power supply
®
LYNXTechnik AG | Broadcast Television Equipment
Specifications subject to change
