TecNec PTG 1802 Data Sheet

™

LYNXTechnik AG

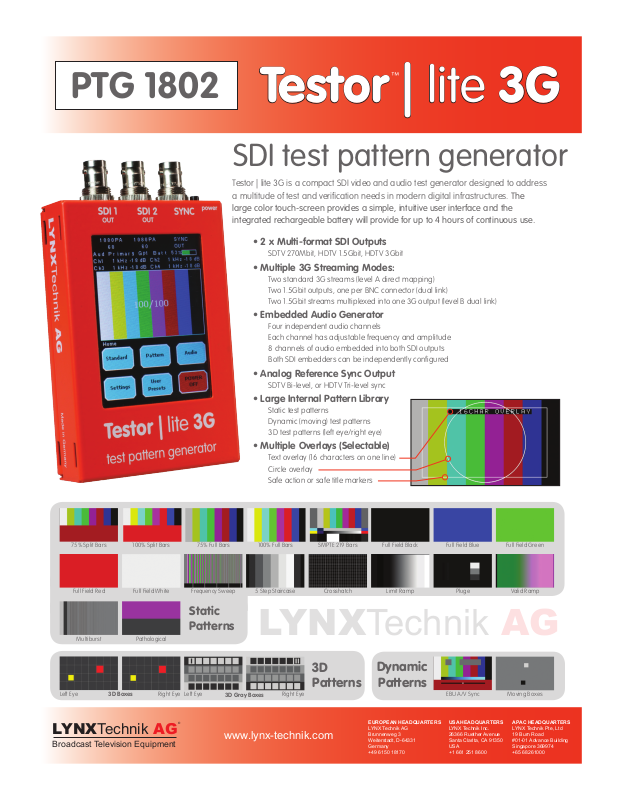

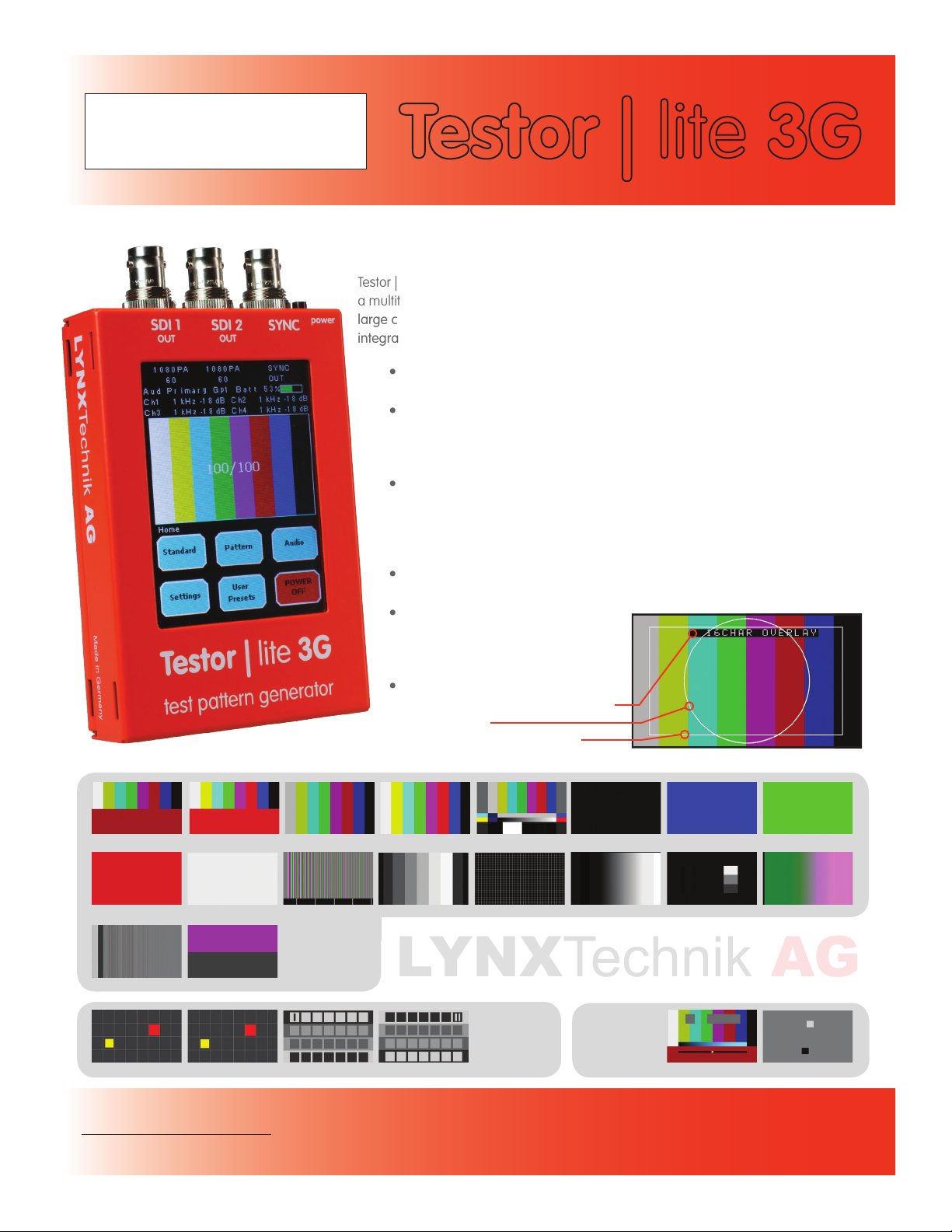

PTG 1802

Testor | lite 3G

SDI test pattern generator

Testor | lite 3G is a compact SDI video and audio test generator designed to address
a multitude of test and verification needs in modern digital infrastructures. The

large color touch-screen provides a simple, intuitive user interface and the
integrated rechargeable battery will provide for up to 4 hours of continuous use.

• 2 x Multi-format SDI Outputs

SDTV 270Mbit, HDTV 1.5Gbit, HDTV 3Gbit

• Multiple 3G Streaming Modes:

Two standard 3G streams (level A direct mapping)
Two 1.5Gbit outputs, one per BNC connector (dual link)
Two 1.5Gbit streams multiplexed into one 3G output (level B dual link)

• Embedded Audio Generator

Four independent audio channels
Each channel has adjustable frequency and amplitude
8 channels of audio embedded into both SDI outputs
Both SDI embedders can be independently configured

• Analog Reference Sync Output

SDTV Bi-level, or HDTV Tri-level sync

• Large Internal Pattern Library

Static test patterns
Dynamic (moving) test patterns
3D test patterns (left eye/right eye)

• Multiple Overlays (Selectable)

Text overlay (16 characters on one line)
Circle overlay
Safe action or safe title markers

75% Split Bars

Full Field Red Full Field White Frequency Sweep 5 Step Staircase Crosshatch Limit Ramp Pluge Valid Ramp

100% Split Bars 75% Full Bars 100% Full Bars SMPTE 219 Bars Full Field Black Full Field Blue Full Field Green

Static
Patterns

Multiburst Pathological

Left Eye Left EyeRight Eye Right Eye

LYNXTechnik AG

Broadcast Television Equipment

3D Boxes

3D Gray Boxes

®

www.lynx-technik.com

3D
Patterns

Dynamic

Patterns

EUROPEAN HEADQUARTERS

LYNX Technik AG
Brunnenweg 3
Weiterstadt, D-64331
Germany
[phone]

EBU A/V Sync Moving Boxes

USA HEADQUARTERS

LYNX Technik Inc.
26366 Ruether Avenue
Santa Clarita, CA 91350
USA
[phone]

APAC HEADQUARTERS

LYNX Technik Pte, Ltd
19 Burn Road
#01-01 Advance Building
Singapore 369974
[phone]

™

PTG 1802

Technical Specifications

SDI Outputs

Video Formats

3G Modes

Audio

Sync Output

Patterns

Overlays

2 x SDI video on 75 Ohm BNC connectors

Each output is the same format and frequency, but can have
different static test patterns
(Note: dynamic patterns are on both SDI outputs)

SMPTE 424M, SMPTE 292M, SMPTE 259M

SDTV 270Mbit: 525 (480i/59.94), 625 (576i/50)

HDTV 1.5Gbit: 1080i/60, 1080i/59.94, 1080i/50, 1080p/30,

1080p/29.97, 1080p/25, 1080p/24, 1080p/24.98, 1080psf/25,
1080psf/24,1080psf/23.98, 720p/60, 720p/59.94, 720p/50,
720p/30, 720p/29.97, 720p/25, 720p/24, 720p/23.98

HDTV 3G: 1080p/60, 1080p/59.94, 1080p/50

One 3G stream on both BNC connectors. Direct mapping Level A
(SMPTE 425)

Two individual 1.5G streams, one per BNC Connector. Dual Link.
(SMPTE 372)

Two individual 1.5G streams multiplexed into a single 3G stream.
Dual Link Level B (SMPTE 425)

4 x independent audio channels (2 Stereo pairs) each with
adjustable level and frequency

Preset frequency selections: 50, 100, 200, 250, 400, 500, 800, 1k,
2k, 4k, 8k, 16kHz

Level adjustments: 0 to -79dBFS in 1dB steps

All 4 channels available to both SDI output embedders, which
can embed 8 channels into any two groups (selectable). Each SDI
Embedder can be configured independently with different groups
and channel assignments.
Note: When SMPTE 525 dual stream or dual link mode is used,
audio is embedded into both streams.

1 x analog sync output, BNC connector 75 Ohm

Reference output is the same standard as the selected SDI output
SDTV = Bi-level analog sync only (no burst or video content)
HDTV = Tri-level analog sync

Static Patterns: 100 Split Colorbars, 75 Split Colorbars, 100 Full
Bars, 75 Full Bars, SMPTE 219 Colorbars, Full Field Red, Full Field
Green, Full Field Blue, Full Field Black, Full field White, Pluge,
Crosshatch, 5-Step Staircase, Valid Ramp, Limit Ramp, Multiburst,
Frequency Sweep, Pathological EQ/PLL

Dynamic Patterns: EBU A/V Sync Pattern, Moving Boxes

3D Patterns: 3D Boxes (left eye / right eye), 3D Gray Boxes (left

eye/right eye)

Text Overlay: Single line, 16 characters max.

Circle: 1 pixel circle centered on test pattern

Markers: Safe Action or Safe Title markers per SMPTE RP218-2002

Testor | lite 3G

Power

Physical

Ambient

Safety

Includes

Options

Warranty

Internal rechargeable battery. Full charge provides approx 4 Hours
continuous use.

External power / charge is provided via the USB port.
Note: USB port is also used for firmware updates

When connected to a standard USB 2.0 port the Testor | lite 3G will draw
500mA (max) to charge battery. (if the unit is powered while connected to
a USB 2.0 port then it will use the internal battery and is not charging)
Charge time 360 minutes approx. (from empty) when connected to
standard USB 2.0 port (i.e. computer) with Testor | lite 3G switched off

If connected to the USB-DCP power supply (included) then the unit can be
powered and charged simultaneously. (1.5A).Charge times (from empty):
100 minutes approx. with unit switched off
180 minutes approx. with unit switched on

Size (including connectors): 130 x 77 x 23mm (5.12 x 3.03 x 0.91 inches)

Weight: 250g (8.82 oz)

Temperature: 5-40ºC (41-104ºF)

Humidity: 90% non condensing

IEC 60950-1.2005/ EN 60950-1:2006

PTG 1802 Testor | lite 3G Test Pattern Generator, USB-DCP AC power
supply (+regional AC plug adapters), USB cable, Quick Reference, User
Manual

Option: PTG CASE - Cloth protective case, with window for display
viewing and operation. Includes belt clip.
Option: PTG BATT - Replacement rechargeable battery

NOTE: Testor | lite 3G is not designed for frequent battery exchanges
using a spare. Only exchange battery when installed unit has depleted.
Some disassembly is required.

Testor | lite 3G = 3 years. Battery = 6 Months

Specifications subject to change

LYNXTechnik AG

Broadcast Television Equipment

PTG CASE - Protect your Testor | lite 3G with the optional cloth case.

Includes a window to view and operate the display plus a belt clip.

®
