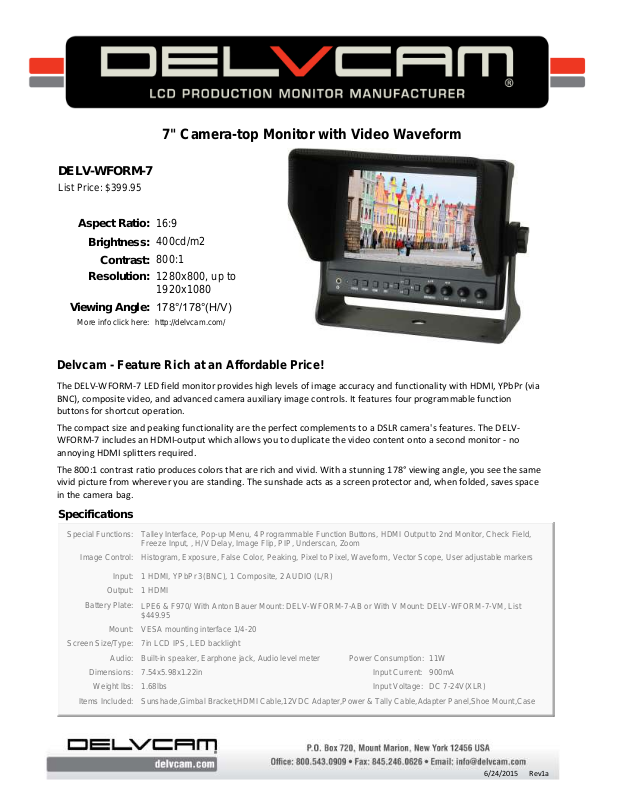

TecNec DELV-WFORM-7 Data Sheet

DELV-WFORM-7

7" Camera-top Monitor with Video Waveform

16:9

Built-in speaker, Earphone jack, Audio level meter

LPE6 & F970/ With Anton Bauer Mount: DELV-WFORM-7-AB or With V Mount: DELV-WFORM-7-VM, List
$449.95

400cd/m2

800:1

7.54x5.98x1.22in

1 HDMI, YPbPr 3(BNC), 1 Composite, 2 AUDIO (L/R)

900mA

DC 7-24V(XLR)

VESA mounting interface 1/4-20

1 HDMI

11W

1280x800, up to
1920x1080

7in LCD IPS, LED backlight

Talley Interface, Pop-up Menu, 4 Programmable Function Buttons, HDMI Output to 2nd Monitor, Check Field,
Freeze Input, , H/V Delay, Image Flip, PIP, Underscan, Zoom

178°/178°(H/V)

1.68lbs

Aspect Ratio:

Brightness:

Contrast:

Resolution:

Screen Size/Type:

Dimensions:

Weight lbs:

Viewing Angle:

Input Current:

Input Voltage:

Power Consumption:

Battery Plate:

Audio:

Special Functions:

Input:

Mount:

Output:

Image Control:

Histogram, Exposure, False Color, Peaking, Pixel to Pixel, Waveform, Vector Scope, User adjustable markers

The DELV-WFORM-7 LED field monitor provides high levels of image accuracy and functionality with HDMI, YPbPr (via
BNC), composite video, and advanced camera auxiliary image controls. It features four programmable function
buttons for shortcut operation.

Specifications

The compact size and peaking functionality are the perfect complements to a DSLR camera's features. The DELV­WFORM-7 includes an HDMI-output which allows you to duplicate the video content onto a second monitor - no
annoying HDMI splitters required.

The 800:1 contrast ratio produces colors that are rich and vivid. With a stunning 178° viewing angle, you see the same

vivid picture from wherever you are standing. The sunshade acts as a screen protector and, when folded, saves space
in the camera bag.

List Price:

$399.95

Delvcam - Feature Rich at an Affordable Price!

http://delvcam.com/

More info click here:

Items Included:

Sunshade,Gimbal Bracket,HDMI Cable,12VDC Adapter,Power & Tally Cable,Adapter Panel,Shoe Mount,Case

6/24/2015

Rev1a
