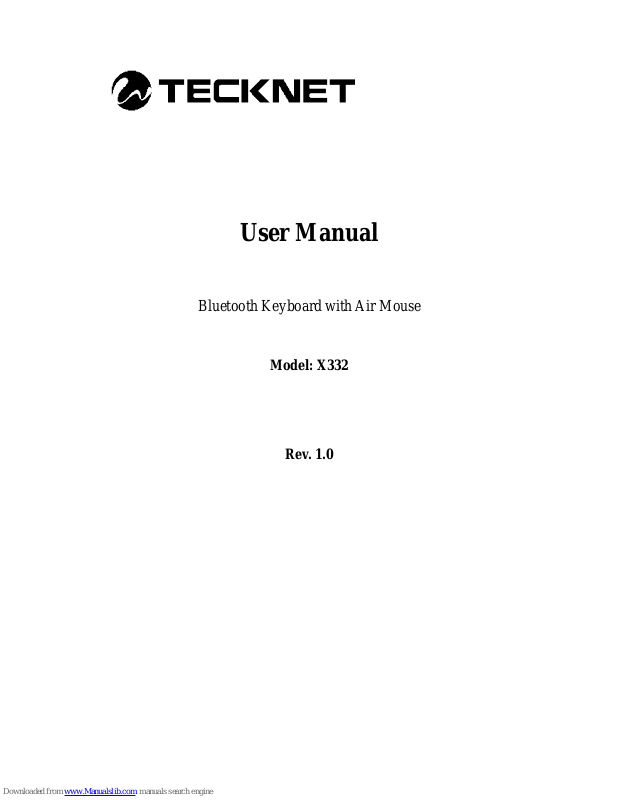

Tecknet X332 User Manual

User Manual

Bluetooth Keyboard with Air Mouse

Model: X332

Rev. 1.0

Product introduction:

Bluetooth keyboard with air mouse is designed small and portable, it is widely used for:
 People who need to be apart from their base equipment and yet control it for their

entertainment, training, presentation, lecturing with large screen or projector, up to 33 feet
wireless operation distance provides you big free space to communicate with your audience;

 The people who want to sit at their easy and comfortable chair to view the internet content,

network television, such as IPTV, or internet movies instead of physically change its channel,
it is a really computer remote controller, of course not a TV remote controller;

 External keyboard/remote for tablet PC, Car PC, Android devices, Smart TV, etc.;
 An external keyboard for iPad, iPhone4, and Samsung Galaxy mobile phone, etc.

Package content:

1*TeckNetBluetooth wireless keyboard with air Mouse
1*USB Receiver
1*USB cable for recharging the unit
1*User manual

Features and specifications:

 Bluetooth connection
 Max working distance: 10m
 QWERTY keyboard
 Ultra-sensitive 3 axial Gyro-sensor- in-air cursor control using natural hand motions
 Rechargeable l * lithium-ion battery
 Battery Capacity: 400mA
 Charge Voltage: DC 5V/300mA
 Standby Time: 400 hours
 Size: 125.8*56.5*13 mm
 Weight: 71g

Systemsapplicable:

- Windows 2000/XP/7Vista /7/8

- Linux/- Android/- Mac

Note: your devices should be equipped with USB or Bluetooth HID driver/Profile, supports USB
or Bluetooth HID keyboard. The air mouse function does not work for iOS system, Apple TV box

Instructions for using this product

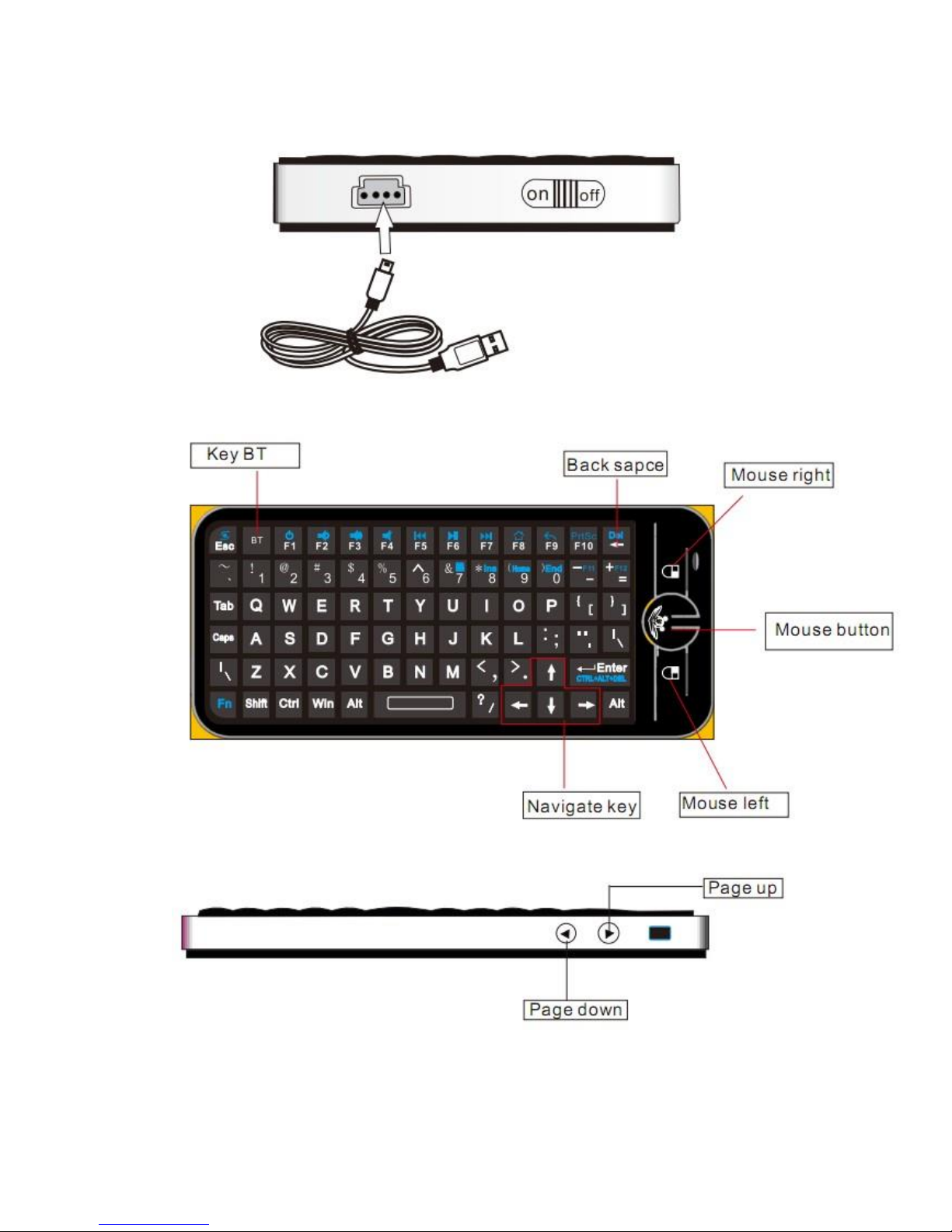

Turn on the keyboard

You can turn on the keyboard by the ON/OFF switch at the top, which is illustrated by the
following figure.

Pairing and establishing connection with computer

This manual provides instructions for operation on Windows XP/2000 system and Windows 7
system. You could choose the instructions for reference according to your specific operation
system.

Under Windows XP/2000

Let's take Microsoft Bluetooth Software as an example to describe Bluetooth Search,Pairing and
Connection, other Bluetooth software please refer to its own user manual.
1 Insert Bluetooth adaptor into any vacant USB port on your computer, please be patient to wait

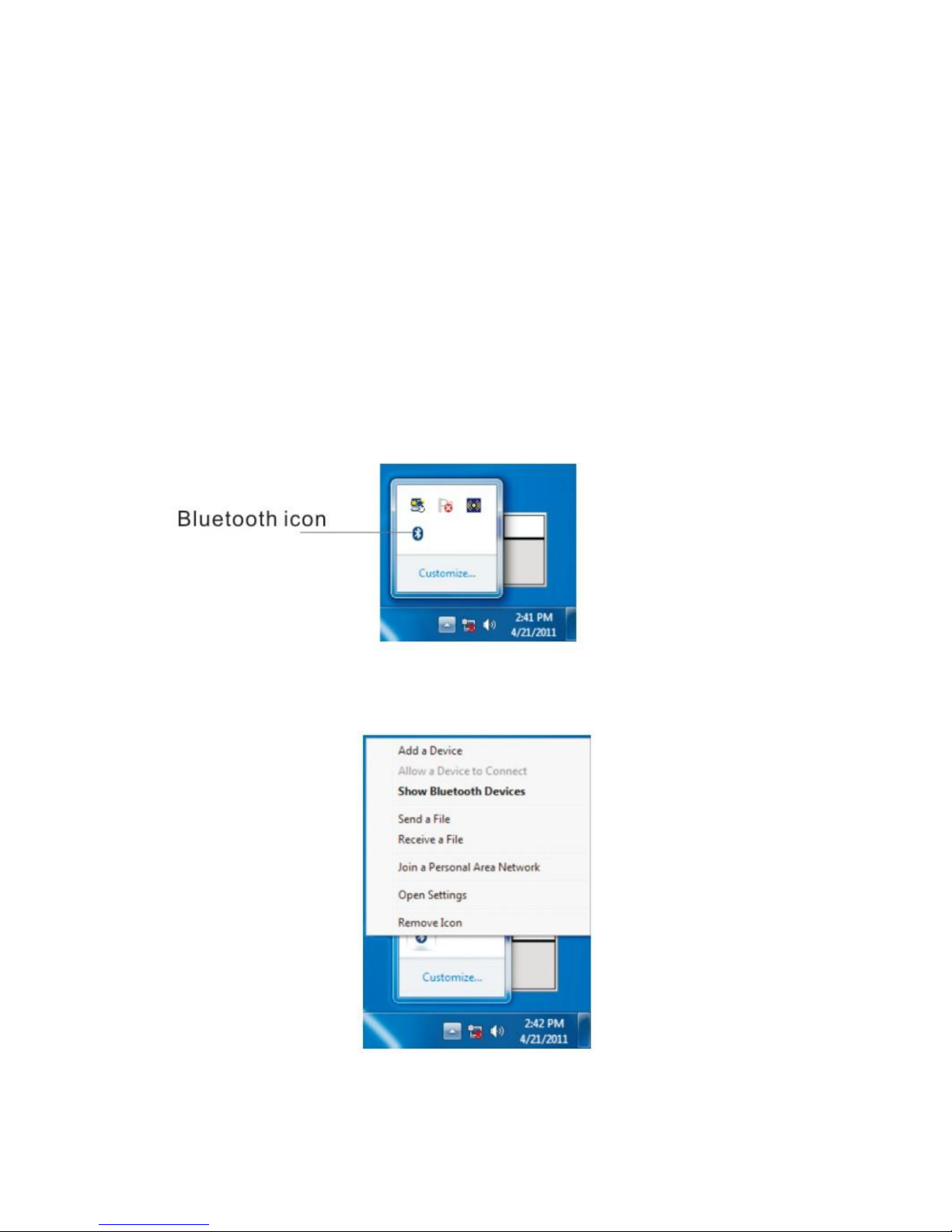

system search and install new hard driver. Then Bluetooth icon will appear on the taskbar.
If your computing device has integrated Bluetooth receiver, please refer to the user manual to
enable that receiver.

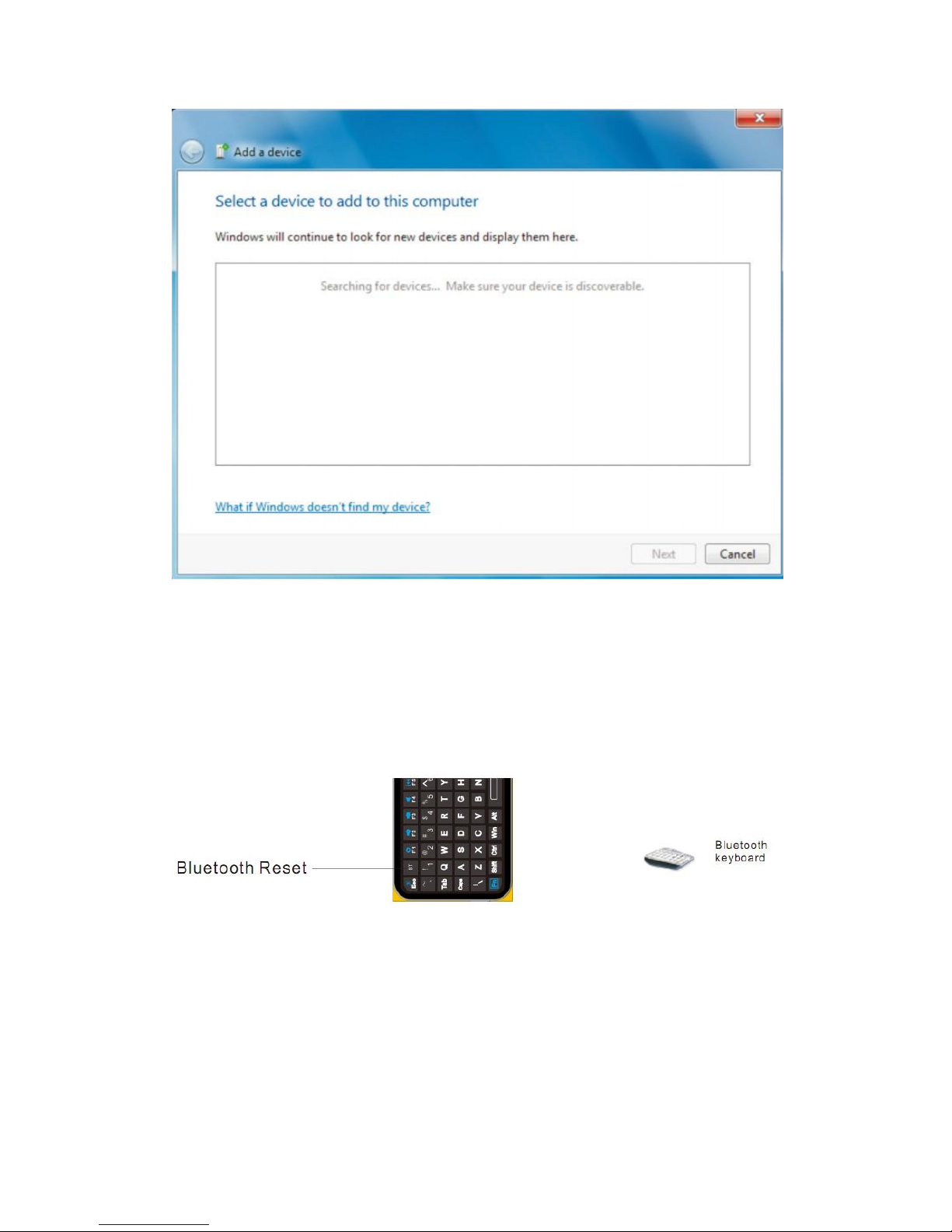

2 Turn on unit by moving the power switch to ON, press key BLUETOOTH RESET indicated till
LED3 blinks then release it(about 2-5 seconds), that means your unit is ready and searching other
Bluetooth devices for pairing.

Note: during operation, do not press this key, or your Bluetooth keyboard will be disconnected
from your computer

3 Click “Start”, “Control Panel” (make sure you're in Classic View), and then double-click
Bluetooth Devices. Select “Add”.

4 In the Add Bluetooth Device Wizard, select the “My device is set up and ready to be found

check box”, and then click “Next”.
5 After icon of “Bluetooth keyboard” appear, click “Bluetooth keyboard”, and then click “Next”.

6 When the wizard asks you which passkey you want to use, click “Choose a passkey for me”.

Then click “Next”.

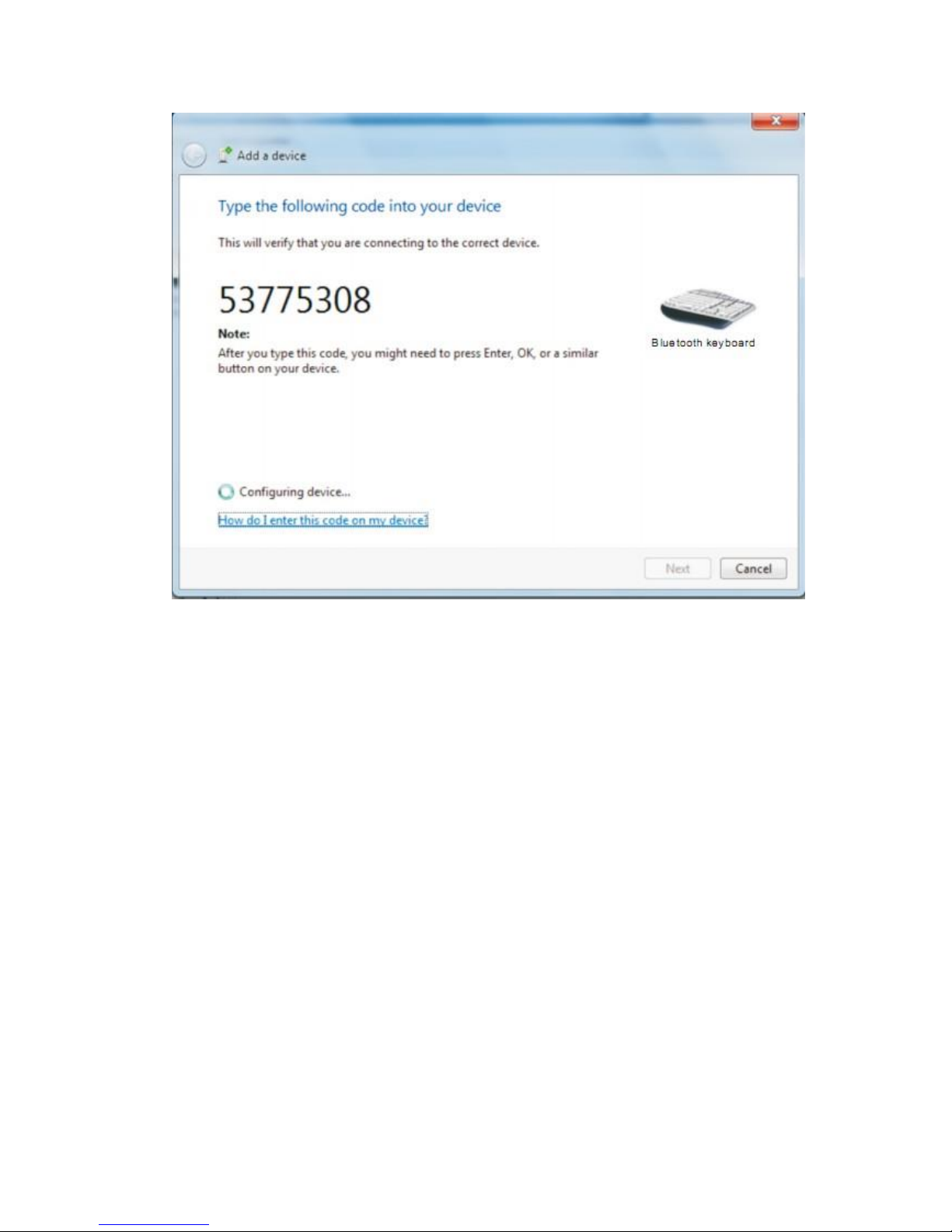

7 After you are prompted to enter your passkey, please type the passkey with keys on Mini
Bluetooth Keyboard, and then press Enter. You also can choose no passkey to go next step.
PLEASE DO REMEMBER TO USE THE KEY OF MINI BLUETOOTH KEYBOARD WHEN
INPUT PASSKEY.
