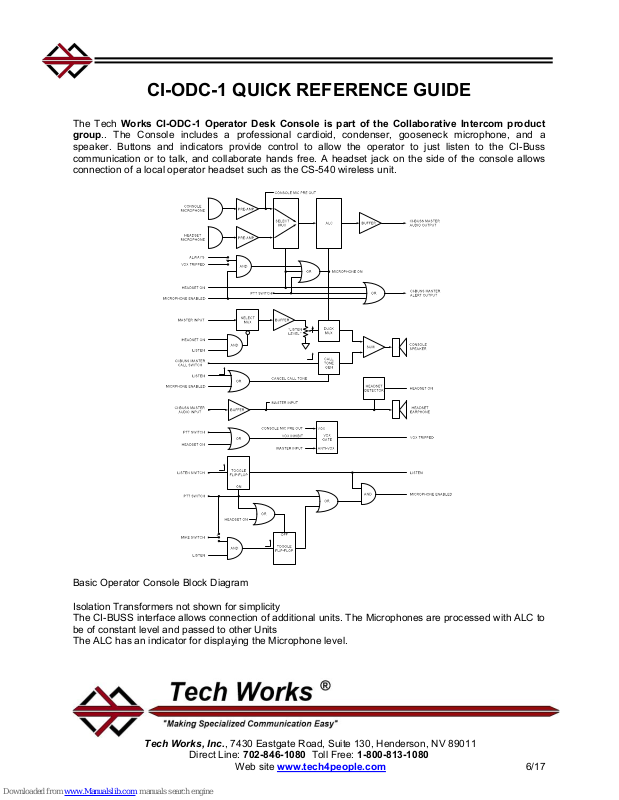

CI-ODC-1 QUICK REFERENCE GUIDE
The Tech Works CI-ODC-1 Operator Desk Console is part of the Collaborative Intercom product
group.. The Console includes a professional cardioid, condenser, gooseneck microphone, and a
speaker. Buttons and indicators provide control to allow the operator to just listen to the CI-Buss
communication or to talk, and collaborate hands free. A headset jack on the side of the console allows
connection of a local operator headset such as the CS-540 wireless unit.
Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity
The CI-BUSS interface allows connection of additional units. The Microphones are processed with ALC to
be of constant level and passed to other Units
The ALC has an indicator for displaying the Microphone level.
Tech Works, Inc., 7430 Eastgate Road, Suite 130, Henderson, NV 89011
Direct Line: 702-846-1080 Toll Free: 1-800-813-1080
Web site www.tech4people.com 6/17
Controls and Indicators:
Front, Vertical Face:
Power Indicator, Green when Operating Normally
Microphone Input Level Indicator/VOX Indicator:
Off (VOX not tripped), microphone off ; Red, Low audio Level ; Flashing Green; Normal audio level
Headset On Indicator: Green when the Operator Wireless Headset is ON;
When the Headset is ON, the Console Microphone, Speaker, and Switches, are disabled
Sloped Face:
LISTEN Switch (Toggle Action)
Remote Station Selected Indicator:
Red when selected - Controls both the Listening and Talking to the Remote Station
Console TALK Switch (Toggle Action with VOX, or Momentary when Push-to-Talk)
TALK Indicator:
Red when Microphone is enabled - Allows listening without interrupting the Remote Conversation
Side:
Console Speaker Listening Level (Knob Pot, Side)
The Console Speaker Level Adjustment is limited, the speaker may not be turned completely off
Rear Connections:
Tech Works
CI-ODC-1
CI-BUSS
MASTER
FOOT
SWITCH
POWER
24VDC
300mA
CI-BUSS, “Master” Connector, RJ-45,
Footswitch (Optional), 1/4" TRS Jack - Used for 'Push-to-Talk' Operation
Power Connector: 3.5mm Barrel Connectors - 24Volts, 1 Amps Maximum
Chassis, Earth Ground: Hex Nut, the Chassis is connected to Circuit Common through a 1-Meg-Ohm
resistor
Side Connections:
Headset Connector, RJ-22, CS-540, Plantronics, Wireless Headset (Optional)
The CS-540 requires initial adjustments
Configuration Switch: “A”
Earphone Switch: “4”
Microphone Switch: “6”
Page 2 of 4
The Console Speaker listening level may be adjusted to be heard throughout the room
When the Console Microphone is enabled the Console Speaker listening level is reduced to a lower level
to prevent feedback
There is a Remote Call Switch in the Procedure Room to get the attention of the Operator,
The Call Tone comes through the Console Speaker, only if the Console Microphone is not enabled
If the Procedure Room is in a Conversation with the Operator, it is assumed the Call Switch will not be
used
There are two Operational Configurations
VOX (Voice Activated), or Push-to-Talk, Microphone
The user should read the section below that pertains to their configuration
VOX (Voice Activated Microphone) Operation (Standard Option):
Basic Console Operation is straightforward and intuitive
When the Operator wants to converse with the Procedure Room
The "LISTEN" switch is pushed, the indicator lights Red
If the Operator wants to end the conversation, the "LISTEN" switch is pushed again, the indicator goes off
The Operator may disable the microphone with the "TALK” Switch", to only listen to the Procedure Room
When the “TALK” switch is pushed, the indicator goes off to indicate the Console Microphone is disabled
When the “TALK” switch is pushed again, the indicator lights red, to indicate the Microphone is enabled
When the microphone is enabled, the Switchover is Voice Activated (VOX)
The Operator must speak directly into the Console Microphone
At a distance of ~6” for proper response
The "LIMIT/VOX" indicator lights Green to indicate the VOX is tripped
During normal operation, the "LEVEL/VOX" Indicator flashes Red to indicate proper microphone level
If the Operator wants to continue listening without talking
the Microphone should be disabled (Push the “TALK” Switch again)
TALK may only be changed while listening
When listening is discontinued the state of TALK is retained
This allows the Listen Switch to Control both Listening and Talking
Push-to-Talk Microphone Operation, (Jumper Option):
Basic Console Operation is straightforward and intuitive
When the Operator wants to converse with the Procedure Room
The "LISTEN" switch is pushed, the indicator lights Red
If the Operator wants to end the conversation, the "LISTEN" switch is pushed again, the indicator goes off
When the TALK Switch is pressed: The Console Microphone is activated
And the Console Speaker is forced to Listening, when the Switch is Released the Console remains
Listening
If the Operator wants to discontinue listening the “LISTEN” switch should be pressed
Page 3 of 4
When the microphone is enabled
As S
hipped Jumpers to the Right
Move both Jumpers to the Left
Operation
HANDS FREE
OPERATION
PTT OPERATION
P2 Mic. Enable
VOX
PTT P5 Talk Button
LATCH
PTT
The Operator must speak directly into the Console Microphone
At a distance of ~6” for proper response
The "LIMIT/VOX" indicator lights Green to indicate the Microphone is on
During normal operation, the "LEVEL/VOX" Indicator flashes Red to indicate proper microphone level
Operation with Accessories:
The PTT Foot Switch allows hands free operation, and overrides VOX if the Environment becomes
noisy
If the Operator has a Push-to-Talk Foot Switch (Optional)
PTT disables VOX mode
When the Foot Switch is pressed the Console Microphone is immediately activated
When the Foot Switch is Released the Console returns to Listening
The Wireless Headset allows the Operator to move about the room,
while carrying on a conversation with the Procedure Room
If the Operator has a Wireless Headset (Optional)
The Wireless Headset has an ON/OFF switch, when the Headset is ‘Off’ the function is the same as
above. The Headset has priority, and converses with the Procedure Room when the
“HEADSET ON” indicator is lighted Red;
The Console Microphone, Speaker, and Switches, are disabled
The Listen and Talk indicators are forced off
Configuration Jumpers (Console Cover Removed):
Jumper:
Other Combinations are allowed and give special functionality where required like VOX with PTT
or PTT with LATCHing Button.
Cleaning – If the product becomes dirty and requires cleaning DO NOT USE CLEANING CHEMICALS
SUCH AS 409, SIMPLE GREEN, or other solvents. If possible only use water to make a damp soft cloth
and rub lightly to preserve the finish. If further cleaning or disinfecting is required, use only isopropyl
alcohol on a soft cloth. Alcohol may dull the finish of the product but will not harm the electronics.
Page 4 of 4
