TechVision PBS2L1W2-2 User Manual

PBS2L1W2-2

2MP IP Bullet Camera

Notes on Safety

 Please use the specified power supply to connect.
 Do not attempt to disassemble the camera; in order to prevent electric shock, do not

remove screws or covers.

 There are no user-serviceable parts inside. Please contact the nearest service center as

soon as possible if there is any failure.

 Avoid from incorrect operation, shock vibration, heavy pressing which can cause

damage to product.

 Do not use corrosive detergent to clean main body of the camera. If necessary, please

use soft dry cloth to wipe dirt; for hard contamination, use neutral detergent. Any
cleanser for high grade furniture is applicable.

 Avoid aiming the camera directly towards extremely bright objects, such as, sun, as this

may damage the image sensor.

 Please follow the instructions to install the camera. Do not reverse the camera, or the

reversing image will be received.

 Do not operate it in case temperature, Relative humidity and power supply are beyond

the limited stipulations.

 Keep away from heat sources such as radiators, heat registers, stove, etc.
 Do not expose the product to the direct airflow from an air conditioner.
 This is product instructions not quality warranty. We may reserve the rights of amending

the typographical errors, inconsistencies with the latest version, software upgrades and
product improvements, interpretation and modification. These changes will be published
in the latest version without special notification.

 When this product is in use, the relevant contents of Microsoft, Apple and Google will

be involved in. The pictures and screenshots in this manual are only used to explain the
usage of our product. The ownerships of trademarks, logos and other intellectual
properties related to Microsoft, Apple and Google belong to the above-mentioned
companies.

 This manual is suitable for IR water-proof network camera. All pictures and examples

used in the manual are for reference only.

Disclaimer & Regulatory Information

Disclaimer

 With regard to the product with internet access, the use of product shall be wholly at your

own risks. Our company shall be irresponsible for abnormal operation, privacy leakage or
other damages resulting from cyber attack, hacker attack, virus inspection, or other
internet security risks; however, Our company will provide timely technical support if
necessary.

 Surveillance laws vary from country to country. Check all laws in your local region

before using this product for surveillance purposes. We shall not take the responsibility
for any consequences resulting from illegal operations.

FCC Marking

The products have be tested and found in compliance with the council FCC rules and

regulations part 15 subpart B. Operation of this product is subject the following two conditions:
(1) this device may not cause harmful interface, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

CE Marking

The products have been manufactured to comply with the following directives.

EMC Directive 2014/30/EU

RoHS Marking

The products have designed and manufactured in accordance with Directive EU RoHS
Directive 2011/65/EU and its amendment Directive EU 2015/863 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.

Table of Contents

1 Introduction ................................................................................................................... 1

2 Network Connection ...................................................................................................... 2

2.1 LAN ................................................................................................................... 2

2.1.1 Access through IP-Tool ................................................................ ............ 2

2.1.2 Directly Access through IE ....................................................................... 4

2.2 WAN .................................................................................................................. 5

3 Live View ........................................................................................................................ 8

4 Configuration ................................................................................................................. 9

4.1 System Configuration ........................................................................................ 9

4.1.1 Basic Information ..................................................................................... 9

4.1.2 Date & Time ............................................................................................. 9

4.1.3 Local Configuration ................................................................................ 10

4.2 Image Configuration ........................................................................................ 10

4.2.1 Display Configuration ............................................................................ 10

4.2.2 Video Stream .......................................................................................... 12

4.2.3 OSD Configuration ................................................................................. 13

4.2.4 Video Mask ............................................................................................ 14

4.2.5 ROI Configuration .................................................................................. 15

4.3 Alarm Configuration ........................................................................................ 16

4.3.1 Motion Detection .................................................................................... 16

4.3.2 Alarm Server .......................................................................................... 18

4.4 Event Configuration (Optional) ....................................................................... 18

4.4.1 Exception ................................................................................................ 18

4.4.2 Line Crossing .......................................................................................... 20

4.4.3 Intrusion .................................................................................................. 21

4.5 Network Configuration .................................................................................... 23

4.5.1 TCP/IP .................................................................................................... 23

4.5.2 Port ......................................................................................................... 25

4.5.3 Server Configuration .............................................................................. 25

4.5.4 DDNS Configuration .............................................................................. 25

4.5.5 802.1x ..................................................................................................... 27

4.5.6 RTSP ....................................................................................................... 27

4.5.7 UPNP ...................................................................................................... 28

4.5.8 Mail Configuration ................................................................................. 29

4.5.9 HTTPS .................................................................................................... 30

4.5.10 QoS .................................................................................................... 31

4.6 Security Configuration ..................................................................................... 31

4.6.1 User Configuration ................................................................................. 31

4.6.2 Online Video User .................................................................................. 33

4.6.3 Block and Allow List .............................................................................. 33

Network Camera User Manual

4.6.4 Security Management ............................................................................. 33

4.7 Maintenance Configuration.............................................................................. 34

4.7.1 Backup and Restore ................................................................................ 34

4.7.2 Reboot .................................................................................................... 34

4.7.3 Upgrade .................................................................................................. 35

4.7.4 Operation Log ......................................................................................... 35

5 Search ........................................................................................................................... 36

5.1 Image Search ................................................................................................... 36

5.2 Video Search .................................................................................................... 37

Appendix 1 Q & A .............................................................................................................. 39

Appendix 2 Specifications .................................................................................................. 40

Network Camera User Manual

1 Introduction

This IP-CAMERA (short for IP-CAM) is designed for high performance CCTV solutions. It
adopts state-of-the-art video processing chips, integrated with the most advanced technologies
(like video encoding and decoding technology) to make the image transmission more stable
and smooth. Moreover, the built-in WEB server of this series improves the performance of the
traditional surveillance system so that users can be easy to operate and monitor.

This product is widely used in banks, telecommunication systems, electricity power
departments, law systems, factories, storehouses, uptowns, etc. In addition, it is also an ideal
choice for surveillance sites with middle or high risks.

Main Features

 ICR auto switch, true day/night
 3D DNR, digital WDR, defog, BLC, HLC
 ROI coding
 Support smart phone, iPad, remote monitoring

Surveillance Application

1

Network Camera User Manual

2 Network Connection

Connect IP-Cam via LAN or WAN. Here only take IE browser for example. The details are as
follows:

2.1 LAN

In LAN, there are two ways to access IP-Cam: 1. access through IP-Tool; 2. directly access
through IE browser.

2.1.1 Access through IP-Tool

Network connection:

① Make sure the PC and IP-Cam are connected to the LAN and the IP-Tool is installed in the
PC from the CD.

② Double click the IP-Tool icon on the desktop to run this software as shown below:

③ Modify the IP address. The default IP address of this camera is 192.168.226.201. Click the

information of the camera listed in the above table to show the network information on the
right hand. Modify the IP address and gateway of the camera and make sure its network
address is in the same local network segment as the computer’s. Please modify the IP address

2

Network Camera User Manual

The default password of the administrator is “123456”.

The default username is “admin”; the default password is “123456”.

of your device according to the practical situation.

For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera
shall be changed to 192.168.1.X. After modification, please enter the password of the
administrator and click “Modify” button to modify the setting.



④ Double click the IP address and then the system will pop up the IE browser to connect
IP-CAM. Then follow directions to install and run the applicable plug-in.

Enter the username and password to log in.



3

Network Camera User Manual

The system will pop up the above-mentioned textbox to ask you to change the default password.
It is strongly recommended to change the default password for account security. If “Do not
show again” is checked, the textbox will not appear next time.

2.1.2 Directly Access through IE

The default network settings are as shown below:
IP address: 192.168.226.201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
HTTP: 80
Data port: 9008
Use the above default settings when logging in the camera for the first time. Directly connect
the camera to the computer through the network cable.

① Manually set the IP address of the PC and the network segment should be as the same as
the default settings of the IP camera. Open the network and share center. Click “Local Area

Connection” to pop up the following window.

Select “Properties” and then select internet protocol according to the actual situation (for
example: IPv4). Next, click “Properties” button to set the network of the PC.

4

Network Camera User Manual

② Open the IE browser and enter the default address of IP-CAM and confirm.
③ Follow directions to download and install the Active X control.
④ Enter the default username and password in the login window and then enter to view.

2.2 WAN

 Access through the router or virtual server

① Make sure the camera is connected to the local network and then log in the camera via
LAN and go to ConfigNetworkPort menu to set the port number.

② Go to Config Network  TCP/IPv4 menu to modify the IP address.

5

Network Camera User Manual

③ Go to the router’s management interface through IE browser to forward the IP address and
port of the camera in the “Virtual Server”.

Router Setup

④ Open the IE browser and enter its WAN IP and http port to access.

 Access through static IP

Network connection

6

Network Camera User Manual

The setup steps are as follow:

① Go to ConfigNetworkPort menu to set the port number.
② Go to Config NetworkTCP/IP menu to set the IP address. Check “Use the following IP

address” and then enter the static IP address and other parameters.

③ Open the IE browser and enter its WAN IP and http port to access.

7

Network Camera User Manual

Icon

Description

Icon

Description

Original size

Zoom out

Appropriate size

Motion alarm indicator icon

Auto

Scene change indicator

Full screen

Abnormal clarity indicator

Start/stop live view

Color abnormal indicator

Snapshot

Line crossing indicator

Start/stop record

Intrusion indicator

Zoom in

After logging in, the following window will be shown.

3 Live View

The following table is the instructions of the icons on the live view interface.

 Those smart alarm indicators will flash only when the camera supports those functions

and the corresponding events are enabled.

 In full screen mode, double click on the mouse to exit or press the ESC key on the

keyboard.

8

Network Camera User Manual

4 Configuration

4.1 System Configuration

4.1.1 Basic Information

In the “Basic Information” interface, the system information of the device is listed.

4.1.2 Date & Time

Go to ConfigSystemDate and Time. Please refer to the following interface.

Select the time zone and DST as desired.
Click the “Date and Time” tab to set the time mode.

9

Network Camera User Manual

4.1.3 Local Configuration

Go to ConfigSystemLocal Config to set up the storage path of captured pictures and
recorded videos on the local PC. There is also an option to enable or disable the bitrate
display in the recorded files.

4.2 Image Configuration

Image Configuration includes five submenus: Display, Video/Audio, OSD, Video Mask and
ROI Config.

4.2.1 Display Configuration

Go to ImageDisplay interface as shown below. The image’s brightness, contrast, hue and
saturation and so on for common, day and night mode can be set up separately. The image effect
can be quickly seen by switching the configuration file.

10

Network Camera User Manual

Brightness: Set the brightness level of the camera’s image.
Contrast: Set the color difference between the brightest and darkest parts.
Hue: Set the total color degree of the image.
Saturation: Set the degree of color purity. The purer the color is, the brighter the image is.
WDR：WDR can adjust the camera to provide a better image when there are both very bright

and very dark areas simultaneously in the field of the view by lowering the brightness of the
bright area and increasing the brightness of the dark area.
Sharpness: Set the resolution level of the image plane and the sharpness level of the image
edge.
Noise Reduction: Decrease the noise and make the image more thorough. Increasing the
value will make the noise reduction effect better but it will reduce the image resolution.
Defog: Activating this function and setting an appropriate value as needed in foggy, dusty,
smoggy or rainy environment to get clear images.
Backlight Compensation (BLC):

 Off: disables the backlight compensation function. It is the default mode.
 HLC: lowers the brightness of the entire image by suppressing the brightness of the

image’s bright area and reducing the size of the halo area.

 BLC: If enabled, the auto exposure will activate according to the scene so that the object

of the image in the darkest area will be seen clearly.
Antiflicker:

 Off: disables the anti-flicker function. This is used mostly in outdoor installations.
 50Hz: reduces flicker in 50Hz lighting conditions.
 60Hz: reduces flicker in 60Hz lighting conditions.

White Balance: Adjust the color temperature according to the environment automatically.

11

Network Camera User Manual

Frequency: 50Hz and 60Hz can be optional.
Day/night Mode: Please choose the mode as needed.
Sensitivity: High, middle and low can be selected for switching back and forth from day to

night modes.

Infrared Mode: Choose “ON”, “OFF” and “Auto” (Some models may not support the
infrared mode).
Exposure Mode: Choose “Auto” or “Manual”. If manual is chosen, the digital shutter speed

can be adjusted.
Gain Limit: The higher the gain value is, the higher the brightness of the image is and the
more noises of the image are.

Image Mirror: Turn the current video image horizontally.
Image Flip: Turn the current video image vertically.

Schedule Settings of Image Parameters:
Click the “Schedule” tab as shown below.

Set full time schedule for common, day, night mode and specified time schedule for day and

night. Choose “Schedule” in the drop-down box of schedule as shown below.

Drag “ ” icons to set the time of day and night. Blue means day time and blank means night

time. If the current mode of camera parameters is set to schedule, the image configuration
mode will automatically switch between day and night according to the schedule.

4.2.2 Video Stream

The following interface will be displayed by clicking ConfigImageVideo/Audio.

12

Network Camera User Manual

Two video streams can be adjustable.

Resolution: The size of image.
Frame rate: The higher the frame rate, the video is smoother.
Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that

no matter how much change is seen in the video scene, the compression bitrate will be kept
constant. VBR means that the compression bitrate will be adjusted according to scene changes.
For example, for scenes that do not have much movement, the bitrate will be kept at a lower
value. This can help optimize the network bandwidth usage.
Bitrate: it can be adjusted when the mode is set to CBR. The higher the bitrate, the better the
image quality will be.
Video Quality: It can be adjusted when the mode is set to VBR. The higher the image quality,
the more bitrate will be required.
I Frame interval: It determines how many frames are allowed between a “group of pictures”.
When a new scene begins in a video, until that scene ends, the entire group of frames (or
pictures) can be considered as a group of pictures. If there is not much movement in the scene,
setting the value higher than the frame rate is fine, potentially resulting in less bandwidth
usage. However, if the value is set too high, and there is a high frequency of movement in the
video, there is a risk of frame skipping.

Video Compression: H264/H265/MJPEG can be selected.
Profile: For H.264. Baseline, main and high profiles are selectable.
Send Snapshot: How many snapshots to generate for an event.
Video encode slice split: If this function is enabled, smooth image can be gotten even though

using the low-performance PC.
Watermark: When playing back the local recorded video in the search interface, the
watermark can be displayed. To enable it, check the watermark box and enter the watermark
text.

4.2.3 OSD Configuration

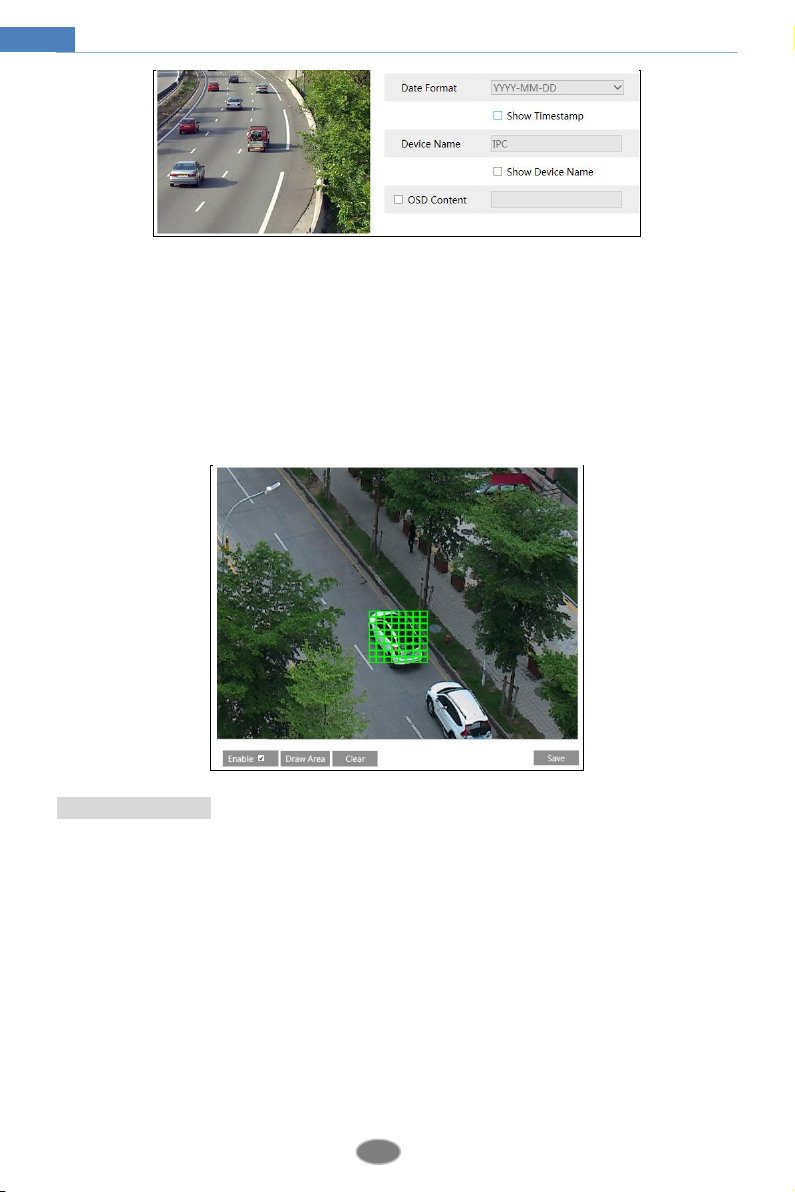

Go to ConfigImageOSD menu to display the interface as shown below:

13

Network Camera User Manual

Time stamp, device name and OSD can be set up here. After enabling the corresponding

display and entering the content, drag them to change their position. Then press the “Save”

button to save the settings.

4.2.4 Video Mask

Go to ConfigImageVideo Mask menu to display the interface as shown below. A
maximum of 4 zones can be set up.

To set up video mask

1. Enable video mask.

2. Click the “Draw Area” button and then drag the mouse to draw the video mask area.

3. Click the “Save” button to save the settings.

4. Return to the live to verify that the area have been drawn as shown as blocked out in the
image.

14

Network Camera User Manual

To clear the video mask:
Click the “Clear” button to delete the current video mask area.

4.2.5 ROI Configuration

Go to ImageROI Config interface as shown below. An area in the image can be set as a
region of interest. This area will have a higher bitrate than the rest of the image, resulting in
better image quality for the identified area.

To set up ROI

1. Check “Enable” and then click the “Draw Area” button.

2. Drag the mouse to set the ROI area.

3. Set the level.

4. Click the “Save” button to save the settings.

15

Network Camera User Manual

4.3 Alarm Configuration

4.3.1 Motion Detection

To set motion detection:

1. Go to ConfigAlarmMotion Detection to set motion detection alarm.
Check “Enable” check box to activate motion based alarms. If unchecked, the camera will not
send out any signals to trigger motion-based recording to the NVR or CMS, even if there is
motion in the video.
Trigger Email: If “Trigger Email” and “Attach Picture” are checked (email address must be set
first in the Email configuration interface), the captured pictures and triggered event will be sent
into those addresses.

2. Set motion detection area and sensitivity. Click the “Area and Sensitivity” tab to go to the
interface as shown below.

16

Network Camera User Manual

Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that
motion will be triggered more easily.
Select “Add” and click “Draw”. Drag the mouse to draw the motion detection area; Select
“Erase” and drag the mouse to clear motion detection area.
After that, click the “Save” to save the settings.

3. Set the schedule of the motion detection. Click “Schedule” to go to the motion schedule
setting interface as shown below.

Weekly schedule

Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour
increments. Green means scheduled. Blank means unscheduled.

“Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline.
“Erase”: Delete the schedule. Drag the mouse to erase the time on the timeline.

Manual Input: Click it for a specific day to enter specific start and end times. This adds more

17

Network Camera User Manual

granularities (minutes).

Day schedule

Set the alarm time for alarm a special day, such as a holiday.

Note: Holiday schedule takes priority over weekly schedule.

4.3.2 Alarm Server

Go to AlarmAlarm Server interface as shown below.
Set the server address, port, heartbeat and heartbeat interval. When an alarm occurs, the camera
will transfer the alarm event to the alarm server. If an alarm server is not needed, there is no
need to configure this section.

4.4 Event Configuration (Optional)

(Only some specified versions support the following functions).
For more accuracy, here are some recommendations for installation.

 Cameras should be installed on stable surfaces, as vibrations can affect the accuracy of

detection.

 Avoid pointing the camera at the reflective surfaces (like shiny floors, mirrors, glass,

lake surfaces and so on).

 Avoid places that are narrow or have too much shadowing.
 Avoid scenario where the object’s color is similar to the background color.
 At any time of day or night, please make sure the image of the camera is clear and with

adequate and even light, avoiding overexposure or too much darkness on both sides.

4.4.1 Exception

This function can detect changes in the surveillance environment affected by the external
factors.
To set exception detection:
Go to ConfigEventException interface as shown below.

18

Network Camera User Manual

1. Enable the applicable detection that’s desired.
Scene Change Detection: Alarms will be triggered if the scene of the monitor video has
changed.

Video Blur Detection: Alarms will be triggered if the video becomes blurry.
Enable Video Color Cast Detection: Alarms will be triggered if the video becomes

obscured.

2. Set the alarm holding time and choose whether to trigger Email.

3. Click “Save” to save the settings.

4. Set the sensitivity of the exception detection. Click the “Sensitivity” tab to go to the
interface as shown below.

Drag the slider to set the sensitivity value or directly enter the sensitivity value in the textbox.
Click “Save” button to save the settings.
The sensitivity value of Scene Change Detection: The higher the value is, the more sensitive
the system responds to the amplitude of the scene change.
The sensitivity value of Video Blur Detection: The higher the value is, the more sensitive
the system responds to the blurriness of the image.
The sensitivity value of Video Color Cast Detection: The higher the value is, the more
sensitive the system responds to the obscuring of the image.

※ The requirements of camera and surrounding area

1. Auto-focusing function should not been enabled for exception detection.

2. Try not to enable exception detection when light changes greatly in the scene.

3. Please contact us for more detailed application scenarios.

19

Network Camera User Manual

4.4.2 Line Crossing

Line Crossing: Alarms will be triggered if someone or something crosses the pre-defined

alarm lines. It can replace the electronic fence, warning line of flood prevention, etc.
Go to ConfigEventLine Crossing interface as shown below.

1. Enable line crossing alarm.

2. Set the alarm holding time and choose whether to trigger Email.

3. Click “Save” to save the settings.

4. Set area and sensitivity of the line crossing alarm. Click the “Area and Sensitivity” tab to go
to the interface as shown below.

Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be
added simultaneously.
Direction：A<->B, A->B and A<-B are optional. This indicates the direction of the intruder
who crosses over the alarm line that would trigger the alarm.
A<->B: The alarm will be triggered when the intruder crosses over the alarm line from B to A
or from A to B.

A->B: The alarm will be triggered when the intruder crosses over the alarm line from A to B.
A<-B: The alarm will be triggered when the intruder crosses over the alarm line from B to A.

Click “Draw Area” and then drag the mouse to draw a line in the image. Click “Stop Draw” to
stop drawing. Click “Clear” to delete the lines. Click “Save” to save the settings.

5. Set the schedule of the line crossing alarm. The setup steps of the schedule are the same as
motion detection schedule setup (See Motion Detection chapter for details).

20

Network Camera User Manual

There are so many trees
near the road and cars
running on the road,
which make the scene too
complex to detect the
crossing objects.

The ground is covered
with vegetation; at the
right of the fence is a gym
where people pass by
frequently. The above
mentioned environment is
too complex to detect the
crossing objects.

※ Configuration of camera and surrounding area

1. Auto-focusing function should not be enabled for line crossing detection.

2. Avoid the scenes with many trees or the scenes with various light changes (like many
flashing headlights). The ambient brightness of the scenes shouldn’t be too low.

3. Cameras should be mounted at a height of 2.8 meters or above.

4. Keep the mounting angle of the camera at about 45°.

5. The detected objects should not be less than 1% of the entire image and the largest sizes of
the detected objects should not be more than 1/8 of the entire image.

6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate
detection.

7. Adequate light and clear scenery are crucial for line crossing detection.

8. Please contact us for more detailed application scenarios.
Here we take some improper application scenarios for instance.

4.4.3 Intrusion

Intrusion: Alarms will be triggered if someone or something intrudes into the pre-defined

areas. This function can be applicable to important supervision places, danger areas and
prohibited areas, like military administrative zones, house breaking, scenic high danger areas,

21

Network Camera User Manual

no man’s areas, etc.
Go to ConfigEventIntrusion interface as shown below.

1. Enable region intrusion detection alarm.

2. Set the alarm holding time and choose whether to trigger Email.

3. Click “Save” to save the settings.

4. Set the alarm area of the intrusion detection. Click the “Area” tab to go to the interface as
shown below.

Set the alarm area number on the right side. Up to 4 alarm areas can be added.

Click “Draw Area” and then click around the area where you want to set as the alarm area in
the image on the left side (the alarm area should be a closed area). Click “Stop Draw” to stop
drawing. Click “Clear” to delete the alarm area. Click “Save” to save the settings.

5. Set the schedule of the intrusion detection. The setup steps of the schedule are the same as
motion detection schedule setup (See Motion Detection chapter for details).

※ Configuration requirements of camera and surrounding area

1. Auto-focusing function should not be enabled for intrusion detection.

2. Avoid the scenes with many trees or the scenes with various light changes (like many
flashing headlights). The ambient brightness of the scenes shouldn’t be too low.

3. Cameras should be mounted at a height of 2.8 meters or above.

4. Keep the mounting angle of the camera at about 45°.

22

Network Camera User Manual

The camera’s angle of
depression is not wide
enough; there are so many
trees in the scene. The above
mentioned environment is too
complex to detect the
intrusion.

The camera’s angle of
depression is not wide
enough; the street lamps at
night lead to light
interference; the swaying
trees in a windy day lead to
random interference. All the
above mentioned factors
make the scene improper for
intrusion detection.

5. The detected objects should not be less than 1% of the entire image and the largest sizes of
the detected objects should not be more than 1/8 of the entire image.

6. Make sure cameras can view objects for at least 2 seconds in the detected area for accurate
detection.

7. Adequate light and clear scenery are crucial to line crossing detection.

8. Please contact us for more detailed application scenarios.
Here we take some improper application scenarios for instance.

4.5 Network Configuration

4.5.1 TCP/IP

Go to ConfigNetworkTCP/IP interface as shown below. There are two ways for network
connection.

23

Network Camera User Manual

Use IP address (take IPv4 for example)-There are two options for IP setup: obtain an IP
address automatically by DHCP and use the following IP address. Please choose one of the
options as needed.
Click “IP Change Notification Config” to go to the interface as shown below.

Trigger Email: when the IP address of the device is changed, a new IP address will be sent to
the appointed mailbox automatically.
PPPoE Settings: Click the “PPPoE Config” tab to go to the interface as shown below. Enable
PPPoE and then enter the user name and password from your ISP.

24

Network Camera User Manual

4.5.2 Port

Go to ConfigNetworkPort. HTTP port, Data port and RTSP port can be set.

HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied.
HTTPs Port: Optional. The default HTTP port is 443. It can be changed to any port which is not
occupied.
Data Port: The default data port is 9008. It can be changed to any port which is not occupied.
RTSP Port: The default port is 554. It can be changed to any port which is not occupied.

4.5.3 Server Configuration

This function is mainly used for connecting network video management system.

1. Check “Enable”.

2. Check the IP address and auto report port of the transfer media server in the ECMS/NVMS.
Then enable the auto report in the ECMS/NVMS when adding a new device. Next, input the
remaining information of the device in the ECMS/NVMS. After that, the system will auto allot
a device ID. Please check it in the ECMS/NVMS.

3. Input the above-mentioned server address, server port and device ID in the responding boxes.
Click “Save” button to save the settings.

4.5.4 DDNS Configuration

If the camera is set up with a DHCP connection, DDNS should be set for the internet.

1. Go to ConfigNetwork DDNS.

25

Network Camera User Manual

2. Apply for a domain name. Take www. dvrdyndns.com for example. Input

www.dvrdydns.com in the IE address bar to visit its website. Then click “Registration” button.

Create domain name.

After the domain name is successfully applied for, the domain name will be listed as below.

26

Network Camera User Manual

3. Input the username, password, domain you apply for in the DDNS configuration interface.

4. Click “Save” button to save the settings.

4.5.5 802.1x

IEEE802.X is an access control protocol. The setting steps are as follows:

To use this function, the camera shall be connected to a switch supporting 802.1x protocol.
The switch can be reckoned as an authentication system to identify the device in a local
network. If the camera connected to the network interface of the switch has passed the
authentication of the switch, it can be accessed via the local network.
Protocol type and EAPOL version: Please use the default settings.
User name and password: The user name and password must be the same with the user name
and password applied for and registered in the authentication server.

The structure of 802.1x

① The network camera initiates the authentication of 802.1x protocol via web client and then
the authentication is received by the switch supporting 802.1x protocol.
② The switch provides the camera with a physical or logic local network interface and
verifies the camera.
③ Authentication server provides the entity of authentication service for the switch, stored
the relative information of web client, realizing the authentication of web client.
Please refer to the user manual of the connected switch for more details.

4.5.6 RTSP

Go to ConfigNetworkRTSP.

27

Network Camera User Manual

Select “Enable” to enable the RTSP function.

Port: Access port of the streaming media. The default number is 554.
RTSP Address: RTSP Address: The RTSP address (unicast) format that can be used to play

the stream in a media player.

Multicast Address
Main stream: The address format is

“rtsp://IP address: rtsp port/profile1?transportmode=mcast”.
Sub stream: The address format is
“rtsp://IP address: rtsp port/profile2?transportmode=mcast”.
If “Allow anonymous login…” is checked, there is no need to enter the username and password
to view the video.

If “auto start” is enabled, the multicast received data should be added into a VLC player to play

the video.

Note: 1. This camera support local play through a VLC player. Enter the RTSP address (unicast
or multicast, eg. rtsp://192.168.226.201:554/profile1?transportmode=mcast) in a VLC player to
realize the simultaneous play with the web client.

2. The IP address mentioned above cannot be the address of IPV6.

3. Avoid the use of the same multicast address in the same local network.

4. When playing the video through the multicast streams in a VLC player, please pay

attention to the mode of the VLC player. If it is set to TCP mode, the video cannot be played.

5. If the coding format of the video of the main stream is MJPEG, the video may be

disordered at some resolutions.

4.5.7 UPNP

If this function is enabled, the camera can be quickly accessed through the LAN.
Go to ConfigNetworkUPnP. Enable UPNP and then enter UPnP name.

28

Network Camera User Manual

4.5.8 Mail Configuration

If you need to trigger Email when an alarm happens or IP address is changed, please set the
Email here first.
Go to ConfigNetwork Email.

Sender Address: sender’s e-mail address.
User name and password: sender’s user name and password.
Server Address: The SMTP IP address or host name.

Select the secure connection type at the “Secure Connection” pull-down list according to
what’s required.

SMTP Port: The SMTP port.
Send Interval(S): The time interval of sending email. For example, if it is set to 60 seconds and

multiple motion detection alarms are triggered within 60 seconds, they will be considered as
only one alarm event and only one email will be sent. If one motion alarm event is triggered and
then another motion detection alarm event is triggered after 60 seconds, two emails will be sent.
When different alarms are triggered at the same time, multiple emails will be sent separately.
Click the “Test” button to test the connection of the account.

Recipient Address: receiver’s e-mail address.

29

Network Camera User Manual

4.5.9 HTTPS

HTTPs provides authentication of the web site and protects user privacy.
Go to Config ConfigNetworkHTTPS as shown below.

There is a certificate installed by default as shown above. Enable this function and save it. Then
the camera can be accessed by entering https://IP: https port via the web browser (eg.
https://192.168.226.201:443).
A private certificate can be created if users don’t want to use the default one. Click “Delete” to
cancel the default certificate. Then the following interface will be displayed.

* If there is a signed certificate, click “Browse” to select it and then click “Install” to install it.
* Click “Create a private certificate” to enter the following creation interface.

Click the “Create” button to create a private certificate. Enter the country (only two letters
available), domain (camera’s IP address/domain), validity date, password, province/state,
region and so on. Then click “OK” to save the settings.
* Click “Create a certificate request” to enter the following interface.

30

Network Camera User Manual

Click “Create” to create the certificate request. Then download the certificate request and
submit it to the trusted certificate authority for signature. After receiving the signed certificate,
import the certificate to the device.

4.5.10 QoS

QoS (Quality of Service) function is used to provide different quality of services for various
network applications. Under the deficient bandwidth, the router or switch will sort the data
streams and transfer them according to their priority to solve the network delay and network
congestion by using this function.
Go to ConfigNetworkQoS.

Video/Audio DSCP: The range is from 0 to 63.
Alarm DSCP: The range is from 0 to 63.
Manager DSCP: The range is from 0 to 63.
Generally speaking, the larger the number is, the higher the priority is.

4.6 Security Configuration

4.6.1 User Configuration

Go to ConfigSecurity.

Add user:

1. Click “Add” button to pop up the following textbox.

31

Network Camera User Manual

2. Enter user name in “User Name” textbox.

3. Enter letters or numbers in “Password” and “Confirm Password” textbox.

4. Choose the user type. Administrator has all permissions. Normal user can only view the live
video. Advanced user has the same permissions as an Administrator except for user, backup
settings, factory reset, and upgrading the firmware.

5. Enter the MAC address of the PC in “Bind MAC” textbox.
If this option is enabled, only the PC with the specified MAC address can access the camera for
that user.

6. Click the “OK” button and then the newly added user will be displayed in the user list.

Modify user:

1. Select a user to modify password and MAC address if necessary in the user configuration list
box.

2. The “Edit user” dialog box pops up by clicking the “Modify” button.

3. Enter the old password of the user in the “Old Password” text box.

4. Enter the new password in the “New password” and “Confirm Password” text box.

5. Enter computer’s MAC address as necessary.

6. Click the “OK” button to save the settings.

Note: To change the access level of a user, the user must be deleted and added again with the
new access level.

Delete user:

32

Network Camera User Manual

1. Select the user to be deleted in the user configuration list box.

2. Click the “Delete” button to delete the user.

Note: The default administrator account cannot be deleted.

4.6.2 Online Video User

Go to ConfigSecurityOnline User to view the user who is viewing the live video.

4.6.3 Block and Allow List

Go to ConfigSecurityBlock and Allow Lists.

The setup steps are as follows:
Check the “Enable address filtering” check box.
Select “Block/Allow the following address”, IPv4/IPv6/MAC and then enter IP address or
MAC address in the address box and click the “Add” button.

4.6.4 Security Management

Go to ConfigSecuritySecurity Management as shown below.

In order to prevent against malicious password unlocking, “locking once illegal login” function
can be enabled here. If this function is enabled, login failure after trying six times will make the
login interface locked. The camera can be logged in again after a half hour or after the camera
reboots.
For some specified versions, anonymous login with a private protocol can be enabled here (if
your camera has no such function, please skip the following instructions). If this function is
enabled, enter http://host:port/Anonymous/1[2/3] (eg.
http://192.168.226.201:80/Anonymous/1) via web browser to access the camera. 1 indicates
main stream; 2 indicates sub stream; 3 indicates third stream. Only video can be viewed by this
means and no other operations can be done.

33

Network Camera User Manual

4.7 Maintenance Configuration

4.7.1 Backup and Restore

Go to ConfigMaintenanceBackup & Restore.

 Import & Export Settings

Configuration settings of the camera can be exported form a camera into another camera.

1. Click “Browse” to select the save path for import or export information on the PC.

2. Click the “Import Setting” or “Export Setting” button.

 Default Settings

Click the “Load Default” button to restore all system settings to the default factory settings
except those you want to keep.

4.7.2 Reboot

Go to ConfigMaintenanceReboot.
Click the “Reboot” button to reboot the device.

Timed Reboot Setting:

If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”,
set the date and time and then Click the “Save” button to save the settings.

34

Network Camera User Manual

4.7.3 Upgrade

Go to ConfigMaintenanceUpgrade. In this interface, the camera firmware can be updated.

1. Click the “Browse” button to select the save path of the upgrade file

2. Click the “Upgrade” button to start upgrading the firmware.

3. The device will restart automatically
Caution! Do not close the browser or disconnect the camera from the network during the
upgrade.

4.7.4 Operation Log

To query and export log:

1. Go to ConfigMaintenanceOperation Log.

2. Select the main type, sub type, start and end time.

3. Click “Search” to view the operation log.

4. Click “Export” to export the operation log.

35

Network Camera User Manual

5.1 Image Search

Click Search to go to the interface as shown below.

5 Search

1. Choose “Picture”—“Local”.

2. Set time: Select date and choose the start and end time.

3. Click to search the images.

4. Double click a file name in the list to view the captured photos as shown above.

36

Network Camera User Manual

Icon

Description

Icon

Description

Close: Select an image and
click this button to close the
image.

Close all: Click this button
to close all images.

Fit size: Click to fit the image
on the screen.

Actual size: Click this
button to display the actual
size of the image.

Zoom in: Click this button to
digitally zoom in.

Zoom out: Click this button
to digitally zoom out.

Slide show play: Click this
button to start the slide show
mode.

Stop: Click this button to
stop the slide show.

Play speed: Play speed of the slide show.

Click to return to the previous interface.
The descriptions of the buttons are shown as follows.

5.2 Video Search

Click Search to go to the interface as shown below. Videos were recorded locally to the PC can
be played in this interface.

1. Choose “Record”—“Local”.

2. Set search time: Select the date and choose the start and end time.

3. Click to search the images.

4. Double click on a file name in the list to start playback.

37

Network Camera User Manual

Icon

Description

Icon

Description

Play button. After pausing the
video, click this button to
continue playing.

Pause button
Stop button

Speed down

Speed up

Watermark display

38

Network Camera User Manual

Appendix 1 Q & A

Q: How to find my password if I forget it?

A：Reset the device to the default factory settings.
Default IP: 192.168.226.201
User name: admin
Password: 123456

Q: Fail to connect devices through IE browser, why?

A: Network is not well connected. Please check the connection and make sure it is connected
well.
B: IP is not available. Reset the valid IP.
C: Web port number has been revised: contact administrator to get the correct port number.
D: Exclude the above reasons. Recover default setting by IP-Tool.
Note: Default IP: 192.168.226.201，mask number: 255.255.255.0

Q：IP tool cannot search devices, why?

A：It may be caused by the anti-virus software in your computer. Please exit it and try to
search device again.

Q：IE cannot download ActiveX control. How can I do?

a. IE browser blocks ActiveX. Please try as below.

① Open IE browser. Click Tools-----Internet Options….

② Select Security------Custom Level….
③ Enable all the sub options under “ActiveX controls and plug-ins”.

39

Network Camera User Manual

④ Then click OK to finish setup.
b. Other plug-ins or anti-virus blocks ActiveX. Please uninstall or close them.

Appendix 2 Specifications

40

Network Camera User Manual

Specification /Model

IR Water-proof Bullet

Network Camera

IR Water-proof Bullet

Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Iris Type

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8mm@F2.0, horizontal field of
view:108.2°

3.6mm@F2.4, horizontal field of view: 88°

2.8mm@F2.0, horizontal field of
view:108.2°

3.6mm@F2.4, horizontal field of view: 88°
6mm@F1.6, horizontal field of view: 52.3°

Lens Mount

M12

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt： 0°~80°; Rotation ：
0°~360°

Pan：0°~360°; Tilt： 0°~90°; Rotation：
0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P/720P(1~30fps); 50Hz: 1080P /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

20~30 m

10~20 m

Protection Grade

IP67

IP66

Power

DC12V/PoE

Power
Consumption

< 5W

< 5.5W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: <95% (non-condensing)
Dimension (mm)

167.5×74.5×74.5

Ø70×155.8

Weight

Approx. 0.39KG

Approx. 0.36KG

Installation

Wall mounting; ceiling mounting

41

Network Camera User Manual

Specification /Model

IR Water-proof Bullet
Network Camera

IR Water-proof Bullet

Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Iris Type

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8mm@F2.0, horizontal field of view:108.2°

3.6mm@F2.4, horizontal field of view: 88°
6mm@F1.6, horizontal field of view: 52.3°

2.8~12mm@F1.4, horizontal field of view: 92°~ 33.7°

Lens Mount

M12 and Ø14 optional

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P(1~30fps) /720P(1~30fps)
50Hz: 1080P(1~25fps) /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

20~30 m

Protection Grade

IP66

Power

DC12V/PoE

Power Consumption

< 6W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø 87 × 219

Ø 87 × 221

Weight

Approx. 0.56KG

Approx. 0.58KG

Installation

Wall mounting; ceiling mounting

42

Network Camera User Manual

Specification /Model

IR Water-proof Bullet Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

3.6mm@F2.4, horizontal field of view: 88°
6mm@F1.6, horizontal field of view: 52.3°
8mm@F2.2, horizontal field of view: 39.7°
12mm@F2.0, horizontal field of view: 25.7°

Lens Mount

M12

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P(1~30fps) /720P(1~30fps)
50Hz: 1080P(1~25fps) /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interface
s

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

20~30 m

30~50 m

70~100 m

Protection Grade

IP66

Power

DC12V

DC12V (PoE power
supply optional)

DC12V

Power Consumption

< 9.5W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: <95% (non-condensing)
Dimension (mm)

99×188×86

Weight

Approx. 0.44KG

Installation

Wall mounting

43

Network Camera User Manual

Specification /Model
IR Water-proof Dome Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8mm@F2.0, horizontal field of view: 108.2°

3.6mm@F2.4, horizontal field of view: 88°

Lens Mount

M12

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~355°; Tilt: 0°~67°; Rotation: 0°~355°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P(1~30fps) /720P(1~30fps)
50Hz: 1080P(1~25fps) /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

10~20 m

Protection Grade

IP66&IK10

Power

DC12V/PoE

Power Consumption

< 6W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø116.7 × 90

Weight（net）

Approx. 0.58KG

Installation

Ceiling mounting (wall mounting available with junction box and bracket)

44

Network Camera User Manual

Specification /Model

IR Dome Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8-12mm @F1.4; horizontal field of view: 92°~ 33.7°

Lens Mount

Ø14

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~77°; Rotation: 0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P /720P(1~30fps); 50Hz: 1080P /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps); 50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

20~30 m

Power

DC12V/PoE

Power Consumption

< 5.5W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø122× 96

Weight（net）

Approx. 0.36KG

Installation

Ceiling mounting (wall mounting available with junction box and bracket)

45

Network Camera User Manual

Specification /Model

IR Water-proof Dome Network

Camera

IR Water-proof Dome Network

Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8mm@F2.0, horizontal field of
view:108.2°

3.6mm@F2.4, horizontal field of view: 88°
6mm@F1.6, horizontal field of view: 52.3°

2.8mm@F2.0, horizontal field of
view:108.2°

3.6mm@F2.4, horizontal field of view: 88°
Lens Mount

M12

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile@Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P /720P(1~30fps); 50Hz: 1080P/720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage, micro SD card storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

10~20 m

Protection Grade

IP66

Power

DC12V（PoE power supply optional）

Power Consumption

< 4W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø 91.4 ×108

Ø 84.3 × 94.6

Weight（net）

Approx. 0.41KG

Approx. 0.43KG

Installation

Ceiling mounting (wall mounting available with junction box and bracket)

46

Network Camera User Manual

Specification /Model

IR Water-proof Dome Network

Camera

IR Water-proof Dome Network

Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8-12mm @F1.4; horizontal field of view: 92°~ 33.7°

Lens Mount

Ø14

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile @Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P /720P(1~30fps); 50Hz: 1080P /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

20~30 m

Protection Grade

IP66

Power

DC12V/PoE

Power Consumption

< 6W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø130.3×110

Ø120.4×102.5

Weight（net）

Approx. 0.69KG

Approx. 0.70KG

Installation

Ceiling mounting (wall mounting available with junction box and bracket)

47

Network Camera User Manual

Specification /Model

IR Water-proof Dome Network Camera

Camera

Image Sensor

1/2.9＂CMOS

Image Size

1920×1080

Electronic Shutter

1/25s~1/100000s

Auto Iris

Fixed Iris

Min. llumination

0.03lux@F2.5, AGC ON; 0 lux with IR

0.007lux@F1.2, AGC ON; 0 lux with IR

Lens

2.8-12mm@F1.4; horizontal field of view: 92°~ 33.7°

Lens Mount

Ø14

Day&Night

ICR

WDR

Digital WDR

Digital NR

3D DNR

Angle Adjustment

Pan: 0°~360°; Tilt: 0°~80°; Rotation: 0°~360°


Video Compression

H.264/H.265/MJPEG

H.265 Type

Main Profile@Leve4.1 High Tier

Video Bit Rate

128Kbps~4Mbps

Resolution

1080P (1920 × 1080), 720P (1280×720), D1, CIF, 480×240

Main Stream

60Hz: 1080P /720P(1~30fps); 50Hz: 1080P /720P(1~25fps)

Sub Stream

60Hz: D1/CIF/480×240 (1~30fps)
50Hz: D1/CIF/480×240 (1~25fps)

Image Settings

Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR, Defog, BLC,
HLC, etc. adjustable through client or web browser

ROI

Support

Interfaces

Network

RJ45

Fucntion

Remote Monitoring

Web browser, CMS remote control

Online Connection

Support simultaneous monitoring for up to 4 users and multi-stream transmission

Network Protocol

UDP, IPv4, IPv6, DHCP, NTP, RTSP, DDNS, SMTP, 802.1X, UPnP, HTTPS, QoS

Interface Protocol

ONVIF

Storage

Network remote storage

Smart Alarm

Motion alarm; abnormal video signal detection; intrusion detection; line crossing detection

Others

IR Distance

30~50 m

Protection Grade

IP67

Power

DC12V/PoE

Power Consumption

< 6W

Opterating
Environment

Temperature: -30°C~60°C; Humidity: < 95% (non-condensing)
Dimension (mm)

Ø130×110

Weight（net）

Approx. 0.73KG

Installation

Ceiling mounting (wall mounting available with junction box and bracket)

48

A1
