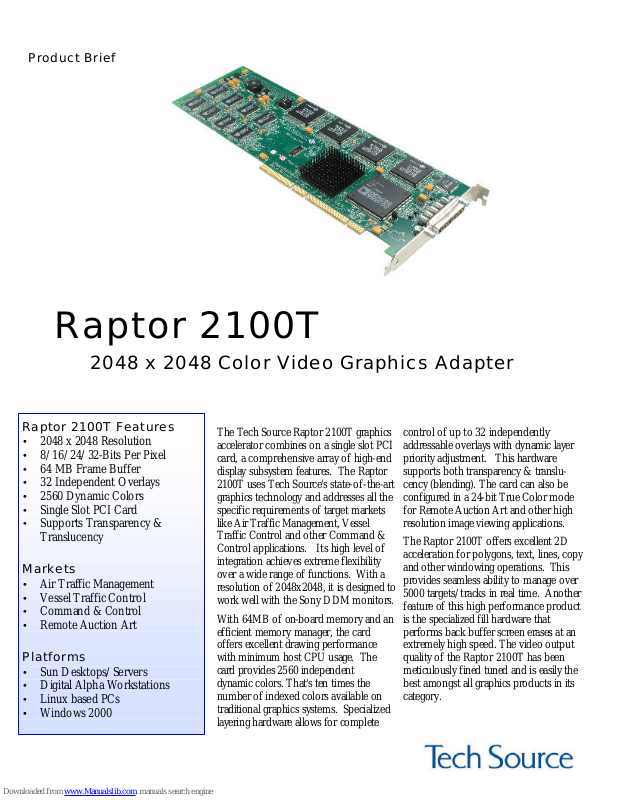

Product Brief
Raptor 2100T
2048 x 2048 Color Video Graphics Adapter
Raptor 2100T Features
• 2048 x 2048 Resolution
• 8/16/24/32-Bits Per Pixel
• 64 MB Frame Buffer
• 32 Independent Overlays
• 2560 Dynamic Colors
• Single Slot PCI Card
• Supports Transparency &
Translucency
Markets
• Air Traffic Management
• Vessel Traffic Control
• Command & Control
• Remote Auction Art
Platforms
• Sun Desktops/Servers
• Digital Alpha Workstations
• Linux based PCs
• Windows 2000
The Tech Source Raptor 2100T graphics
accelerator combines on a single slot PCI
card, a comprehensive array of high-end
display subsystem features. The Raptor
2100T uses Tech Source's state-of-the-art
graphics technology and addresses all the
specific requirements of target markets
like Air Traffic Management, Vessel
Traffic Control and other Command &
Control applications. Its high level of
integration achieves extreme flexibility
over a wide range of functions. With a
resolution of 2048x2048, it is designed to
work well with the Sony DDM monitors.
With 64MB of on-board memory and an
efficient memory manager, the card
offers excellent drawing performance
with minimum host CPU usage. The
card provides 2560 independent
dynamic colors. That's ten times the
number of indexed colors available on
traditional graphics systems. Specialized
layering hardware allows for complete
control of up to 32 independently
addressable overlays with dynamic layer
priority adjustment. This hardware
supports both transparency & translucency (blending). The card can also be
configured in a 24-bit True Color mode
for Remote Auction Art and other high
resolution image viewing applications.
The Raptor 2100T offers excellent 2D
acceleration for polygons, text, lines, copy
and other windowing operations. This
provides seamless ability to manage over
5000 targets/tracks in real time. Another
feature of this high performance product
is the specialized fill hardware that
performs back buffer screen erases at an
extremely high speed. The video output
quality of the Raptor 2100T has been
meticulously fined tuned and is easily the
best amongst all graphics products in its
category.
Raptor 2100T Technical Specifications
Raptor 2100T PCI video graphics adapter, 2048 by 2048 color resolution, 64 MB frame buffer, includes DB -5-W5 to
5BNC video cable, operating system specific device driver software and manuals.
Software Available
Raptor OpenWindows for Solaris Loadable drivers for Sun PCI systems running Solaris 2.6, 7, 8 and 9.
Raptor X Servers for Digital UNIX Loadable drivers for the Digital/Compaq Alpha workstations running Tru64
UNIX 4.0f, 5.0, 5.1.
Raptor Drivers for Linux Loadable drivers for Red Hat & SUSE Linux on x86 based machines
Raptor Drivers for Windows Loadable drivers for Windows 2000
Specifications
Frame Buffer Size
Color Lookup Table
Bits Per Pixel
Dynamic Color Plane Groups
PCI Interface
Video Interface
Video Sync
Video Connector
Temperature Rating
Humidity Rating
Power Rating
Physical
64MB
2048 entries from a palette of 16.7 million colors + 2 AUX 256
8, 16, 24 or 32 (software configurable)
32
33/66 MHz 32/64-bit Revision 2.2
Red, green and blue at RS-343 levels (50 ohm)
Separate sync at TTL levels (75 ohm)
DB-5 -W5
100 to 500 C (operating)
-100 to 700 C (non-operating)
10% to 90% (non-condensing)
Less than 25 watts
12.283 inches x 4.2 inches (PCI long format)
