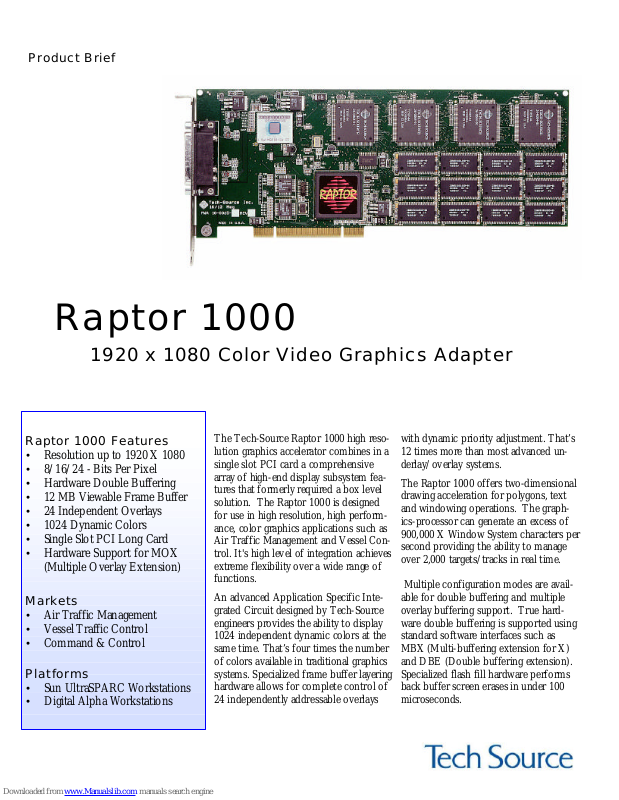

Raptor 1000

1920 x 1080 Color Video Graphics Adapter

Raptor 1000 Features

• Resolution up to 1920 X 1080

• 8/16/24 - Bits Per Pixel

• Hardware Double Buffering

• 12 MB Viewable Frame Buffer

• 24 Independent Overlays

• 1024 Dynamic Colors

• Single Slot PCI Long Card

• Hardware Support for MOX

(Multiple Overlay Extension)

Markets

• Air Traffic Management

• Vessel Traffic Control

• Command & Control

Platforms

• Sun UltraSPARC Workstations

• Digital Alpha Workstations

The Tech-Source Raptor 1000 high reso­lution graphics accelerator combines in a
single slot PCI card a comprehensive
array of high-end display subsystem fea­tures that formerly required a box level
solution. The Raptor 1000 is designed
for use in high resolution, high perform­ance, color graphics applications such as
Air Traffic Management and Vessel Con­trol. It's high level of integration achieves
extreme flexibility over a wide range of
functions.

An advanced Application Specific Inte­grated Circuit designed by Tech-Source
engineers provides the ability to display
1024 independent dynamic colors at the
same time. That’s four times the number
of colors available in traditional graphics
systems. Specialized frame buffer layering
hardware allows for complete control of
24 independently addressable overlays

with dynamic priority adjustment. That’s
12 times more than most advanced un­derlay/overlay systems.

The Raptor 1000 offers two-dimensional
drawing acceleration for polygons, text
and windowing operations. The graph­ics-processor can generate an excess of
900,000 X Window System characters per
second providing the ability to manage
over 2,000 targets/tracks in real time.

Multiple configuration modes are avail­able for double buffering and multiple
overlay buffering support. True hard­ware double buffering is supported using
standard software interfaces such as
MBX (Multi-buffering extension for X)
and DBE (Double buffering extension).
Specialized flash fill hardware performs
back buffer screen erases in under 100
microseconds.

Raptor 1000 Technical Specifications

Raptor 1000 PCI video graphics adapter, software configurable resolutions up to 1920 x 1080, 12 MB frame

buffer, includes DB-13-W3 to 4BNC video cable, operating system specific device driver software
and manuals.

Software Available

Raptor OpenWindows for Solaris Loadable drivers for Sun PCI systems running Solaris 2.6, 7 or 8.

Raptor X Servers for Digital UNIX Loadable drivers for the Digital/Compaq Alpha workstations running Tru64

UNIX, 4.0f, 5.0, 5.1.

Specifications

Frame Buffer Size
Color Lookup Table
Bits Per Pixel

Dynamic Color Plane Groups
Drawing Processor
PCI Interface

Video Interface
Video Sync
Video Connector

Temperature Rating

Humidity Rating
Power Rating
Physical

12 MB
1024 entries
8, 16 or 24 (software configurable)

24
Number Nine PCI graphics accelerator
33 MHz, 32-bit, Revision 2.1

Red, green and blue at RS-343 levels (50 ohm)
Separate sync at TTL levels (75 ohm)
DB-13-W3

10 degrees to 50 degrees C (operating)

-10 degrees to 70 degrees C (non-operating)
10% to 90% (non-condensing)

Less than 15 watts

12.283 inches x 4.2 inches (PCI long format)
