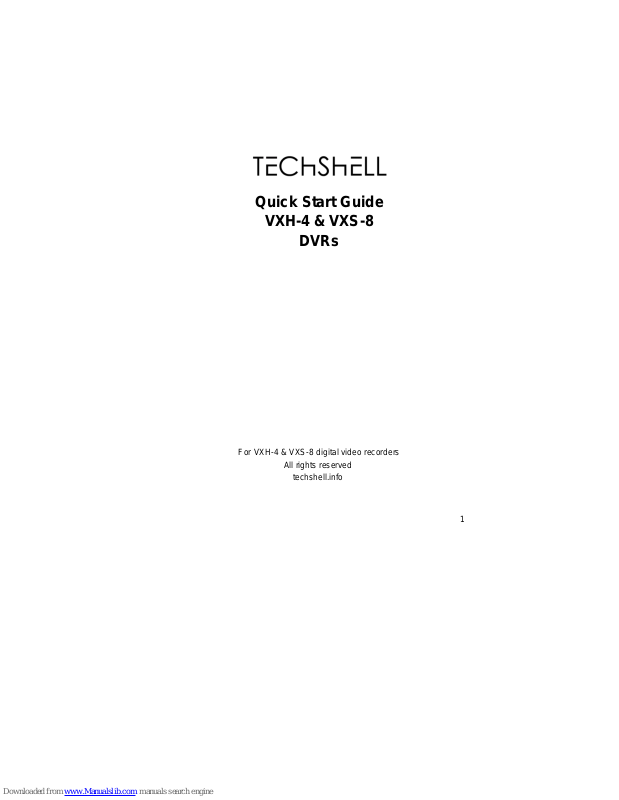

Techshell VXH-4, VXS-8 Quick Start Manual

Quick Start Guide

VXH-4 & VXS-8

DVRs

For VXH-4 & VXS-8 digital video recorders

techshell.info

TECHSHELL 4/8 DVR Quick Start Guide

1. Install Hard Drive &DVD Writer

1.1Install Hard Drive

Notice: 1.This series support one SATA hard drive. Please use the hard drive the

manufacturers recommend specially for security and safe field.

2. Please calculate HDD capacity according to the recording setting. Please refer to “Appendix B Calculate Recording Capacity”.

Step1: Unscrew and Open the top cover Step2: Connect the power and data cables. Place the HDD onto the bottom case as below.

Fig 1.1 Connect HDD

Step3: Screw the HDD as below.

Note: For the convenience to install, please connect the power and data cables firstly, and then screw to fix.

Fig 1.2 Screw HDD

2. Connections

2.1 Rear view for 4-ch DVR

TECHSHELL 4/8 DVR Quick Start Guide

Fig 2.1 Rear view for 4-ch DVR

Video out：Connect to monitor

2 Connect to monitor as an AUX output

channel by channel. Only video display, no menu show

3 Audio output, connect to the

sound box

4 Video input channels from 1-4

5 POWER INPUT 6 VGA output, connect to monitor 7 Network port 8 Connect USB mouse or connect external

USB devices

9 Connect to speed dome 10 Connect to keyboard

11 1-ch relay output. Connect to

external alarm

12 +5 V and Grounding

13 Connect to external sensor1-4 14

4 CH Audio input

2.2 Rear view for 8-ch DVR

Fig 2.2 Rear view for 8-ch DVR
