Welcome

Thank you for purchasing our DVR!
This user’s manual is designed to be a reference tool for the installation and operation of
your system.
Here you can find information about this series hybrid standalone DVR features and
functions, as well as a detailed menu tree.
Before installation and operation please read the following safeguards and warnings
carefully!

ix

Important Safeguards and Warnings

1．Electrical safety

All installation and operation here should conform to your local electrical safety codes.
The product must be grounded to reduce the risk of electric shock.
We assume no liability or responsibility for all the fires or electric shock caused by
improper handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation,
storage and installation.

3．Installation

Keep upwards. Handle with care.
Do not apply power to the DVR before completing installation.
Do not place objects on the DVR

4．Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted
repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct sunlight, inflammable,
explosive substances and etc.

6. Accessories

Be sure to use all the accessories recommended by manufacturer.
Before installation, please open the package and check all the components are included.
Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury!
When replace the battery, please make sure you are using the same model!

1

1 FEATURES AND SPECIFICATIONS

1.1 Overview

The hybrid standalone series DVR is an excellent digital monitor product designed for
security field.

It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression
algorithm and G.711 audio compression technology realize high quality, low bit stream.
Unique frame by frame play function is suitable for detailed analysis. It has various
functions such as record, playback, monitor at the same time and can guarantee audio
video synchronization. This series product has advanced technology and strong network
data transmission function. It supports analog signal and the digital signal at the same
time. It can connect to multiple-channel network cameras and support network camera
setup function. It can be used as a small management center to manage the network
cameras.

This series device adopts embedded design to achieve high security and reliability. It can
work in the local end, and at the same time, when connecting it to the professional
surveillance software (PSS), it can connect to the security network to realize strong
network and remote monitor function.

This series product can be widely used in various areas such as banking,
telecommunication, electric power, interrogation, transportation, intelligent resident zone,
factory, warehouse, resources, and water conservancy.

1.2 Features

This series product has the following features:

 Analog and digital mixed input

Support analog and digital signal simultaneously. It can connect to multiple-channel high
definition IPC.

 Real-time surveillance

Support analog output port, VGA port and HDMI port. Realize the surveillance through the
monitor or displayer. Support HDMI, VGA, and TV output at the same time.

 Storage function

Special data format to guarantee data security and can remove the risk of the vicious data
modification. Support digital watermark.

 Compression format

Support multiple-channel audio and video. An independent hardware decodes the audio
and video signal from each channel to maintain video and audio synchronization.

2

 Backup function
Support backup operation via USB port (such as U disk, portable HDD, burner)
Client-end user can download the file to local HDD to backup via network.
Support eSATA, SATA port backup (eSATA port can connect to burner or HDD, SATA port
can connect to burner.)

 Record & playback function
Support each channel real-time record independently, and at the same time it can support
search, forward play, network monitor, record search, download and etc.
Support various playback modes: slow play, fast play, backward play and frame by frame
play.
Support time title overlay so that you can view event accurate occurred time

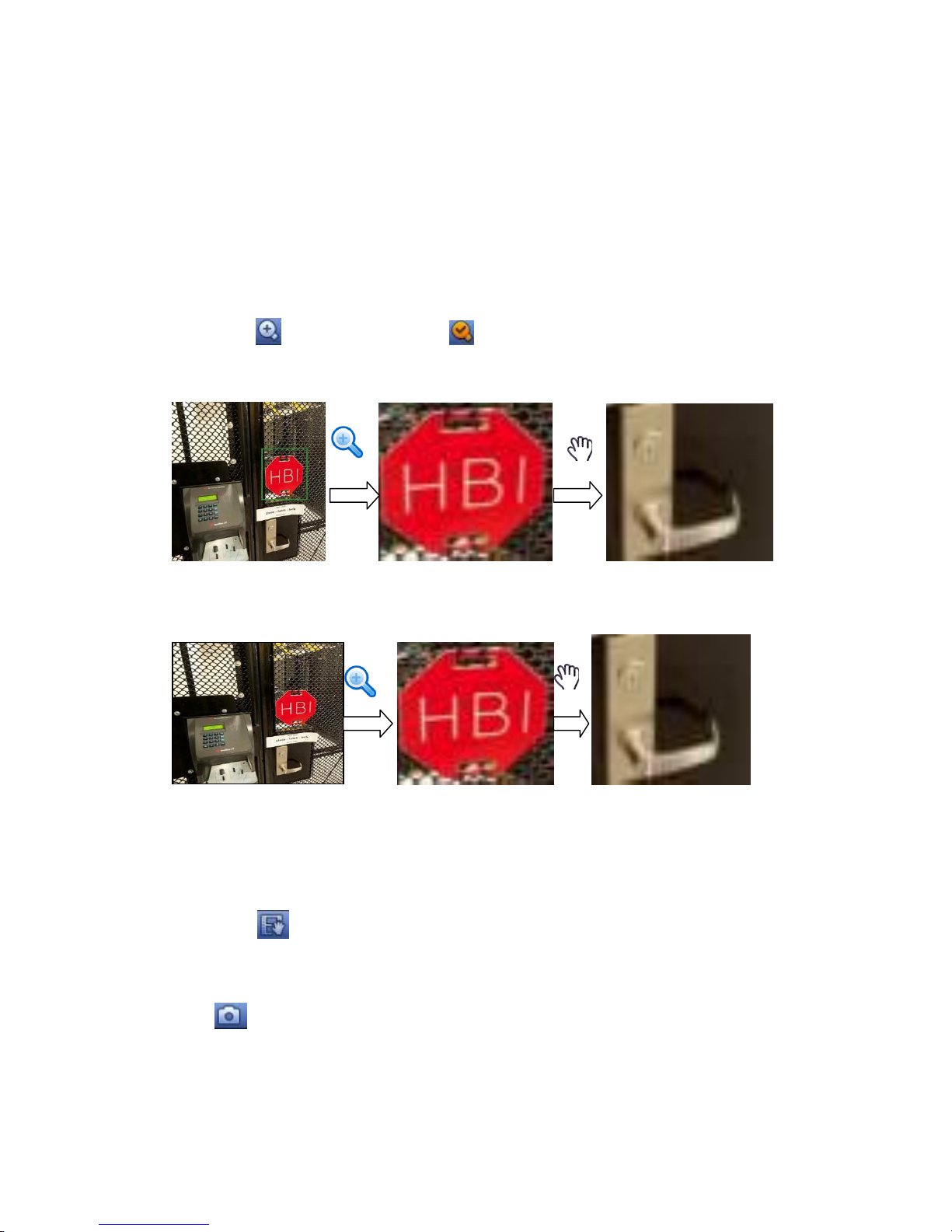

Support customized zoom function during the preview.

 Network operation
Support network remote real-time monitor, remote record search and remote PTZ control.

 Alarm activation function
Several relay alarm outputs to realize alarm activation and on-site light control.
The alarm input port and output has the protection circuit to guarantee device safety.

 Communication port
RS485 port can realize alarm input and PTZ control.
RS232 port can connect to keyboard to realize central control, and can also connect to PC
COM to upgrade system and realize maintenance, and matrix control.
Standard Ethernet port can realize network access function.
The dual-network port has the multiple-access, fault-tolerance, load-balance setup mode.

 PTZ control
Support PTZ decoder via RS485.
Support various decode protocols to allow the PTZ to control the speed dome.

 Intelligent operation
Mouse operation function

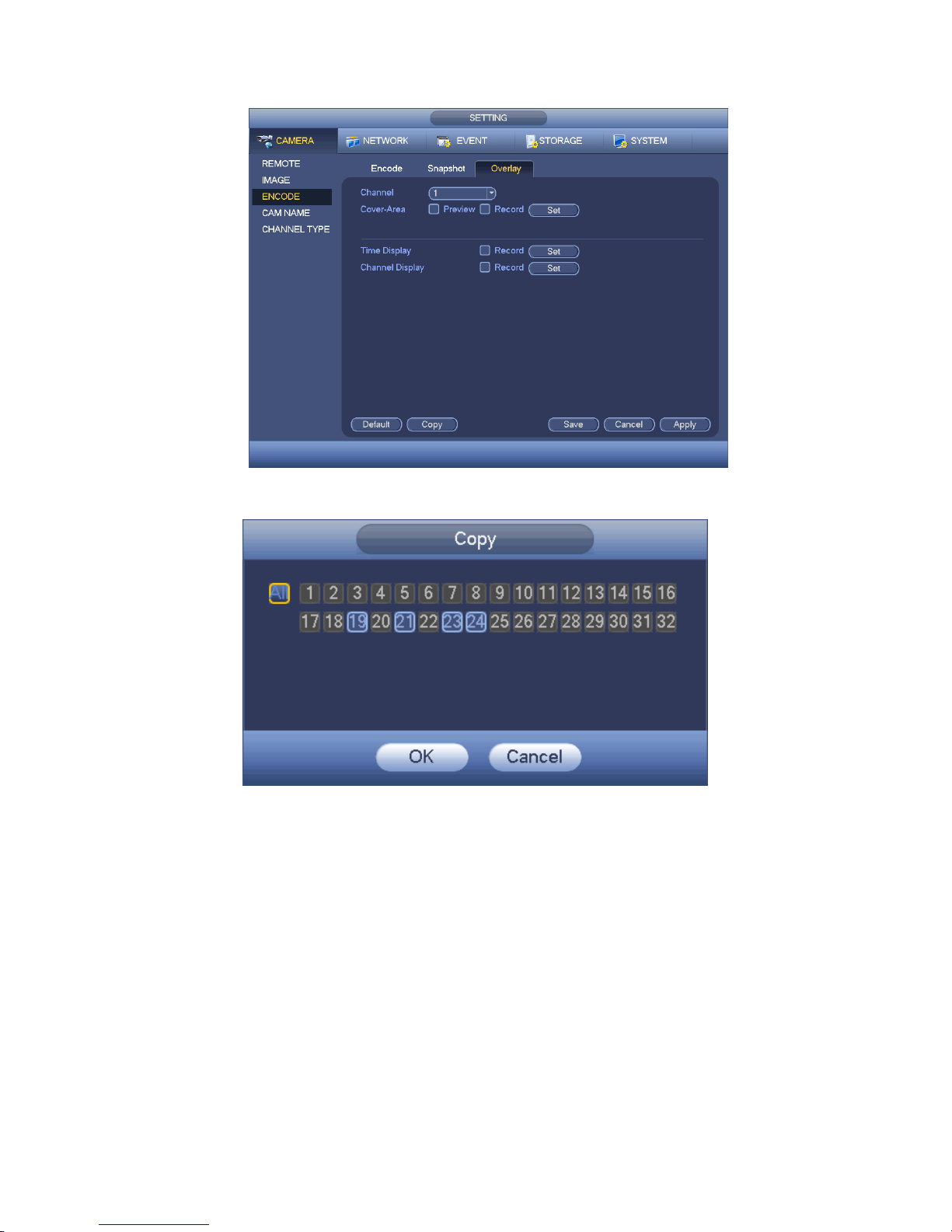

In the menu, support copy and paste setup function

 UPNP (Universal Plug and Play)
Establish mapping connection between LAN and WAN via UPNP protocol.

Slight function differences may be found due to different series.

1.3 Specifications

1.3.1 General Series

15

1.3.4 Advanced 960H Series

Parameter

4-ch

8-ch

16-ch

System

Main Processor

High-performance industrial embedded micro controller
OS

Embedded LINUX

System
Resources

Multiplex operations: Multiple-channel record, multiple-channel
playback and network operation simultaneously

Interface

User-friendly graphical user interface

Input Devices

Front panel, USB mouse, remote control

Input Method

Arabic number, English character, donation and extension Chinese
(optional)

Shortcut
Function

Copy/paste operation, USB mouse right-key shortcut menu, double
click USB mouse to switch screen.

Compression
Standard

Video
Compression

H.264, MJPEG

Audio
Compression

G711A, G711U, PCM

16

Video monitor

Video Input

4-CH composite
video input:
(NTSC/PAL) BNC
(1.0VB

P- P,

B75Ω)

8-CH composite video
input: (NTSC/PAL)
BNC (1.0VB

P- P,

B75Ω)

16-CH composite
video input:
(NTSC/PAL) BNC
(1.0VB

P- P,

B75Ω)

Network
Channel
Amount

Total 8 channels (4
IP channels+4
analog channels).
Connected network
bandwidth 48Mbps.
IP channel
resolution has no
special
requirements.

Total 16 channels (8 IP
channels+8 analog
channels).
Connected network
bandwidth 48Mbps.
IP channel resolution
has no special
requirements

Total 32 channels (16
IP channels+16 analog
channels).
Network bandwidth
48Mbps.
IP channel resolution
has no special
requirements.

Video Output

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.
1-ch VGA output.
2-ch HDMI output. HDMI port 1 : Output the same video sources as
the VGA/TV. Support mouse operation. HDMI port 2: Support analog
channel multiple-screen HD preview output. Support tour.
1-ch matrix output
4/8/16-ch loop output
Support TV/VGA/HDMI/SPOT OUT/loop output at the same time.

Video Standard

Support PAL /NTSC

Record Speed

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s
per channel

Video Partition

1/4/8/9
windows(Optional)

1/4/8/9 windows

1/4/8/9/16/25/36
windows

Monitor Touring

Support monitor tour functions such as alarm, motion detection, and
schedule auto control.

Resolution
(PAL/NTSC)

PAL(700TVL, 50f/s)/NTSC(700TVL, 60f/s)

Real-time monitor：
960H 960 ×576/960×480

Playback 1/16-ch:
960H 960×576/960×480,
D1 704×576/704×480,
HD1 352×576/352×480,
2CIF 704×288/704×240,
CIF 352×288/ 352×240,
QCIF 176×144/176×120

Support dual streams: extra stream resolution CIF 352×288/
352×240 , QCIF 176×144/176×120

17

Motion
Detection

Zone setup: support max 396(22×18) zones.
Support various sensitivities.

Image Quality

6-level image quality (Adjustable)

Privacy mask

Support one privacy mask of user-defined size in full screen.
Support max 4 zones.

Information

Channel information, time information and privacy mask zone.

TV Adjust

Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with blue screen though system is encoding
normally.
Screen-lock function to prevent unauthorized user seeing secret video.

Channel
Information

Channel name, recording status, screen lock status, video loss status
and motion detection status are shown on the bottom left of display
screen.

Color
Configuration

Hue, brightness, contrast, saturation and gain setup for each channel.

Audio

Audio Input

4-ch 200-2000mv
10KΩ(BNC)

8-ch 200-2000mv
10KΩ(BNC)

16-ch
200-2000mv
10KΩ (BNC)

There is a special series has 4-channel 200-2000mV 10KΩ (BNC).

Audio Output

1-ch audio output 200-3000mv 5KΩ(BNC)

Bidirectional
Audio

1-ch audio input 200-3000mv 10KΩ(BNC)
1-ch audio output 200-3000mv 5KΩ(BNC)

Hard disk

Hard Disk

8 built-in SATA port. Support 8 HDD.

Hard Disk
Occupation

Audio：PCM 28.8MByte/h
Video：56-900MByte/h

Record and
playback

Recording
Mode

Manual recording, motion detection recording, schedule recording and
alarm recording
Priority: Manual recording> alarm recording>motion detection
recording>schedule recording.

Storage Mode

Support channel record quota setup

Recording
Length

1 to 120 minutes single record duration (Default setup is 60 minutes)

Playback
Repeat Way

When hard disk is full, system can overwrite previous video file.
Record Search

Various search engines such as time, type and channel.

Playback Mode

Various fast play, slow play speeds, manual frame by frame playback
and reverse play mode.

18

Various File
Switch Ways

Can switch to previous or next file or any file in current play list.
Can switch to file on other channel of the same time. (If there is a file)
Support file continuous play, when file is end system auto plays the
next file in the current channel

Playback Way

Support mark playback

Multi-channel
Playback

Support single channel, 4 channel, 9 channel and 16 channel
modes

Window
Zoom

Switch between self-adaptive screen/full screen when playback

Partial
Enlargement

When in one-window full-screen playback mode, you can select any
zone to activate partial enlargement function.

Real-time
Playback

The preview channel can playback the previous 5 to 60 minutes record
of current channel.

Backup
function
Backup Mode

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk,
USB burner and etc.)

Support external eSATA device backup

Support network download and save

Network
Function

Network control

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and
video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as
professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

The dual-network port has the multiple-access, fault-tolerance,
load-balance setup mode.

Motion
Detection and
Alarm

Motion
Detection

4 zone setups: support 396((PAL 22×18, NTSC 22×15)) detection
zones.
Various sensitivity levels and threshold setups.
Alarm can activate record or external alarm or screen message
prompt.
Once any of the four zones is triggered, the motion detect of current
channel is valid now.

Video Loss

Alarm can activate external alarm or screen message prompt.

External Alarm

Support record activation function or activate external alarm or screen
message in specified period.

19

Manual Alarm
Control

Enable or disable alarm input channel
Support analog alarm signal to specific alarm output channel.

Alarm Input

4-ch alarm input（You
can set normal open
or normal close type
to select the alarm
type. ）

8-ch alarm input（You can
set normal open or
normal close type to
select the alarm type. ）

16-ch alarm input
（ You can set
normal open or
normal close type
to select the
alarm type. ）

Alarm Output

6-channel relay output. (Including one controllable DC+12v
output)

Alarm Relay

30VDC 2A，125VAC 0.5A（activation alarm ）

Interface

USB Interface

4 USB 2.0 ports.

Network
connection

Two RJ45 10M/100M/1000M self-adaptable Ethernet port
RS485

PTZ control port
Support various PTZ control protocols.

RS232

Ordinary COM (Debug),keyboard connection and transparent serial
port(COM input and output via network )

System
Information

Hard Disk
Information

Display HDD current status

Data Stream
Statistics

Data stream statistics for each channel (in wave mode)
Log statistics

Backup to 1024 log files.
Support various search engines such as time and type.

Version

Display version information: channel amount, alarm input and output
amount, system version and release date.

On-line user

Display current on-line user

Remote device
info

View remote device status information.

Network
information

View network load, test network status and implement network sniffer.

User
Management

User
Management

Multi-lever user management; various management modes
Integrated management for local user, serial port user and network
user.
Configurable user power.

Support user /group and its corresponding rights modification.
No limit to the user or group amount.

Password
Authentication

Password modification
Administrator can modify other user’s password.

Account lock strategy
Five times login failure in thirty minutes may result in account lock.

Upgrade

Web browser, client-end and update tool.

Login, Logout and Shutdown

Password login protection to guarantee safety

20

User-friendly interface when login. Provide the following options:
Logout /shutdown/ restart.

Right authentication when shut down to make sure only those proper
people can turn off DVR

General
Parameter

Power

AC90~264V 50+2% Hz(Max. 220W)

Power
Consumption

25W (Exclude HDD)

Working
Temperature

-10℃－＋55℃

Working
Humidity

10%－90%
Air Pressure

86kpa－106kpa

Dimension

2U standard industrial case. 440(W) x460(D) x89(H)mm

Weight

6.5kg－7.5kg (Exclude HDD)

Installation
Mode

Desktop/rack installation

1.3.5 3U Series

Parameter

16-ch

System

Main Processor

High-performance industrial embedded micro controller
OS

Embedded LINUX

System
Resources

Multiplex operations: Multiple-channel record, multiple-channel
playback and network operation simultaneously

Interface

User-friendly graphical user interface

Input Devices

Front panel, USB mouse, remote control

Input Method

Arabic number, English character, donation and extension Chinese
(optional)

Shortcut
Function

Copy/paste operation, USB mouse right-key shortcut menu, double
click USB mouse to switch screen.

Compression
Standard

Video
Compression

H.264

Audio
Compression

G.711A

Video Input

16-CH composite video input: (NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

Network
Channel
Amount

Total 32 channels (16 IP channels+16 analog channels).
Connected network bandwidth 160Mbps.
IP channel resolution has no special requirements.

21

Video monitor

Video Output

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.
1-ch VGA output.
2-ch HDMI output. Output the same video sources as the VGA/TV.
Support mouse operation.
1-ch matrix output
4/8/16-ch loop output
Support TV/VGA/HDMI/SPOT OUT/loop output at the same time.

Video Standard

Support PAL /NTSC

Record Speed

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s
per channel

Video Partition

1/4/8/9/16/25/36 windows

Monitor Touring

Support monitor tour functions such as alarm, motion detection, and
schedule auto control.

Resolution
(PAL/NTSC)

PAL(700TVL, 50f/s)/NTSC(700TVL, 60f/s)

Real-time monitor：
960H 960 ×576/960×480

Playback 1/16-ch:
960H 960×576/960×480,
D1 704×576/704×480,
HD1 352×576/352×480,
2CIF 704×288/704×240,
CIF 352×288/ 352×240,
QCIF 176×144/176×120

Support dual streams: extra stream resolution CIF 352×288/
352×240 , QCIF 176×144/176×120

Motion
Detection

Zone setup: support max 396(22×18) zones.
Support various sensitivities.

Image Quality

6-level image quality (Adjustable)

Privacy mask

Support one privacy mask of user-defined size in full screen.
Support max 4 zones.

Information

Channel information, time information and privacy mask zone.

TV Adjust

Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with blue screen though system is encoding
normally.
Screen-lock function to prevent unauthorized user seeing secret video.

Channel
Information

Channel name, recording status, screen lock status, video loss status
and motion detection status are shown on the bottom left of display
screen.

Color
Configuration

Hue, brightness, contrast, saturation and gain setup for each channel.

22

Network
Channel
Amount

Total 32 channels.
16 IP channels+16 analog channels.

Network
Bandwidth

160Mbps

Audio

Audio Input

16-ch 200-2000mv 10KΩ (BNC)

Audio Output

1-ch audio output 200-3000mv 5KΩ(BNC)

Bidirectional
Audio

1-ch audio input 200-3000mv 10KΩ(BNC)
1-ch audio output 200-3000mv 5KΩ(BNC)

Hard disk

Hard Disk

16 built-in SATA port. Support 16 HDD.

Hard Disk
Occupation

Audio：PCM 28.8MByte/h
Video：56-900MByte/h

Record and
playback

Recording
Mode

Manual recording, motion detection recording, schedule recording and
alarm recording
Priority: Manual recording> alarm recording>motion detection
recording>schedule recording.

Storage Mode

Support channel record quota setup

Recording
Length

1 to 120 minutes single record duration (Default setup is 60 minutes)

Playback
Repeat Way

When hard disk is full, system can overwrite previous video file.
Record Search

Various search engines such as time, type and channel.

Playback Mode

Various fast play, slow play speeds, manual frame by frame playback
and reverse play mode.

Various File
Switch Ways

Can switch to previous or next file or any file in current play list.
Can switch to file on other channel of the same time. (If there is a file)
Support file continuous play, when file is end system auto plays the
next file in the current channel

Playback Way

Support mark playback

Multi-channel
Playback

Support single channel, 4 channel, 9 channel and 16 channel
modes

Window
Zoom

Switch between self-adaptive screen/full screen when playback

Partial
Enlargement

When in one-window full-screen playback mode, you can select any
zone to activate partial enlargement function.

Real-time
Playback

The preview channel can playback the previous 5 to 60 minutes record
of current channel.

Backup

Backup Mode

HDD backup

23

function

Support peripheral USB backup device. (Flash disk, portable disk,
USB burner and etc.)

Support external eSATA device backup

Support network download and save

Network
Function

Network control

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and
video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as
professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

The dual-network port has the multiple-access, fault-tolerance,
load-balance setup mode.

Motion
Detection and
Alarm

Motion
Detection

4 zone setups: support 396((PAL 22×18, NTSC 22×15)) detection
zones.
Various sensitivity levels and threshold setups.
Alarm can activate record or external alarm or screen message
prompt.
Once any of the four zones is triggered, the motion detect of current
channel is valid now.

Video Loss

Alarm can activate external alarm or screen message prompt.

External Alarm

Support record activation function or activate external alarm or screen
message in specified period.

Manual Alarm
Control

Enable or disable alarm input channel
Support analog alarm signal to specific alarm output channel.

Alarm Input

16-ch alarm input（NO/NC.）

Alarm Output

6-channel relay output. (Including one controllable DC+12v
output)

Alarm Relay

30VDC 2A，125VAC 0.5A（activation alarm ）

Interface

USB Interface

4 USB 2.0 ports.

Network
connection

Two RJ45 10M/100M/1000M self-adaptable Ethernet port
RS485

PTZ control port
Support various PTZ control protocols.

RS232

Ordinary COM (Debug),keyboard connection and transparent serial
port(COM input and output via network )

System
Information

Hard Disk
Information

Display HDD current status

24

Data Stream
Statistics

Data stream statistics for each channel (in wave mode)
Log statistics

Backup to 1024 log files.
Support various search engines such as time and type.

Version

Display version information: channel amount, alarm input and output
amount, system version and release date.

On-line user

Display current on-line user

Remote device
info

View remote device status information.

Network
information

View network load, test network status and implement network sniffer.

User
Management

User
Management

Multi-lever user management; various management modes
Integrated management for local user, serial port user and network
user.
Configurable user power.

Support user /group and its corresponding rights modification.
No limit to the user or group amount.

Password
Authentication

Password modification
Administrator can modify other user’s password.

Account lock strategy
Five times login failure in thirty minutes may result in account lock.

Upgrade

Web browser, client-end and update tool.

Login, Logout and Shutdown

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options:
Logout /shutdown/ restart.

Right authentication when shut down to make sure only those proper
people can turn off DVR

General
Parameter

Power

AC90~264V/AC90~264V 50+2% Hz (Max. 350W)

Power
Consumption

＜40W (Exclude HDD)

Working
Temperature

-10℃－＋55℃

Working
Humidity

10%－90%
Air Pressure

86kpa－106kpa

Dimension

3U standard industrial case. 448mm×490mm×133.2mm

Weight

10.5kg～11.5kg(Exclude HDD)

Installation
Mode

Desktop/rack installation

1.3.6 2U RAID Series

Parameter

8-channel 2U RAID

16-channel 2U RAID

25

System

Main Processor

High-performance industrial embedded micro controller
OS

Embedded LINUX

System
Resources

Multiplex operations: Multiple-channel record, multiple-channel
playback and network operation simultaneously

Interface

User-friendly graphical user interface

Input Devices

Front panel, USB mouse, remote control

Input Method

Arabic number, English character, donation and extension Chinese
(optional)

Shortcut
Function

Copy/paste operation, USB mouse right-key shortcut menu, double
click USB mouse to switch screen.

Compression
Standard

Video
Compression

H.264, MJPEG

Audio
Compression

G.711A

Video monitor

Video Input

8-CH composite video input:
(NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

16-CH composite video input:
(NTSC/PAL) BNC (1.0VB

P- P,

B75Ω)

Network
Channel
Amount

Total 16 channels (8 IP
channels+8 analog channels).
Connected network bandwidth
160Mbps.
IP channel resolution has no
special requirements.

Total 32 channels (16 IP
channels+16 analog channels).
Connected network bandwidth
160Mbps.
IP channel resolution has no
special requirements.

Video Output

1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal output.
1-ch VGA output.
2-ch HDMI output. Output the same video sources as the VGA/TV.
Support mouse operation.
1-ch matrix output
8/16-ch loop output
Support TV/VGA/HDMI/SPOT OUT/loop output at the same time.

Video Standard

Support PAL /NTSC

Record Speed

Real-time Mode: PAL 1f/s to 25f/s per channel and NTSC 1f/s to 30f/s
per channel

Video Partition

1/4/8/9/16 windows

1/4/8/9/16/25/36 windows

Monitor Touring

Support monitor tour functions such as alarm, motion detection, and
schedule auto control.

Resolution
(PAL/NTSC)

PAL(700TVL, 50f/s)/NTSC(700TVL, 60f/s)

Real-time monitor：
960H 960 ×576/960×480

26

Playback 1/16-ch:
960H 960×576/960×480,
D1 704×576/704×480,
HD1 352×576/352×480,
2CIF 704×288/704×240,
CIF 352×288/ 352×240,
QCIF 176×144/176×120

Support dual streams: extra stream resolution CIF 352×288/
352×240 , QCIF 176×144/176×120

Motion
Detection

Zone setup: support max 396(22×18) zones.
Support various sensitivities.

Image Quality

6-level image quality (Adjustable)

Privacy mask

Support one privacy mask of user-defined size in full screen.
Support max 4 zones.

Information

Channel information, time information and privacy mask zone.

TV Adjust

Adjust TV output zone suitable to anamorphic video.

Channel Lock

Cover secret channel with blue screen though system is encoding
normally.
Screen-lock function to prevent unauthorized user seeing secret video.

Channel
Information

Channel name, recording status, screen lock status, video loss status
and motion detection status are shown on the bottom left of display
screen.

Color
Configuration

Hue, brightness, contrast, saturation and gain setup for each channel.

Audio

Audio Input

8-ch 200-2000mv 10KΩ (BNC)

16-ch 200-2000mv 10KΩ (BNC)

Audio Output

1-ch audio output 200-3000mv 5KΩ(BNC)

Bidirectional
Audio

1-ch audio input 200-3000mv 10KΩ(BNC)
1-ch audio output 200-3000mv 5KΩ(BNC)

Hard disk

Hard Disk

8 built-in SATA port. Support 8 HDD.

Hard Disk
Occupation

Audio：PCM 28.8MByte/h
Video：56-900MByte/h

Record and
playback

Recording
Mode

Manual recording, motion detection recording, schedule recording and
alarm recording
Priority: Manual recording> alarm recording>motion detection
recording>schedule recording.

Storage Mode

Support channel record quota setup

Recording
Length

1 to 120 minutes single record duration (Default setup is 60 minutes)

27

Playback
Repeat Way

When hard disk is full, system can overwrite previous video file.
Record Search

Various search engines such as time, type and channel.

Playback Mode

Various fast play, slow play speeds, manual frame by frame playback
and reverse play mode.

Various File
Switch Ways

Can switch to previous or next file or any file in current play list.
Can switch to file on other channel of the same time. (If there is a file)
Support file continuous play, when file is end system auto plays the
next file in the current channel

Playback Way

Support mark playback

Multi-channel
Playback

Support single channel, 4 channel, 9 channel and 16 channel
modes

Window
Zoom

Switch between self-adaptive screen/full screen when playback

Partial
Enlargement

When in one-window full-screen playback mode, you can select any
zone to activate partial enlargement function.

Real-time
Playback

The preview channel can playback the previous 5 to 60 minutes record
of current channel.

Backup
function

Backup Mode

HDD backup

Support peripheral USB backup device. (Flash disk, portable disk,
USB burner and etc.)

RAID0/RAID1/RAID5/RAID10/Hotspare

Support external eSATA device backup

Support network download and save

Network
Function

Network control

View monitor channel remotely.

DVR configuration through client-end and web browser

Upgrade via client or browser to realize remote maintenance.

View alarm information such as external alarm, motion detection and
video loss via client.

Support network PTZ lens control

File download backup and playback

Multiple devices share information via corresponding software such as
professional surveillance software (PSS)

Duplex transparent COM

Network alarm input and output

Bidirectional audio.

The dual-network port has the multiple-access, fault-tolerance,
load-balance setup mode.

28

Motion
Detection and
Alarm

Motion
Detection

4 zone setups: support 396((PAL 22×18, NTSC 22×15)) detection
zones.
Various sensitivity levels and threshold setups.
Alarm can activate record or external alarm or screen message
prompt.
Once any of the four zones is triggered, the motion detect of current
channel is valid now.

Video Loss

Alarm can activate external alarm or screen message prompt.

External Alarm

Support record activation function or activate external alarm or screen
message in specified period.

Manual Alarm
Control

Enable or disable alarm input channel
Support analog alarm signal to specific alarm output channel.

Alarm Input

16-ch alarm input（NO/NC.）

Alarm Output

6-channel relay output. (Including one controllable DC+12v
output)

Alarm Relay

30VDC 2A，125VAC 0.5A（activation alarm ）

Interface

USB Interface

4 USB 2.0 ports.

Network
connection

Two RJ45 10M/100M/1000M self-adaptable Ethernet ports
RS485

PTZ control port
Support various PTZ control protocols.

RS232

Ordinary COM (Debug),keyboard connection and transparent serial
port(COM input and output via network )

System
Information

Hard Disk
Information

Display HDD current status

Data Stream
Statistics

Data stream statistics for each channel (in wave mode)
Log statistics

Backup to 1024 log files.
Support various search engines such as time and type.

Version

Display version information: channel amount, alarm input and output
amount, system version and release date.

On-line user

Display current on-line user

Remote device
info

View remote device status information.

Network
information

View network load, test network status and implement network sniffer.

User
Management
User
Management

Multi-lever user management; various management modes
Integrated management for local user, serial port user and network
user.
Configurable user power.

Support user /group and its corresponding rights modification.
No limit to the user or group amount.

29

Password
Authentication

Password modification
Administrator can modify other user’s password.

Account lock strategy
Five times login failure in thirty minutes may result in account lock.

Upgrade

Web browser, client-end and update tool.

Login, Logout and Shutdown

Password login protection to guarantee safety

User-friendly interface when login. Provide the following options:
Logout /shutdown/ restart.

Right authentication when shut down to make sure only those proper
people can turn off DVR

General
Parameter

Power

AC90~264V/AC90~264V 50+2% Hz (Max. 220W)

Power
Consumption

＜40W (Exclude HDD)

Working
Temperature

-10℃－＋55℃

Working
Humidity

10%－90%
Air Pressure

86kpa－106kpa

Dimension

Removable 2U standard industrial case. 444mm×430mm×87mm

Weight

11.5kg～13.0 kg (Exclude HDD)

Installation
Mode

Desktop/rack installation

30

2 Overview and Controls

This section provides information about front panel and rear panel. When you install this
series DVR for the first time, please refer to this part first.

2.1 Front Panel

2.1.1 2U Series

This series products’ front panel is shown as below. See Figure 2-1.

Figure 2-1

Please refer to the following sheet for front panel button information.

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or
shut down DVR.

Number button

0-9

Input Arabic number
Switch channel

Input number
more than 10

-/--

If you want to input a number more than 10, please click this
button and then input.

Shift



In textbox, click this button to switch between numeral,
English(Small/Capitalized),donation and etc.

Enable or disable tour.

Fast play



Various fast speeds and normal playback.

Slow play

Multiple slow play speeds or normal playback.

Play/Pause



In normal playback click this button to pause playback
In pause mode, click this button to resume playback.

Reverse/Pause



In normal playback or pause mode, click this button to reverse
playback
In reverse playback, click this button to pause playback.

Play previous



In playback mode, playback the previous video

Play Next



In playback mode, playback the next video
In menu setup, go to down ward of the dropdown list.

31

Up/
Down

、

Activate current control, modify setup, and then move up and
down.

Increase/decrease numeral.

Assistant function such as PTZ menu.

Left/
Right

 

Shift current activated control, and then move left and right.

When playback, click these buttons to control playback bar.

ESC

ESC
Go to previous menu, or cancel current operation.

When playback, click it to restore real-time monitor mode.

Enter

ENTER
Confirm current operation

Go to default button

Go to menu

Assistant

Fn

One-window monitor mode, click this button to display assistant
function: PTZ control and image color.

Backspace function: in numeral control or text control, press it for

1.5 seconds to delete the previous character before the cursor.

In motion detection setup, working with Fn and direction keys to
realize setup.

In text mode, click it to switch between numeral, English
character(small/capitalized) and etc.

In HDD management interface, you can click it to switch HDD
record information and other information (Menu prompt)

Realize other special functions.

Record

REC

Manually stop/start recording, working with direction keys
or numeral keys to select the recording channel.

Window switch

Mult

Click it to switch one-window/multiple-window.

Shuttle(outer
ring)

In real-time monitor mode it works as left/right direction key.
Playback mode, counter clockwise to forward and clock wise to
backward.

Jog(inner dial)

Up/down direction key.
Playback mode, turn the inner dial to realized frame by frame
playback. (Only applies to some special versions.)

USB port

To connect USB storage device, USB mouse, burner and etc.

Record light

1-32

For 4/8/16 channel device: indication light on means that the
channel is in recording.

For 32 channel device:
Indication Light on: 1-16 channel is in recording
Indication Light flashes: 17-32 channel is in recording
Indication Light normally on: the corresponding channels are in
recording

Remote control
indication light

ACT

Remote control indication light

Status indication
light

Status

The light is on if device operates properly.

Power indication
light

PWR

Power indication light
IR Receiver

IR

It is to receive the signal from the remote control.
